Are you looking to breathe new life into your old Apple LCD Cinema Display by connecting it to your shiny new MacBook Air? You're in luck! This comprehensive guide will walk you through the process of connecting your LCD Cinema Display to your MacBook Air, ensuring you can enjoy that extra screen real estate and stunning visual quality. We'll cover everything from the necessary adapters to troubleshooting tips, so you can make the most of your setup.
Before we dive into the connection process, it's essential to understand the hardware you're working with. The Apple LCD Cinema Display was a popular external monitor produced by Apple between 2004 and 2011. It came in various sizes, including 20-inch, 23-inch, and 30-inch models. These displays used different connection types, primarily DVI and Mini DisplayPort.
On the other hand, modern MacBook Air models, especially those with M1 or M2 chips, come equipped with USB-C/Thunderbolt ports. This difference in connection types is the main challenge we need to overcome.
To connect your LCD Cinema Display to your MacBook Air, you'll need the right adapters. The specific adapter you need depends on your Cinema Display model:
1. For 20-inch and 23-inch Cinema Displays (DVI connection):
- USB-C to DVI adapter
- DVI cable (usually comes with the display)

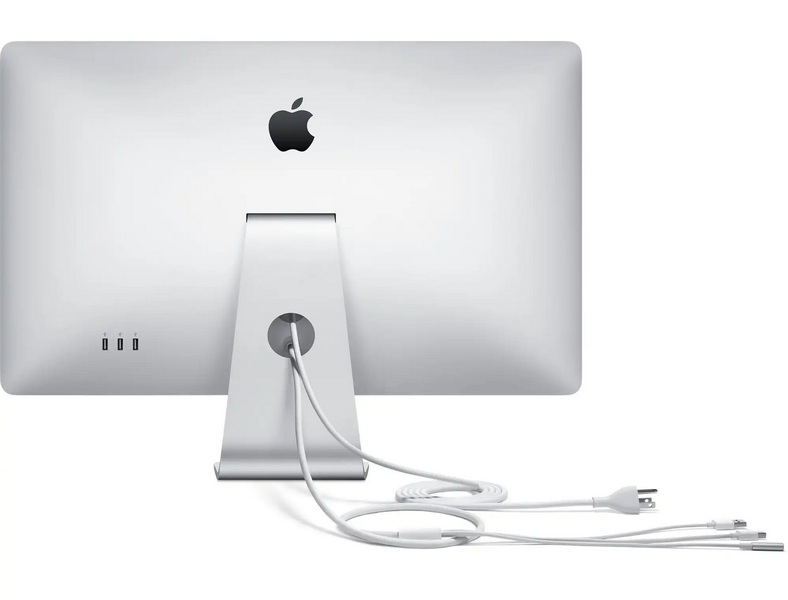

2. For 27-inch LED Cinema Display (Mini DisplayPort connection):
- USB-C to Mini DisplayPort adapter
3. For 30-inch Cinema Display (Dual-Link DVI connection):
- USB-C to Dual-Link DVI adapter (active adapter)
It's crucial to note that the 30-inch Cinema Display requires a special active adapter due to its use of Dual-Link DVI. This adapter is typically more expensive than the others.
Now that you have the necessary adapters, let's go through the connection process step by step.
Clear your desk and ensure you have all the required components:
- Your MacBook Air
- Your LCD Cinema Display
- The appropriate adapter
- Power cables for both devices

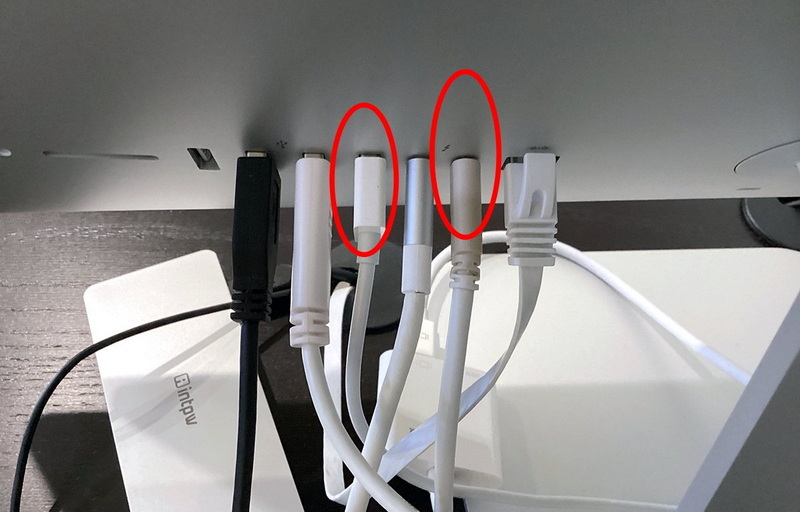

Depending on your Cinema Display model:
- For DVI models: Connect the DVI end of your adapter to the DVI cable from your Cinema Display.
- For Mini DisplayPort models: Connect the Mini DisplayPort end of your adapter directly to the cable from your Cinema Display.
Plug the USB-C end of your adapter into one of the USB-C/Thunderbolt ports on your MacBook Air.
Ensure both your MacBook Air and Cinema Display are connected to power sources. Turn on your Cinema Display first, then your MacBook Air.
Once connected, your MacBook Air should automatically detect the Cinema Display. If it doesn't, you may need to:
1. Click on the Apple menu and select "System Preferences"
2. Choose "Displays"
3. Click on the "Detect Displays" button
You can now adjust your display arrangement, resolution, and other settings to your liking.
If you're experiencing problems with your connection, try these troubleshooting steps:
1. Check all cable connections and ensure they're secure.
2. Restart both your MacBook Air and Cinema Display.
3. Try a different USB-C port on your MacBook Air.
4. Update your MacBook Air to the latest macOS version.
5. Reset the NVRAM on your MacBook Air.
If problems persist, you may need to consider using a different adapter or consulting Apple Support.

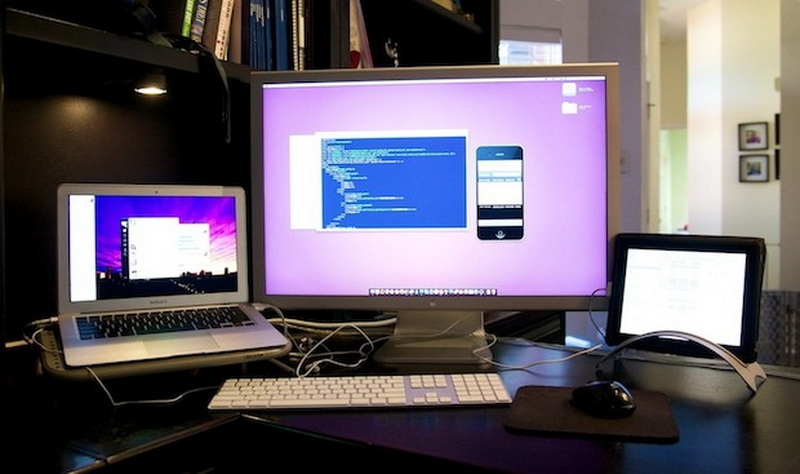

Now that you've successfully connected your LCD Cinema Display to your MacBook Air, it's time to make the most of your dual display setup. Here are some tips:
1. Use Mission Control to manage windows across both displays efficiently.
2. Consider using your Cinema Display in portrait mode for coding or document editing.
3. Utilize apps like Magnet or Rectangle to quickly organize windows.
4. Calibrate both displays for consistent color reproduction.
Connecting your LCD Cinema Display to your MacBook Air offers several advantages:
1. Increased screen real estate for multitasking
2. Better ergonomics by allowing you to position screens at eye level
3. Improved color accuracy and visual quality for creative work
4. The ability to mirror your MacBook Air's display for presentations
Connecting your LCD Cinema Display to your MacBook Air might seem daunting at first, but with the right adapters and a bit of know-how, it's a straightforward process. Not only does this setup breathe new life into your old display, but it also enhances your productivity and overall computing experience. Whether you're a creative professional, a programmer, or just someone who appreciates extra screen space, this dual-display setup is sure to elevate your workflow.
Yes, you can use your LCD Cinema Display with the latest M1 or M2 MacBook Air. The key is to use the correct adapter that converts the USB-C/Thunderbolt output of your MacBook Air to the input required by your specific Cinema Display model (DVI, Mini DisplayPort, or Dual-Link DVI).
No, you don't need to install any special drivers. macOS should automatically recognize and configure the display once it's properly connected. However, you may need to adjust display settings in System Preferences to optimize the setup.
If you're using a simple video adapter (like USB-C to DVI or Mini DisplayPort), the USB ports on the Cinema Display won't function. To use these ports, you'd need a more complex adapter or dock that supports both video and USB data transfer.

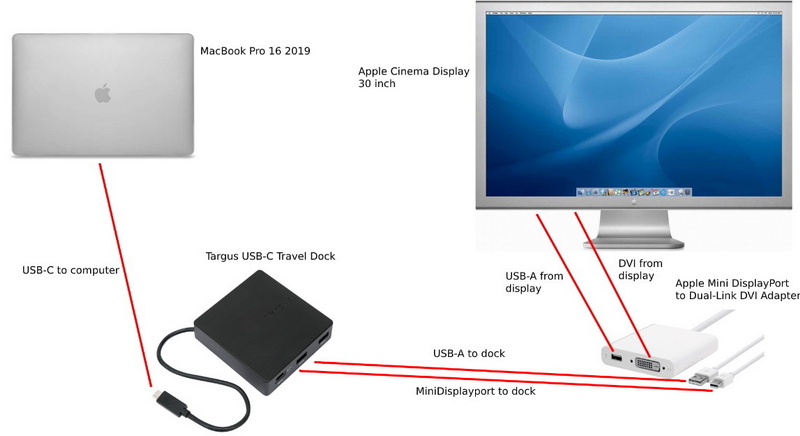

The 30-inch Cinema Display uses Dual-Link DVI, which requires more bandwidth than Single-Link DVI. You need a special active adapter that can convert USB-C to Dual-Link DVI. These adapters are typically more expensive but are necessary for the 30-inch model to function correctly.
While LCD Cinema Displays are older technology, they still offer excellent picture quality and can significantly increase your workspace. If you already own one, it's often worth the small investment in an adapter to continue using it. However, if you're considering purchasing a used Cinema Display, you might want to compare its specs and price with modern USB-C monitors.
