Are you looking to enhance your Raspberry Pi projects with a compact, touch-enabled display? Look no further than the 3.5 LCD display! This versatile screen is perfect for creating portable devices, interactive interfaces, or simply adding visual output to your Pi-powered creations. In this comprehensive guide, we'll walk you through the process of connecting and setting up a 3.5 LCD display on your Raspberry Pi, complete with step-by-step instructions, troubleshooting tips, and answers to frequently asked questions.
Before we dive into the setup process, make sure you have the following items:
- Raspberry Pi (any model with a 40-pin GPIO header)
- 3.5 LCD display compatible with Raspberry Pi
- Micro SD card with Raspbian OS installed
- Power supply for your Raspberry Pi
- HDMI monitor, keyboard, and mouse (for initial setup)
- Internet connection (Wi-Fi or Ethernet)
Before we begin the setup process, it's essential to understand what makes the 3.5 LCD display a popular choice for Raspberry Pi enthusiasts:
The 3.5 LCD display is incredibly compact, making it ideal for portable projects. Its small form factor allows you to create handheld devices or integrate displays into tight spaces where larger screens wouldn't fit.
Most 3.5 LCD displays for Raspberry Pi come with built-in touch functionality. This feature enables you to create interactive interfaces without the need for additional input devices, perfect for kiosks, control panels, or portable gaming consoles.
These displays are designed to connect directly to the Raspberry Pi's GPIO pins. This direct connection not only simplifies the setup process but also reduces cable clutter, making your projects neater and more compact.
Compared to larger displays, the 3.5 LCD consumes less power. This characteristic is particularly beneficial for battery-powered projects or when working with limited power sources.
For many projects, a full-sized monitor might be overkill. The 3.5 LCD display offers a cost-effective alternative that still provides ample screen real estate for many applications.

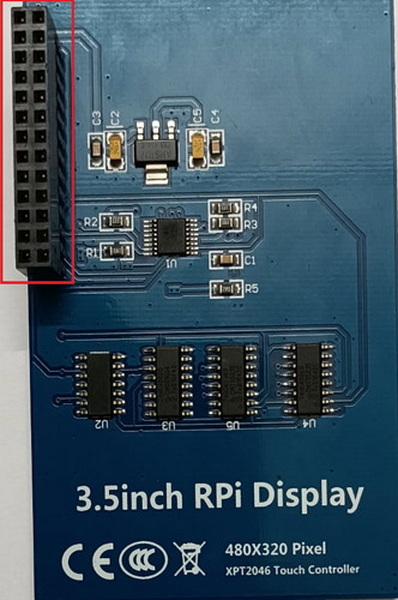

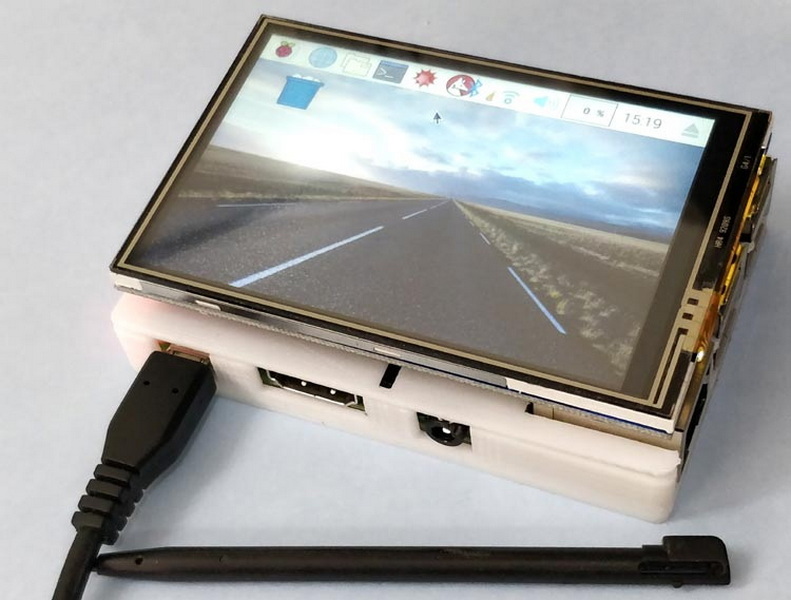

The first step is to physically connect your 3.5 LCD display to your Raspberry Pi:
1. Ensure your Raspberry Pi is powered off and unplugged.
2. Locate the 40-pin GPIO header on your Raspberry Pi.
3. Carefully align the pins on the LCD display with the GPIO header.
4. Gently press down to secure the display onto the Raspberry Pi.
It's crucial to handle the components with care during this step. The pins are delicate, and misalignment could potentially damage both the display and your Raspberry Pi. Take your time and double-check the connection before proceeding.
Now that the hardware is connected, let's boot up your Raspberry Pi and install the necessary drivers:
1. Connect your Raspberry Pi to an HDMI monitor, keyboard, and mouse.
2. Insert the Micro SD card with Raspbian OS and power on your Pi.
3. Once booted, ensure you have an active internet connection.
4. Open the terminal and enter the commands to download and install the LCD drivers.
During this process, your Raspberry Pi will download the necessary files and configure the system to work with the new display. Be patient, as this may take a few minutes depending on your internet speed.
To ensure accurate touch input, you may need to calibrate your screen:
1. Open the terminal and install the calibration tool.
2. Run the calibration tool.
3. Follow the on-screen instructions, touching the crosshairs as they appear.
4. Save the calibration data when prompted.
Proper calibration is crucial for a good user experience, especially when developing touch-based applications. Take your time during this step to ensure the highest accuracy possible.
You can fine-tune your display settings for optimal performance:
1. Open the Raspberry Pi Configuration tool.
2. Navigate to "Display Options" and adjust resolution, orientation, or other settings as needed.
3. Save changes and exit.
Experiment with different settings to find the optimal configuration for your specific project needs. You may need to adjust these settings again later depending on the requirements of your applications.
Now that everything is set up, it's time to test your new display:
1. Open the terminal and run a simple Python script to display text and shapes.
2. If everything is working correctly, you should see the output on your 3.5 LCD display.
This test helps confirm that both the display and touch functionality are working as expected. If you encounter any issues, refer to the troubleshooting section below.
If you encounter a white screen after connecting your LCD:
1. Double-check all physical connections.
2. Ensure you've installed the correct drivers for your specific LCD model.
3. Try rebooting your Raspberry Pi.
A white screen often indicates a driver issue or an improper connection. Carefully review your setup process and make sure you're using the correct software for your specific display model.
If touch input is unresponsive:
1. Verify that your LCD model supports touch input.
2. Re-run the calibration tool.
3. Check for any conflicting input devices in your Raspbian settings.
Sometimes, touch input issues can be resolved by simply recalibrating the screen or updating your system software. If problems persist, consult the documentation for your specific LCD model.
To adjust the display orientation:
1. Edit the config.txt file.
2. Add or modify the display_rotate line.
3. Save the file and reboot your Raspberry Pi.
Remember that changing the display orientation may also affect the touch input orientation. You may need to recalibrate the touch input after changing the display orientation.
Now that your 3.5 LCD display is up and running, the possibilities for your Raspberry Pi projects are endless! Here are some ideas to get you started:
1. Portable Media Player: Create a compact music or video player using your Pi and the LCD screen. You can use libraries like VLC or OMXPlayer to handle media playback, and design a touch-friendly interface for easy navigation through your media library.
2. Smart Home Control Panel: Design an interactive interface for controlling your smart home devices. Integrate with platforms like Home Assistant or OpenHAB to create a centralized control system for lights, thermostats, and other IoT devices.
3. Mini Weather Station: Display real-time weather data and forecasts on your LCD screen. Use APIs from services like OpenWeatherMap to fetch weather information, and create visually appealing graphics to present the data.
4. Retro Gaming Console: Turn your Raspberry Pi into a portable gaming device with emulators and the touch display. Platforms like RetroPie or Recalbox can be adapted to work with the touch interface, allowing you to enjoy classic games on the go.
5. Digital Photo Frame: Showcase your favorite photos on a rotating display. Write a simple Python script to cycle through images stored on your Raspberry Pi, or integrate with cloud storage services to display photos from your online albums.
6. System Monitor: Create a compact display for monitoring your Raspberry Pi's system resources. Show CPU usage, memory consumption, network activity, and other vital statistics in real-time.
7. Interactive Kiosk: Develop an information kiosk for events, museums, or public spaces. The touch interface makes it easy for users to navigate through information, maps, or schedules.
8. Portable Oscilloscope: With additional hardware, you can turn your Raspberry Pi and LCD display into a basic oscilloscope. This can be a great tool for electronics enthusiasts and makers.
9. Smart Mirror: While a 3.5 display might be small for a full smart mirror, it can be perfect for a compact version that shows time, weather, and notifications in a small form factor.
10. Robotics Control Panel: If you're into robotics, the LCD display can serve as a control panel for your robot. Display sensor data, camera feed, or provide touch controls for manual operation.
Remember, the key to successful projects with the 3.5 LCD display is to design your interfaces with the small screen size in mind. Focus on presenting essential information clearly and make use of the touch functionality to create intuitive user experiences.
To get the most out of your 3.5 LCD display, consider these optimization tips:
1. Use Lightweight Desktop Environments: If you're running a graphical interface, opt for lightweight options like LXDE or Xfce to reduce the strain on your Raspberry Pi's resources.
2. Optimize Your Code: When writing applications for the display, focus on efficient code to ensure smooth performance, especially for graphics-intensive projects.
3. Consider Overclocking: For more demanding applications, you might want to consider overclocking your Raspberry Pi. However, be cautious and ensure proper cooling to prevent damage.
4. Manage Power Efficiently: If you're creating a portable project, implement power-saving features like screen dimming or sleep mode to extend battery life.
5. Regular Updates: Keep your Raspberry Pi's operating system and drivers up to date to benefit from performance improvements and bug fixes.
Connecting a 3.5 LCD display to your Raspberry Pi opens up a world of possibilities for creating compact, interactive projects. By following this guide, you should now have a fully functional touchscreen display ready for your next Raspberry Pi adventure. Remember to experiment with different software and applications to make the most of your new setup.
The 3.5 LCD display is more than just a screen; it's a gateway to creating innovative, portable, and interactive projects. Whether you're building a smart home controller, a retro gaming console, or a digital weather station, this compact display provides the perfect balance of functionality and size.
As you embark on your projects, don't be afraid to push the boundaries of what's possible with this small but mighty screen. The combination of Raspberry Pi's versatility and the interactivity of the touch display creates a powerful platform for bringing your ideas to life.
Remember to share your creations with the Raspberry Pi community. Your projects could inspire others and contribute to the ever-growing ecosystem of innovative Pi-based solutions. Happy tinkering, and may your Raspberry Pi adventures be filled with creativity and success!
1. Compact size for portable projects
2. Touch input capabilities for interactive applications
3. Direct connection to GPIO pins, reducing cable clutter
4. Low power consumption compared to larger displays
5. Affordable option for adding visual output to Raspberry Pi projects
Yes, it is possible to use both the 3.5 LCD display and an HDMI monitor simultaneously with your Raspberry Pi. However, you may need to configure your system to support dual displays and adjust the display settings accordingly. This setup can be useful for development or when you need both a touch interface and a larger screen for detailed work.
To revert to using only the HDMI output:
1. Open the terminal and navigate to the LCD-show directory.
2. Run the command to switch back to HDMI.
3. Your Raspberry Pi will reboot, and the display will switch back to the HDMI output.
You can use various programming languages to create applications for your 3.5 LCD display, including:
1. Python (with libraries like Pygame or Tkinter for GUI development)
2. C/C++ (using frameworks like Qt or GTK)
3. Java (with JavaFX or Swing for GUI applications)
4. Node.js (for web-based interfaces)
5. Scratch (for simple, visual programming projects)
Choose the language that best suits your project requirements and programming experience.
While 3.5 LCD displays are versatile, there are some limitations to keep in mind:
1. Limited screen real estate for complex interfaces
2. Lower resolution compared to larger displays
3. Potential impact on overall system performance due to shared resources
4. May require additional power management considerations for portable projects
5. Some applications may need modification to work well on a smaller touch screen
Consider these factors when planning your Raspberry Pi projects to ensure the best user experience.
