Organic Light Emitting Diode (OLED) displays have become a favorite component in Arduino projects due to their sharp visuals, low power consumption, and compact size. Whether you want to create a simple text display or a dynamic graphical interface, OLED screens offer excellent versatility. This comprehensive guide will walk you through everything you need to know to code an OLED screen with Arduino, from wiring and library installation to displaying text, graphics, images, and animations. We will focus on the popular SSD1306 OLED display with I2C interface, which is beginner-friendly and widely available. By the end of this article, you will be able to confidently integrate OLED displays into your Arduino projects.
OLED stands for Organic Light Emitting Diode. Unlike traditional LCDs that require backlighting, OLED displays emit light from each pixel individually. This results in high contrast ratios, vibrant colors, wide viewing angles, and energy efficiency because only the lit pixels consume power. For Arduino projects, monochrome OLEDs with resolutions like 128×64 or 128×32 pixels are common, typically in sizes ranging from 0.96 inch to 1.3 inch diagonally.
The self-illuminating nature of OLEDs means they produce deep blacks and bright whites, making text and graphics crisp and easy to read even in low light. Their thin and lightweight design makes them ideal for compact embedded systems.
When selecting an OLED display for Arduino, you will encounter two main communication protocols:
- I2C (Inter-Integrated Circuit): This protocol uses just two data lines—SDA (data) and SCL (clock)—along with power and ground. It simplifies wiring and is supported by almost all Arduino boards. Most beginner-friendly OLED modules use I2C.
- SPI (Serial Peripheral Interface): This protocol requires more pins (usually 5 or 6) including MOSI, SCLK, CS (chip select), DC (data/command), and RESET. SPI can be faster and more flexible but involves more complex wiring.
For beginners, the I2C interface is recommended due to its simplicity. The SSD1306 driver chip is the most common controller for these OLED modules, with excellent support in Arduino libraries.
To get started, you will need the following:
- An Arduino board (Uno, Nano, Mega, or similar)
- An SSD1306 OLED display module with I2C interface (128×64 pixels recommended)
- Jumper wires for connections
- Breadboard (optional, for prototyping)
- USB cable to connect Arduino to your computer
- Arduino IDE installed on your computer

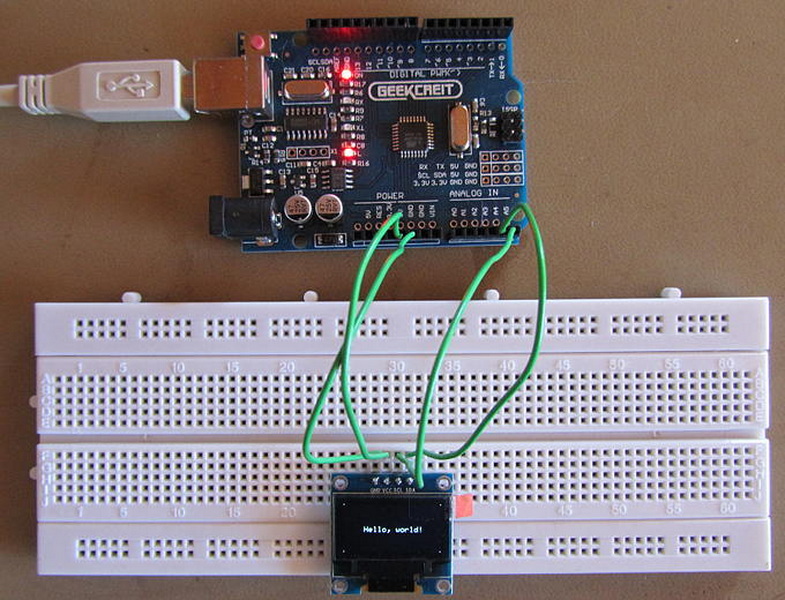

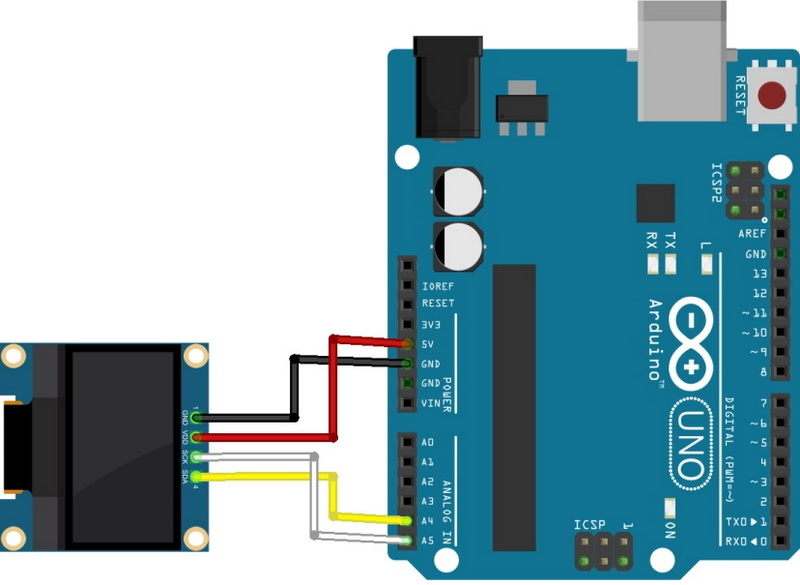

Wiring an I2C OLED display to an Arduino is straightforward. The OLED module typically has four pins: VCC, GND, SDA, and SCL.
OLED Pin | Arduino Uno Pin | Description |
---|---|---|
VCC | 5V | Power supply |
GND | GND | Ground |
SDA | A4 | I2C Data line |
SCL | A5 | I2C Clock line |
Note that for other Arduino boards, the I2C pins may differ:
- Arduino Nano: SDA = A4, SCL = A5
- Arduino Mega: SDA = 20, SCL = 21
- Arduino Leonardo: SDA = 2, SCL = 3
If your OLED module has a RESET pin, you can connect it to a digital pin or leave it disconnected and define it as -1 in your code.
To control the OLED display, you need to install two essential libraries in the Arduino IDE:
- Adafruit SSD1306: This is the driver library for SSD1306 OLED displays.
- Adafruit GFX: This core graphics library provides functions to draw text, shapes, and images.
You can install these libraries via the Arduino IDE's Library Manager by searching for their names and clicking install. These libraries abstract the low-level communication and provide easy-to-use functions.

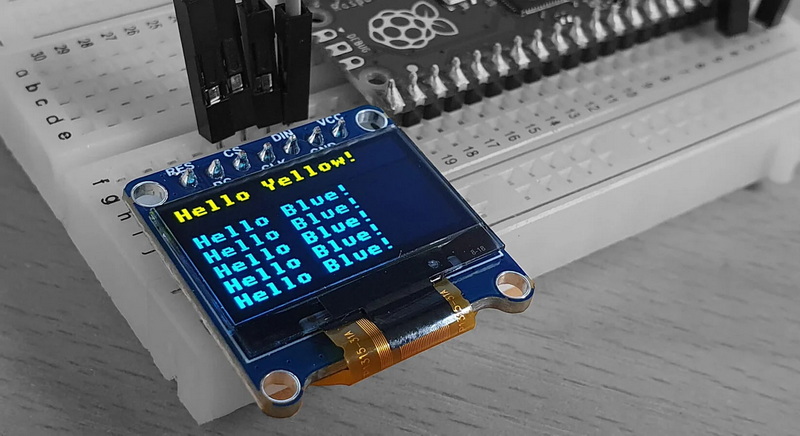

Once wired and libraries are installed, you can start by displaying simple text. The Adafruit SSD1306 library provides functions to set text size, color, and cursor position.
You can display text by:
- Initializing the display
- Clearing the screen buffer
- Setting the cursor position
- Choosing text size and color
- Printing the text
- Sending the buffer to the display
This process ensures your message appears clearly on the OLED.
The Adafruit GFX library extends functionality beyond text. You can draw:
- Pixels
- Lines
- Rectangles (outlined or filled)
- Circles and ellipses
- Triangles
- Rounded rectangles
These drawing functions allow you to create custom graphics, indicators, or even simple games on your OLED screen. For example, you can draw a battery icon, signal bars, or a progress bar to enhance your project's user interface.
Displaying images on OLED requires converting an image file into a monochrome bitmap array that Arduino can use. This involves:
1. Creating or selecting a black-and-white image with the same resolution as your OLED (e.g., 128×64 pixels).
2. Using an online converter tool to transform the image into a byte array formatted for Arduino.
3. Including this byte array in your Arduino sketch.
4. Using the `drawBitmap()` function to render the image on the screen.
This technique is useful for logos, icons, or any static graphics you want to show.
Animations can add dynamic feedback or visual appeal to your projects. You can create animations by:
- Updating graphics or text positions in the loop.
- Cycling through a series of bitmap images.
- Using timers to control frame rates.
For example, you can animate a loading spinner, a bouncing ball, or scrolling text. Since the OLED screen refreshes quickly, smooth animations are achievable with efficient code.
- Use double buffering: Prepare your graphics in memory before pushing them to the display to avoid flickering.
- Optimize memory usage: OLED displays have limited RAM; avoid large arrays or complex images that exceed Arduino's memory.
- Adjust text size and fonts: The Adafruit GFX library supports different text sizes and custom fonts to improve readability.
- Power management: OLEDs consume less power than LCDs but turning off the display when idle can save battery life in portable projects.
- Use scrolling: The SSD1306 supports hardware scrolling features, which can be controlled via library functions for smooth horizontal or vertical scrolling effects.
If your OLED screen does not display anything:
- Double-check wiring connections, especially SDA and SCL.
- Use an I2C scanner sketch to verify the OLED's address (commonly 0x3C or 0x3D).
- Confirm that your OLED module is powered correctly (3.3V or 5V depending on the model).
- Make sure the reset pin is correctly defined or connected.
- Verify that the Adafruit SSD1306 and GFX libraries are installed and included properly.
- Use Serial Monitor to check for error messages during initialization.
- Weather Station Display: Show temperature, humidity, and pressure data.
- Digital Clock: Display time and date with custom fonts.
- Game Interface: Create simple games like Snake or Pong using graphics functions.
- Sensor Data Visualization: Plot sensor readings like distance or light intensity.
- Menu Systems: Build interactive menus for controlling devices or settings.
These projects demonstrate the versatility of OLED displays and how they can enhance Arduino applications.
OLED screens offer a powerful and visually appealing way to display information in Arduino projects. Their bright, high-contrast displays combined with low power consumption make them ideal for portable and embedded systems. By understanding how to wire the OLED, install the necessary libraries, and use the provided functions to display text, graphics, images, and animations, you can unlock a wide range of creative possibilities. Whether you are a beginner or an experienced maker, mastering OLED coding with Arduino will elevate your projects to the next level.
You can upload an I2C scanner sketch to your Arduino, which scans all possible addresses and reports devices found. Most OLEDs use 0x3C or 0x3D.
Check wiring, ensure the display is powered, verify the I2C address, and confirm the reset pin configuration. Also, check that the required libraries are installed.
Yes, SPI OLEDs require more pins and different code. You need to include the SPI library and specify pins like CS, DC, and RESET.
Convert your image to a monochrome bitmap array using an online converter, then use the `drawBitmap()` function to render it.
Yes, by updating the display buffer with different images or graphics in a loop, you can create animations. Tools exist to help generate animation code.
