OLED (Organic Light Emitting Diode) screens have become a popular choice for embedded projects due to their excellent display quality, low power consumption, and compact size. Whether you are working on an Arduino, ESP32, or other microcontroller, learning how to code an OLED screen will open up many possibilities for creating interactive and visually appealing devices. This article provides a thorough guide to coding OLED screens, covering hardware setup, programming basics, advanced features, and troubleshooting. Along the way, you will find detailed explanations, code examples, and conceptual illustrations to help you master OLED display programming.
OLED displays are thin, lightweight screens that emit light from organic compounds when an electric current passes through them. This self-emissive property allows OLEDs to produce deep blacks and high contrast ratios, making them ideal for small display projects.
The most commonly used OLED screens in microcontroller projects are:
- 0.91 inch OLED with a resolution of 128x32 pixels
- 0.96 inch OLED with a resolution of 128x64 pixels
These sizes strike a balance between readability and compactness, fitting easily on breadboards and small devices.
OLED screens generally communicate with microcontrollers using either the I2C or SPI protocol:
- I2C (Inter-Integrated Circuit): Uses two wires—SDA (data) and SCL (clock)—making wiring simple and saving pins on your microcontroller. It is slower but sufficient for most text and simple graphics.
- SPI (Serial Peripheral Interface): Uses four or more wires, including MOSI, SCK, CS, and DC pins. SPI offers faster data transfer, which is beneficial for animations or complex graphics.
Most beginner-friendly OLED modules use I2C, and the SSD1306 driver chip is widely supported by libraries.

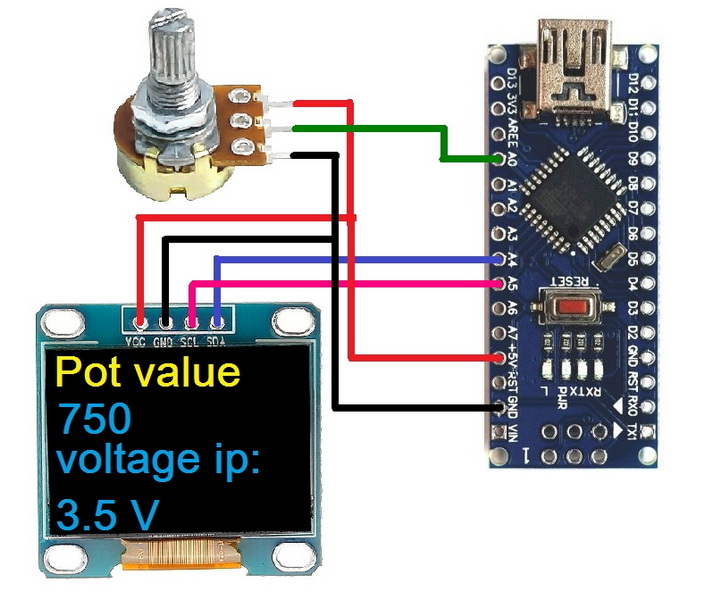

Proper wiring is crucial for OLED functionality and longevity. Here is a typical connection guide for an I2C OLED display:
- VCC: Connect to 3.3V or 5V power supply depending on your OLED specifications.
- GND: Connect to the ground of your microcontroller.
- SDA: Connect to the microcontroller's SDA pin (data line).
- SCL: Connect to the microcontroller's SCL pin (clock line).
Before powering your OLED, verify the voltage requirements to avoid damage. Many OLED modules support both 3.3V and 5V, but some are strictly 3.3V.
To program OLED displays, you need libraries that handle the low-level communication and graphics rendering:
- Adafruit_GFX: A versatile graphics library that provides basic drawing functions like lines, circles, rectangles, and text rendering.
- Adafruit_SSD1306: A driver library specifically for the SSD1306 OLED controller, managing display initialization and buffer updates.
These libraries are available through the Arduino Library Manager and compatible with platforms like Arduino IDE and PlatformIO.
After wiring the OLED, start by including the necessary libraries and defining screen parameters. Initialization involves setting the screen dimensions and I2C address, then beginning communication.
You can display text by setting the text size, color, and position on the screen. The OLED supports multiple text sizes and fonts, allowing you to customize the appearance.
The Adafruit_GFX library enables drawing geometric shapes such as lines, rectangles, circles, and triangles. These primitives help create custom interfaces, icons, or visual indicators.
One of the powerful features of OLED screens is the ability to display custom images. Since OLEDs are monochrome (black and white), images must be converted into bitmap arrays where each bit represents a pixel.
You can convert images into byte arrays using online tools designed for microcontroller displays. These tools allow you to upload an image, resize it to your OLED's resolution, and generate the necessary code.
Once converted, bitmaps can be displayed using functions that draw the image at specified coordinates. This technique is ideal for logos, icons, or any custom graphics you want to show.
OLED screens support hardware scrolling, which can be used to create marquee text or dynamic visual effects without redrawing the entire screen.
You can start scrolling text horizontally or diagonally using built-in functions. This feature is useful for displaying notifications or long messages.
Animations are created by rapidly updating the display with a series of images or frames. By drawing successive frames in a loop with short delays, you can simulate motion.
Combining text, shapes, and bitmaps, you can build a simple user interface on your OLED screen. For example, a temperature monitor might display:
- Current temperature as large text
- A thermometer icon drawn as a bitmap
- A progress bar showing temperature range
This approach demonstrates how to integrate multiple display elements for a functional project.
- Minimize screen updates: Only update parts of the screen that change to reduce flickering and improve responsiveness.
- Use double buffering: Some libraries support double buffering to prevent tearing during animations.
- Optimize code: Avoid complex calculations inside loops that update the display.
- Manage power consumption: Turn off the display or reduce brightness when not in use to save energy.
- No display or blank screen: Check wiring, power supply, and I2C address. Use an I2C scanner sketch to confirm the OLED's address.
- Garbled or flickering text: Ensure proper initialization and clear the display buffer before drawing new content.
- Incorrect fonts or graphics: Verify that the correct font files are included and that bitmap sizes match the display resolution.
- Display freezing: Avoid long blocking delays in your code and update the display regularly.
Coding an OLED screen is a rewarding skill for anyone interested in embedded systems and microcontroller projects. By understanding the hardware connections, mastering the programming libraries, and exploring advanced features like custom images and animations, you can create engaging and informative displays. OLED screens bring vibrant visuals to compact devices, enhancing user experience and interaction. With practice and experimentation, you will be able to leverage OLED technology for a wide range of applications, from simple text displays to complex graphical interfaces.
Upload an I2C scanner sketch to your microcontroller to detect connected devices. The OLED's address is typically 0x3C or 0x3D.
Yes, by including font libraries and using the `setFont()` function, you can display a variety of fonts and sizes.
Convert images to bitmap byte arrays using online tools, then use drawing functions to render them on the screen.
I2C uses fewer wires and is easier to connect but slower. SPI uses more wires but offers faster data transfer, suitable for animations.
Create sequences of bitmap frames and update the display rapidly in a loop to simulate motion.
