Views: 222 Author: Tina Publish Time: 2025-02-23 Origin: Site
Content Menu
● Step-by-Step Guide to Change the LCD Display on R520
>> Step 3: Disconnect the LCD Screen
>> Step 4: Install New LCD Screen
● Troubleshooting Common Issues
>> Issue 1: The Screen Does Not Power On
>> Issue 2: Flickering or Distorted Display
>> Issue 3: Dead Pixels on New Screen
>> Issue 4: The Laptop Overheats After Installation
>> Issue 5: Unresponsive Touch Functionality (if applicable)
● FAQ
>> 1. How do I know if my LCD screen needs replacing?
>> 2. What type of replacement screen do I need for my Samsung R520?
>> 3. Can I replace my laptop screen myself?
>> 4. What should I do if my new screen doesn't work?
>> 5. How long does it take to replace an LCD screen?
Replacing the LCD display on your Samsung R520 laptop can seem daunting, but with the right tools and instructions, it can be accomplished easily. This guide will walk you through the entire process, ensuring that you have all the necessary information to successfully complete the task.
The Samsung R520 is a reliable laptop that has served many users well over the years. However, like all electronic devices, it can face issues such as a damaged or malfunctioning LCD screen. Whether due to accidental drops, pressure damage, or simply wear and tear over time, replacing the LCD display is a common maintenance task. This guide provides detailed steps for replacing your laptop's screen, along with helpful images and video links to assist you visually throughout the replacement procedure.
Before starting, gather the following tools:
- Small Phillips screwdriver (PH1): Essential for removing screws.
- Exacto knife or utility knife: Useful for prying off rubber covers.
- Tweezers: Helpful for handling small screws and connectors.
- Plastic prying tool: Prevents damage to the laptop casing while removing components.
- Replacement LCD screen: Ensure it is compatible with your Samsung R520 model.
1. Power Off the Laptop: Ensure your Samsung R520 is completely shut down. This prevents any electrical issues during the replacement process.
2. Unplug All Cables: Disconnect any power cables and peripherals connected to the laptop. This includes USB devices, external monitors, and power adapters.
3. Work in a Clean Area: Find a flat, clean surface to work on to avoid losing screws or damaging components. A well-lit area will also help you see small parts clearly.
1. Locate the Screws: The bezel is held in place by several screws, typically hidden under rubber covers. Use your Exacto knife to gently pry off these covers.
2. Unscrew the Bezel: Using your Phillips screwdriver, remove all screws securing the bezel. Keep these screws in a small container to avoid losing them.
3. Pry Off the Bezel: Carefully use a plastic prying tool to detach the bezel from the screen. Start at one corner and work your way around gently to avoid cracking it.

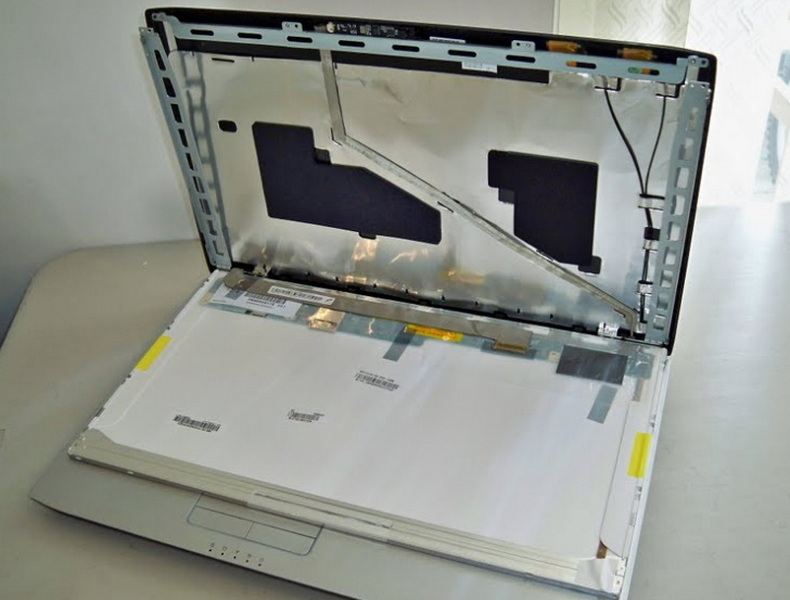

1. Remove Screws from LCD: Once the bezel is removed, you will see screws securing the LCD screen. Remove these screws carefully and set them aside.

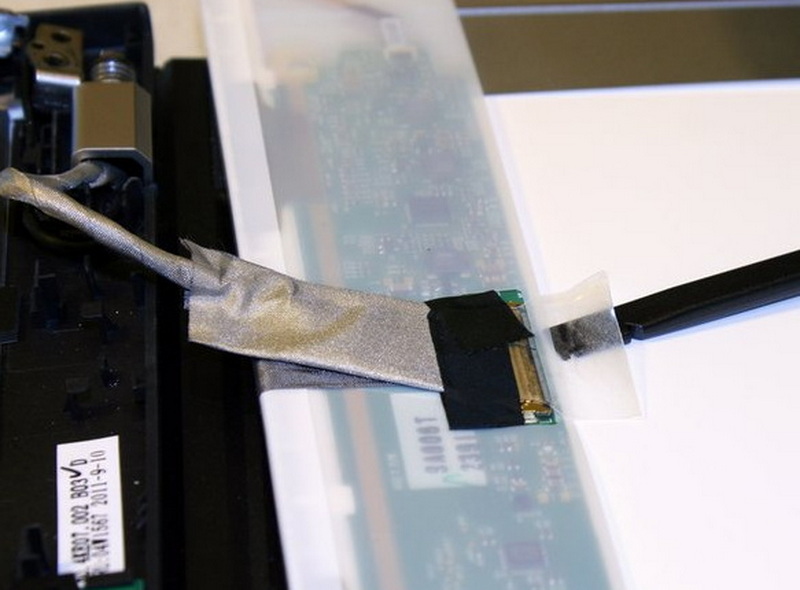

2. Disconnect Display Cable: Locate the display cable at the back of the screen and gently pull it out from its connector. Be cautious not to pull too hard as this could damage other components.
1. Connect New Screen: Take your new LCD screen and connect it to the display cable, ensuring it is securely in place. Make sure that the connector aligns properly before pushing it in.
2. Screw in New Screen: Reattach any screws that hold the new screen in place. Ensure they are tightened but do not overtighten as this may crack the new screen.
1. Place Bezel Back: Align the bezel with the new screen and press it back into place carefully.
2. Secure with Screws: Replace all screws and cover them with rubber caps if applicable. Ensure that everything fits snugly without gaps.
1. Power On Laptop: Plug in your laptop and power it on to check if the new display is functioning correctly.
2. Inspect for Issues: Ensure there are no loose connections or visible issues with display quality such as dead pixels or flickering screens.
For a visual representation of these steps, refer to this helpful video tutorial:
While replacing your LCD screen is generally straightforward, you might encounter some common issues during or after installation:
- Solution: Double-check all connections between the motherboard and display cable. Ensure that everything is securely connected before attempting to power on again.
- Solution: This could be due to a loose connection or an incompatible display cable. Make sure that both ends of the display cable are firmly connected and that you are using a compatible replacement screen.
- Solution: Dead pixels can sometimes occur with new screens due to manufacturing defects. If you notice this issue immediately after installation, consider contacting your supplier for a replacement.
- Solution: Ensure that no cables are obstructing ventilation areas inside your laptop during reassembly. Check if any fans were disconnected during disassembly; reconnect them if necessary.
- Solution: If your model has touch functionality and it's not working after installation, check if there's an additional connector for touch capabilities that was overlooked during disassembly.
Changing the LCD display on your Samsung R520 can be done effectively by following these steps carefully. With patience and attention to detail, you can restore your laptop's functionality without needing professional help. Regular maintenance like this can extend your laptop's lifespan significantly and save you money in repair costs.
If your screen shows cracks, discoloration, or flickering, it's likely time for a replacement.
You will need a compatible LCD screen specifically designed for Samsung R520 models; check specifications before purchasing.
Yes, with proper tools and guidance, most users can replace their laptop screens themselves.
Check all connections to ensure they are secure; if issues persist, consult a professional technician.
The process typically takes about 30 minutes to an hour depending on experience level.
