Replacing the LCD display in your Mazda 6 wagon can seem daunting, but with the right tools and guidance, it's a manageable DIY project. This guide provides a comprehensive walkthrough, ensuring you can refresh your car's interior and restore full functionality to your display screen.

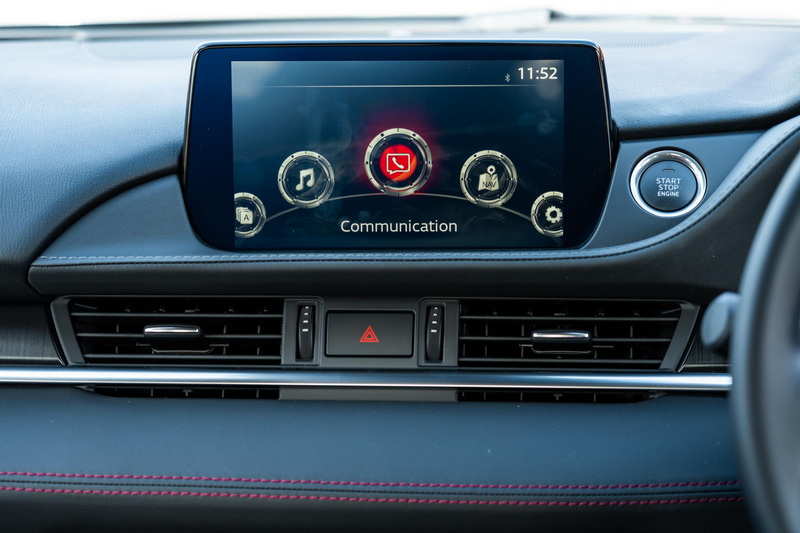

LCD display issues in Mazda 6 models can range from pixel damage to complete failure. Symptoms include:
- Dead pixels: Small black spots or discolored areas on the screen.
- Fading: The display becomes dim or unreadable.
- Inconsistent display: The screen flickers or shows distorted images.
- Complete failure: The screen remains blank.
Addressing these issues promptly is crucial for maintaining optimal visibility and access to important vehicle information[5].
Before starting, gather the necessary tools and materials:

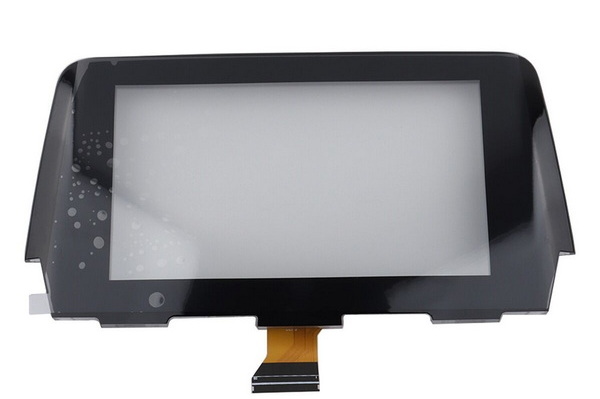

- Replacement LCD screen: Ensure it is compatible with your Mazda 6 model and year.
- Screwdrivers: Both Phillips head and flathead screwdrivers will be needed.
- Plastic pry tools: These help to avoid scratching or damaging the interior trim.
- Socket set: For removing various bolts and fasteners.
- New replacement ribbon cables: It's advisable to have these ready in case the old ones break.
- Anti-static wrist strap: Protects electronic components from static discharge.
- Work gloves: Protect your hands during the replacement process.
- A clean, well-lit workspace: Ensures you can see all components clearly.
Optional:
- Multimeter: To test electrical connections if needed.
- Soldering iron and solder: For minor repairs if necessary.
1. Disconnect the battery: Before starting any electrical work, disconnect the negative terminal of your car battery. This prevents electrical shorts and ensures your safety[1].
2. Prepare the workspace: Park your Mazda 6 in a well-lit area and ensure you have enough room to work comfortably.
1. Remove the shift knob: Unscrew the shifter knob counterclockwise[1].
2. Detach the cupholder panel: Use a plastic pry tool to gently lift the cupholder panel. It should pop out with minimal force[1].
3. Remove the PRNDL bezel/ashtray panel:
- Shift your car into "N" (make sure the parking brake is engaged).
- Disengage the clips between the ashtray panel and the cupholder panel by pushing the tabs rearward.
- Disconnect the wire harnesses that light up the PRNDL.
- Pull slightly rearward on the ashtray panel and disconnect the wire harnesses behind the panel. The panel should now pop out[1].
4. Unscrew the radio: Locate and unscrew the two Phillips head screws at the bottom of the radio[1].
5. Pull out the radio: Gently pull the radio straight back towards the rear of the car[1].
6. Remove the top panel: Once the radio is pulled out, you will see fasteners along the bottom edge of the top panel. Remove these fasteners and pull straight back on the panel to remove it[1].

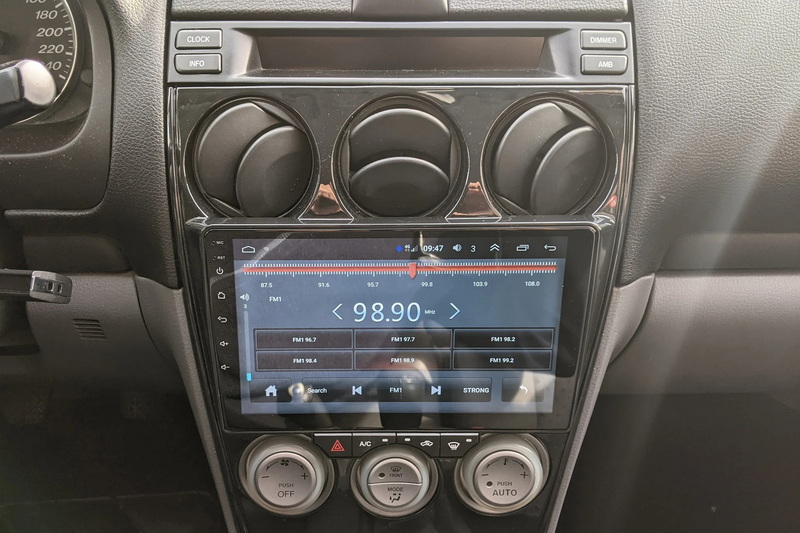

1. Locate the LCD screen: With the radio panel removed, the LCD screen will be visible.
2. Remove any additional screws or brackets: There may be additional screws or brackets holding the LCD screen in place. Remove these carefully.
3. Disconnect the ribbon cables: Gently disconnect the ribbon cables attached to the LCD screen. These cables are fragile, so handle them with care.
1. Connect the new ribbon cables: Attach the new ribbon cables to the replacement LCD screen. Ensure they are securely connected.
2. Place the new LCD screen: Position the new LCD screen in the housing, making sure it fits properly.
3. Secure the LCD screen: Replace any screws or brackets that hold the LCD screen in place.
1. Reattach the top panel: Align the top panel and push it back into place. Secure it with the fasteners[1].
2. Push the radio back in: Gently slide the radio back into the dashboard[1].
3. Reinstall the screws: Reinstall the two Phillips head screws at the bottom of the radio[1].
4. Reattach the PRNDL bezel/ashtray panel:
- Reconnect the wire harnesses behind the panel.
- Align the panel and push it into place until it pops in[1].
5. Reattach the cupholder panel: Align the cupholder panel and push it down until it pops into place[1].
6. Reinstall the shift knob: Screw the shift knob back on clockwise[1].
1. Reconnect the battery: Reconnect the negative terminal of your car battery[1].
2. Test the new display: Turn on your car and test the new LCD display to ensure it is working correctly. Check for proper illumination and functionality[1].
3. Clean up: Remove any tools and materials from your workspace.
Display not working:
- Check the ribbon cable connections to ensure they are secure.
- Verify that the battery is properly connected.
- Inspect the fuse related to the radio or display.
Flickering display:
- Ensure all connections are tight.
- Check for any damage to the ribbon cables.
Touchscreen issues (if applicable):
- Recalibrate the touchscreen if necessary.
- Check for any obstructions on the screen[5].
- Take your time: Rushing can lead to mistakes or damage.
- Keep track of screws and fasteners: Use small containers to organize screws and fasteners as you remove them.
- Consult your vehicle's repair manual: This can provide specific instructions and diagrams for your Mazda 6 model.
- Watch video tutorials: Visual aids can be incredibly helpful during the replacement process[3][7].
Replacing the LCD display in your Mazda 6 wagon is a project that enhances your vehicle's functionality and aesthetics. By following this detailed guide, you can confidently undertake this task and enjoy a clear, functional display once again. Remember to take your time, be patient, and double-check all connections to ensure a successful outcome.
You will need screwdrivers (Phillips head and flathead), plastic pry tools, a socket set, replacement ribbon cables, an anti-static wrist strap, and work gloves.
Disconnect the negative terminal of your car battery to prevent electrical shorts. Use a wrench to loosen the nut on the negative terminal, then carefully remove the cable.
Check the ribbon cable connections, verify the battery connection, and inspect the relevant fuse. If the problem persists, consult a professional.
If you are comfortable working with electronics and have some mechanical experience, you can replace the LCD display yourself. However, if you are unsure or uncomfortable, it is best to seek professional help.
Refer to your vehicle's manual for specific instructions on recalibrating the touchscreen. Generally, this involves accessing a calibration menu through the car's settings.
