The Samsung Galaxy S4, a once-flagship device, remains a popular choice for many users due to its reliability and functionality. However, like any smartphone, the S4 is susceptible to screen damage. Whether it's a cracked glass, a malfunctioning touch screen, or a completely black display, a damaged LCD can render your phone virtually unusable. Replacing the LCD display might seem like a complex task reserved for professionals, but with the right tools, a bit of patience, and this comprehensive guide, you can successfully perform the repair yourself. This article offers a detailed, step-by-step walkthrough, incorporating advanced tips, troubleshooting advice, and essential considerations to ensure a smooth and successful screen replacement.
Before diving into the how-to, let's consider the "why." Replacing the LCD yourself offers several advantages:
- Cost Savings: Professional repair services can be expensive, often costing more than the price of the replacement screen itself. DIY repair significantly reduces expenses.
- Control Over Quality: When you perform the repair, you have complete control over the quality of the replacement parts used. You can choose a high-quality LCD from a reputable supplier.
- Learning Experience: Repairing your own device provides a valuable learning experience, enhancing your understanding of smartphone hardware.
- Convenience: Avoid the hassle of scheduling appointments and being without your phone while it's being repaired. You can complete the repair at your own pace, in the comfort of your home.
- Environmental Impact: By repairing your device instead of replacing it, you contribute to reducing electronic waste.
Having all the necessary tools and materials readily available is crucial for a smooth and efficient repair process. Here's an expanded checklist with detailed explanations:

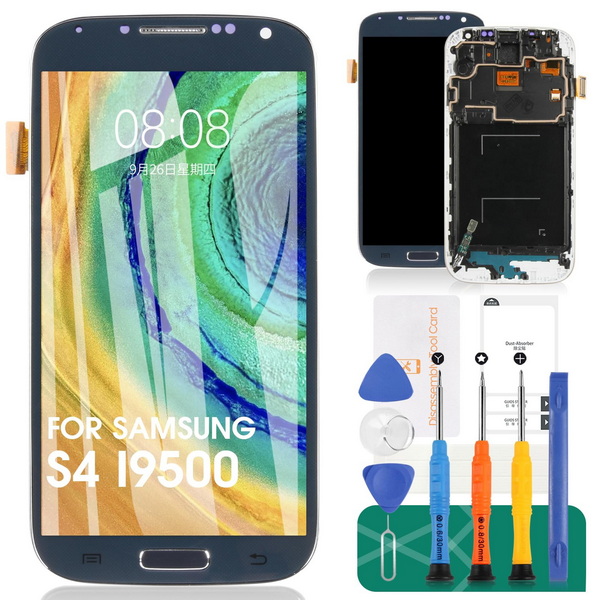

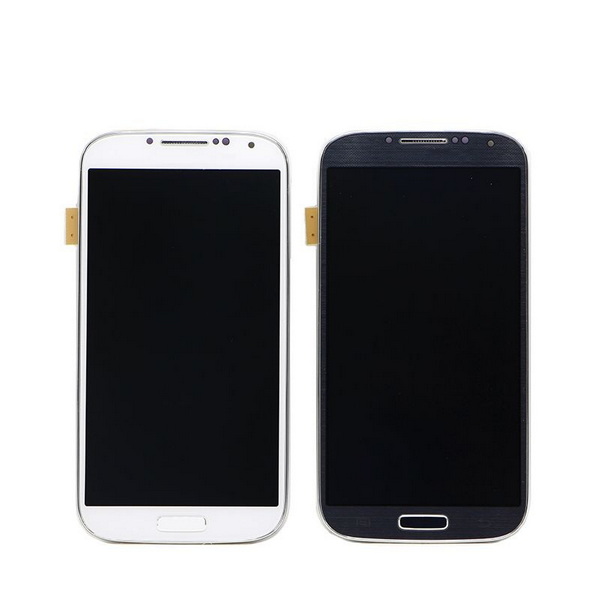

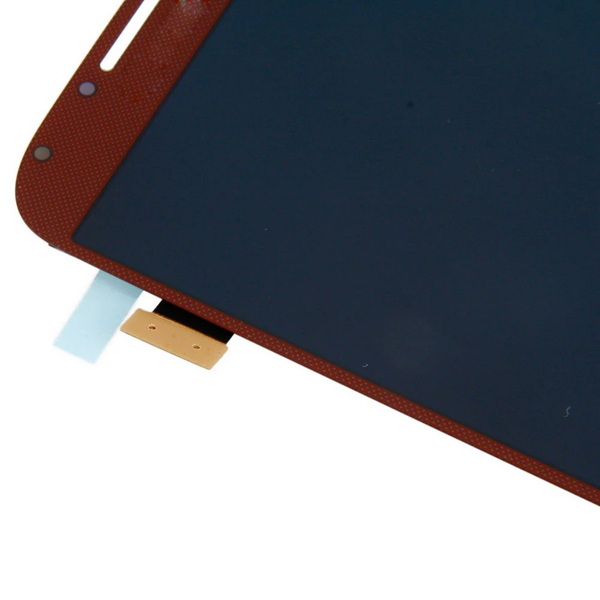

- New Galaxy S4 LCD Screen with Digitizer and Frame: This is the core component. Ensure you purchase a screen that is specifically designed for the Galaxy S4 model (i9500, i9505, etc.). Consider purchasing a screen with the frame already attached, as it simplifies the installation process.
- Small Phillips Head Screwdriver (Precision Screwdriver Set): A high-quality precision screwdriver set is essential. The screws inside smartphones are tiny and easily stripped, so a good set with magnetic tips is highly recommended. Look for a set that includes Phillips #00 (1.5mm) and #000 (1.2mm) sizes.
- Case Opener Tool / Safe Open Pry Tool / Plastic Opening Tool: These tools are designed to gently separate the phone's components without causing damage. Avoid using metal tools, as they can scratch or damage the plastic housing.
- Spudger Tool (Nylon Spudger): A spudger is a versatile tool used for disconnecting cables, prying open connectors, and gently lifting components. Opt for a nylon spudger, as it's non-conductive and less likely to cause shorts.
- Tweezers (Fine-Tipped): Fine-tipped tweezers are essential for handling small screws, cables, and adhesive strips.
- Heat Gun or iOpener: Heat is used to soften the adhesive holding the screen in place. A heat gun provides more precise control, but an iOpener (a microwaveable heating pad) is a safer alternative for beginners.
- Sucker (Suction Cup): A small suction cup is used to create a gap between the screen and the frame, allowing you to insert a plastic opening tool.
- Plastic Cards or Picks (Guitar Picks): Thin plastic cards or guitar picks are used to slide along the edges of the screen, separating the adhesive.
- Anti-Static Gloves: Wearing anti-static gloves protects sensitive electronic components from static discharge, which can cause damage.
- Double-Sided Adhesive Film (Pre-Cut Adhesive): New adhesive is necessary to secure the replacement screen to the frame. Pre-cut adhesive strips are convenient and ensure a clean application.
- Isopropyl Alcohol (90% or Higher): Isopropyl alcohol is used to clean the frame and remove any remaining adhesive residue.
- Lint-Free Cloths: Lint-free cloths are used to clean the screen and components without leaving behind any fibers.
- Organization Tray or Magnetic Project Mat: This will help you keep track of the small screws and components during disassembly. A magnetic project mat is particularly useful, as it prevents screws from rolling away.
Proper preparation is key to a successful repair. Before you even pick up a screwdriver, take these steps:
1. Workspace: Choose a clean, well-lit, and uncluttered workspace. Ensure you have ample space to work comfortably and organize your tools and components.
2. Power Off: As mentioned earlier, ensuring your Samsung Galaxy S4 is completely powered off is paramount.
3. Remove Back Cover, Battery, SIM & SD Card: This is the first physical step. Use your fingernail or a safe open pry tool to gently remove the back cover. Then, remove the battery, SIM card, and any memory cards. Place these items in a safe place to avoid losing them.
4. Documentation: Take photos or videos of each step of the disassembly process. This can be invaluable when it comes to reassembling the phone, especially if you're a beginner.
Follow these steps carefully, paying attention to detail and handling components with care.
1. Remove Screws: Locate and remove the nine 4.0 mm Phillips #00 screws securing the midframe to the display assembly. Place the screws in your organization tray or on your magnetic project mat, keeping track of their location.
2. Detach Midframe: Use a case opener tool or plastic opening tool to gently separate the back housing from the screen. Start near the charging port (where there's usually a small gap) and carefully glide the tool along the inner seam to release the clips. Work slowly and patiently to avoid cracking the plastic.
3. Disconnect USB Board Connector: Use the flat end of a spudger to gently lift and disconnect the USB board connector. This connector is delicate, so avoid using excessive force.
4. Disconnect Camera and Speaker Connectors: Locate the front-facing camera cable connector and the earpiece speaker assembly cable connector. Use the flat end of the spudger to carefully disconnect these connectors.
5. Remove Headphone Jack Screw: Identify the single 2.4 mm Phillips #00 screw securing the headphone jack assembly to the display assembly. Remove the screw and set it aside.
6. Remove Motherboard: This is a critical step. Carefully remove the two small Phillips screws from the motherboard. Then, methodically begin unplugging connectors. Disconnect the charge port, headphone jack, rear and forward-facing cameras, as well as the ear speaker and proximity sensor, screen, and antenna cables. Remember to use the flat end of your spudger to gently lift the connectors, not pull on the cables themselves. Wearing anti-static gloves is especially important when handling the motherboard. Once all connectors are disconnected, carefully lift the motherboard out of the frame.
7. Remove Lower Flex Cable: The lower flex cable is held in place with adhesive. Use a safe open pry tool and gently pry up the cable. Be extremely careful not to rip or damage the cable. Apply heat with a heat gun to soften the adhesive if necessary.
8. Remove Vibrator Motor: The vibrator motor is located in the top left corner. Use a pry tool to gently lift up the adhesive holding the flex cable to the housing.
Removing the old screen is the most challenging part of the repair. Proceed with caution and take your time.
1. Heat the Screen: Use a heat gun or iOpener to carefully heat the front glass for 3-5 minutes. Focus on the edges of the screen to soften the adhesive. Move the heat gun in a circular motion to avoid overheating any one spot. If using an iOpener, microwave it according to the manufacturer's instructions and apply it to the screen.
2. Apply Suction Cup: Attach the suction cup to the screen near the bottom edge. Apply firm pressure to ensure a good seal.
3. Create a Gap: Gently pull up on the suction cup while simultaneously inserting a plastic card or pick between the screen and the frame. If the screen doesn't budge, apply more heat.
4. Slice the Adhesive: Once you've created a small gap, insert additional plastic cards or picks along the edges of the screen, slicing through the adhesive. Work slowly and carefully, moving around the perimeter of the screen. Avoid inserting the tools too far, as you could damage the LCD panel.
5. Remove the Screen: Once all the adhesive is cut, carefully lift the screen away from the frame.
6. Remove Old Adhesive: This is crucial for ensuring the new screen adheres properly. Use tweezers to remove as much of the old adhesive as possible. Then, dampen a lint-free cloth with isopropyl alcohol and wipe the frame clean. Repeat this process until all residue is removed.
1. Test the New Screen: Before fully installing the new screen, connect it to the motherboard and power on the phone to ensure it works correctly. This will save you time and effort if the screen is defective.
2. Install Adhesive: Apply the new double-sided adhesive film to the frame. Ensure the adhesive is properly aligned.
3. Remove Protective Film: Carefully remove the protective film from the new display.
4. Install Components: This is the reverse of the disassembly process. Carefully connect the USB board connector, front-facing camera cable connector, earpiece speaker assembly cable connector, display/digitizer cable connector, and antenna cable connector.
1. Place the Motherboard: Carefully place the motherboard back into its designated spot within the phone's frame.
2. Connect Cables: Double-check that all cables are securely connected to the motherboard.
3. Install Screws: Secure the motherboard with the two Phillips screws you removed earlier.
4. Install Back Housing Frame: Carefully align the back housing frame (with the loudspeaker) and press it firmly into place.
5. Install Screws: Reinstall the nine small Phillips screws that secure the midframe to the display assembly.
6. Replace Battery and Covers: Replace the battery, SIM card, and SD card. Then, carefully snap the battery cover back into place.
1. Power On: Turn on the device to ensure the new screen works correctly.
2. Functionality: Meticulously test all the functionalities of your Galaxy S4. Verify touch sensitivity across the entire screen, assess the display quality for any imperfections, and confirm that all sensors (proximity, light, etc.) are functioning as expected.
3. Screen Fit: Inspect the screen to ensure that it is securely fitted into the frame and that there are no gaps or raised edges.
Replacing the LCD display on your Samsung Galaxy S4 might initially appear to be a complicated and intimidating endeavor. However, by adhering to these meticulously detailed steps, and approaching the task with a blend of patience and careful attention to detail, you can effectively replace your damaged screen and, in the process, save the expense of professional repair services. The secret to success lies in handling the delicate components with the utmost care, utilizing the correct tools for each specific task to prevent accidental damage, and most importantly, not rushing through the repair process. With this comprehensive guide at your side, you'll be well-equipped to breathe new life into your trusty Galaxy S4.
The overall cost associated with replacing a Galaxy S4 screen hinges on whether you opt for a DIY approach or enlist the services of a professional repair technician. DIY kits, which include the replacement screen and necessary tools, typically range in price from $30 to $70. Conversely, professional repair services can range from $80 to $150, depending on the service provider and the extent of the damage.
While technically feasible, replacing only the glass on a Galaxy S4 screen is generally discouraged. Separating the glass from the underlying LCD is a complex and delicate procedure that carries a high risk of damaging the display. It's far more prudent and often more cost-effective in the long run to replace the entire LCD assembly.
The essential tools for a successful Galaxy S4 screen replacement include:
- A small Phillips head screwdriver (preferably a precision screwdriver set)
- A plastic opening tool or safe open pry tool
- A spudger (nylon is preferred)
- Fine-tipped tweezers
- A heat gun or iOpener
- A suction cup
- Plastic cards or picks
- Anti-static gloves
- Double-sided adhesive film or pre-cut adhesive strips
- Isopropyl alcohol (90% or higher)
- Lint-free cloths
The time required to replace a Galaxy S4 screen can vary based on your experience level and the complexity of the repair. An experienced technician might complete the task in approximately 30-45 minutes. However, if you're new to smartphone repair, it's advisable to allocate 1-2 hours to ensure you proceed carefully and minimize the risk of errors.
Reputable online retailers such as Amazon and eBay offer a variety of replacement screens for the Galaxy S4. Additionally, specialized phone parts suppliers are a reliable source for high-quality replacement parts. Always purchase from trusted vendors to ensure the replacement screen is genuine and meets your quality expectations.
If you accidentally damage a component during the repair, the best course of action is to assess the extent of the damage and determine if the component can be replaced. Minor damage may be repairable, but severe damage may necessitate professional assistance. Avoid forcing any components or attempting to repair them if you're not comfortable doing so.
Static electricity can damage sensitive electronic components. To prevent static discharge, wear anti-static gloves throughout the repair process. Also, work on a static-dissipative mat and avoid touching any exposed components with your bare hands. Ground yourself by touching a metal object before beginning the repair.
If the new screen doesn't work after installation, first double-check that all cables and connectors are securely connected to the motherboard. Also, ensure that the battery is properly charged. If the screen still doesn't work, try reinstalling the original screen to rule out any other potential issues. If the original screen works, the new screen may be defective and need to be replaced.
No, it's not recommended to reuse the adhesive from the old screen. The old adhesive will likely be damaged and will not provide a secure bond. Always use new double-sided adhesive film or pre-cut adhesive strips to ensure the replacement screen is properly secured to the frame.
Dispose of the old screen responsibly by taking it to a local electronics recycling center. Electronic waste can contain hazardous materials that can harm the environment if not disposed of properly.
