In today's digital age, we are constantly surrounded by electronic devices, with LCD displays being a ubiquitous presence in our daily lives. From smartphones to computer monitors, these screens have become an integral part of our work and entertainment. However, with the increasing use of these devices, concerns about electromagnetic radiation (EMR) emitted by LCD displays have also grown. This article will explore the various methods and techniques to effectively block electromagnetic radiation from LCD displays, ensuring a safer and healthier environment for users.
Before delving into the solutions, it's crucial to understand the nature of electromagnetic radiation emitted by LCD displays. LCD monitors generate electromagnetic fields (EMFs) as a byproduct of their operation1. These EMFs can be categorized into two main types:
1. Extremely Low Frequency (ELF) EMFs
2. Radio Frequency (RF) EMFs
While the levels of EMR from LCD displays are generally considered low, prolonged exposure, especially at close distances, may potentially lead to health concerns2.
Electromagnetic Spectrum
Research has shown that exposure to electromagnetic radiation from display screens may have various effects on human health. A study published in PubMed Central found that exposure to EMR of 1 kHz frequency and 150 V/m and 220 V/m intensity could cause adverse effects within blood platelets' oxygen metabolism, potentially leading to physiological dysfunction2.
Some of the reported symptoms associated with prolonged exposure to EMR from displays include:
◆ Eye strain and visual fatigue
◆ Headaches
◆ Sleep disturbances
◆ Skin irritation
◆ Cognitive issues such as difficulty concentrating
While more research is needed to fully understand the long-term effects of EMR exposure from LCD displays, it's prudent to take precautionary measures to minimize potential risks.
Now that we understand the potential risks, let's explore various methods to block or reduce electromagnetic radiation from LCD displays.
One of the most effective ways to block EMR is by using shielding materials. These materials work by either absorbing or reflecting electromagnetic waves, preventing them from reaching the user.
Applying a conductive coating on the inside of plastic enclosures can provide a significant shielding effect4. These coatings help to block and dissipate electrostatic discharge (ESD), protecting both the internal components and the user.
Conductive Coating
Transparent EMF shielding films can be applied directly to the screen of LCD displays. These films are designed to block a significant portion of EMR while maintaining screen visibility.
Fine metal mesh screens can be placed in front of the display to create a Faraday cage effect, blocking EMR while allowing visible light to pass through.
Proper grounding is essential in managing electromagnetic radiation from LCD displays.

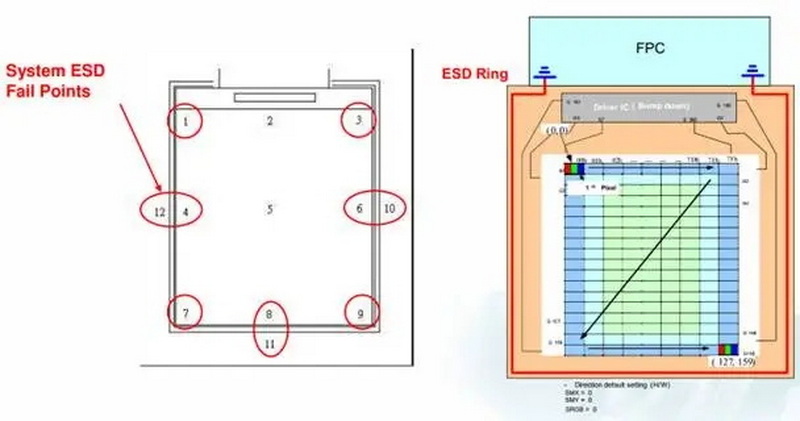

Ensure that metal enclosures are properly grounded to provide an effective path for ESD discharge4. Good grounding helps in safely dissipating static electricity away from sensitive electronics and the user.
Expand the grounding area between the metal frame of the TFT LCD and the product's PCB. This helps to create a more effective ESD path and improves overall device immunity to electrostatic discharges4.
One of the simplest yet effective methods to reduce EMR exposure is by increasing the distance between the user and the LCD display.
Maintain a safe distance from the screen. The intensity of EMR decreases rapidly with distance. A general rule of thumb is to keep at least an arm's length away from the display.
Design your workstation to maximize the distance between you and the LCD display. Use monitor stands or adjustable arms to position the screen at an optimal distance and angle.
Ergonomic Workstation
Installing EMF filters and suppressors can significantly reduce electromagnetic radiation from LCD displays.
Attach ferrite cores to cables connected to the LCD display. These cores act as chokes, suppressing high-frequency electromagnetic interference.
Ferrite Core
Incorporate EMI suppression filters into the power supply and signal lines of the LCD display. These filters help to reduce electromagnetic interference at its source.
While hardware solutions are crucial, software can also play a role in reducing EMR emissions from LCD displays.
Some modern displays come with low EMF modes that adjust the screen's refresh rate and other parameters to minimize electromagnetic emissions.
While not directly related to EMR, blue light filters can help reduce eye strain and improve sleep patterns for users who spend long hours in front of LCD displays.
For those seeking more comprehensive protection, there are advanced techniques that can be implemented to further reduce EMR from LCD displays.
Implementing EMC design principles during the development of LCD displays can significantly reduce EMR emissions.
Optimize the PCB layout to minimize electromagnetic interference. This includes proper routing of high-speed signals, use of ground planes, and strategic component placement3.
Utilize differential signaling techniques for high-speed data transmission. This method helps cancel out common-mode noise and reduces EMR emissions.
Active EMF cancellation systems work by generating an opposing electromagnetic field to neutralize the EMR emitted by the LCD display.
Implement adaptive EMF cancellation algorithms that continuously monitor and adjust the cancellation field to match the changing EMR patterns of the display.
Emerging nanotechnology solutions offer promising advancements in EMR shielding for LCD displays.
Utilize graphene-based materials for EMR shielding. Graphene's unique properties make it an excellent candidate for creating ultra-thin, transparent, and highly effective EMR shields.
Graphene Structure
Taking inspiration from nature, researchers are developing innovative EMR shielding solutions.
Design EMR absorbers based on structures found in nature, such as butterfly wings or moth eyes, which have evolved to manipulate electromagnetic waves efficiently.
In addition to the technical solutions discussed, adopting certain best practices can further enhance protection against EMR from LCD displays.
Conduct regular EMF audits of your workspace or home to identify and address sources of electromagnetic radiation.
Practice balanced technology use by taking regular breaks from LCD displays and engaging in activities that don't involve electronic devices.
Incorporate natural EMF shielding elements into your environment, such as plants known for their EMF absorbing properties.
EMF Absorbing Plants
Design your workspace with EMF protection in mind, using furniture and materials that help block or absorb electromagnetic radiation.
As awareness of EMR-related concerns grows, the display industry is actively working on developing safer technologies.
OLED and MicroLED technologies offer potential advantages in terms of reduced EMR emissions compared to traditional LCD displays.
Quantum dot displays promise improved energy efficiency and potentially lower EMR emissions while delivering superior color performance.
Advancements in e-paper technologies may provide low-EMR alternatives for certain display applications.
Blocking electromagnetic radiation from LCD displays is a multifaceted challenge that requires a combination of hardware solutions, software optimizations, and user practices. By implementing shielding materials, proper grounding techniques, and maintaining safe distances, users can significantly reduce their exposure to EMR from LCD displays. As technology continues to advance, we can expect to see more innovative solutions and EMR-safe display technologies emerging in the market.
It's important to remember that while the potential risks of EMR from LCD displays are still being studied, taking precautionary measures can contribute to a healthier and more comfortable digital experience. By staying informed and implementing the strategies discussed in this article, users can enjoy the benefits of LCD displays while minimizing potential EMR-related concerns.
The primary sources of electromagnetic radiation in LCD displays include:
◆ The backlight system, which often uses fluorescent lamps or LEDs
◆ The power supply unit
◆ The display driver circuits
◆ The video signal processing components
These components generate electromagnetic fields as a byproduct of their operation, contributing to the overall EMR emitted by the display.
To measure EMR levels from your LCD display:
◆ Use an EMF meter designed to detect both electric and magnetic fields
◆ Take measurements at various distances from the screen, starting from the closest typical viewing distance
◆ Measure at different points around the display, including the front, sides, and back
◆ Compare the readings to recommended safety limits provided by organizations like the International Commission on Non-Ionizing Radiation Protection (ICNIRP)
Remember that consumer-grade EMF meters may not be as accurate as professional equipment, but they can still provide a general indication of EMR levels.
Yes, several natural materials can help block EMR from LCD displays:
◆ Copper: Known for its excellent EMR shielding properties
◆ Silver: Highly effective at blocking high-frequency EMR
◆ Aluminum: A cost-effective option for EMR shielding
◆ Certain types of rock, like black tourmaline and shungite, are believed to have EMR-absorbing properties
While these materials can be effective, it's important to note that proper implementation and grounding are crucial for optimal EMR shielding.
To minimize EMR exposure and reduce eye strain when using an LCD display:
◆ Follow the 20-20-20 rule: Every 20 minutes, take a 20-second break and look at something 20 feet away
◆ Take longer breaks of 5-15 minutes every hour
◆ If possible, step away from all electronic devices during these breaks to further reduce EMR exposure
Remember that these breaks not only help reduce EMR exposure but also contribute to better overall eye health and posture.
Yes, certain software settings can help reduce EMR from LCD displays:
◆ Lower the brightness: Reducing screen brightness can decrease power consumption and potentially lower EMR emissions
◆ Use night mode or blue light filters: While not directly related to EMR, these settings can help reduce eye strain
◆ Enable power-saving modes: These modes often lower the display's refresh rate, which can reduce EMR emissions
◆ Update display drivers: Ensure you have the latest display drivers, as they may include optimizations for power efficiency and EMR reduction
While software solutions may have a limited impact compared to hardware measures, they can contribute to an overall EMR reduction strategy.
