Liquid Crystal Displays (LCDs) have become an integral part of our daily lives, powering devices ranging from smartphones to televisions and computer monitors. One of the most fascinating aspects of LCD technology is its ability to render colors. This article explores how many colors an LCD can display, the underlying technology, the factors that influence color reproduction, and future advancements.

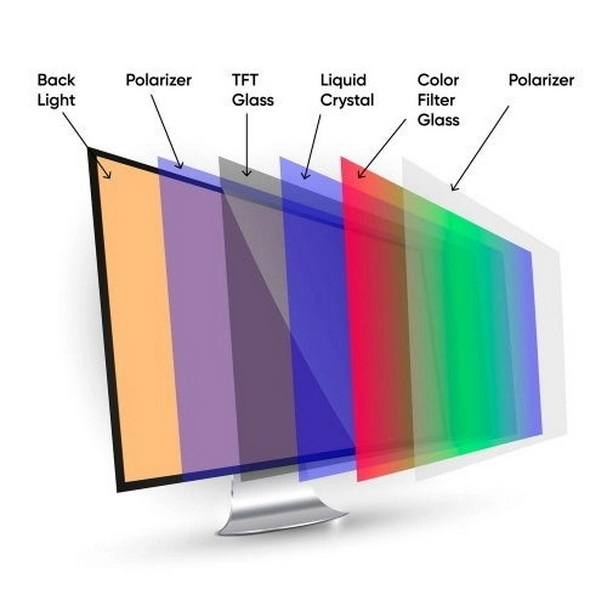

An LCD is a flat-panel display technology that modulates light using liquid crystals. Unlike older technologies like Cathode Ray Tubes (CRTs), LCDs do not emit light directly. Instead, they rely on a backlight to illuminate the display, with liquid crystals controlling the amount of light that passes through colored filters to create images.
The color depth of an LCD refers to the number of bits used to represent the color of a single pixel. This determines the number of distinct colors the display can produce. Common color depths include:
- 8-bit: This allows for 256 different shades per color channel (Red, Green, Blue), resulting in 256×256×256=16,777,216 possible colors. This is often referred to as "True Color" or "24-bit color" because the RGB channels collectively use 24 bits.
- 10-bit: Increasing the shades per channel to 1,024 allows for over a billion colors. This is sometimes referred to as "Deep Color".
Most consumer-grade LCDs operate at 8-bit color depth, which adequately covers the standard sRGB color space. Professional monitors and high-end TVs may support 10-bit or even higher color depths for more nuanced color representation.

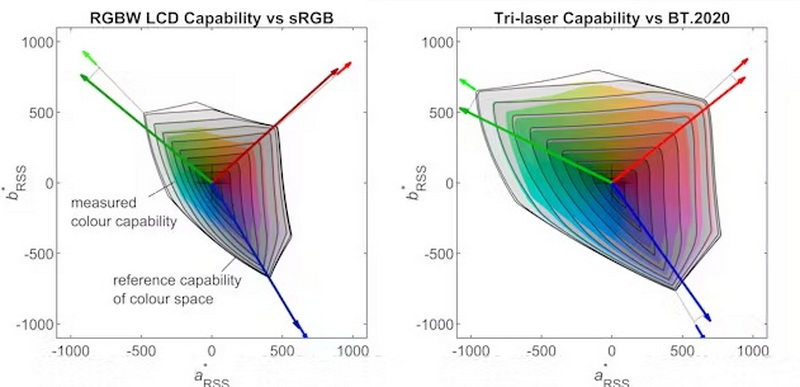

Color gamut refers to the range of colors that a display can reproduce, often expressed as a percentage coverage of a standard color space. Key standards include:
- sRGB: A standard color space developed in the mid-1990s, sRGB covers approximately 35% of the visible spectrum and is widely used for web content and general-purpose computing.
- Adobe RGB: A wider color space developed by Adobe, Adobe RGB encompasses approximately 50% of the visible spectrum, offering more saturated colors and better representation of hues in print media.
- DCI-P3: Commonly used in the film industry, DCI-P3 offers an even broader color gamut than Adobe RGB, with greater coverage of red and green shades, making it suitable for HDR content.
Higher-end displays support wider color gamuts like Adobe RGB or DCI-P3, which are crucial for professional applications such as photo editing, graphic design, and video production. These wider gamuts enable displays to reproduce more vibrant and accurate colors.
Most modern LCDs can display approximately 16.7 million colors when operating at an 8-bit depth. However, this number is a theoretical maximum and actual performance can vary significantly based on several factors:
1. Panel Technology: Different types of LCD panels, such as TN (Twisted Nematic), IPS (In-Plane Switching), and VA (Vertical Alignment), have varying capabilities in terms of color reproduction, viewing angles, and contrast ratios.
- TN Panels: These are typically the most affordable and offer the fastest response times, making them popular for gaming monitors. However, they often have limited viewing angles and less accurate color reproduction.
- IPS Panels: IPS panels offer superior color accuracy and wider viewing angles compared to TN panels. They are commonly used in professional monitors where color fidelity is critical.
- VA Panels: VA panels provide a balance between TN and IPS panels, offering good contrast ratios and decent viewing angles. They are often used in general-purpose displays and TVs.
2. Backlight Technology: The type of backlight used in an LCD (e.g., LED vs. CCFL) can significantly affect the color gamut, brightness, and overall image quality of the display.
- CCFL (Cold Cathode Fluorescent Lamp): Older LCDs used CCFL backlights, which are less energy-efficient and have a limited color gamut compared to modern LED backlights.
- LED (Light Emitting Diode): LED backlights are more energy-efficient and allow for better color control. They come in various forms, including edge-lit, direct-lit, and full-array local dimming (FALD).
- Edge-lit LED: LEDs are placed along the edges of the screen, and light is distributed across the panel using a diffuser.
- Direct-lit LED: LEDs are placed directly behind the LCD panel, providing more uniform illumination.
- Full-Array Local Dimming (FALD): LEDs are arranged in zones that can be individually controlled, allowing for higher contrast ratios and deeper blacks.
- RGB LED Backlights: These use red, green, and blue LEDs to enhance color reproduction and achieve wider color gamuts. They are often found in high-end professional monitors.
3. Calibration and Color Management: Proper calibration is essential for achieving accurate colors. Calibration involves adjusting the display's settings to match a known standard, ensuring that colors are reproduced faithfully.
- Software Calibration: This involves using software to adjust the display's settings, such as brightness, contrast, and color temperature.
- Hardware Calibration: This uses a hardware device (colorimeter or spectrophotometer) to measure the display's color output and automatically adjust its settings for optimal accuracy.

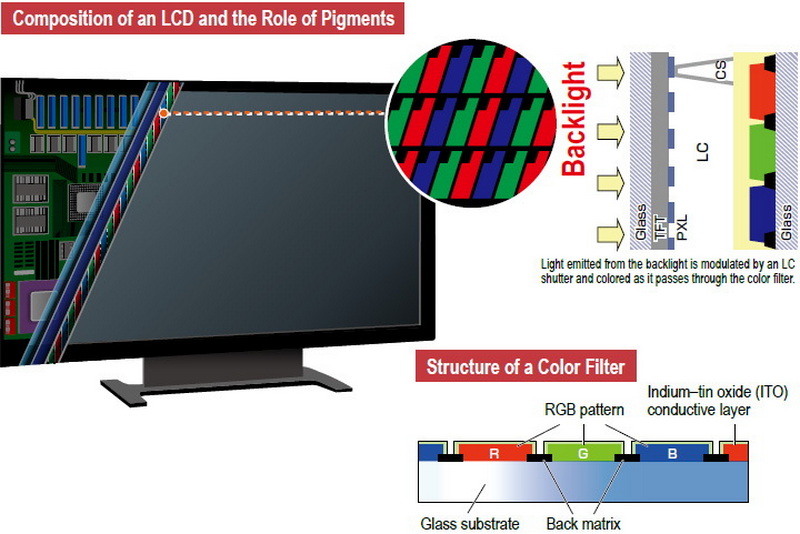

Each pixel in an LCD is divided into three subpixels (red, green, and blue), each covered by a color filter. The intensity of light passing through these filters determines the final color displayed. The quality and accuracy of these filters are crucial for proper color reproduction. Inaccuracies in filter manufacturing or calibration can lead to poor color accuracy and color shifts.
The angle from which you view an LCD can also impact perceived colors due to changes in light transmission through the liquid crystals. This effect is more pronounced in TN panels, which have narrower viewing angles compared to IPS and VA panels. IPS panels are known for maintaining more consistent colors across wide viewing angles.
While an 8-bit display can theoretically show 16.7 million colors, sometimes it needs to simulate more colors than it can natively produce. Dithering is a technique used to approximate colors by mixing available colors in a pattern that, when viewed from a distance, appears as the desired color. This is common in displays that are trying to simulate a higher bit depth.
Recent advancements have led to significant improvements in color accuracy, color range, and overall display performance:
- Quantum Dot Technology: Quantum dots are semiconductor nanocrystals that emit specific colors when illuminated by a backlight. When used in LCDs, quantum dots enhance color reproduction by producing purer and more saturated colors. This technology is used in Samsung's QLED TVs and other high-end displays. Quantum dots can significantly expand the color gamut, allowing displays to cover a larger percentage of the DCI-P3 color space.
- High Dynamic Range (HDR): HDR displays can reproduce a wider range of brightness levels and colors, making them suitable for more realistic image rendering. HDR content includes metadata that tells the display how to render the image, resulting in brighter highlights, deeper blacks, and more nuanced colors. Common HDR standards include HDR10, Dolby Vision, and HLG.
- Mini-LED Backlights: Mini-LED backlights use thousands of tiny LEDs to provide more precise control over brightness and contrast. This technology allows for more effective local dimming, resulting in improved HDR performance.
- MicroLED Displays: While technically not an LCD technology, MicroLED is an emerging display technology that offers even better performance than LCDs with quantum dots. MicroLED displays use self-emissive LEDs, meaning each pixel emits its own light and color, resulting in infinite contrast ratios and exceptional color accuracy.
Understanding color science is crucial for understanding how LCDs display colors and how we perceive them. Human color vision is based on three types of cone cells in the eye, each sensitive to different wavelengths of light (red, green, and blue). The brain interprets the signals from these cone cells to perceive a wide range of colors.
Color spaces like sRGB, Adobe RGB, and DCI-P3 are based on the CIE 1931 color space, which represents all colors visible to the human eye. The CIE 1931 color space is a mathematical model that defines colors based on their spectral power distribution.
Color management is a system for ensuring that colors are reproduced accurately across different devices, such as cameras, scanners, monitors, and printers. A color management system uses color profiles to translate colors from one device to another, ensuring that colors appear consistent regardless of the device used to view or produce them.
The color accuracy of LCDs is critical in various applications:
- Photography and Graphic Design: Professionals in these fields rely on accurate color reproduction for editing and producing images.
- Video Production: Accurate colors are essential for video editing, color grading, and ensuring that content looks as intended on different displays.
- Medical Imaging: Accurate color representation is crucial for diagnosing medical conditions based on images like X-rays and MRIs.
- Gaming: While not as critical as in professional applications, accurate colors can enhance the gaming experience by making visuals more vibrant and realistic.
In conclusion, while most modern LCDs can display around 16.7 million colors, the actual color reproduction capabilities of a display depend on various factors, including panel type, backlight technology, calibration, and color management. Advancements like quantum dot technology, HDR, and mini-LED backlights are continuously improving color accuracy and expanding the color gamut of LCDs. As technology continues to evolve with emerging technologies like MicroLED, we can expect even more vibrant and accurate displays in the future. Understanding these factors is crucial for choosing the right display for specific needs, whether it's for professional use or general entertainment.
sRGB is a standard color space covering about 35% of the visible spectrum, suitable for web content, while Adobe RGB covers about 50%, making it ideal for print media and professional photo editing.
Different backlight technologies (like LED vs. CCFL) influence brightness, color accuracy, and contrast. LED backlights generally provide better performance, especially when coupled with technologies like quantum dots.
Not all LCDs can accurately reproduce all 16 million colors due to limitations in panel technology, color filters, and calibration. Some displays may use dithering to simulate more colors than they can natively produce.
High Dynamic Range (HDR) enhances contrast and expands the range of colors displayed on screens, providing more realistic and immersive images with brighter highlights and deeper blacks.
Calibration is crucial for achieving accurate color reproduction. An uncalibrated display may show distorted or incorrect colors, which is particularly problematic for professional applications.
