Arduino is a popular platform for building electronic projects, and one of the most common components used in these projects is the LCD (Liquid Crystal Display). This article will explore how many Arduino pins an LCD display requires, the different types of LCDs, wiring diagrams, programming examples, and practical applications.
An LCD display is a flat-panel display technology that uses liquid crystals to produce images. In the context of Arduino, the most commonly used LCD is the 16x2 character LCD, which can display 16 characters in a row across 2 lines. LCDs are widely used because they are low-power, easy to interface with microcontrollers, and offer a clear visual output for displaying text and simple graphics. They are essential for projects that require real-time feedback or interaction with the user.
1. Character LCDs: These displays are designed to show characters and numbers. The most popular character LCD is the 16x2 model, but other sizes like 20x4 and 16x4 are also available. Character LCDs are straightforward to program and use, making them ideal for beginners and simple projects.
2. Graphical LCDs: These can display images and graphics but require more complex programming and more pins. Graphical LCDs offer higher resolution and the ability to display custom images, making them suitable for projects that require more detailed visuals. Examples include OLED displays and TFT LCDs.
3. I2C LCDs: These are character LCDs with an I2C interface, allowing for communication over just two wires. I2C LCDs simplify wiring and reduce the number of pins required on the Arduino, making them ideal for projects where pin availability is limited.
The number of pins required for an Arduino to communicate with an LCD can vary based on the type of connection used:
- Standard 16x2 Character LCD: Typically requires 6 to 14 pins depending on whether it's operated in 4-bit or 8-bit mode. In 8-bit mode, all 8 data pins (D0-D7) are used, providing faster data transfer but requiring more pins. In 4-bit mode, only 4 data pins (D4-D7) are used, reducing the number of necessary connections but slowing down the data transfer rate.
- I2C Character LCD: Only needs 2 pins (SDA and SCL) plus power and ground. The I2C (Inter-Integrated Circuit) protocol allows multiple devices to communicate over the same two wires, making it highly efficient for projects with numerous peripherals.

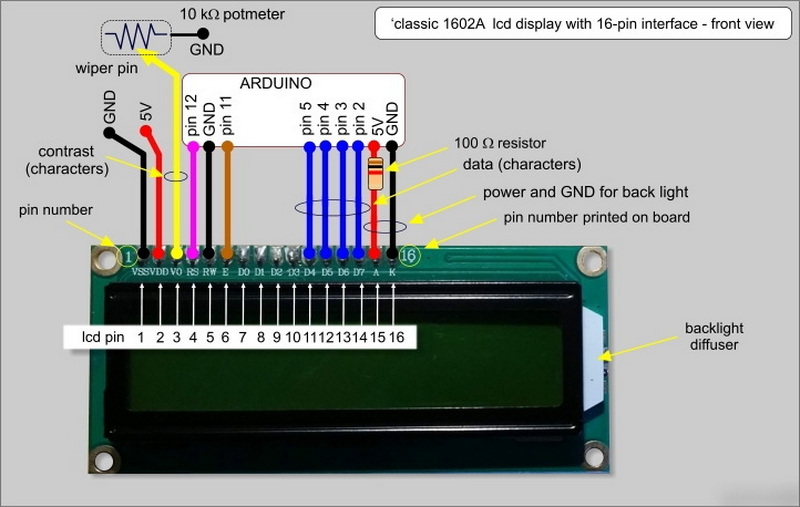

| Pin Number | Function | Description |
|---|---|---|
| 1 | VSS (Ground) | Connects to the ground (0V) of the power supply. |
| 2 | VDD (+5V) | Connects to the positive (+5V) of the power supply. |
| 3 | V0 (Contrast) | Adjusts the contrast of the LCD. Typically connected to a potentiometer to allow manual adjustment. |
| 4 | RS (Register Select) | Controls whether the data sent is a command or character data. High for data, low for command. |
| 5 | R/W (Read/Write) | Selects the mode of operation. Low to write data to the LCD, high to read data from the LCD. Usually tied to ground. |
| 6 | E (Enable) | Enables data transfer. A high-to-low pulse on this pin latches the data on the data pins. |
| 7-14 | D0-D7 (Data Pins) | Data lines used to send information (characters or commands) to the LCD. |
| 15 | A+ (LED Backlight Anode) | Positive terminal of the LED backlight. Connect to +5V through a resistor. |
| 16 | K- (LED Backlight Cathode) | Negative terminal of the LED backlight. Connect to ground. |

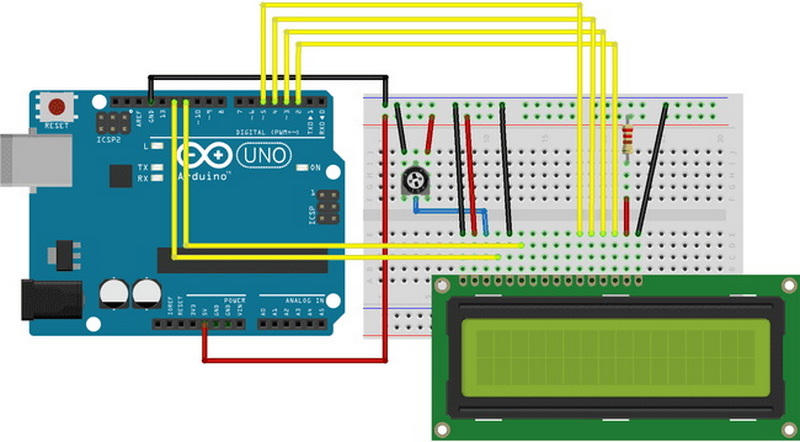

Here's a simple wiring diagram to connect a standard 16x2 character LCD to an Arduino. This setup is typically used when you want to control the LCD directly using the digital pins of the Arduino. A potentiometer is connected to the contrast pin to allow for adjusting the clarity of the display.
1. Displaying Sensor Readings: Use an LCD to show temperature or humidity readings from sensors. This is commonly used in environmental monitoring projects where real-time data is crucial. Sensors like DHT11 or DHT22 can provide temperature and humidity data that is then displayed on the LCD, allowing users to monitor conditions in real-time.
2. User Interfaces: Create menus or settings screens for user interaction. LCDs can be used to create simple menu systems, allowing users to navigate options and make selections using buttons connected to the Arduino. This is particularly useful in projects where you need to configure settings or display multiple options to the user.
3. Timers and Counters: Display countdown timers or counters for various applications. You can use an LCD to display the remaining time in a countdown timer, or to count events in real-time. This can be useful in projects like kitchen timers, event counters, or process monitoring systems.
4. Displaying System Status: Show the status of various systems or components in a project. For example, you can display the status of a motor, the level of a battery, or the connection status of a network. This provides valuable feedback to the user and helps in diagnosing issues.
5. Data Logging: Use an LCD to display data being logged to an SD card or other storage medium. This allows users to see the data in real-time as it is being recorded, making it easier to monitor the progress of a project or diagnose issues.
1. No Display: Check the power connections, contrast setting, and ensure the LCD is properly initialized in the code.
2. Dim Display: Adjust the contrast using the potentiometer connected to the contrast pin.
3. Garbled Output: Ensure the correct library is being used and that the pin connections are accurate.
4. Backlight Issues: Check the backlight connections and ensure the correct polarity.
1. Character LCDs vs. Graphical LCDs: Character LCDs are simpler to use and require fewer pins, while graphical LCDs offer higher resolution and the ability to display custom images.
2. I2C LCDs vs. Standard LCDs: I2C LCDs reduce pin usage but require I2C communication, while standard LCDs need more pins but are straightforward to connect.
3. OLED vs. TFT: OLED displays offer better contrast and viewing angles but are more expensive, while TFT displays are more affordable but have lower contrast.
1. Weather Station: An Arduino-based weather station that uses a DHT sensor to collect temperature and humidity data and displays it on an LCD.
2. Smart Home Automation: A smart home system that uses an LCD to display the status of various devices and allow users to control them.
3. Industrial Monitoring System: An industrial system that uses an LCD to display real-time data from sensors and provide alerts when critical conditions are detected.
Understanding how many Arduino pins an LCD display takes is crucial for effective project planning. Depending on whether you opt for a standard connection or use I2C technology, you can significantly impact your project's complexity and pin usage. Choosing the right type of LCD and connection method can optimize your project for efficiency and ease of use.
A standard character LCD typically requires between 6 to 14 pins, depending on whether it operates in 4-bit or 8-bit mode.
The I2C interface reduces pin usage to just two wires, making it easier to manage multiple devices on a single bus.
Yes, you can use multiple displays by ensuring they have unique addresses if using I2C or managing their connections properly if using standard wiring.
You will need the `LiquidCrystal` library for standard connections and `LiquidCrystal_I2C` for I2C connections.
Yes, graphical LCDs can be controlled using appropriate libraries but typically require more complex programming and more pins than character displays.
First, ensure that all the power and ground connections are secure. Next, adjust the contrast potentiometer to see if the display is just too dim. Finally, double-check your code to ensure the LCD is correctly initialized and that you are sending data to the correct pins.
The contrast is typically adjusted using a potentiometer connected to the V0 (contrast) pin of the LCD. By turning the potentiometer, you can change the voltage on this pin, which affects the contrast of the display.
Yes, but you may need to use a level shifter to ensure that the 3.3V logic signals from the Arduino are properly converted to 5V signals for the LCD. This is especially important for the data and control pins to ensure reliable communication.
Common mistakes include incorrect pin connections, forgetting to connect the contrast potentiometer, and not initializing the LCD correctly in the code. Always double-check your wiring and code to avoid these issues.
You can create custom characters by defining a byte array that represents the pixel pattern for each character. Then, you can load these custom characters into the LCD's memory and display them as needed.
