Liquid Crystal Display (LCD) technology has revolutionized the way we interact with electronic devices. From smartphones to industrial control panels, LCDs have become ubiquitous in our daily lives. One crucial aspect of LCD performance is its sensitivity, which directly impacts user experience and functionality. In this article, we'll delve deep into the world of LCD display sensitivity, exploring how it works, factors that affect it, and ways to optimize it.
Before we dive into sensitivity, let's briefly review how LCD displays function. An LCD screen consists of several key components:
1. Backlight
2. Liquid crystal layer
3. Color filters
4. Polarizing filters
5. Electrodes
The backlight provides illumination, while the liquid crystal layer, sandwiched between polarizing filters, manipulates light to create images. Color filters add the necessary hues to produce a full-color display[5].
LCD touch displays incorporate an additional layer for touch sensitivity. This layer can use either resistive or capacitive technology[13].

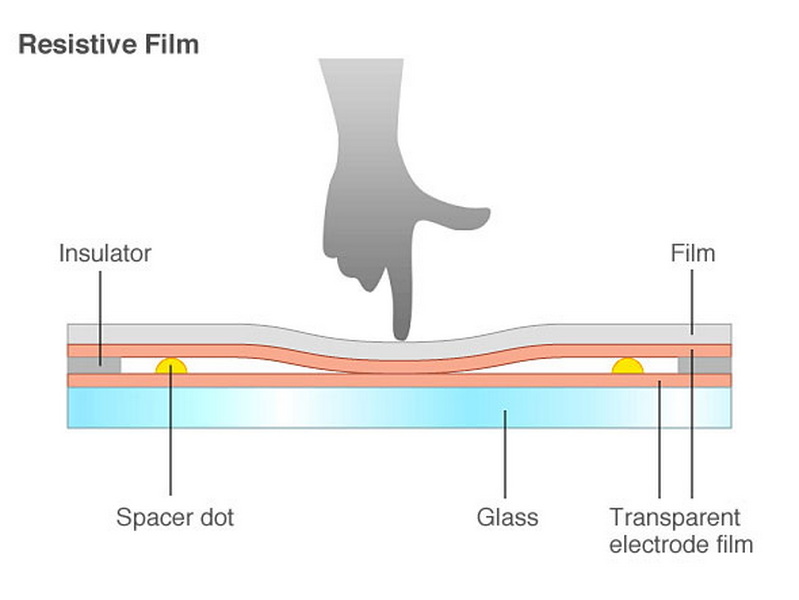

Resistive touch screens consist of two conductive layers separated by a small gap. When pressure is applied, these layers make contact, completing an electrical circuit and identifying the touch location[13].
Capacitive screens utilize the electrical properties of the human body. A transparent conductive coating on the screen detects changes in the local electrostatic field when touched by a finger[13].
Several factors influence the sensitivity of LCD touch displays:
The design of the touch panel, including the materials used and the spacing between layers, significantly impacts sensitivity[9].
Temperature, humidity, and electromagnetic interference can affect touch sensitivity[9].
Proper calibration of the touch controller is crucial for accurate touch detection[9].
The type and thickness of screen protectors can influence touch sensitivity[9].
To enhance the sensitivity of LCD touch displays, consider the following strategies:
1. Optimize touch panel design
2. Implement advanced touch detection algorithms
3. Use high-quality materials for touch sensors
4. Regularly calibrate touch controllers
5. Consider environmental factors in device design
Sensitive LCD touch displays find applications across various industries:
In industrial settings, rugged LCD variants resist vibration, contamination, and temperature fluctuations. They are commonly used in factory equipment, point-of-sale systems, and automation control panels[11].
The automotive sector utilizes LCD displays for car entertainment systems, navigation, dashboards, and rear cameras. These displays require shock and vibration resistance, outdoor visibility, and temperature resistance[11].
In the medical field, high-sensitivity LCD displays are crucial for diagnostic imaging and surgical visualization. Their high brightness, contrast, and resolution make them ideal for surgical displays and patient monitors[11].
To understand LCD touch sensitivity at a deeper level, we need to explore the underlying principles of capacitance and electrical fields.

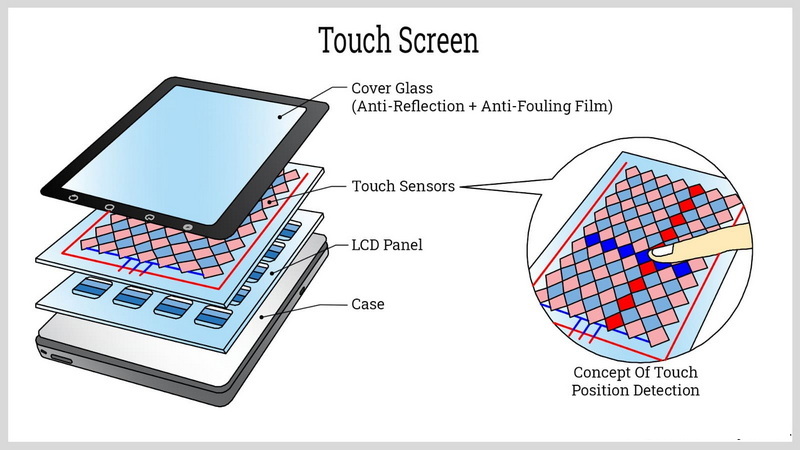

Capacitive touch screens work on the principle of mutual capacitance. When a finger touches the screen, it adds additional capacitance to the mutual capacitance of the electrodes beneath the glass[9].
1. The device measures the idle capacitance between electrodes when powered on.
2. This idle state serves as a reference point.
3. When a finger touches the screen, it adds extra capacitance.
4. The controller detects this change in capacitance and interprets it as a touch event.
Contrary to popular belief, pressing harder on an LCD touch screen does not necessarily improve its responsiveness. In fact, excessive pressure can potentially damage the display[9].
Different LCD technologies and designs can result in varying levels of touch sensitivity. Factors such as the type of touch technology (resistive vs. capacitive) and the quality of components used play significant roles in determining sensitivity[13].
As technology continues to advance, we can expect several developments in LCD touch sensitivity:
1. Increased Resolution: Higher resolution touch sensors will allow for more precise touch detection.
2. Multi-Touch Improvements: Enhanced multi-touch capabilities will enable more complex gestures and interactions.
3. Pressure Sensitivity: Integration of pressure-sensitive technology will add another dimension to touch interactions.
4. Flexible Displays: As flexible LCD technology improves, we may see touch-sensitive displays that can bend and fold.
5. AI-Enhanced Touch Detection: Machine learning algorithms could improve touch accuracy and predict user intentions.
To illustrate the importance of LCD touch sensitivity in real-world applications, let's consider a case study from the aerospace industry.
NASA has been conducting research on the radiation sensitivity of electronic displays for space missions. Their study aimed to develop characterization and analysis techniques for electronic displays and assess their susceptibility to radiation-induced degradation[7].
Key findings from the NASA study include:
1. Radiation can cause degradation in pixel technology of various display types, including OLEDs, TFT-LCDs, and LED dot arrays.
2. Different color pixels (red, green, and blue) may degrade at distinct rates, leading to non-uniform degradation.
3. Radiation effects can impact photon production efficiency, electrical modulation technologies, and introduce color centers in optical layers.
This research highlights the need for radiation-tolerant electronic displays in future crewed space missions and emphasizes the importance of considering environmental factors when designing sensitive LCD touch displays for extreme conditions.
To ensure optimal performance and longevity of LCD touch displays, consider the following best practices:
1. Regular Cleaning: Keep the screen clean from dirt, oils, and debris that can interfere with touch sensitivity.
2. Proper Calibration: Regularly calibrate the touch screen to maintain accuracy.
3. Environmental Protection: Use appropriate enclosures or protective measures in harsh environments.
4. Software Updates: Keep touch screen drivers and firmware up to date.
5. Avoid Extreme Temperatures: Operate the display within its specified temperature range.
6. Use Appropriate Input Devices: For resistive screens, use styluses designed for that technology.
7. Handle with Care: Avoid excessive pressure or sharp objects that could damage the touch sensor.
The sensitivity of an LCD touch display plays a crucial role in shaping user experience across various applications:
In smartphones and tablets, touch sensitivity directly impacts how users interact with their devices. Responsive and accurate touch screens contribute to a seamless and intuitive user experience.
In industrial control panels or medical equipment, touch sensitivity can be critical for precise operations. Inaccurate touch detection could lead to errors in manufacturing processes or medical procedures.
As cars increasingly incorporate touch-based interfaces, the sensitivity of these displays becomes crucial for driver safety. Responsive touch screens allow drivers to interact with the vehicle's systems quickly and efficiently, minimizing distraction.
In public spaces, touch-sensitive displays need to be robust and reliable to withstand frequent use by multiple users. Consistent touch sensitivity ensures that these systems remain accessible and functional for all users.
LCD touch display sensitivity is a complex and crucial aspect of modern technology. From the basic principles of capacitance to advanced applications in various industries, understanding and optimizing touch sensitivity is essential for creating effective and user-friendly devices.
As we've explored, factors such as touch panel design, environmental conditions, and proper calibration all play significant roles in determining the sensitivity of LCD touch displays. By considering these factors and implementing best practices, manufacturers and users can ensure optimal performance and longevity of touch-sensitive devices.
Looking to the future, we can expect continued advancements in LCD touch technology, including higher resolution sensors, improved multi-touch capabilities, and integration with emerging technologies like flexible displays and artificial intelligence.
Whether you're a developer working on touch-sensitive applications, a manufacturer designing new devices, or simply a user interested in understanding the technology behind your touchscreen devices, a deep understanding of LCD touch sensitivity is invaluable in our increasingly touch-centric world.
Resistive touch screens use pressure to detect touch, making them suitable for use with styluses or gloved hands. Capacitive screens, on the other hand, rely on the electrical properties of the human body and offer better sensitivity and multi-touch capabilities, but typically only work with bare fingers or special styluses[13].
Yes, temperature can affect LCD touch sensitivity. Extreme temperatures can alter the electrical properties of the touch sensor and the liquid crystals, potentially impacting touch detection accuracy[9].
The frequency of calibration depends on the specific device and its usage. In general, it's recommended to calibrate touch screens when you notice a decrease in accuracy or responsiveness. Some industrial or high-precision applications may require more frequent calibration, potentially daily or weekly[9].
While standard LCD touch screens can be challenging to use outdoors due to glare and visibility issues, there are specialized LCD displays designed for outdoor use. These often feature high brightness, anti-glare coatings, and enhanced durability to withstand environmental factors[11].
Screen size can indirectly affect touch sensitivity. Larger screens may require more sophisticated touch detection algorithms to maintain accuracy across the entire surface. Additionally, larger screens may be more susceptible to interference from environmental factors, potentially impacting sensitivity[9].
