Liquid Crystal Display (LCD) technology has revolutionized the way we interact with electronic devices. From smartphones to televisions, LCDs have become an integral part of our daily lives. This article delves into the intricate process of manufacturing LCD displays, exploring each step from raw materials to the finished product.

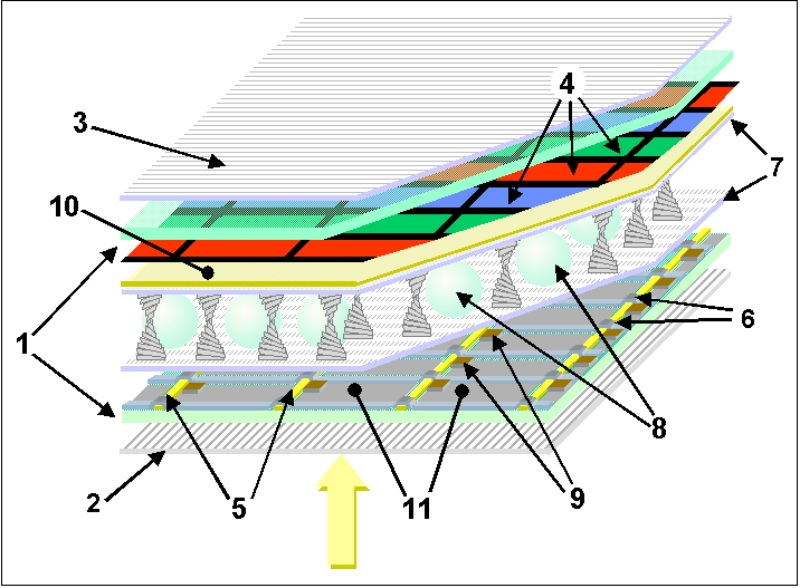

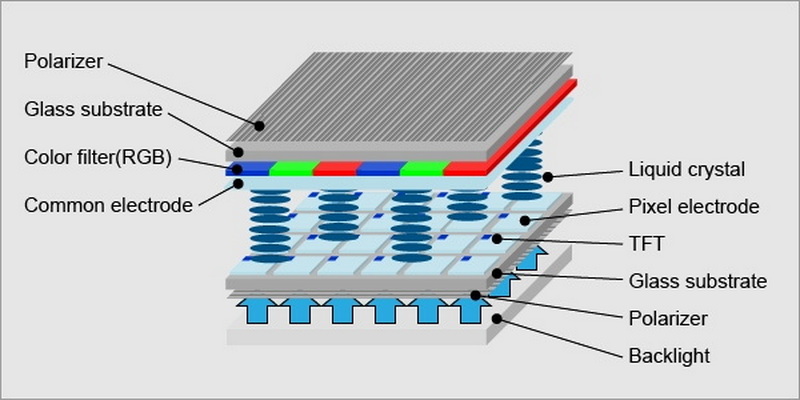

Before we dive into the manufacturing process, it's essential to understand the basic principles of LCD technology. LCDs work by manipulating light using liquid crystals, which are materials that have properties of both liquids and crystals[3]. These liquid crystals are sandwiched between two polarizing filters and two glass substrates.
When an electric current is applied, the liquid crystals align in a way that either allows light to pass through or blocks it, creating the images we see on the screen[10]. This process is controlled by thin-film transistors (TFTs) that act as switches for each pixel.

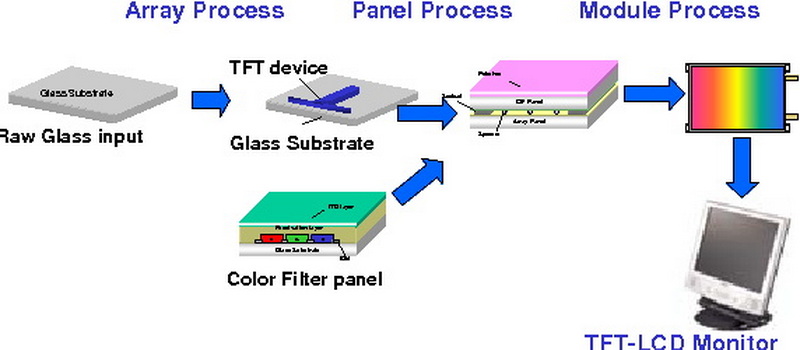

The production of LCD panels is a complex and highly precise process that involves several stages. Let's break down each step of the manufacturing process.
The first step in LCD manufacturing is preparing the glass substrates. Two glass plates are used: the array substrate and the color filter substrate[1]. These substrates undergo rigorous cleaning processes to remove any impurities or contaminants that could affect the display quality.
The array substrate is coated with a layer of transparent conductive material, typically indium tin oxide (ITO)[1]. Then, a layer of amorphous silicon is deposited on top of the ITO layer using chemical vapor deposition (CVD) techniques. This layer is then patterned to form the thin film transistors that control each pixel.
On the color filter substrate, a black matrix is applied to define the boundaries of each pixel. Then, red, green, and blue color filters are applied to their respective pixel areas using a process called photolithography[1]. This process involves:
1. Coating the substrate with a photosensitive material
2. Exposing it to light through a mask
3. Developing the exposed areas to create the desired pattern
Both the array substrate and the color filter substrate undergo a liquid crystal alignment process. A thin layer of polyimide is applied to the substrates and then rubbed in a specific direction to align the liquid crystal molecules[1]. This alignment is crucial for proper display functionality.
The array substrate and color filter substrate are aligned facing each other, with a narrow gap between them. The liquid crystal material is then injected into this gap using a technique called One Drop Fill (ODF)[5]. This process is typically performed under vacuum conditions to ensure uniform distribution of the liquid crystal material.
After the liquid crystal injection, the panel is sealed to prevent any leakage. Polarizers are then applied to the outer surfaces of the LCD screen. These polarizers control the polarization of light passing through the liquid crystal layer[1].
For LCD screens that require backlighting, an additional step involves attaching a backlight module behind the LCD panel. This module typically consists of light-emitting diodes (LEDs) that provide the necessary illumination for the display[1].
After assembly, the LCD panels undergo rigorous testing and inspection to ensure quality and reliability. This includes checking for defects, uniformity, color accuracy, and functionality[1].
As technology advances, so do the manufacturing techniques for LCD displays. Some of the latest innovations include:
Large-scale CVD systems are now being used in LCD manufacturing to improve efficiency and quality[5]. These systems allow for more uniform deposition of materials across larger substrates.
A specialized class of photolithography known as display lithography is used to etch patterns into the substrates with high precision[5]. This technique allows for the creation of increasingly smaller and more densely packed pixels.
UV photocuring equipment is used for bonding LCD panels, providing a faster and more reliable method of assembly[5].
The manufacturing of LCD displays involves the use of various chemicals and materials that can have environmental impacts. Many manufacturers are now focusing on developing more environmentally friendly processes and materials. This includes:
- Reducing the use of harmful chemicals
- Implementing recycling programs for LCD panels
- Developing more energy-efficient manufacturing processes
As demand for higher resolution and more energy-efficient displays grows, the LCD manufacturing process continues to evolve. Some areas of focus for future developments include:
- Improved color accuracy and contrast ratios
- Thinner and more flexible displays
- Integration of touch technology directly into the display
- Development of more sustainable manufacturing processes
The manufacturing of LCD displays is a complex and fascinating process that combines cutting-edge technology with precision engineering. From the preparation of glass substrates to the final assembly and testing, each step requires meticulous attention to detail to produce the high-quality displays we use every day.
As technology continues to advance, we can expect to see further innovations in LCD manufacturing, leading to even better displays with improved performance, energy efficiency, and environmental sustainability.
The manufacturing process for an LCD display can take several days to complete, depending on the size and complexity of the display. The most time-consuming steps are typically the TFT fabrication and color filter application, which can each take up to 24 hours or more.
LCD manufacturing involves a variety of materials, including:
- Glass substrates
- Indium tin oxide (ITO) for transparent electrodes
- Liquid crystal material
- Color filter materials (red, green, and blue)
- Polarizing films
- Backlighting components (LEDs or CCFLs)
Manufacturers employ various quality control measures throughout the production process, including:
- Automated optical inspection systems
- Electrical testing of TFTs and pixels
- Color and brightness uniformity checks
- Stress testing for durability
- Final visual inspection by trained personnel
Some of the primary challenges in LCD manufacturing include:
- Maintaining consistent quality across large panel sizes
- Reducing defects and improving yield rates
- Keeping up with demand for higher resolution and color accuracy
- Balancing cost-effectiveness with performance improvements
- Addressing environmental concerns related to manufacturing processes

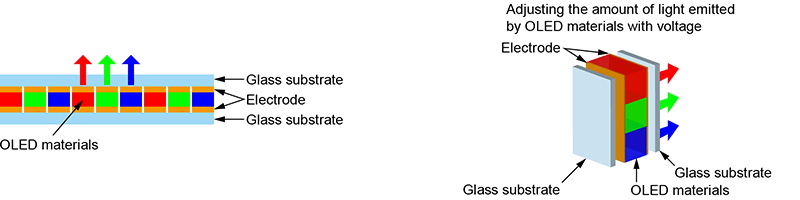

While both LCD and OLED displays are used in similar applications, their manufacturing processes differ significantly:
- LCDs require backlighting, while OLEDs are self-emissive
- OLED manufacturing involves depositing organic materials onto substrates, while LCD manufacturing focuses on manipulating liquid crystals
- LCDs typically use glass substrates, while OLEDs can be manufactured on flexible substrates
- The color generation process is different: LCDs use color filters, while OLEDs use different organic materials for each color
