Introduction

When Apple introduced the iPhone XR in 2018, it made a bold claim: the device featured the most advanced LCD in a smartphone[1]. This assertion raised eyebrows, especially considering the industry's increasing shift towards OLED (Organic Light Emitting Diode) technology, known for its superior contrast and vibrant colors. So, what made the iPhone XR's LCD so special? Let's delve into the features and technologies that underpinned Apple's claim.

Understanding the Liquid Retina Display

The iPhone XR boasts a 6.1-inch "Liquid Retina" LCD display[1]. The term "Retina" itself, in Apple's parlance, signifies a display with a pixel density high enough that individual pixels are indiscernible to the human eye at typical viewing distances[11]. For the iPhone XR, this translates to a resolution of 1792 x 828 pixels, resulting in a pixel density of 326 pixels per inch (PPI)[3][4]. While this PPI is comparable to earlier iPhones like the iPhone 8[3], the advancements lie in how Apple engineered this LCD to deliver an exceptional viewing experience.

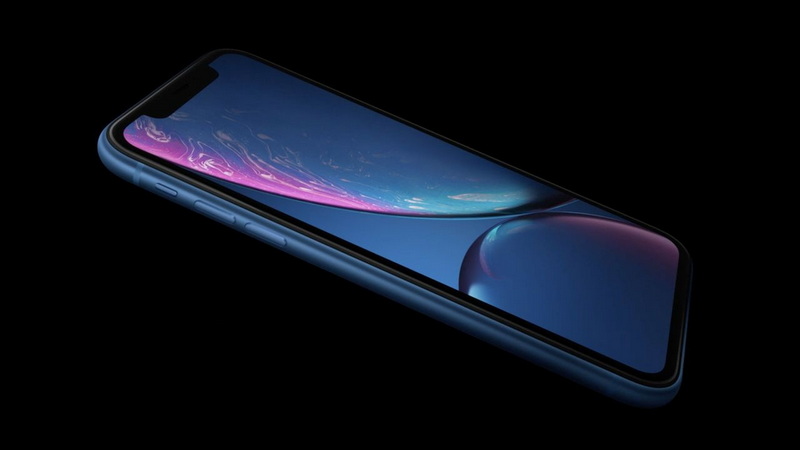

Edge-to-Edge Design and Advanced Pixel Masking

One of the most striking aspects of the iPhone XR's display is its edge-to-edge design[2]. Unlike traditional LCDs, which typically have noticeable bezels, the Liquid Retina display extends closer to the phone's edges, creating a more immersive visual experience[1]. To achieve this, Apple employed advanced pixel masking techniques and sub-pixel anti-aliasing[1]. These technologies ensure that the display can precisely follow the curves of the device, seamlessly extending into the corners without compromising image quality[1].

Wide Color Gamut and True Tone Technology

Color accuracy is paramount in any high-quality display, and the iPhone XR doesn't disappoint[1]. It supports a wide color gamut, specifically DCI-P3, which allows it to reproduce a broader range of colors compared to standard LCDs[3][4]. This results in more vibrant and lifelike images and videos.

Adding to the color accuracy is Apple's True Tone technology[1]. True Tone uses ambient light sensors to detect the color temperature of the surrounding environment and automatically adjusts the display's white balance to match[1]. This dynamic adjustment ensures that colors appear consistent and natural, regardless of the lighting conditions.

Brightness and Contrast Ratio

The iPhone XR's display is plenty bright, with a typical maximum brightness of 625 nits[4]. In tests, the display even exceeded expectations, reaching 700 nits[3]. This level of brightness ensures excellent visibility, even in direct sunlight[3][10].

While LCDs traditionally struggle to match the contrast ratios of OLED displays, the iPhone XR boasts a contrast ratio of 1400:1[4]. This, combined with the high brightness, contributes to a visually appealing image with good distinction between light and dark areas.

Haptic Touch

The iPhone XR replaced 3D Touch, a pressure-sensitive technology, with Haptic Touch[1]. Haptic Touch provides tactile feedback when you long-press on the screen, offering a similar experience to 3D Touch but without the added hardware complexity[1].

Industry-Leading Color Accuracy

The iPhone XR's LCD is known for its outstanding color performance and industry-leading color accuracy[1][3]. Apple has incorporated color management into both the hardware and software[3]. This, along with the wide color support, enables the phone to display content in its native color profile without manual adjustments[3].

Durability and Water Resistance

The iPhone XR features durable front glass and an aerospace-grade aluminum band[1]. It also has an IP67 rating for splash and water resistance, protecting it from everyday spills[1].

Limitations

Despite its strengths, the iPhone XR's LCD does have some limitations compared to OLED displays[10]:

-  Black Levels: LCDs use a backlight to illuminate all pixels, making it difficult to achieve true black levels. OLEDs, on the other hand, can turn off individual pixels, resulting in perfect blacks.

-  Contrast Ratio: While the iPhone XR has a good contrast ratio for an LCD, it cannot match the infinite contrast ratios of OLED displays.

-  HDR Support: The iPhone XR lacks hardware support for Dolby Vision and HDR10, though it offers software support[3].

Why LCD over OLED?

Given the advantages of OLED technology, why did Apple opt for an LCD in the iPhone XR? There are several reasons:

-  Cost: LCD panels are typically less expensive to manufacture than OLED panels[2]. Using an LCD allowed Apple to offer the iPhone XR at a more affordable price point[1].

-  Supply: In 2018, OLED supply was still limited, and Apple may have faced challenges in securing enough OLED panels for a high-volume device like the iPhone XR.

-  Engineering Expertise: Apple has invested heavily in LCD technology and has developed sophisticated techniques to maximize its performance[2].

Reception

The iPhone XR was well-received, with many praising its display quality[5][6][9]. Reviewers noted its brightness, color accuracy, and edge-to-edge design[3][8][10]. While some pointed out the lower pixel density compared to other iPhones, most agreed that it was still adequately sharp for most users[3].

Conclusion

The iPhone XR's Liquid Retina display was indeed an advanced LCD[1]. Through a combination of innovative engineering, advanced technologies, and meticulous color calibration, Apple created an LCD that rivaled OLEDs in many aspects[3][8][10]. While it may not have matched the perfect blacks and infinite contrast ratios of OLEDs, it offered a sharp, bright, and color-accurate viewing experience at a more accessible price point[2][10].

FAQ

1. What is the resolution of the iPhone XR display?

The iPhone XR has a resolution of 1792 x 828 pixels[3][4].

2. Does the iPhone XR support HDR?

The iPhone XR has software support for HDR, but lacks hardware support for Dolby Vision and HDR10[3].

3. What is True Tone technology?

True Tone is a feature that uses ambient light sensors to adjust the display's color temperature to match the surrounding environment[1].

4. What is the pixel density of the iPhone XR display?

The pixel density of the iPhone XR display is 326 PPI (pixels per inch)[3][4].

5. What are the advantages of the iPhone XR's LCD over OLED?

The iPhone XR's LCD was less expensive to manufacture, which allowed Apple to offer the phone at a lower price[2]. It also allowed Apple to leverage their expertise in LCD technology.
