Liquid Crystal Displays (LCDs) and Organic Light Emitting Diodes (OLEDs) are two dominant display technologies used in a wide array of devices, ranging from televisions and computer monitors to smartphones and digital watches[9]. While both serve the fundamental purpose of displaying visual information, they employ vastly different mechanisms to achieve this, resulting in distinct advantages and disadvantages. This article provides an in-depth comparison of LCD and OLED technologies, covering their working principles, key features, performance metrics, and common applications.
LCDs are flat-panel displays that utilize the light-modulating properties of liquid crystals to create images[1]. Liquid crystals themselves do not emit light; instead, they rely on an external light source, such as a backlight, to illuminate the display[9][7]. The liquid crystals are arranged between two transparent electrodes and polarized filters[6][1]. By applying an electric field to the liquid crystals, their orientation can be precisely controlled, thereby regulating the amount of light that passes through[1].

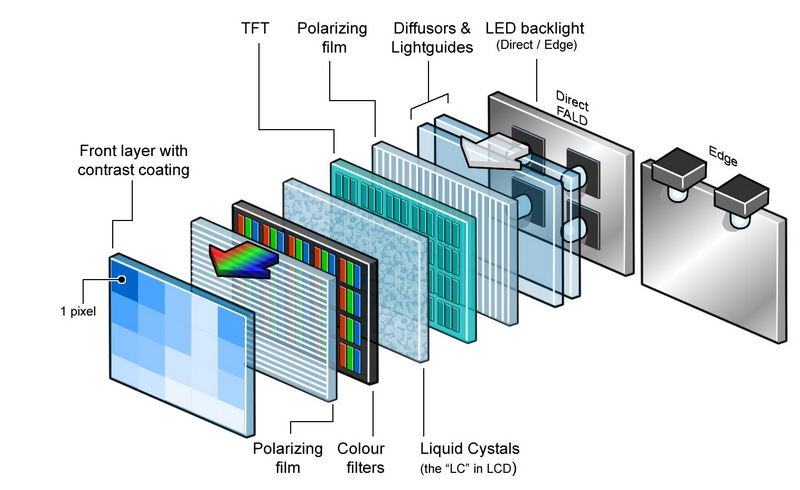

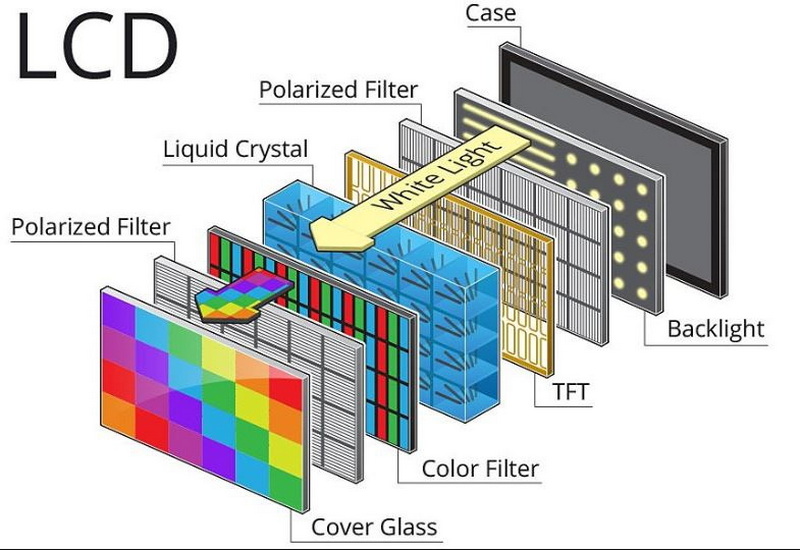

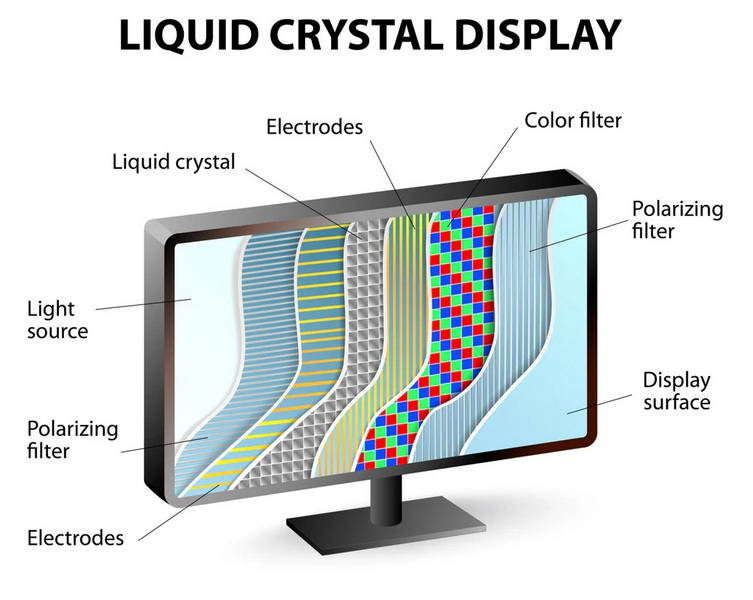

Components of an LCD[6]:
- Liquid Crystals: These are the core components responsible for modulating light. Their orientation changes in response to an electric field.
- Backlight: Provides the necessary light source to illuminate the display. Common types include cold-cathode fluorescent lamps (CCFL) and light-emitting diodes (LEDs).
- Polarizing Filters: These filters ensure that light waves vibrate in a specific direction. They are essential for the light modulation process.
- Electrodes: Apply an electric current to the liquid crystals, controlling their alignment.
- Color Filters: Produce the different colors displayed on the screen. Each pixel consists of red, green, and blue sub-pixels.

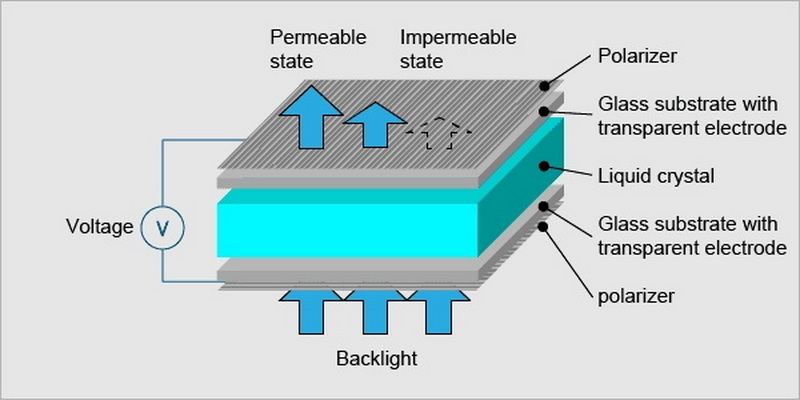

Working Principle[7]:
1. Polarization: Light from the backlight passes through the first polarizing filter, which aligns the light waves in a specific direction.
2. Light Modulation: The polarized light then passes through the liquid crystal layer. When no electric field is applied, the liquid crystals twist the light by 90 degrees.
3. Filtering: The twisted light reaches the second polarizing filter, which is oriented at 90 degrees to the first. In the absence of an electric field, the light is blocked, resulting in a dark appearance.
4. Electric Field Application: When an electric field is applied, the liquid crystals untwist, allowing the polarized light to pass through the second filter. This results in a bright appearance.
5. Color Generation: By controlling the intensity of light passing through the red, green, and blue sub-pixels, a wide range of colors can be produced[1].
LCDs are available in two primary types, differing in how the pixels are controlled[1]:
- Passive Matrix LCD: This type features a grid of conductors with pixels located at each intersection. A current is sent across the conductors to control the light for each pixel. Passive matrix LCDs are less expensive but offer slower refresh rates and lower contrast[1].
- Active Matrix LCD: Also known as Thin Film Transistor (TFT) displays, active matrix LCDs have a transistor at each pixel intersection. This allows for more precise control over individual pixels, resulting in faster refresh rates and improved image quality[1].
- Cost-Effectiveness: Generally more affordable than OLED displays[3].
- Brightness: LCDs can produce brighter images due to their powerful backlights[5].
- Lifespan: Typically have a longer lifespan compared to OLEDs[3].
- Mature Technology: LCD technology is well-established and widely available.
- Contrast Ratio: Lower contrast ratios compared to OLEDs, as they struggle to achieve true blacks[8].
- Viewing Angles: Color and contrast can shift when viewed from off-center angles[2].
- Black Levels: Cannot achieve the same deep black levels as OLEDs due to backlight leakage[8].
- Energy Efficiency: Less energy-efficient than OLEDs, especially when displaying dark images.
OLEDs are a newer display technology that utilizes organic compounds that emit light when an electric current is applied[2]. Unlike LCDs, OLEDs do not require a backlight; each pixel is self-emissive, which allows for unparalleled contrast ratios and true blacks[5][8].
Components of an OLED:
- Substrate: The base material on which the OLED is built.
- Anode: Removes electrons (adds "holes") when current flows through the device.
- Organic Layers: These layers are composed of organic molecules or polymers that transport electrons from the cathode and transport "holes" from the anode; light is emitted from these layers.
- Cathode: Injects electrons when current flows through the device.
Working Principle:
1. Electric Field Application: When an electric field is applied across the OLED, electrons flow from the cathode to the organic layers, while "holes" flow from the anode[2].
2. Light Emission: When an electron and a "hole" meet in the emissive layer, they recombine, releasing energy in the form of light.
3. Color Generation: The color of the emitted light depends on the type of organic molecules used in the emissive layer. Different organic compounds are used to produce red, green, and blue light[1].
4. Pixel Control: Each pixel can be individually turned on and off, allowing for precise control over brightness and color[8].
- Contrast Ratio: Offer much higher contrast ratios than LCDs, resulting in more realistic images[2].
- Color Accuracy: Better color accuracy, producing more vibrant and lifelike pictures[3].
- Viewing Angles: Nearly perfect viewing angles with consistent picture quality from any angle[2].
- Response Time: Faster response times, reducing motion blur[2].
- Energy Efficiency: More energy-efficient than LCDs, especially when displaying dark images.
- Less Harmful Blue Light: OLEDs emit less harmful blue light, reducing eye strain[2].
- Cost: Generally more expensive than LCD displays[3].
- Lifespan: Can be susceptible to screen burn-in with prolonged display of static images[3].
- Brightness: May not be as bright as LCDs in certain conditions[5].
| Feature | LCD | OLED |
|---|---|---|
| Light Source | Backlight (CCFL or LED) | Self-emissive (no backlight) |
| Contrast Ratio | Lower | Higher |
| Black Levels | Lighter | Deeper |
| Viewing Angles | Limited | Wide |
| Response Time | Slower | Faster |
| Color Accuracy | Good | Excellent |
| Brightness | High | Variable |
| Energy Efficiency | Lower | Higher (especially with dark images) |
| Cost | Lower | Higher |
| Lifespan | Longer | Shorter (can be susceptible to burn-in) |
| Blue Light | Higher | Lower |
| Technology Maturity | Mature | Newer |
LCD Applications:
- Televisions and Monitors: LCDs are widely used in TVs and computer monitors due to their cost-effectiveness and brightness[6].
- Smartphones and Tablets: Many mid-range and budget smartphones still use LCDs[9].
- Instrument Panels: Commonly found in automotive and aviation instrument panels[9].
- Calculators and Digital Watches: Used in simple displays with low information content[9].
OLED Applications:
- High-End Televisions: OLED TVs offer superior picture quality with deep blacks and vibrant colors[9].
- Premium Smartphones: Flagship smartphones often feature OLED displays for their excellent color accuracy and contrast[9].
- Virtual Reality Headsets: OLEDs' fast response times and high contrast make them ideal for VR applications.
- Wearable Devices: Smartwatches and fitness trackers benefit from OLEDs' energy efficiency and compact size[5].
Both LCD and OLED display technologies have their unique strengths and weaknesses. LCDs excel in brightness, cost-effectiveness, and lifespan, making them suitable for a wide range of applications where budget and longevity are primary concerns. OLEDs, on the other hand, offer superior picture quality, contrast ratios, and viewing angles, making them ideal for high-end devices where visual performance is paramount. The choice between LCD and OLED ultimately depends on the specific requirements and priorities of the application. As technology advances, both LCD and OLED displays continue to evolve, pushing the boundaries of visual performance and energy efficiency.
The primary difference lies in how they produce light. OLED displays use organic compounds that emit light when electricity is applied, while LCD displays use a backlight that shines through a layer of liquid crystals[3].
OLED displays generally offer better picture quality with more vibrant colors and deeper blacks. However, high-end LCDs can also provide excellent picture quality[3].
Yes, OLED displays tend to be more expensive than LCD displays. This is because the technology used in OLEDs is more advanced and costly to produce[3].
Screen burn-in is a phenomenon where prolonged display of static images can cause a permanent ghost image on the screen. OLEDs are more susceptible to burn-in than LCDs[3]. LCDs are not subject to screen burn-in but are still susceptible to image persistence[9].
LCDs typically perform better in bright environments due to their higher brightness levels. OLEDs may struggle in direct sunlight due to their lower overall brightness[3][5].
