Monochrome LCD displays are a fundamental technology in modern electronics, powering everything from calculators and digital watches to industrial interfaces and medical devices. While color displays dominate consumer electronics, the monochrome LCD display remains irreplaceable in many applications thanks to its simplicity, reliability, and efficiency. This article provides a comprehensive exploration of how a monochrome LCD display works, delving into its structure, operation principles, types, advantages, and applications. Throughout, you'll find detailed diagrams and embedded videos to enhance your understanding.
A monochrome LCD display is a type of liquid crystal display that shows images in a single color, typically black or various shades of gray, against a contrasting background. Unlike color LCDs that use red, green, and blue subpixels, monochrome LCD displays use only one color, which simplifies their construction and operation.
These displays are widely used in devices where color is unnecessary, such as digital clocks, calculators, industrial controllers, and e-readers. Their low power consumption and high contrast make them ideal for battery-operated and outdoor applications.
Liquid crystals are unique materials with properties between those of conventional liquids and solid crystals. Their molecules can flow like a liquid but maintain a certain degree of order, allowing them to manipulate light in remarkable ways.
- Anisotropy: Liquid crystals can change the direction of light polarization.
- Sensitivity to Electric Fields: Their molecular alignment can be controlled by applying voltage.
When no voltage is applied, the liquid crystal molecules are twisted, causing polarized light to rotate as it passes through. Applying voltage causes the molecules to align, reducing or eliminating this twist and affecting how light passes through the display.
A monochrome LCD display is composed of several layers:
- Two Glass Substrates: Sandwich the liquid crystal layer.
- Liquid Crystal Layer: The core functional material.
- Transparent Electrodes: Usually made from indium tin oxide (ITO), these allow voltage to be applied across the liquid crystal.
- Polarizing Filters: One on the front and one on the back, set at 90° to each other.
- Backlight or Reflective Layer: Depending on the display type.
The operation of a monochrome LCD display relies on controlling the passage of light through the liquid crystal layer using electrical signals.
1. Polarized Light: Light entering the display passes through the first polarizer, becoming polarized.
2. Liquid Crystal Manipulation: In the absence of voltage (OFF state), the liquid crystals twist the light, allowing it to pass through the second polarizer, making the pixel appear bright.
3. Voltage Application (ON state): When voltage is applied, the liquid crystals align with the electric field, no longer twisting the light. The second polarizer blocks the light, making the pixel appear dark.
4. Image Formation: By selectively applying voltage to specific pixels, patterns, characters, or graphics are displayed.
Monochrome LCD displays can be classified based on several criteria:

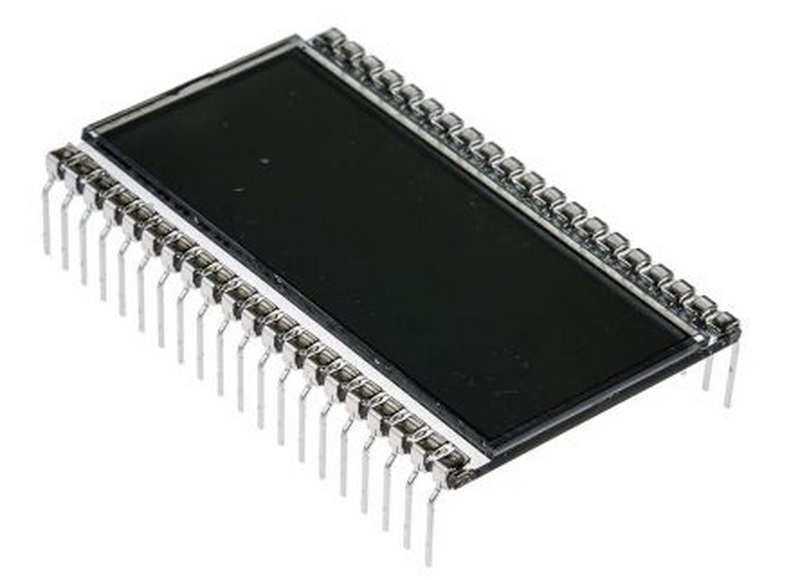

- Segmented Displays: Predefined icons or digits (e.g., calculators).
- Character Displays: Alphanumeric characters in a grid (e.g., 16x2, 20x4).

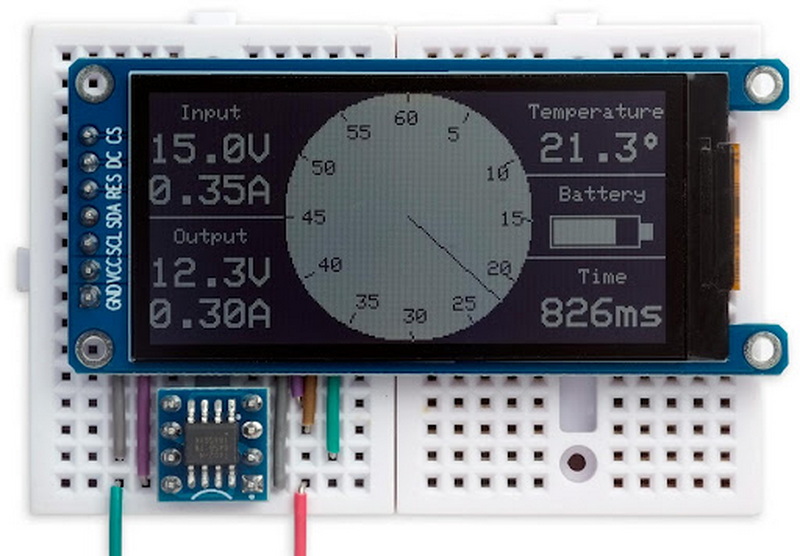

- Graphic Displays: Matrix of pixels for arbitrary images (e.g., 128x64, 240x128).
- TN (Twisted Nematic): Basic, fast, low-cost.
- STN (Super Twisted Nematic): Higher contrast, lower voltage, better for battery devices.
- FSTN (Film Compensated STN): Even higher contrast and wider temperature range.
- VA (Vertical Alignment): High contrast and wide viewing angles.
- COB (Chip on Board)
- COG (Chip on Glass)
- TAB (Tape Automated Bonding)
Each type offers different trade-offs in terms of cost, clarity, power consumption, and durability.
- Positive Mode: Light background, dark pixels. Common in reflective displays where ambient light is used.
- Negative Mode: Dark background, light pixels. Requires backlighting for visibility.
Mode | Background | Pixel Color | Backlight Needed | Common Use |
---|---|---|---|---|
Positive | Light | Dark | Optional | Calculators, watches |
Negative | Dark | Light | Required | Industrial panels, night use |
- Uses ambient light reflected from a mirror at the back.
- No backlight required.
- Ideal for outdoor or well-lit environments.
- Uses a backlight behind the LCD.
- Light passes through the display.
- Suitable for low-light or indoor use.
- Combines reflective and transmissive properties.
- Can use both ambient light and backlight.
- Most versatile, used in devices that need to work in varying lighting conditions.
Monochrome LCD displays may use:
- Edge-lit LEDs: LEDs placed along the screen edge with a diffuser for even light.
- Direct-lit LEDs: LEDs placed directly behind the display (rare in monochrome LCDs due to cost and power).
- No Backlight: Purely reflective displays.
Backlighting can be adjusted for brightness and color temperature to optimize visibility and power usage.
The viewing angle of a monochrome LCD display is the maximum angle at which the screen can be viewed with acceptable visual performance. TN displays have limited viewing angles, while STN, FSTN, and VA technologies offer improvements.
- Contrast: Monochrome LCD displays typically have higher contrast than color LCDs.
- Grayscale: Some displays support multiple voltage levels for grayscale, but most use simple ON/OFF states.
Improving viewing angles and contrast remains a focus for manufacturers to enhance user experience.
One of the most significant advantages of monochrome LCD displays is their low power consumption. Because pixels only consume power when changing state and no energy is required to maintain a static image, these displays can operate for long periods on small batteries.
- Static Image Efficiency: Once an image is displayed, minimal power is needed to keep it visible.
- Backlight Power: The backlight is often the largest power consumer; reflective displays can eliminate this need.
- Voltage Levels: Lower voltage operation reduces power use further.
This efficiency is why monochrome LCDs are favored in portable and battery-operated devices.
Monochrome LCD displays are favored in many industries due to their simplicity and efficiency:
- Consumer Electronics: Calculators, clocks, watches, remote controls.
- Industrial Equipment: Control panels, measurement instruments.
- Medical Devices: Monitors, handheld diagnostics.
- Automotive: Dashboard displays, odometers.
- Portable Devices: E-readers, handheld games.
Their reliability and readability under various lighting conditions make them indispensable in these fields.
- Low Power Consumption: Ideal for battery-powered devices.
- High Contrast: Excellent readability in various lighting.
- Durability: Fewer failure points than color displays.
- Cost-Effective: Cheaper to manufacture and maintain.
- Simple Interface: Easier to integrate with microcontrollers.
- No Color: Limited to one color, not suitable for rich visuals.
- Limited Viewing Angles: Especially in basic TN models.
- Lower Refresh Rates: Not suitable for fast-moving images.
Despite the rise of OLED and color LCD technologies, monochrome LCD displays continue to evolve:
- Improved Materials: New liquid crystal compounds for faster response and better contrast.
- Enhanced Viewing Angles: Advanced alignment layers and compensation films.
- Flexible Displays: Development of bendable and foldable monochrome LCDs.
- Integration with Touch: Combining monochrome LCDs with capacitive or resistive touch for interactive devices.
- Energy Harvesting: Integrating solar cells to extend battery life in outdoor devices.
These innovations ensure the monochrome LCD display remains relevant in niche and emerging applications.
The monochrome LCD display remains a cornerstone of electronic display technology. Its unique combination of simplicity, efficiency, and reliability ensures its continued relevance in a world increasingly dominated by high-resolution color screens. Understanding how a monochrome LCD display works provides valuable insight into both the science of liquid crystals and the practical considerations of display engineering. Whether you're designing a new device or simply curious about the screens you use every day, the monochrome LCD display is a remarkable example of elegant, effective technology.
A monochrome LCD display shows images in a single color (usually black or gray), while a color LCD uses red, green, and blue subpixels to create full-color images. Monochrome displays are simpler, consume less power, and are often more readable in sunlight.
Reflective displays are best for bright environments, transmissive for low-light situations, and transflective for devices used in both. The choice depends on your application's lighting conditions and power requirements.
Some monochrome LCD displays can show grayscale by varying the voltage applied to each pixel, but most use only ON/OFF states for maximum clarity and simplicity.
They are used in calculators, digital watches, industrial equipment, medical devices, automotive dashboards, and e-readers, where low power consumption and high visibility are critical.
Monochrome LCD displays are cost-effective, durable, highly readable, and have low power requirements, making them ideal for many specialized applications where color is unnecessary.
