Victory motorcycles, known for their distinctive design and performance, often feature LCD displays that provide crucial information to the rider. Over time, these displays can degrade due to various factors, such as environmental exposure, physical damage, or simple wear and tear. Restoring an LCD display involves several steps, from diagnosing the problem to implementing the appropriate repair or replacement. This article provides a detailed guide on how to restore an LCD display on Victory motorcycles, including troubleshooting, repair techniques, and maintenance tips.
Before attempting any restoration, it's essential to understand the common issues that affect LCD displays on Victory motorcycles.
- Dim or Fading Display: The display appears dim or difficult to read, especially in bright sunlight.
- Dead Pixels: Small black spots or colored dots appear on the screen.
- Flickering Display: The screen flickers or shows intermittent display issues.
- Partial Display: Only part of the screen is visible or functioning.
- No Display: The screen remains completely black or unresponsive.
- Scratches and Scuffs: Physical damage to the screen's surface.
- Delamination: Separation of the LCD layers, causing distorted images.
Gathering the right tools and materials is crucial for a successful LCD display restoration. Here's a comprehensive list:
Basic Tools:
- Screwdriver set (Phillips and flathead)
- Socket set
- Pliers
- Wire stripper/cutter
- Multimeter
- Soldering iron and solder
- Heat gun
- Precision knife or razor blade
Cleaning Supplies:
- Microfiber cloths
- LCD screen cleaner
- Isopropyl alcohol
- Compressed air
Replacement Parts:
- Replacement LCD screen
- Polarizing film
- Adhesive
- Connectors and wiring
Safety Gear:
- Gloves
- Safety glasses
Diagnostic Tools:
- Service manual for your specific Victory motorcycle model
- Digital camera for before-and-after photos
Optional Tools:
- Anti-static wrist strap
- Magnifying glass or microscope
- Plastic pry tools
The first step is to accurately diagnose the issue. Here's how:
1. Visual Inspection:
- Carefully inspect the LCD screen for any physical damage, such as cracks, scratches, or delamination.
- Check for signs of liquid damage or corrosion around the edges of the screen.
2. Power Cycle:
- Turn off the motorcycle and disconnect the battery for a few minutes.
- Reconnect the battery and turn the motorcycle back on to see if the display resets.
3. Check Connections:
- Locate the LCD display connector on the back of the instrument cluster.
- Ensure the connector is securely plugged in and free from corrosion.
- Use a multimeter to check for continuity and voltage at the connector.
4. Test with a Known Good Display (If Possible):
- If you have access to a working LCD display from another Victory motorcycle, temporarily connect it to your motorcycle to see if the issue is with the display itself or the motorcycle's electronics.
Carefully disassemble the instrument cluster to access the LCD display.
1. Remove the Instrument Cluster:
- Consult your service manual for the specific steps to remove the instrument cluster from your Victory motorcycle.
- Typically, this involves removing screws or bolts that secure the cluster to the dashboard.
2. Open the Instrument Cluster:
- Once the cluster is removed, carefully open it by unscrewing or unclipping the housing.
- Take photos as you disassemble to remember the location of each component.
3. Access the LCD Display:
- Locate the LCD display within the instrument cluster.
- Disconnect any connectors or ribbon cables attached to the display.
- Remove the display from the housing.
Clean the LCD display and surrounding components to remove any dirt, dust, or debris.
1. Clean the LCD Screen:
- Use a microfiber cloth and LCD screen cleaner to gently wipe the screen.
- Avoid applying too much pressure, which could damage the screen.
2. Clean Connectors and Ribbon Cables:
- Use a small brush or compressed air to remove dust from the connectors and ribbon cables.
- If there is corrosion, use a contact cleaner or isopropyl alcohol on a cotton swab to clean the contacts.
3. Clean the Housing:
- Wipe down the inside of the instrument cluster housing with a microfiber cloth to remove any dust or debris.
Based on the diagnosis, proceed with the appropriate repair or replacement.

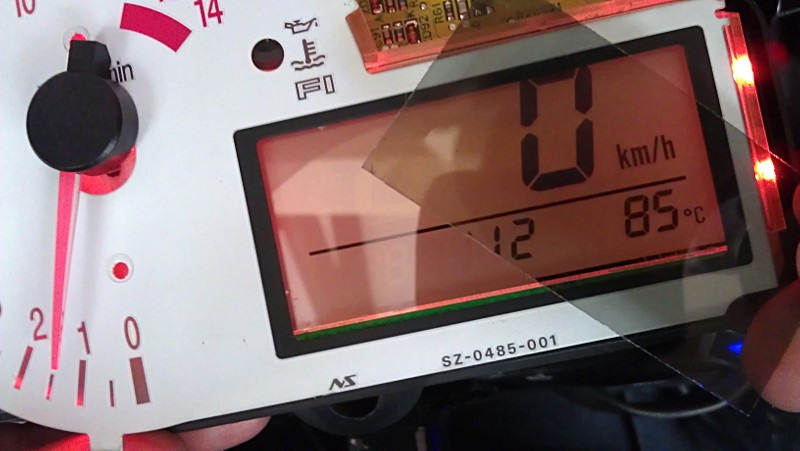

If the display is dim or has faded colors, the polarizing film may be the issue.
1. Remove the Old Polarizing Film:
- Use a heat gun to gently warm the edges of the polarizing film to loosen the adhesive.
- Carefully peel off the old film, using a precision knife or razor blade to lift the edges if necessary.
- Clean the screen with isopropyl alcohol to remove any remaining adhesive.
2. Apply the New Polarizing Film:
- Cut the new polarizing film to the exact size of the LCD screen.
- Peel off the protective backing and carefully apply the film to the screen, ensuring there are no air bubbles.
- Use a plastic squeegee or credit card to smooth out any bubbles.
3. Test the Display:
- Temporarily connect the LCD display to the motorcycle to see if the new polarizing film has improved the display.
If the display has dead pixels, a partial display, or no display, it may need to be replaced.

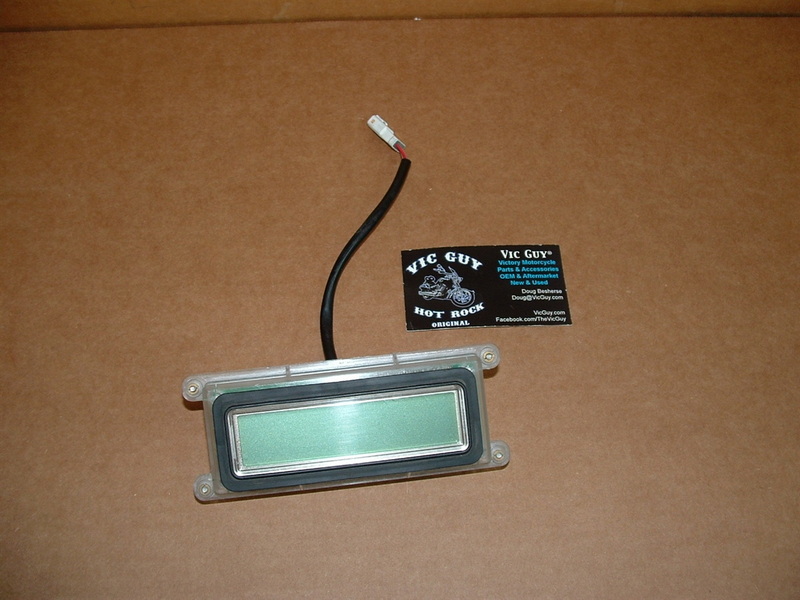

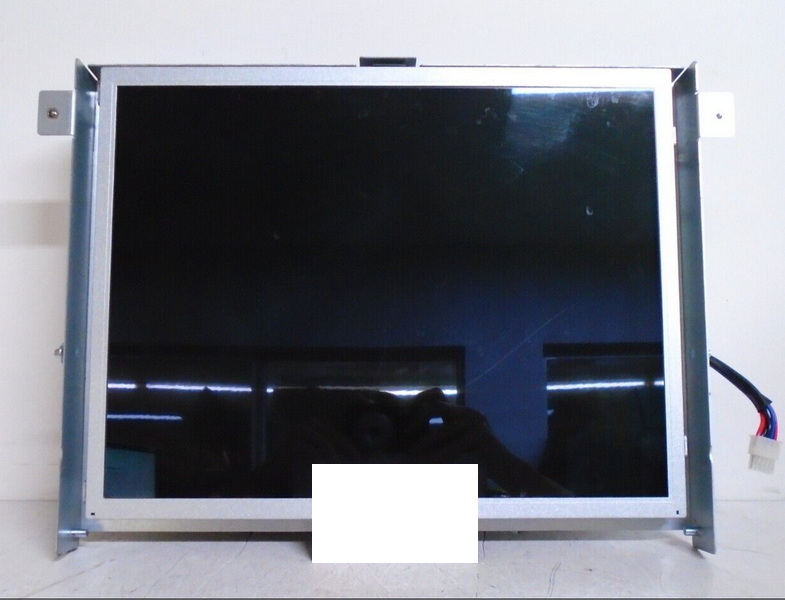

1. Source a Replacement LCD Screen:
- Find a replacement LCD screen that is compatible with your specific Victory motorcycle model.
- Check online marketplaces, motorcycle parts suppliers, or Victory motorcycle forums.
2. Install the New LCD Screen:
- Carefully place the new LCD screen into the instrument cluster housing.
- Connect any connectors or ribbon cables to the display.
- Ensure the display is securely mounted in the housing.
3. Test the Display:
- Temporarily connect the instrument cluster to the motorcycle to see if the new LCD screen is working correctly.
If the display has a flickering display or no display, the issue may be with the connections or wiring.
1. Inspect Connections:
- Check all connectors and wiring for damage or corrosion.
- Ensure the connectors are securely plugged in and making good contact.
2. Repair or Replace Wiring:
- If there is damaged wiring, use a wire stripper/cutter to remove the damaged section.
- Solder in a new section of wire, using heat shrink tubing to protect the connection.
- Replace any damaged connectors.
3. Test the Display:
- Temporarily connect the instrument cluster to the motorcycle to see if the repaired connections have resolved the issue.
Carefully reassemble the instrument cluster and reinstall it on the motorcycle.
1. Reassemble the Instrument Cluster:
- Place the LCD display back into the instrument cluster housing.
- Reconnect any connectors or ribbon cables.
- Carefully close the instrument cluster housing, ensuring all clips or screws are securely fastened.
2. Reinstall the Instrument Cluster:
- Consult your service manual for the specific steps to reinstall the instrument cluster on your Victory motorcycle.
- Typically, this involves reattaching the cluster to the dashboard using screws or bolts.
3. Test the Display:
- Turn on the motorcycle and check if the LCD display is working correctly.
- Ensure all functions, such as the speedometer, tachometer, and indicator lights, are displaying correctly.
Perform a final test to ensure the LCD display is functioning correctly and make any necessary adjustments.
1. Test All Functions:
- Check all the functions of the LCD display, such as the speedometer, tachometer, fuel gauge, and indicator lights.
- Ensure all readings are accurate and the display is easy to read in various lighting conditions.
2. Adjust Brightness and Contrast:
- If the LCD display has brightness and contrast settings, adjust them to optimize the display for your viewing preferences.
3. Check for Any Remaining Issues:
- Look for any remaining issues, such as flickering, dead pixels, or dim areas.
- If there are any remaining issues, recheck your work and make any necessary adjustments or repairs.
To prolong the life of your Victory motorcycle's LCD display, follow these maintenance tips:
Regular Cleaning:
- Clean the LCD screen regularly with a microfiber cloth and LCD screen cleaner to remove dust, dirt, and fingerprints.
Avoid Direct Sunlight:
- Park your motorcycle in the shade whenever possible to avoid prolonged exposure to direct sunlight, which can damage the LCD screen.
Protect from Extreme Temperatures:
- Avoid exposing your motorcycle to extreme temperatures, which can cause the LCD screen to degrade.
Use a Screen Protector:
- Consider using a screen protector to protect the LCD screen from scratches and scuffs.
Check Connections Regularly:
- Check the connections and wiring to the LCD display regularly to ensure they are secure and free from corrosion.
Store Properly:
- If you store your motorcycle for extended periods, cover the instrument cluster to protect it from dust and sunlight.
Dim Display:
- Check the brightness settings.
- Replace the polarizing film.
- Check the backlight.
Dead Pixels:
- Replace the LCD screen.
Flickering Display:
- Check the connections and wiring.
- Replace the LCD screen.
Partial Display:
- Replace the LCD screen.
No Display:
- Check the power supply.
- Check the connections and wiring.
- Replace the LCD screen.
Restoring an LCD display on a Victory motorcycle requires careful diagnosis, the right tools, and a methodical approach. By following this comprehensive guide, you can effectively troubleshoot, repair, or replace your LCD display, ensuring your motorcycle's instrument cluster remains functional and easy to read. Regular maintenance and preventative measures can also prolong the life of your LCD display, keeping your Victory motorcycle in top condition.
A: The dimness could be due to a degraded polarizing film, a failing backlight, or incorrect brightness settings. Try replacing the polarizing film or checking the backlight's functionality.
A: Check the connections and wiring first to rule out any simple issues. If the display continues to malfunction, such as showing dead pixels or partial display, it likely needs replacement.
A: If you are comfortable with electronics repair and have the necessary tools, you can attempt the replacement yourself. However, if you are unsure or lack experience, it's best to consult a professional to avoid damaging the instrument cluster.
A: Replacement LCD screens can be found on online marketplaces like eBay, motorcycle parts suppliers, or Victory motorcycle forums. Make sure the replacement screen is compatible with your specific Victory model.
A: Clean your LCD display regularly, ideally every few weeks, to remove dust, dirt, and fingerprints. Use a microfiber cloth and LCD screen cleaner to avoid scratching the screen.
