Liquid Crystal Displays (LCDs) have become ubiquitous in modern technology, powering everything from smartphones and laptops to televisions and digital instrument panels. Understanding how the various LCD display parts work together reveals the fascinating interplay of physics, electronics, and materials science that produces the vivid images we take for granted. This article provides a comprehensive deep dive into the essential components of an LCD, their functions, and how they collaborate to create the images on your screen.
An LCD (Liquid Crystal Display) is a flat-panel display technology that manipulates light using liquid crystals to produce images. Unlike older cathode ray tube (CRT) displays, LCDs are thinner, lighter, and consume less power. They rely on the unique properties of liquid crystals, which have characteristics between those of liquids and solid crystals, to control light passage and color rendering. However, liquid crystals themselves do not emit light; they need a backlight to illuminate the display.
The widespread adoption of LCD technology has revolutionized the way we interact with digital devices. From the crisp displays on smartphones to large-screen televisions, LCDs provide sharp images with vibrant colors and energy efficiency. This is possible because of the sophisticated design and precise coordination of the LCD display parts.
To understand how an LCD works, it is essential to explore its fundamental components and their roles.
At the heart of the LCD is the liquid crystal layer, a thin film consisting of millions of tiny cells filled with liquid crystal molecules. These molecules have a unique property: they can change their orientation when subjected to an electric field, which in turn affects how they interact with polarized light.
There are different types of liquid crystals used in displays, but the most common is the nematic type, which aligns in parallel but can twist under voltage. In a Twisted Nematic (TN) LCD, the liquid crystals are naturally twisted 90 degrees between the two glass substrates. When no voltage is applied, the crystals rotate the polarized light, allowing it to pass through the second polarizer. When voltage is applied, the crystals untwist, blocking the light.
More advanced LCD types, such as In-Plane Switching (IPS) and Vertical Alignment (VA), use different crystal alignments to improve viewing angles and color reproduction.
Two polarizing filters are placed on either side of the liquid crystal layer, oriented perpendicular to each other. These filters control the polarization of light passing through the display:
- The first polarizer only allows light vibrating in one direction to pass.
- The liquid crystals rotate this polarized light depending on their alignment.
- The second polarizer blocks or allows light through based on this rotation.
This setup enables the control of light intensity on a pixel-by-pixel basis, effectively turning pixels “on” or “off” or modulating their brightness.
The liquid crystals are sandwiched between two glass substrates coated with transparent conductive layers (usually indium tin oxide, ITO). These substrates provide structural support and house the electrodes that apply voltage to the liquid crystals.
The inner surfaces of the glass substrates are also treated with alignment layers, which help set the initial orientation of the liquid crystal molecules. This precise molecular alignment is critical for consistent display performance.
Since liquid crystals do not emit light, an LCD backlight is essential. Modern LCDs typically use LED backlights for their energy efficiency, brightness, and long lifespan. The backlight emits white light that passes through the layers of the display.
The backlight assembly includes:
- Light source: Usually an array of white LEDs positioned along the edges (edge-lit) or behind the panel (direct-lit).
- Light guide plate (LGP): Distributes light evenly across the screen.
- Diffuser layers: Scatter the light to prevent hotspots.
- Reflectors: Redirect light toward the display to maximize brightness.
The uniformity of the backlight is critical for consistent image quality across the entire screen.
Each pixel is divided into three subpixels with red, green, and blue color filters. By adjusting the light intensity passing through each subpixel, the LCD can produce a full spectrum of colors through additive color mixing.
The color filters are made using organic dyes or pigments and are precisely patterned on the glass substrate. The combination of subpixels allows the display to render millions of colors by varying the brightness of each subpixel.
To precisely control each pixel, modern LCDs use a Thin Film Transistor (TFT) array. Each pixel has its own transistor acting as a switch to apply voltage to the liquid crystals, allowing for high-resolution images with fast refresh rates and accurate color control.
The TFT array is fabricated on one of the glass substrates using semiconductor processes. It enables active matrix addressing, where each pixel can be controlled individually rather than relying on passive matrix addressing, which is slower and less precise.
The driver ICs and control circuitry manage the voltage applied to each pixel and the brightness of the backlight. They process input signals from video sources and convert them into electrical signals that control the liquid crystals and backlight intensity.
These electronics include:
- Timing controllers (TCON): Synchronize the signals for pixel addressing.
- Voltage drivers: Provide the necessary voltage levels for the liquid crystals.
- Backlight controllers: Adjust brightness and enable features like local dimming.
The sophistication of these electronics directly impacts the display's refresh rate, color accuracy, and power consumption.

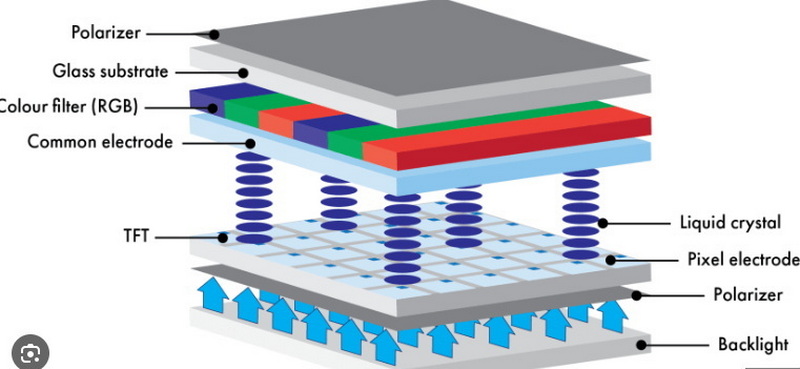

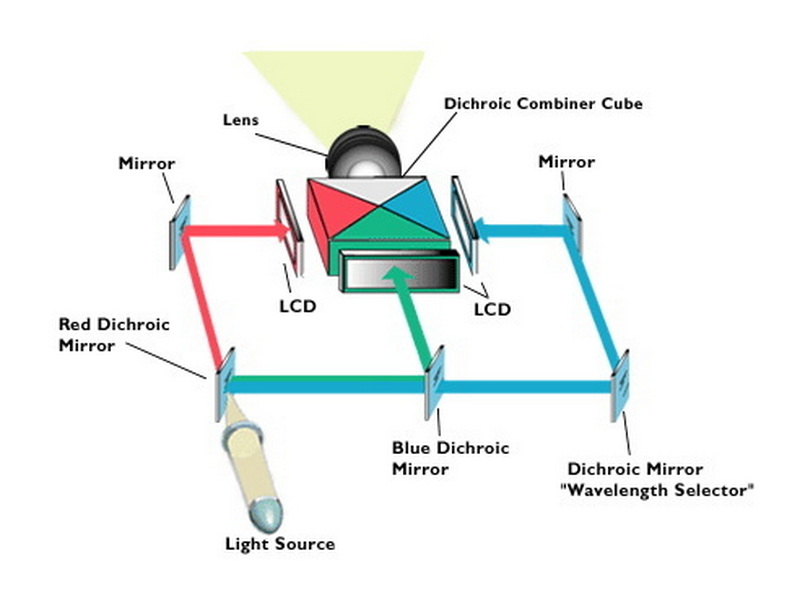

The operation of an LCD display is a coordinated process involving all the components above:
1. Backlight Illumination: The LED backlight emits uniform white light that travels toward the front of the display.
2. Polarization: The first polarizing filter polarizes the light waves in one direction.
3. Liquid Crystal Modulation: The TFT array applies voltage to the liquid crystal layer, causing the crystals to twist or align, which changes the polarization of the light passing through.
4. Second Polarizer Filtering: The second polarizing filter blocks or allows the modulated light to pass through based on its polarization, controlling the brightness of each pixel.
5. Color Filtering: The light then passes through the RGB color filters of each subpixel, producing colored light.
6. Image Formation: By controlling the voltage applied to each pixel's liquid crystals and adjusting the intensity of each subpixel, the display creates the desired image with precise color and brightness.
This process happens millions of times per second across millions of pixels, creating smooth, vibrant images.
The basic LCD architecture has evolved significantly to improve image quality, viewing angles, response times, and energy efficiency. Here are some key innovations involving LCD display parts:
IPS technology reorients the liquid crystals to lie parallel to the glass substrates rather than perpendicular. This allows the crystals to rotate within the plane of the display, improving viewing angles and color accuracy. IPS panels are common in high-end monitors and smartphones.
VA panels align liquid crystals perpendicular to the substrates when no voltage is applied. When voltage is applied, the crystals tilt to allow light through. VA technology offers high contrast ratios and deeper blacks, making it popular for televisions.
Quantum dots are nanocrystals that emit pure colors when excited by light. Some LCDs incorporate quantum dot films in the backlight assembly to enhance color gamut and brightness, resulting in richer and more accurate colors.
Advanced backlight assemblies use arrays of LEDs that can be dimmed individually (local dimming). This improves contrast by darkening areas of the screen that should be black while keeping bright areas illuminated.
Emerging research into blue phase liquid crystals aims to eliminate the need for alignment layers and reduce response times drastically, potentially leading to faster and more energy-efficient LCDs.
The seamless images displayed on LCD screens result from the intricate collaboration of multiple components working in harmony. The liquid crystal layer manipulates polarized light controlled by precise electrical signals from the TFT array and driver electronics. The backlight provides essential illumination, while polarizing filters and color filters refine the light to produce sharp, vibrant images. Innovations such as IPS, VA, quantum dots, and local dimming have further enhanced LCD performance, making them a dominant display technology in the digital age.
Understanding these LCD display parts and their interplay not only demystifies the technology but also highlights the sophistication behind everyday devices. Whether you are a technology enthusiast, a professional in display manufacturing, or simply curious, appreciating how these components work together enriches your experience with digital screens.
Answer: The main components include the liquid crystal layer, two polarizing filters, glass substrates, backlight (usually LED), color filters (RGB), thin-film transistor (TFT) array, and driver/control electronics.
Answer: The liquid crystal molecules change their orientation when voltage is applied, twisting polarized light to varying degrees, which controls how much light passes through the second polarizer and thus the pixel brightness.
Answer: Liquid crystals do not emit light themselves; the backlight provides the illumination required for the display to be visible.
Answer: The two polarizing filters, oriented perpendicular to each other, control light polarization. The liquid crystal layer modulates the light's polarization to allow or block light through the second filter, creating images.
Answer: Each pixel consists of three subpixels with red, green, and blue filters. By adjusting the intensity of light passing through each subpixel, the display can produce a wide range of colors through additive mixing.
