The Nokia 5110 LCD is a graphical display that features a resolution of 84x48 pixels. It operates using the PCD8544 controller, which communicates via an SPI interface. This display was originally designed for mobile phones, but it has found a second life in various electronics projects due to its low cost and ease of use.
To get started with your 5110 LCD module and Arduino, you will need the following components:
- Nokia 5110 LCD module
- Arduino board (e.g., Arduino Uno, Nano)
- Breadboard (optional but recommended for prototyping)
- Jumper wires
- Resistors (10kΩ and 1kΩ for voltage level shifting)
- 330Ω resistor (for backlight control)
- Potentiometer (optional for adjusting contrast)

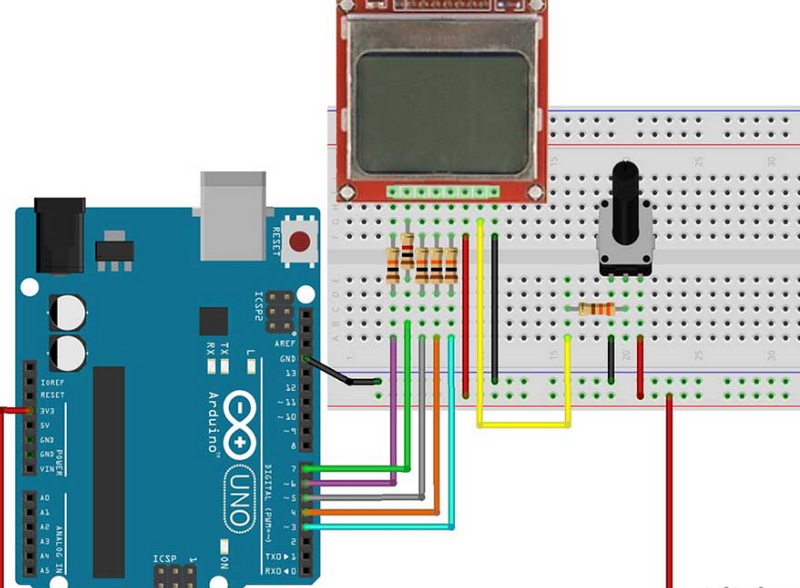

Proper wiring is crucial for the functionality of your project. Below is a wiring diagram and description of how to connect the Nokia 5110 LCD to an Arduino.
| Nokia 5110 LCD Pin | Arduino Pin | Notes |
|---|---|---|
| VCC | 5V | Power supply |
| GND | GND | Ground |
| RST | Pin 3 | Reset pin |
| CE | Pin 4 | Chip Enable |
| D/C | Pin 5 | Data/Command select |
| DIN | Pin 6 | Serial Data In |
| CLK | Pin 7 | Serial Clock |
| BL | 5V | Backlight (via a resistor) |
To communicate with the Nokia 5110 LCD, you will need to install specific libraries in your Arduino IDE:
1. Open the Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for and install:
- Adafruit GFX Library
- Adafruit PCD8544 Library
These libraries provide functions to control the display easily.
Once you have everything wired up and the libraries installed, you can start coding.
In addition to displaying text, you can also show graphics on your Nokia 5110 LCD. To do this, you need to create bitmap images that fit within the resolution of the display.
You can use tools like LCD Assistant or Image2LCD to convert images into C arrays that can be used in your code. Here's how you can include a bitmap in your project:
1. Create or select an image that fits within an 84x48 pixel area.
2. Convert it using one of the mentioned tools.
3. Include the generated array in your code.
The backlight of the Nokia 5110 can be controlled by connecting it through a resistor to a PWM-capable pin on your Arduino. You can then adjust brightness using PWM signals.
One exciting feature you can implement is scrolling text on your Nokia 5110 LCD. This can be useful for displaying messages or alerts dynamically.
If you want more control over how text appears on your screen, consider using custom fonts. You can create bitmap fonts using tools like FontCreator or find existing fonts online.
To use custom fonts:
1. Convert your font into a byte array.
2. Include it in your sketch.
3. Use `drawBitmap()` or similar functions to render it on your screen.
The real power of combining a Nokia 5110 LCD with an Arduino comes from integrating various sensors. For example:
- Temperature Sensors: Display real-time temperature readings.
- Light Sensors: Show ambient light levels.
- Motion Sensors: Indicate motion detection status.
When working with portable projects powered by batteries, managing power consumption becomes essential. Here are some tips:
- Turn Off Backlight: Use `analogWrite(backlightPin, LOW)` when not needed.
- Sleep Mode: Implement sleep modes in your Arduino code when not actively updating the screen.
- Use Low Power Modes: Some Arduino boards support low power modes that significantly reduce power consumption during idle times.
When working with the Nokia 5110 LCD module, you may encounter some common issues:
- No Display Output: Check your wiring connections and ensure that power is supplied correctly.
- Flickering Display: This could be due to poor connections or insufficient power supply.
- Graphics Not Displaying Correctly: Ensure that your bitmap data is formatted correctly and fits within the specified dimensions.
- Incorrect Contrast Levels: If text appears too faint or too dark, adjust contrast settings using `display.setContrast(value)` where `value` typically ranges from `0` (lowest) to `100` (highest).
Using a Nokia 5110 LCD module with an Arduino is a rewarding experience that opens up many possibilities for creating interactive projects. With simple wiring and coding techniques, you can easily display text and graphics on this versatile screen.
As you experiment more with this module, consider integrating sensors or other components to enhance functionality further. The combination of visual feedback from the LCD along with data from sensors creates engaging and informative projects that can serve various purposes—from educational tools to practical applications in home automation.
With its low cost and ease of use, the Nokia 5110 LCD module remains a staple in many DIY electronics projects. Whether you're creating simple displays or complex interactive systems, mastering this technology will significantly expand your capabilities as a maker.
The Nokia 5110 LCD typically operates at voltages between 2.7V and 3.3V. Connecting it directly to a 5V source may damage it unless appropriate level shifting is used.
Yes, you can use any Arduino board such as Uno, Nano, or Mega with the Nokia 5110 LCD as long as you manage the voltage levels correctly.
You can use software tools like LCD Assistant or Image2LCD to convert images into byte arrays that can be included in your Arduino sketches.
You need to install both the Adafruit GFX Library and Adafruit PCD8544 Library in your Arduino IDE to interact with the Nokia 5110 LCD effectively.
You can adjust contrast using `display.setContrast(value)` where `value` typically ranges from `0` (lowest) to `100` (highest).
