How Do I Change The Text on Bss Lcd Display?

Views: 222     Author: Tina     Publish Time: 2025-02-11      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
How Do I Change The Text on Bss Lcd Display?

Content Menu

Introduction

Understanding LCD Technology: A Foundation

Character LCDs: Simplicity and Efficiency

>> Interfacing with Microcontrollers

>> Sending Commands and Data

>> Example Scenario: Arduino and a 16x2 LCD

Graphical LCDs (GLCDs): Pixel-Level Control

>> Interfacing with Microcontrollers

>> Pixel Addressing

>> Drawing Functions

>> Example Scenario: Using a GLCD with an STM32

Advanced Techniques and Considerations

>> Using Custom Characters

>> Scrolling Text

>> Optimizing Performance

>> Addressing LCD Issues and Troubleshooting

Real-World Applications

Conclusion

FAQ

>> 1. How do I clear the LCD screen using Arduino?

>> 2. What is the difference between RS and Enable pins on an LCD?

>> 3. How can I display a custom character on a character LCD?

>> 4. How do I scroll text on a 16x2 LCD?

>> 5. Why is my LCD display showing only black boxes or random characters?

Introduction

Liquid Crystal Displays (LCDs) are ubiquitous, appearing in everything from simple calculators to sophisticated industrial control panels. Their ability to display information clearly and efficiently makes them an essential part of modern technology. Understanding how to manipulate the text displayed on an LCD is a valuable skill, whether you are a hobbyist working on a DIY project, a professional developing embedded systems, or simply trying to customize your devices. This guide will explore various methods for changing text on LCDs, catering to different scenarios and hardware configurations.

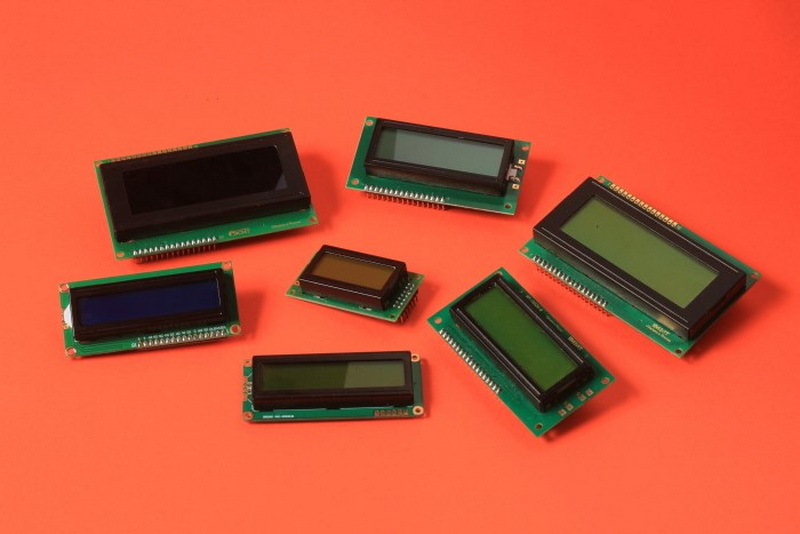

how display view on lcd d7500 youtube_1_1

Understanding LCD Technology: A Foundation

Before diving into the specifics of text manipulation, it's crucial to understand the basics of LCD technology. LCDs are composed of liquid crystals sandwiched between two transparent electrodes and two polarizing filters. Applying an electric field to the liquid crystals changes their alignment, which in turn affects the amount of light that passes through them. This allows for the creation of visible patterns and characters.

There are two primary types of LCDs:

-  Character LCDs: These are designed to display predefined characters, often arranged in rows and columns (e.g., 16x2 LCD, 20x4 LCD). They use a character generator ROM to display letters, numbers, and symbols.

-  Graphical LCDs (GLCDs): These are more versatile, allowing you to control individual pixels and display arbitrary images and text. GLCDs require more processing power and memory to operate but offer greater flexibility.

The method for changing text varies significantly depending on the type of LCD you are working with.

Character LCDs: Simplicity and Efficiency

Character LCDs are commonly used in applications where simple text output is required. They are relatively easy to interface with microcontrollers and offer a straightforward way to display information.

Interfacing with Microcontrollers

To change the text on a character LCD, you typically interface it with a microcontroller (such as an Arduino, Raspberry Pi, or STM32). The microcontroller sends commands and data to the LCD through a set of pins. These pins usually include:

-  RS (Register Select): Determines whether the data being sent is a command (e.g., clear screen, set cursor position) or character data to be displayed.

-  RW (Read/Write): Selects whether the LCD is being read from or written to. In most applications, you only need to write to the LCD.

-  Enable (E): A pulse on this pin tells the LCD to latch the data on the data bus.

-  Data Pins (D0-D7 or D4-D7): Used to transmit the actual data (commands or characters) to the LCD. You can use either 8-bit mode (using all 8 data pins) or 4-bit mode (using only 4 data pins to save microcontroller pins).

Sending Commands and Data

Changing the text on a character LCD involves sending a sequence of commands and data. Common commands include:

-  Clear Display: Clears the entire display and returns the cursor to the home position.

-  Return Home: Returns the cursor to the home position (top-left corner).

-  Set Cursor Position: Moves the cursor to a specific row and column on the display.

-  Display On/Off: Turns the display on or off.

-  Cursor On/Off: Shows or hides the cursor.

To display text, you send the ASCII codes for the desired characters to the LCD. For example, sending the ASCII code for 'A' (65 in decimal) will display the letter 'A' on the screen.

Example Scenario: Arduino and a 16x2 LCD

Let's consider a common example: using an Arduino to display text on a 16x2 LCD. You would typically use a library like `LiquidCrystal.h` to simplify the interaction with the LCD.

The basic steps involve:

1. Include the LiquidCrystal Library: `#include <LiquidCrystal.h>`

2. Define the LCD Pins: Specify which Arduino pins are connected to the LCD's RS, Enable, and data pins.

3. Initialize the LCD: In the `setup()` function, initialize the LCD by specifying the number of columns and rows.

4. Set the Cursor Position: Use `lcd.setCursor(column, row)` to position the cursor where you want the text to appear.

5. Print the Text: Use `lcd.print("Your Text Here")` to display the desired text on the LCD.

By combining these steps, you can dynamically change the text on the LCD based on sensor readings, user input, or other variables in your Arduino program.

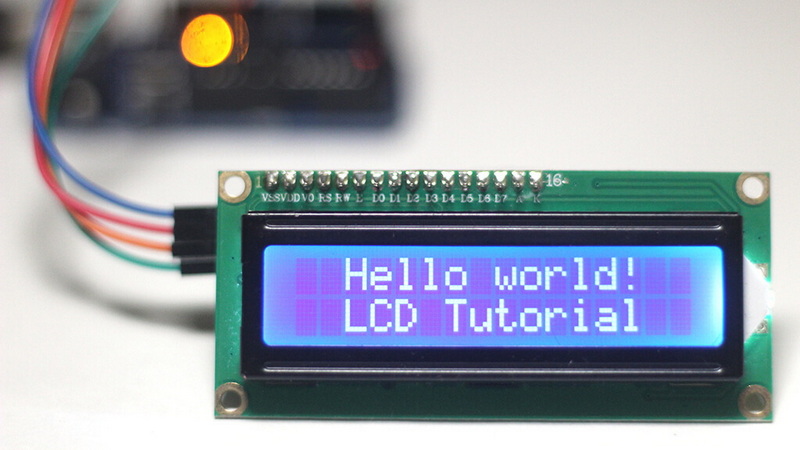

how display view on lcd d7500 youtube_2_1

Graphical LCDs (GLCDs): Pixel-Level Control

Graphical LCDs offer much greater flexibility than character LCDs. They allow you to control individual pixels, enabling you to display custom images, fonts, and complex layouts. However, they also require more complex programming and more processing power.

Interfacing with Microcontrollers

Like character LCDs, GLCDs are interfaced with microcontrollers. However, the interface is typically more complex, often involving serial protocols like SPI or I2C, or parallel interfaces with dedicated data and control lines.

Pixel Addressing

To change the text on a GLCD, you need to understand how to address individual pixels. GLCDs typically have a memory map where each bit corresponds to a pixel on the screen. Setting a bit to 1 turns the corresponding pixel on, while setting it to 0 turns it off.

Drawing Functions

To simplify the process of drawing text and shapes on a GLCD, you often use a graphics library. These libraries provide functions for:

-  Drawing Pixels: Setting individual pixels on or off.

-  Drawing Lines: Drawing lines between two points.

-  Drawing Rectangles: Drawing filled or outlined rectangles.

-  Drawing Circles: Drawing filled or outlined circles.

-  Drawing Text: Displaying text at a specified position using a chosen font.

Example Scenario: Using a GLCD with an STM32

Let's consider an example of using a GLCD with an STM32 microcontroller. You might use a library like the STM32 HAL library or a third-party graphics library like Adafruit GFX.

The basic steps involve:

1. Initialize the GLCD: Configure the microcontroller's SPI or parallel interface to communicate with the GLCD.

2. Clear the Screen: Fill the entire screen with a background color.

3. Set the Text Font: Choose a font to use for displaying text.

4. Set the Text Color: Choose a color for the text.

5. Set the Cursor Position: Specify the starting position for the text.

6. Print the Text: Use a function like `GFX.print("Your Text Here")` to display the text on the GLCD.

By using these functions, you can create dynamic displays with custom text, graphics, and animations on your GLCD.

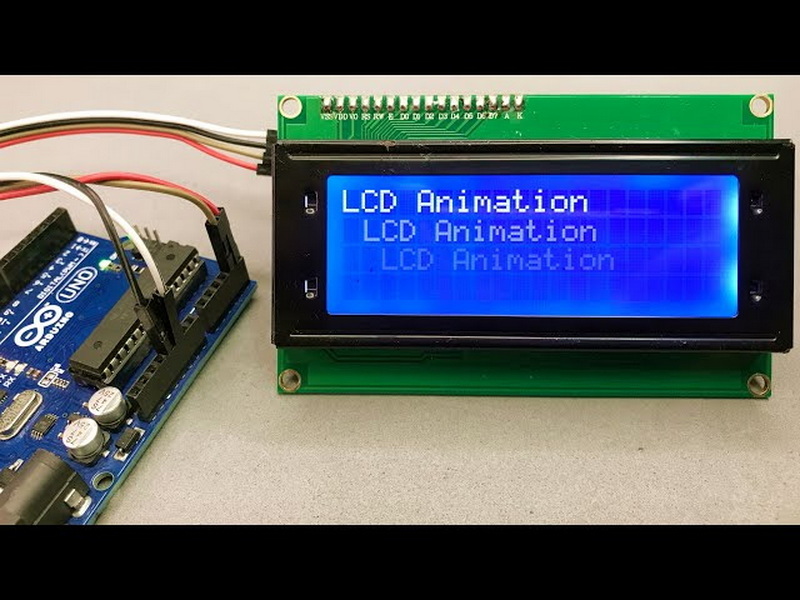

how display view on lcd d7500 youtube_4_1

Advanced Techniques and Considerations

Beyond the basic methods, there are several advanced techniques and considerations to keep in mind when working with LCDs.

Using Custom Characters

On character LCDs, you can define your own custom characters. This is useful for displaying symbols or icons that are not included in the standard character set. You can define up to 8 custom characters and store them in the LCD's character generator RAM (CGRAM).

To define a custom character, you create an array of 8 bytes, where each byte represents a row of pixels in the character. Each bit in the byte corresponds to a pixel (1 for on, 0 for off). You then send this array to the CGRAM and assign it a character code. When you send that character code to the LCD, it will display your custom character.

Scrolling Text

You can create the illusion of scrolling text on an LCD by shifting the text one character or pixel at a time. On character LCDs, you can use the `scrollDisplayLeft()` and `scrollDisplayRight()` functions to scroll the entire display. On GLCDs, you can achieve scrolling by redrawing the text at slightly different positions in each frame.

Optimizing Performance

When working with GLCDs, performance can be a concern, especially on microcontrollers with limited processing power. To optimize performance, consider the following:

-  Minimize Redraws: Only redraw the parts of the screen that need to be updated.

-  Use Efficient Drawing Functions: Use optimized drawing functions provided by your graphics library.

-  Buffer the Display: Store the entire display in a buffer in memory and then write the buffer to the LCD in one operation. This can reduce the number of individual pixel writes and improve performance.

-  Use DMA (Direct Memory Access): If your microcontroller supports DMA, use it to transfer data to the LCD without involving the CPU.

Addressing LCD Issues and Troubleshooting

When working with LCDs, you might encounter issues such as:

-  No Display: The LCD is not displaying anything. Check the power supply, connections, and initialization code.

-  Faint Display: The display is very faint. Adjust the contrast potentiometer (if your LCD has one) or check the LCD driving voltages.

-  Garbled Text: The text is appearing as random characters. Check the baud rate, data format, and communication protocol.

-  Slow Refresh Rate: The display is updating very slowly. Optimize your code and consider using techniques like buffering and DMA.

By systematically checking these potential issues, you can quickly diagnose and resolve common LCD problems.

Real-World Applications

The ability to manipulate text on LCD displays is crucial in a wide array of applications. Here are a few examples:

-  Embedded Systems: Displaying sensor readings, status information, and user prompts on embedded devices.

-  Industrial Control Panels: Showing process parameters, alarms, and control settings in industrial environments.

-  Consumer Electronics: Displaying information on devices like calculators, thermostats, and home appliances.

-  Automotive Displays: Showing vehicle information, navigation instructions, and entertainment options in cars.

-  Medical Devices: Displaying patient data, diagnostic information, and equipment status in medical settings.

In each of these applications, the ability to dynamically update and customize the text on the LCD is essential for providing users with timely and relevant information.

Conclusion

Changing the text on an LCD display is a fundamental skill that opens up a wide range of possibilities for creating interactive and informative devices. Whether you are working with a simple character LCD or a more complex graphical LCD, understanding the underlying principles and techniques will enable you to effectively display information and create engaging user experiences. By following the guidelines and examples outlined in this guide, you can confidently tackle your next LCD project and bring your ideas to life. The key is to understand the type of LCD you are using, choose the appropriate interface and libraries, and carefully plan your code to optimize performance and ensure reliable operation. With practice and experimentation, you can master the art of text manipulation on LCDs and create compelling displays for a variety of applications.

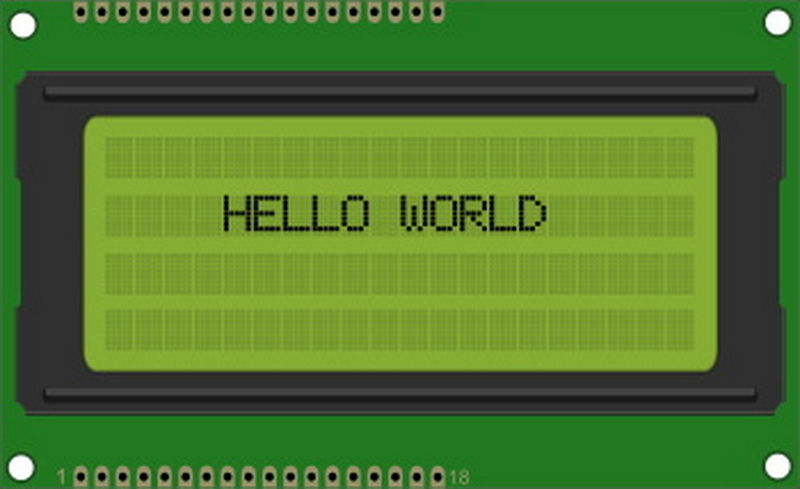

how display view on lcd d7500 youtube_3_1

FAQ

1. How do I clear the LCD screen using Arduino?

Answer: To clear the LCD screen using Arduino, you can use the `lcd.clear()` function provided by the `LiquidCrystal` library. This function clears the entire display and positions the cursor in the top-left corner (position 0,0).

2. What is the difference between RS and Enable pins on an LCD?

Answer: The RS (Register Select) pin determines whether you are sending a command or data to the LCD. When RS is low, you are sending a command (e.g., clear screen, set cursor position). When RS is high, you are sending data (i.e., the ASCII code of the character you want to display). The Enable (E) pin is used to latch the data or command being sent to the LCD. A pulse on the Enable pin tells the LCD to read the data present on the data pins.

3. How can I display a custom character on a character LCD?

Answer: To display a custom character, you first need to define the character as an array of 8 bytes, where each byte represents a row of pixels. Then, you send this array to the LCD's character generator RAM (CGRAM) using the `lcd.createChar()` function. Finally, you can display the custom character by printing its character code (0-7) using the `lcd.write()` function.

4. How do I scroll text on a 16x2 LCD?

Answer: You can scroll text on a 16x2 LCD using the `lcd.scrollDisplayLeft()` and `lcd.scrollDisplayRight()` functions. These functions shift the entire display content one position to the left or right, respectively. You can call these functions repeatedly in a loop to create a scrolling effect.

5. Why is my LCD display showing only black boxes or random characters?

Answer: This issue can be caused by several factors:

-  Incorrect Wiring: Double-check that all the connections between the LCD and the microcontroller are correct.

-  Initialization Issues: Ensure that the LCD is properly initialized in your code (e.g., specifying the correct number of columns and rows).

-  Contrast Adjustment: Adjust the contrast potentiometer on the LCD module to see if the display becomes clearer.

-  Code Errors: Review your code for any errors in sending commands or data to the LCD.
