OLED (Organic Light Emitting Diode) screens have become increasingly popular in TVs, smartphones, and monitors due to their superior contrast, vibrant colors, and wide viewing angles. However, OLED technology has a potential drawback known as burn-in. This article explores what OLED burn-in is, why it occurs, whether it's still a significant problem, and how to prevent it.

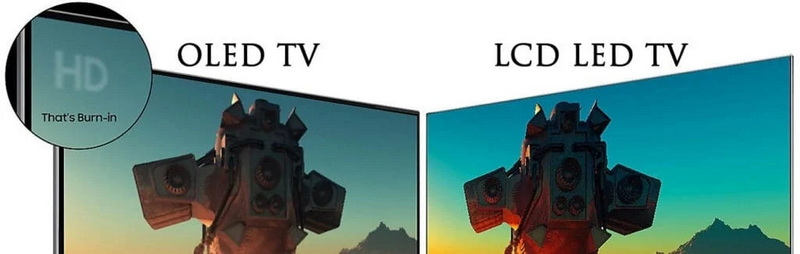

Burn-in, also known as image retention or ghosting, is a permanent discoloration of areas on a display caused by the cumulative non-uniform use of the screen. It occurs when a static image is displayed for an extended period, causing the pixels in that area to age faster than the rest of the screen. This differential aging leads to a permanent "ghost" image of the static element, which is visible regardless of what else is displayed on the screen.
Burn-in is a form of image retention and a symptom of pixel degradation. The pixels that display the static image emit light more intensely or for longer durations, causing them to degrade faster than other pixels. Think of it like repeatedly folding a piece of paper along the same line; eventually, a crease becomes permanent.
OLED screens are made of organic compounds that emit light when electricity passes through them. Over time, these organic materials can degrade, especially when they emit the same level of light for extended periods. This degradation leads to variations in brightness and color, resulting in the remnants of static images.
Burn-in occurs due to the differential aging of the organic materials in the OLED pixels. When the same image is displayed for a prolonged period, the pixels used to display that image age faster than the rest. This is because they are emitting light more intensely or for longer durations compared to others. Imagine repeatedly using the same few keys on a keyboard; those keys will wear out faster than the others.
Different colors degrade at different rates. Blue OLED materials tend to degrade faster than red or green materials. If a particular color dominates a static image, the pixels emitting that color will wear out more quickly, leading to uneven wear and visible ghosting. This is why, historically, burn-in often presented as a yellowish or greenish tint where static blue elements were present.
The organic compounds in OLED pixels are not as stable as the inorganic materials used in other types of displays. They are more susceptible to degradation over time, especially under high-energy operation. Electroluminescence in OLEDs involves the movement of electrons and holes (positive charge carriers). When an electric current passes through the OLED material, these charge carriers recombine, and in the process, energy is released as light. Prolonged exposure to high currents can lead to the degradation of the material that facilitates this process. This degradation essentially reduces the efficiency of the pixel, requiring it to work harder (consume more electricity) to produce the same level of brightness, accelerating the wear.
OLED burn-in results from the inherent properties of the organic materials used in these displays. Understanding and mitigating these factors is key to prolonging the life of OLED screens. Manufacturers are constantly researching new organic compounds with improved stability and lifespan, as well as implementing innovative driving schemes to distribute pixel usage more evenly.
Burn-in is less common than it used to be, but it can still happen. Advances in OLED technology have reduced the likelihood of burn-in through improved materials and software solutions. The perception of burn-in risk has also changed; many users are willing to accept the *potential* for burn-in given the significant improvements in image quality that OLED offers.
Manufacturers continuously improve the OLED materials used in their displays to make them more resilient to burn-in. This involves developing organic compounds with greater thermal and chemical stability, as well as optimizing the manufacturing processes to minimize defects that could accelerate degradation.
Modern OLED displays have better pixel designs, which can reduce the likelihood of burn-in. These designs often incorporate larger pixels, which can dissipate heat more effectively, and improved encapsulation techniques to protect the organic materials from environmental factors like moisture and oxygen, which can contribute to degradation. Subpixel rendering techniques also play a role, allowing for finer control over individual pixel brightness and color, which can help to distribute wear more evenly.
Many OLED devices now include software features designed to prevent burn-in. These can include pixel shifting, where the image is moved by a few pixels at regular intervals, and screen savers that activate when static content is detected. Some monitors also have an "image retention refresh" cycle that runs when the device is turned off to minimize the risk of burn-in. Some OLED TVs have a feature called "Pixel Cleaning" that can be scheduled or manually run to check and adjust each on-screen pixel, gently moving them to prevent OLED burn-in. Dynamic Tone Mapping, a feature often used in HDR content, can also help by adjusting brightness levels dynamically based on the content being displayed, reducing the strain on individual pixels.
Burn-in is most likely to occur when static images (like channel logos or taskbars) are displayed for prolonged periods, especially at high brightness levels. If you watch a lot of varied content, without long-lasting, static pictures, you are less likely to experience burn-in. Someone who watches news channels with a persistent ticker at the bottom of the screen is at much higher risk than someone who primarily streams movies and TV shows.
In OLED displays used for gaming or as PC monitors, where static images are more common, burn-in is more likely. Things like heads-up displays (HUDs), in-game maps, and persistent UI elements can all contribute to burn-in over time. Smartphones, despite using OLED screens, often show more varied content for shorter periods, making burn-in less of an issue. The dynamic nature of smartphone usage, with frequent screen changes and automatic brightness adjustments, helps to mitigate the risk.
Here are several strategies to minimize the risk of burn-in on OLED TVs and monitors:
1. Reduce Brightness: Lowering the screen brightness is one of the easiest and most effective ways to prevent burn-in. The brighter the pixels have to work, the more wear they experience. Most modern OLED TVs and monitors also come with an “auto-brightness” feature that adjusts brightness based on the ambient light in the room. Using a lower brightness setting, especially for SDR (Standard Dynamic Range) content, can significantly extend the lifespan of your OLED display.
2. Vary Content: Avoid watching content with static elements for extended periods. Mix up your viewing habits to ensure that no single part of the screen is constantly displaying the same image. If you primarily watch news channels, try to intersperse them with other types of content.
3. Use Dark Mode: Enable dark mode on your devices to reduce the brightness of static elements like the taskbar and desktop icons. Dark mode not only looks sleek but also consumes less power, further reducing the strain on the OLED pixels.
4. Hide Static Elements: Hide the taskbar and desktop icons on your computer. You can also configure your operating system to automatically hide these elements when they are not in use.
5. Screensavers: Use screensavers that activate after brief periods of inactivity. Choose a screensaver with dynamic and constantly changing content to ensure that no single pixel is illuminated for too long.
6. Pixel Shifting: Enable pixel shifting features on your device, if available. This feature moves the image by a few pixels at regular intervals, which helps to prevent burn-in.
7. Turn Off the Display: Turn off the monitor when not in use. This prevents any further pixel degradation when the screen is not actively displaying content.
8. Run Pixel Cleaning: Use the "Pixel Cleaning" feature on your OLED TV regularly to check and adjust each on-screen pixel. This feature typically runs a short cycle that recalibrates the pixels, evening out any minor variations in brightness or color that may have occurred over time.
9. Energy Saving Settings: Ensure your OLED TV, monitor, or laptop is using sensible energy-saving settings. Set your display to turn off after a period of inactivity.
10. Be Mindful of Gaming HUDs: For gamers, be conscious of the static elements in game HUDs (Heads-Up Displays). If possible, adjust the HUD settings to make them less intrusive or to automatically hide after a period of inactivity.
OLED burn-in is a potential issue with OLED screens, but it is less common than it used to be. Advances in technology and changes in usage patterns have reduced the risk of burn-in. By following the tips outlined in this article, you can minimize the risk of burn-in and enjoy the superior picture quality of OLED displays for years to come. The key is to be mindful of your usage habits and to take advantage of the software features designed to protect the screen.
Burn-in is a permanent discoloration of areas on a display caused by cumulative non-uniform use of the screen. Image retention, on the other hand, is a temporary phenomenon where a faint image remains visible for a few minutes after the static image is removed. Image retention usually goes away on its own, while burn-in is permanent. Think of image retention like the temporary impression left on your skin after wearing tight socks.
All OLED screens *can* experience burn-in, but it is more likely to occur with improper use. Modern OLED panels are more resistant to burn-in than older models, and with proper care, the risk of burn-in is low. However, no OLED screen is completely immune to burn-in if subjected to extreme conditions.
The time it takes for burn-in to occur varies depending on usage patterns and screen settings. It can take months or even years of displaying static images for extended periods at high brightness levels for burn-in to become noticeable. Many users report using their OLED TVs for years without experiencing any noticeable burn-in, while others experience it more quickly due to their specific usage habits.
No, burn-in is a permanent issue and cannot be repaired. Once the organic materials in the pixels have degraded to the point of causing visible discoloration, there is no way to reverse the process. However, manufacturers often offer warranties that cover burn-in, so it is worth checking your device's warranty policy.
QD-OLED (Quantum Dot OLED) panels are a newer type of OLED display that combines the benefits of OLED with quantum dot technology. Some tests suggest that QD-OLED panels may be more resistant to burn-in than traditional OLED panels, but more long-term testing is needed to confirm this. The quantum dot layer in QD-OLED panels is believed to improve color efficiency and brightness, which could potentially reduce the strain on the organic OLED materials and extend their lifespan.
