Liquid Crystal Displays (LCDs) are ubiquitous in modern technology, found in everything from smartphones and laptops to televisions and industrial equipment. These displays rely on the unique properties of liquid crystals to produce images, making them susceptible to environmental factors, especially temperature. High temperatures can significantly impact the performance, longevity, and overall visual quality of LCD screens. This article delves into the various ways heat affects LCD displays, offering insights into the underlying mechanisms and practical advice for mitigating potential damage.

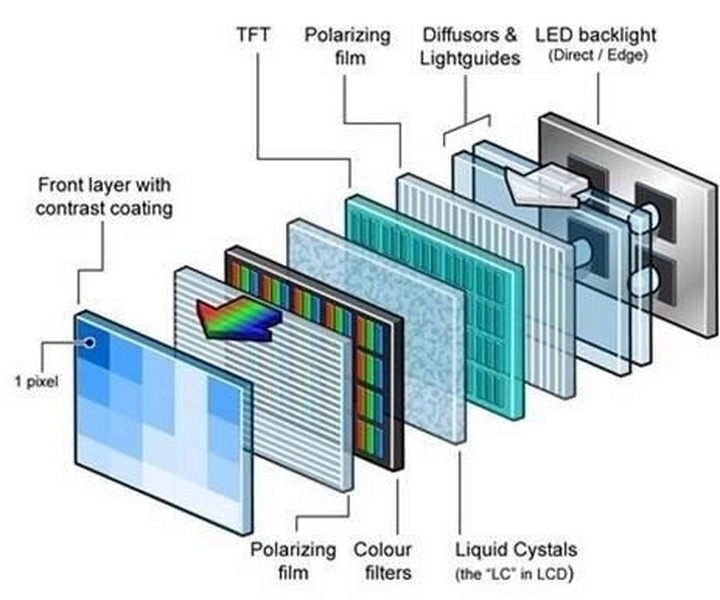

Before discussing the effects of heat, understanding how LCDs function is essential. LCDs consist of several layers, including a backlight, polarizing filters, glass substrates, and the liquid crystal material itself[3]. The liquid crystals are molecules that can align in response to an electric field. By controlling the alignment of these crystals, the amount of light passing through each pixel can be precisely adjusted, creating the images we see[5].

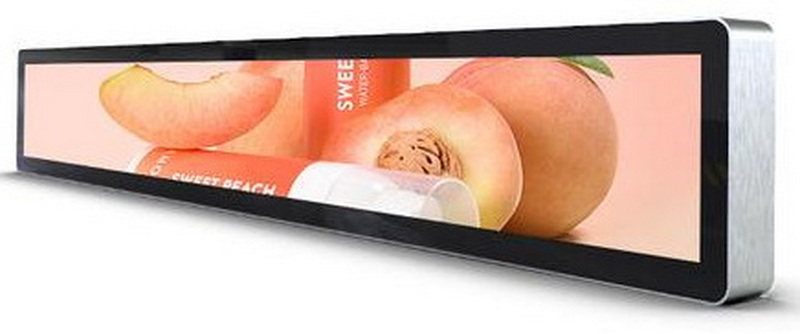

High working temperatures can have several adverse effects on LCD strip screens[1]. These effects can range from temporary visual distortions to permanent damage, impacting the device's functionality and lifespan.
Elevated temperatures can cause the liquid crystals to become overly mobile, leading to color distortion and image quality issues[7]. This distortion can manifest as colors looking washed out or inaccurate[3].
Extreme temperatures can affect the brightness and contrast of LCD screens. In high temperatures, LCD screens may appear excessively bright, causing colors to look washed out[7]. This can reduce the display's overall visual appeal and accuracy[3].
In hot conditions, the LCD response time may decrease, causing screen transitions to occur more rapidly[7]. While this might sound beneficial, it can lead to ghosting or blurring, especially in fast-moving content[5].
Excessive heat may damage the internal circuits of the display[3]. LCD displays are typically packaged with silicone[1]. If the working temperature exceeds the solid phase transition temperature (typically 125 °C), the packaging material will become a rubber state and rapidly heat and expand, resulting in an open circuit and failure of the LCD bar screen[1].
Long exposure to extreme heat can permanently damage the LCD device[9]. Besides the destruction of the liquid crystals, battery life can shorten, hardware can crack or even melt, and response time may slow to prevent even more heat generation from the device[9].
The effects of temperature on LCDs are rooted in the physical properties of the materials used in their construction.
As temperature increases, the concentration of electrons and holes increases, the band gap decreases, and the electron mobility decreases[1]. High temperature will shift the blue peak of the chip to the long-wave direction, causing the chip's wavelength to not match the phosphor's wavelength, thereby reducing the light extraction efficiency outside the liquid crystal display[1]. As the temperature increases, the quantum efficiency of the phosphor decreases, the luminescence decreases, and the light extraction of the liquid crystal display decreases, resulting in a decrease in the brightness of the liquid crystal display[1].
The shape of silicone products is greatly affected by temperature. As the temperature increases, the internal heat of the silica gel increases, and the refractive index decreases, resulting in an increase in the light efficiency of the liquid crystal display[1].
The LED backlight and the internal circuitry, typically TFT-based in the common TFT LCDs, are components that can generate heat that damages the device and its display[9].
Several measures can be taken to minimize the impact of heat on LCD displays[3]. These strategies range from environmental control to hardware solutions, all aimed at maintaining optimal operating temperatures[3].
It is best to use LCD monitors in a suitable temperature range and avoid using them in extreme high and low-temperature environments[3]. When using in a high-temperature environment or a low-temperature environment, you can install an air conditioner and a heater to maintain a suitable temperature[3].
The heat dissipation space of the liquid crystal display is very small. If the dust is not cleaned frequently, it will increase the temperature and cause problems[3]. Therefore, it is necessary to clean the cooling holes of the liquid crystal display frequently[3].
Direct sunlight can easily cause the temperature of the liquid crystal display to be too high[3]. Therefore, avoid direct sunlight on the liquid crystal display during use[3].
In the process of using the liquid crystal display, care should be taken to ensure the ventilation performance of the liquid crystal display to avoid the accumulation of heat and moisture caused by long-term use, which will lead to failure[3].
Many devices use cooling fans paired with vents to address overheating[9]. Some devices that are used in extremely high ambient temperatures may even require air conditioning[9]. With air vents to carry the heat out, the device can expel it into the surroundings[9].
High temperatures can significantly degrade the performance and lifespan of LCD displays. Understanding the mechanisms through which heat affects these displays—from altering liquid crystal behavior to damaging internal components—is crucial for implementing effective mitigation strategies. By controlling the environment, ensuring adequate ventilation, and employing hardware solutions like cooling fans, it is possible to minimize the adverse effects of heat and maintain the optimal performance of LCD screens.
The ideal operating temperature for an LCD display typically ranges between 0°C and 50°C (32°F and 122°F). Operating within this range helps maintain optimal performance and prolongs the lifespan of the display.
Yes, high humidity can exacerbate the effects of heat on LCDs. When combined with high temperatures, humidity can lead to condensation inside the screen, potentially causing corrosion and electrical shorts. Ensuring proper ventilation and using dehumidifying measures can help mitigate these risks.
Direct sunlight can significantly raise the temperature of an LCD screen, leading to overheating, color distortion, and reduced lifespan. The ultraviolet (UV) radiation in sunlight can also degrade the materials used in the display. It is best to avoid direct sunlight.

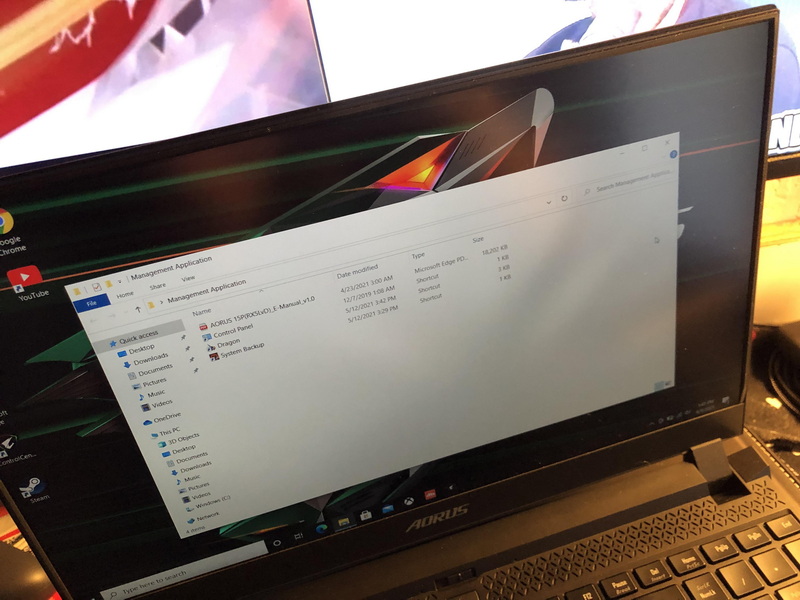

Signs of heat damage on an LCD display include color distortion, washed-out colors, decreased brightness, slow response times (leading to ghosting), and in severe cases, permanent dark spots or lines on the screen.
In many cases, LCD screen damage from heat is irreversible, especially if the liquid crystals or internal components are affected. While some issues like minor color distortion might be temporarily alleviated, permanent damage often requires replacing the entire display.
