Liquid Crystal Displays (LCDs) have become an integral part of our daily lives, powering everything from smartphones and laptops to televisions and digital watches. Despite their widespread use, many people are unaware of the fundamental optical principles that make LCD technology work. One of the most critical aspects of LCD operation is polarization. This article delves deeply into why LCD displays are polarized, how polarization works in conjunction with liquid crystals, and why this combination is essential for producing the sharp, vibrant images we see on screens today.
Light is an electromagnetic wave that oscillates in multiple directions perpendicular to its direction of travel. Natural light, such as sunlight or the light from a bulb, vibrates in many planes simultaneously. Polarization is the process of filtering light waves so that they vibrate predominantly in one plane or direction. This concept is widely used in various optical technologies, including sunglasses, cameras, and LCD screens.
Polarized light can be thought of as light that has been “aligned” so that its waves oscillate in a single direction. For example, polarized sunglasses block horizontally polarized light, reducing glare from reflective surfaces like water or roads. Similarly, LCDs rely on controlling polarized light to manipulate the images displayed on the screen.

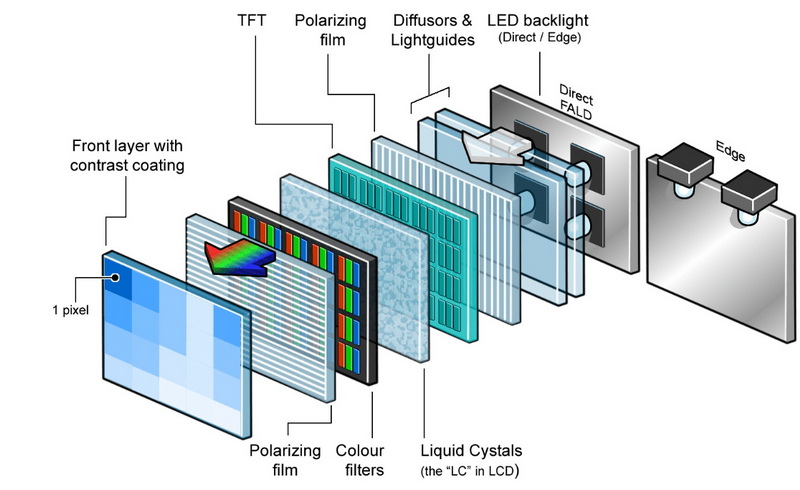

LCDs are flat-panel displays that use liquid crystals sandwiched between two glass substrates. Unlike traditional displays, LCDs do not emit light themselves; instead, they control the passage of light from a backlight source. The liquid crystals act as tiny shutters that regulate how much light passes through each pixel.
The key to this regulation lies in the interaction between liquid crystals and polarized light. By controlling the orientation of liquid crystal molecules with electric voltage, the display can twist polarized light to varying degrees. This twisting determines whether light passes through the second polarizer and reaches our eyes, thus creating images with different brightness levels and colors.
Polarizers are optical filters that allow light waves vibrating in only one direction to pass through. In an LCD, two polarizing filters are placed on either side of the liquid crystal layer. These are oriented at 90 degrees to each other, a configuration known as crossed polarizers.
- First Polarizer (Polarizer): This filter polarizes the backlight, converting unpolarized light into light vibrating in a single plane.
- Second Polarizer (Analyzer): Positioned on the viewing side, this filter only allows light polarized in its orientation to pass through.
When the liquid crystals are in their natural twisted state (no voltage applied), they rotate the plane of polarized light so it aligns with the second polarizer, allowing light to pass and the pixel to appear bright. When voltage is applied, the liquid crystals straighten, preventing the rotation of polarized light. As a result, the light is blocked by the second polarizer, and the pixel appears dark.
Without these polarizers, the backlight would shine through the display unfiltered, resulting in a bright but indistinct image with poor contrast. The polarizers enable the LCD to control light transmission at each pixel, creating visible images with varying brightness and contrast.
Liquid crystals are unique materials that exhibit properties between those of liquids and solid crystals. Their molecules are elongated and can be aligned in specific directions. In an LCD, the liquid crystals are arranged in a twisted nematic structure when no voltage is applied. This twist causes the plane of polarized light to rotate as it passes through the liquid crystal layer.
Applying an electric voltage causes the liquid crystal molecules to align parallel to the electric field, removing the twist. This change in molecular alignment stops the rotation of polarized light, so it remains misaligned with the second polarizer and is blocked.
By varying the voltage applied to each pixel, the LCD can control the degree of light transmission, producing different shades and colors on the screen. This precise control is what allows LCDs to display complex images with gradients and color depth.
Polarizers in LCDs are typically made from polyvinyl alcohol (PVA) films that have been stretched and treated with iodine molecules. This treatment creates a filter that absorbs light vibrating in one direction and transmits light vibrating in the perpendicular direction. These films are laminated with protective layers to enhance durability and optical clarity.
The first polarizer converts the backlight into polarized light, while the second polarizer analyzes the light after it has passed through the liquid crystal layer. This arrangement enables the display to produce images with sharp contrast and clarity.
Polarization allows LCDs to produce clear and sharp images. Without polarization, the backlight would flood the screen with unfiltered light, making it impossible to distinguish the images created by the liquid crystals. The crossed polarizers create a high contrast ratio by blocking or allowing light through specific pixels.
Because the liquid crystals rotate the polarization of light, the amount of light passing through the second polarizer can be finely tuned by adjusting the voltage. This enables precise brightness control at the pixel level, essential for displaying images with depth and detail.
Polarization helps maximize the efficiency of the backlight by controlling how much light is transmitted or blocked. This means that LCDs can achieve good brightness and contrast without excessive power consumption.
LCD panels are often polarized at 45 degrees rather than vertically or horizontally. This orientation improves viewing angle performance and makes the display more consistent when viewed from different directions. It also helps avoid issues with polarized sunglasses, which typically block vertically polarized light, by reducing glare and ensuring readability in various conditions.

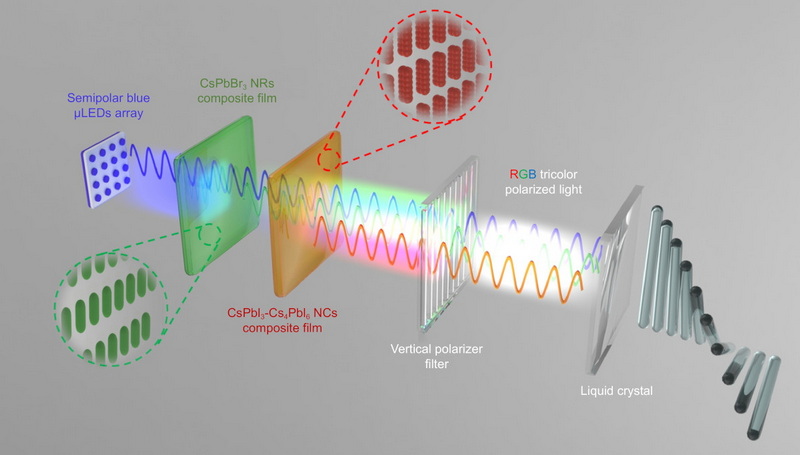

In addition to polarization, LCDs use color filters to produce full-color images. Each pixel is divided into subpixels with red, green, and blue filters. The intensity of light passing through each subpixel is controlled by the liquid crystal's manipulation of polarized light.
Because polarization controls the brightness of each subpixel, it directly affects color accuracy and vibrancy. If polarization were not properly managed, colors would appear washed out or distorted.
The speed at which liquid crystals can change their orientation affects the display's response time. Polarization plays a role here because the rotation of polarized light must happen quickly and consistently for smooth motion rendering. Advances in liquid crystal materials and polarization techniques have led to faster response times and reduced motion blur in modern LCDs.
Polarization is fundamental to the operation of LCD displays. The two polarizing filters, oriented perpendicularly, work in tandem with the liquid crystal layer to control the passage of light from the backlight, enabling the display to produce clear, bright, and high-contrast images. The liquid crystals' ability to rotate the polarization of light under applied voltage allows precise control of pixel brightness and image formation. Without polarization, LCDs would be unable to create visible images, making this optical phenomenon a cornerstone of LCD technology. Advances in polarizer materials and LCD design continue to enhance display quality, energy efficiency, and viewing experience.
Polarizers filter light to create contrast by allowing only specific orientations of light waves to pass, enabling the liquid crystals to modulate brightness and produce sharp images.
Crossed polarizers block light when liquid crystals do not rotate polarization and allow light when they do, controlling pixel brightness and image formation.
PVA film, stretched and treated with iodine, creates a uniform polarizing filter that absorbs unwanted light vibrations and transmits polarized light efficiently.
Voltage changes the alignment of liquid crystal molecules, altering their ability to twist polarized light and thus controlling light transmission through the display.
Yes, polarization can cause color shifts and brightness changes at extreme viewing angles, a known limitation of LCD technology that manufacturers address through design optimizations.
