Views: 222 Author: Tina Publish Time: 2025-06-24 Origin: Site
Content Menu
● Introduction to OLED and LCD Displays
>> What is LCD?
● How OLED and LCD Displays Work
● OLED vs LCD: Detailed Comparison
>> 1. Superior Picture Quality
>> 2. Thin and Flexible Design
>> 3. Fast Refresh Rates and Response Times
>> 4. Energy Efficiency with Dark Content
● Disadvantages of OLED Displays
>> 1. Limited Lifespan and Blue Pixel Degradation
>> 5. Sensitivity to Environmental Factors
>> 1. Longer Lifespan and Durability
>> 5. Slim and Lightweight Designs
● Disadvantages of LCD Displays
>> 1. Inferior Black Levels and Contrast
>> 5. Higher Power Consumption with Dark Images
● Which Display is Better for You?
● Frequently Asked Questions (FAQ)
>> 1. What is the main difference between OLED and LCD?
>> 2. Are OLED screens better for gaming?
>> 3. Do OLED displays suffer from burn-in?
>> 4. Which display is more energy-efficient?
>> 5. Can OLED displays be used outdoors?
OLED stands for Organic Light-Emitting Diode. Unlike traditional displays, OLED screens consist of organic compounds that emit light when an electric current passes through them. Each pixel in an OLED display is self-illuminating, meaning it produces its own light. This eliminates the need for a backlight, allowing OLED panels to be incredibly thin and flexible. The self-emissive nature of OLED technology results in exceptional contrast ratios and vibrant colors, making it a popular choice for premium devices.
LCD stands for Liquid Crystal Display. LCDs operate by using a constant backlight—typically LED-based—that shines through layers of liquid crystals and color filters to produce images. The liquid crystals act as shutters that modulate the amount of light passing through each pixel. Unlike OLED, LCD pixels do not emit light themselves. This reliance on a backlight means that LCDs are generally thicker and less capable of producing true blacks, as the backlight is always on and can leak through.
In OLED displays, each pixel is composed of organic materials that emit light individually when stimulated by an electric current. This self-emission enables each pixel to be turned on or off independently, resulting in true blacks when pixels are off. The organic layers are sandwiched between two electrodes, and when voltage is applied, electrons and holes recombine in the organic layer, releasing photons (light). This process allows for vibrant colors, high contrast ratios, and rapid response times.

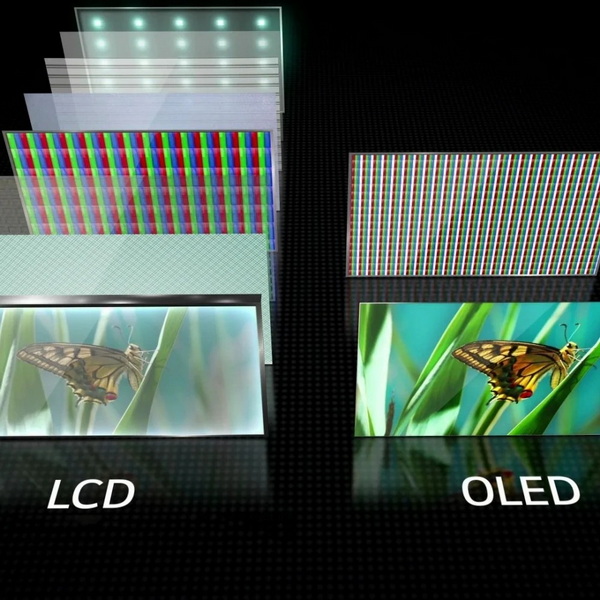

LCDs consist of several layers: a backlight, polarizers, liquid crystal cells, and color filters. The backlight emits white light that passes through the liquid crystals, which twist or align to either block or allow light to pass through. By controlling the alignment of these crystals, the display can produce different colors and brightness levels. Since the backlight is always on, LCDs cannot produce true blacks, and some light leakage can occur, reducing contrast.
| Feature | OLED | LCD |
|---|---|---|
| Contrast Ratio | Infinite (true blacks by pixel off) | Limited by backlight leakage |
| Black Levels | True black (pixels off) | Grayish black due to backlight |
| Color Accuracy | Wide color gamut, vibrant colors | Good, but less vibrant than OLED |
| Viewing Angles | Nearly perfect, consistent colors | Limited, color and contrast shift off-angle |
| Brightness | Good, but lower peak brightness | Higher overall brightness, better in bright environments |
| Response Time | Very fast (microseconds) | Slower (milliseconds), potential motion blur |
| Energy Efficiency | More efficient with dark images | More efficient with bright images |
| Lifespan | Shorter, especially blue pixels degrade | Longer lifespan, less prone to burn-in |
| Burn-in Risk | Susceptible to burn-in/image retention | Minimal burn-in risk |
| Thickness & Flexibility | Thin and flexible | Thicker and rigid |
| Cost | More expensive to produce | More affordable |
One of the most significant advantages of OLED displays is their ability to produce true blacks and infinite contrast ratios. Because each pixel emits its own light and can be turned off completely, OLED screens can display deep blacks that LCDs cannot match. This results in more vivid and lifelike images, especially in dark scenes, making OLED ideal for watching movies or playing visually rich games.
OLED technology allows for incredibly thin and flexible displays. Since OLEDs do not require a bulky backlight, manufacturers can produce curved, foldable, and even transparent screens. This flexibility has led to innovative device designs, such as foldable smartphones and curved TVs, pushing the boundaries of what screens can do.
OLED displays boast extremely fast response times, often in the microseconds range. This means pixels change color almost instantaneously, which reduces motion blur and ghosting. Gamers and sports enthusiasts benefit from this responsiveness, enjoying smoother and clearer fast-moving visuals.
Because OLED pixels emit light individually, they consume power only when lit. Dark or black pixels are essentially off, resulting in lower power consumption when displaying dark images or interfaces. This can extend battery life on devices like smartphones and laptops, especially when using dark mode or watching content with many dark scenes.
OLED displays maintain consistent color accuracy and contrast even when viewed from extreme angles. This is due to the self-emissive nature of each pixel, which does not rely on backlight diffusion. This feature is particularly beneficial for TVs and monitors where multiple viewers watch from different positions.
One of the main challenges with OLED technology is the relatively shorter lifespan of the organic materials, especially blue OLEDs. Blue pixels tend to degrade faster than red and green ones, which can lead to color shifts and reduced overall display longevity. This degradation is a concern for devices intended for long-term use.
OLED displays are susceptible to burn-in or image retention, where static images displayed for extended periods leave a ghostly afterimage. This can be problematic for users who keep static UI elements like navigation bars or logos on screen for long durations. However, manufacturers have implemented various software and hardware solutions to minimize burn-in risks.
Producing OLED displays is more complex and expensive than LCDs. The manufacturing process involves organic materials and precise layering, which increases production costs. As a result, OLED devices tend to be pricier, especially in larger sizes.
OLEDs generally cannot achieve the same peak brightness levels as high-end LCDs with powerful backlights. This limitation can affect visibility in very bright environments or direct sunlight, making OLED less ideal for outdoor use.
The organic materials in OLED displays are sensitive to moisture and oxygen, which can degrade the panel if not properly sealed. This sensitivity requires additional protective layers, adding complexity and cost to the manufacturing process.
LCDs typically have a longer lifespan compared to OLEDs, especially because they do not suffer from organic material degradation. They are less prone to issues like burn-in, making them a reliable choice for devices used extensively over many years.
LCDs can achieve higher brightness levels due to their powerful LED backlights. This makes them more suitable for use in brightly lit rooms or outdoor environments, where screen visibility is critical.
LCD technology is mature and widely adopted, resulting in lower production costs. This affordability makes LCDs the go-to choice for budget-friendly devices and large-scale manufacturing.
Unlike OLEDs, LCDs do not experience burn-in or permanent image retention. This makes them ideal for applications that display static images or interfaces for prolonged periods, such as digital signage or computer monitors.
Modern LCD panels have become thinner and lighter due to advances in backlight and panel technology. While not as thin as OLEDs, they are still suitable for portable devices and sleek designs.
Because LCDs rely on a backlight that is always on, blacks cannot be truly black but rather a dark gray. This reduces the overall contrast ratio and can make images appear less dynamic and immersive.
LCDs tend to suffer from color and contrast shifts when viewed from off-center angles. This means colors can wash out or darken, which is less ideal for group viewing or multi-angle setups.
The liquid crystals in LCDs take longer to change state compared to OLED pixels. This slower response time can cause motion blur or ghosting in fast-moving video or games.
Since the backlight illuminates the entire panel, some light leakage can occur around the edges or in dark scenes, leading to uneven brightness and reduced picture quality.
Because the backlight is always on, LCDs consume roughly the same amount of power regardless of the image content. This makes them less efficient when displaying dark or black images compared to OLEDs.
- You prioritize exceptional picture quality with true blacks and vibrant colors.
- You want wide viewing angles and fast response times for gaming or video.
- You prefer thin, flexible, or innovative display designs.
- You mostly use your device indoors or in dim lighting.
- You are willing to pay a premium for the best visual experience.
- You want a more affordable display option.
- You use your device frequently in bright or outdoor environments.
- You desire a longer-lasting display without burn-in concerns.
- You prefer natural color tones and consistent performance.
- Your usage involves static images or prolonged screen-on time.
Choosing between OLED and LCD displays depends heavily on your priorities and usage environment. OLED technology offers unparalleled picture quality with true blacks, vibrant colors, and fast response times, making it perfect for immersive viewing experiences and modern device designs. However, OLEDs come with higher costs, shorter lifespans, and potential burn-in risks.
LCDs provide a cost-effective, durable, and bright alternative, excelling in bright environments and long-term use without burn-in concerns. While they cannot match OLED's contrast and color vibrancy, they remain a reliable and widely used display technology.
Ultimately, the best display for you aligns with your budget, viewing habits, and desired features. Whether you choose OLED or LCD, understanding these technologies ensures you get the most out of your screen.
The main difference lies in how they produce light. OLED pixels emit their own light individually, enabling true blacks and high contrast. LCDs rely on a backlight that shines through liquid crystals, resulting in less contrast and grayish blacks.
Yes, OLEDs have faster response times and better contrast, reducing motion blur and providing a more immersive gaming experience.
Yes, OLEDs can suffer from burn-in if static images are displayed for long periods, but modern devices include features to reduce this risk.
OLEDs are more energy-efficient when displaying dark images because only lit pixels consume power. LCDs use constant backlighting, consuming more energy regardless of image content.
OLEDs generally have lower peak brightness, making them less ideal for bright outdoor environments compared to LCDs, which perform better in direct sunlight.
