Liquid Crystal Displays (LCDs) are widely used for their clarity, low power consumption, and versatility. Whether you're building a simple Arduino project or a sophisticated industrial interface, understanding how to wire an LCD correctly is essential. One of the most critical aspects of LCD wiring is setting the display's contrast, which is controlled by the V0 pin. Without proper contrast adjustment, the characters on the screen may be faint, invisible, or overly dark, making your display ineffective.
LCDs come in various sizes and types, including character LCDs (like 16x2 or 20x4) and graphical LCDs. Despite differences in resolution and complexity, the principle of contrast control via the V0 pin remains consistent across most modules.
The V0 pin on an LCD display is dedicated to adjusting the screen's contrast. By varying the voltage applied to this pin, you can control how dark or light the characters and background appear. Proper contrast adjustment ensures your display is readable in various lighting conditions.
- V0 is not for power or data; it is solely for contrast adjustment.
- The voltage on V0 is typically set using a potentiometer or a fixed resistor.
- Incorrect V0 wiring can result in a blank, unreadable, or overly dark display.
Contrast is critical because it affects the visibility of the information displayed. Inadequate contrast can cause eye strain and reduce the usability of your device. For example, in bright environments, a higher contrast setting might be necessary, while in darker environments, a lower contrast might be preferable to avoid glare.

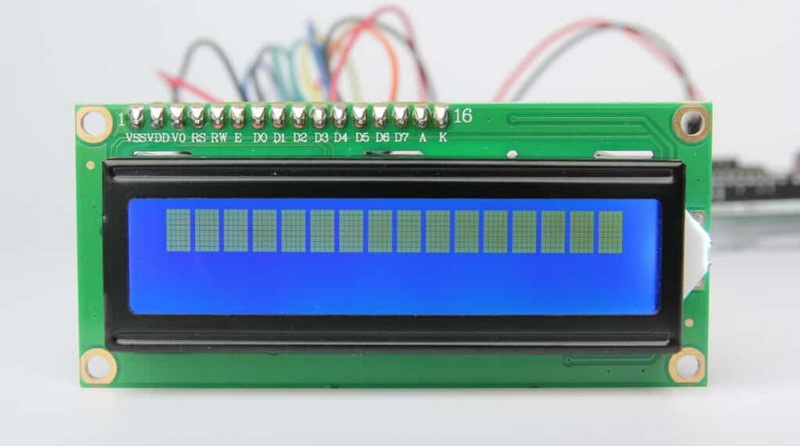

Most character LCDs, such as the popular 16x2 or 20x4 modules, follow a standard pinout. Here's a typical example:
| Pin | Name | Function |
|---|---|---|
| 1 | VSS | Ground |
| 2 | VDD | +5V Power |
| 3 | V0 | Contrast Adjustment |
| 4 | RS | Register Select |
| 5 | RW | Read/Write |
| 6 | E | Enable |
| 7-14 | D0-D7 | Data Lines |
| 15 | A | LED Backlight Anode (+) |
| 16 | K | LED Backlight Cathode (-) |
Note: Some graphical LCDs or specialized modules may have additional or differently labeled pins, but the principle for V0 remains the same.
Locate the third pin on your LCD module, usually labeled as V0, VO, or Contrast.
You have two main options:
- Potentiometer (Recommended): Allows dynamic adjustment.
- Fixed Resistor: Simple, but less flexible.

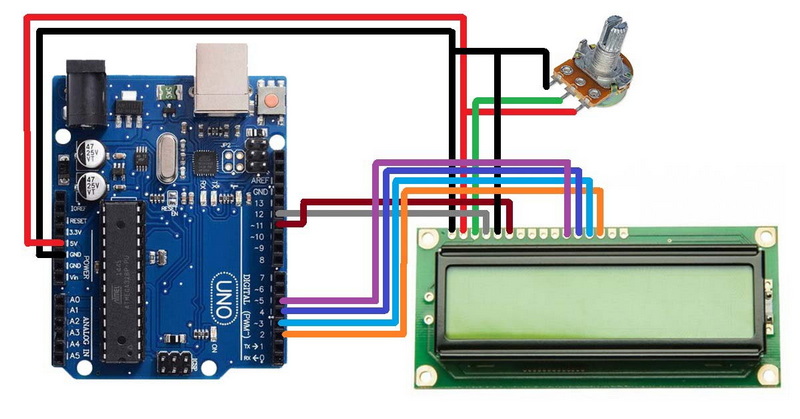

A 10kΩ potentiometer is standard. Here's how to connect it:
- One end to GND (VSS)
- The other end to +5V (VDD)
- The wiper (middle pin) to V0
This setup lets you fine-tune the contrast by turning the potentiometer.
If you don't have a potentiometer, you can use a resistor (typically 470Ω to 2kΩ) between V0 and GND. This gives reasonable contrast, but you can't adjust it easily.
Ensure all connections are secure before powering up your system.
The potentiometer acts as a voltage divider, providing a variable voltage between 0V and 5V to the V0 pin. This variable voltage controls the contrast level.
- Connect one potentiometer terminal to +5V.
- Connect the other terminal to GND.
- Connect the wiper (middle pin) to V0.
If you prefer a fixed contrast setting, connect a resistor between V0 and GND. The resistor value determines the voltage drop and thus the contrast level.
When wiring an LCD to a microcontroller like Arduino, ensure that:
- VSS is connected to ground.
- VDD is connected to +5V.
- V0 is connected to the potentiometer wiper or resistor.
- Data and control pins are connected according to your microcontroller's pinout.
- Backlight pins (A and K) are connected properly to power and ground, often with a current-limiting resistor.
- Display Completely Blank: V0 is not connected or set to an extreme voltage. Adjust potentiometer or check resistor.
- Display Fully Black: V0 is too close to GND. Increase resistance or adjust potentiometer.
- Faint or Unreadable Characters: V0 voltage is suboptimal. Fine-tune the potentiometer.
- No Change When Adjusting Potentiometer: Check wiring; ensure the wiper is connected to V0 and ends to VDD/GND.
If you encounter issues, always start by verifying the V0 connection since it directly affects contrast and visibility.
LCD contrast can shift with temperature changes. In some advanced applications, a thermistor or temperature sensor is used alongside the potentiometer or digital control to adjust V0 voltage dynamically. This ensures consistent readability in varying environmental conditions.
For automated or remote systems, digital potentiometers controlled by microcontrollers can adjust contrast without manual intervention. This is especially useful in embedded systems where physical access is limited.
Some LCD modules with built-in controllers allow contrast adjustments through software commands, eliminating the need for external potentiometers. Consult your LCD's datasheet for such features.
- Bright Ambient Light: Increase contrast voltage closer to GND to darken characters.
- Low Light or Dark Rooms: Raise voltage towards VDD to lighten characters and reduce glare.
When designing projects with microcontrollers like Arduino, Raspberry Pi, or ESP32, always include a potentiometer for V0 during development. This allows you to quickly adjust contrast as you test your display in different lighting conditions.
The V0 pin does not consume significant current, but the backlight does. Ensure your power supply can handle the total current draw of your LCD module, especially if the backlight is always on.
Since V0 is an analog voltage input, keep its wiring short and away from high-current or noisy signals to avoid flickering or unstable contrast.
Connecting the V0 pin correctly is crucial for achieving optimal readability on your LCD display. Whether you use a potentiometer for manual adjustment or a fixed resistor for simplicity, understanding the role of V0 ensures your project delivers a clear, professional interface. Proper contrast adjustment enhances user experience and prevents common display issues such as blank or unreadable screens. Always refer to your specific LCD's datasheet for recommended voltage ranges and wiring practices. With the right setup, your LCD will perform reliably in any application, from simple hobby projects to complex industrial systems.
Leaving V0 unconnected usually results in a blank or unreadable display. The contrast voltage is undefined, so the LCD cannot display characters properly.
Yes, values from 5kΩ to 20kΩ are commonly used. The exact value is not critical, but 10kΩ is standard for most LCD modules.
Connecting V0 directly to GND will make the display very dark (sometimes unreadable), while connecting it to VDD will make it very light or blank. A variable voltage between GND and VDD is needed for optimal contrast.
Yes, using a digital potentiometer or a DAC (Digital-to-Analog Converter), you can control V0 with a microcontroller for dynamic contrast adjustment.
LCD contrast is sensitive to temperature. As temperature changes, the optimal V0 voltage shifts, which is why some advanced systems use temperature compensation for V0.
