In the world of display technology, two terms frequently encountered are LCD (Liquid Crystal Display) and IPS (In-Plane Switching). While both are types of LCD, they differ significantly in terms of technology, performance, and application. This article will delve into the intricacies of these display types, exploring their features, advantages, disadvantages, and ideal use cases.
LCD stands for Liquid Crystal Display. It is a flat-panel display technology that utilizes liquid crystals to produce images. The basic principle behind LCDs involves manipulating light through liquid crystals sandwiched between two layers of glass or plastic.
- Backlighting: LCDs require a backlight to illuminate the screen. This can be achieved using various technologies, including LED (Light Emitting Diode) or CCFL (Cold Cathode Fluorescent Lamp).
- Color Reproduction: Standard LCDs can reproduce a decent range of colors but may struggle with accuracy compared to more advanced technologies.
- Viewing Angles: Traditional LCDs typically have limited viewing angles, which can lead to color distortion when viewed from the side.

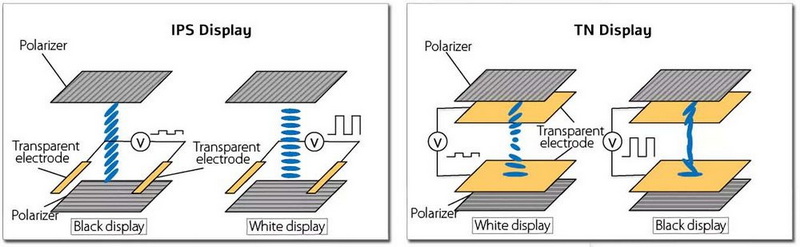

IPS, or In-Plane Switching, is a specific type of LCD panel technology that enhances the performance of standard LCDs. Developed in the early 2000s by Hitachi, IPS panels are designed to address some common limitations found in traditional LCD displays.
- Improved Color Accuracy: IPS displays are known for their superior color reproduction and consistency. They can produce over 16 million colors, making them ideal for tasks requiring precise color fidelity.
- Wide Viewing Angles: One of the standout features of IPS technology is its wide viewing angles, often reaching up to 178 degrees both horizontally and vertically. This means that colors remain consistent and vibrant even when viewed from sharp angles.
- Better Response Times: Although IPS panels traditionally had slower response times compared to TN (Twisted Nematic) panels, advancements in technology have significantly improved their performance in this area.
To better understand the differences between these two display technologies, let's break down their characteristics in a comparative table:
| Feature | LCD | IPS |
|---|---|---|
| Color Accuracy | Moderate | Excellent |
| Viewing Angles | Limited | Wide (up to 178 degrees) |
| Response Time | Generally faster | Improved but slower than TN |
| Brightness | Moderate | Good |
| Cost | Generally cheaper | More expensive |
| Applications | Basic displays | Professional use (design, editing) |
1. Superior Color Accuracy: IPS panels provide more accurate color reproduction than standard LCDs. This makes them ideal for graphic designers and photographers who need precise color representation.
2. Wide Viewing Angles: Unlike traditional LCDs that suffer from color distortion at angles, IPS displays maintain color integrity and brightness from various perspectives.
3. Better Performance in Bright Conditions: IPS screens tend to perform better in bright environments due to their enhanced backlighting capabilities.
4. Consistent Brightness Levels: The brightness remains consistent across the entire screen, making it easier to view content without experiencing significant variations in brightness.
1. Higher Cost: The advanced technology used in IPS displays typically results in higher manufacturing costs, making them more expensive than standard LCDs.
2. Slower Response Times for Gaming: While improvements have been made, some IPS panels may still lag behind TN panels in terms of response time, which can be a disadvantage for competitive gaming.
3. Power Consumption: IPS displays generally consume more power than standard LCDs due to their complex structure and backlighting requirements.
- Basic computing tasks
- Budget-friendly options
- Environments where viewing angles are not critical
- Simple applications like word processing or web browsing
- Professional graphic design and photo editing
- Watching movies with friends or family where multiple viewing angles are necessary
- Gaming where color accuracy enhances the experience
- Any application requiring high-quality visuals such as medical imaging or architectural design
The landscape of display technology is rapidly evolving. With advancements like OLED (Organic Light Emitting Diode) and Mini LED technologies emerging alongside traditional LCD and IPS displays, consumers now have a wider array of options than ever before.
OLED displays offer several advantages over traditional LCDs and even IPS panels:
- True Blacks: OLED panels can turn off individual pixels completely, resulting in true black levels that enhance contrast ratios significantly.
- Faster Response Times: OLED technology generally provides faster response times compared to both standard LCDs and even many IPS displays.
- Thinner Panels: OLED screens can be made thinner than traditional LCDs since they do not require a separate backlight layer.
However, OLED displays also come with their drawbacks:
- Burn-In Issues: Prolonged exposure to static images can cause burn-in on OLED screens.
- Cost Considerations: OLED technology tends to be more expensive than both standard and IPS displays.
As technology continues to advance, we can expect further innovations in display technologies. Manufacturers are investing heavily in research and development aimed at improving color accuracy, response times, and energy efficiency across all types of displays.
1. MicroLED Technology: MicroLED is a promising new display technology that combines the best aspects of OLED and traditional LED displays without some of their drawbacks. It offers high brightness levels without burn-in issues.
2. Quantum Dot Displays: Quantum Dot technology enhances color reproduction by using semiconductor nanocrystals that emit specific colors when illuminated by light sources. This technology is often used alongside LED backlighting in high-end TVs and monitors.
3. Flexible Displays: Flexible display technology is being developed for applications ranging from smartphones to wearables. These displays can bend without breaking while maintaining high image quality.
In summary, while both LCD and IPS displays serve as essential technologies in today's digital landscape, they cater to different needs and preferences. Standard LCDs are suitable for basic applications where cost is a primary concern, while IPS displays excel in scenarios requiring high color accuracy and wide viewing angles. Understanding these differences can help consumers make informed decisions based on their specific needs.
As we look towards the future, advancements in display technologies will likely continue to blur the lines between these categories while introducing new options that enhance our visual experiences across various devices.
The primary difference lies in how liquid crystals are aligned; IPS displays offer better color accuracy and wider viewing angles compared to standard LCDs.
Yes, all IPS displays are a type of LCD; however, not all LCDs use IPS technology.
While TN panels often have faster response times suitable for gaming, high-end IPS displays also provide excellent color accuracy and viewing angles for an immersive experience.
Yes, generally speaking, IPS displays consume more power due to their complex structure and backlighting requirements.
For professionals requiring accurate color reproduction or users who value wide viewing angles, the investment in an IPS display is often justified by its superior performance.
