The integration of an I2C LCD module with an Arduino has become a popular choice among electronics enthusiasts and professionals alike. This combination simplifies the process of displaying data, making it an essential tool for various projects. In this article, we will explore the advantages of using an I2C LCD module with Arduino, delve into its functionality, and provide step-by-step guidance on how to set it up.
I2C, or Inter-Integrated Circuit, is a communication protocol that allows multiple devices to communicate with each other using only two wires: SDA (Serial Data Line) and SCL (Serial Clock Line). This simplicity is one of the primary advantages of using an I2C LCD module.
- Two-wire connection: Unlike traditional LCDs that require multiple pins for data transmission, the I2C interface reduces this to just two wires.
- Multiple devices: The I2C protocol supports multiple devices on the same bus, allowing you to connect several sensors and modules without requiring additional pins on the Arduino.
Using an I2C LCD module with Arduino offers several key benefits:

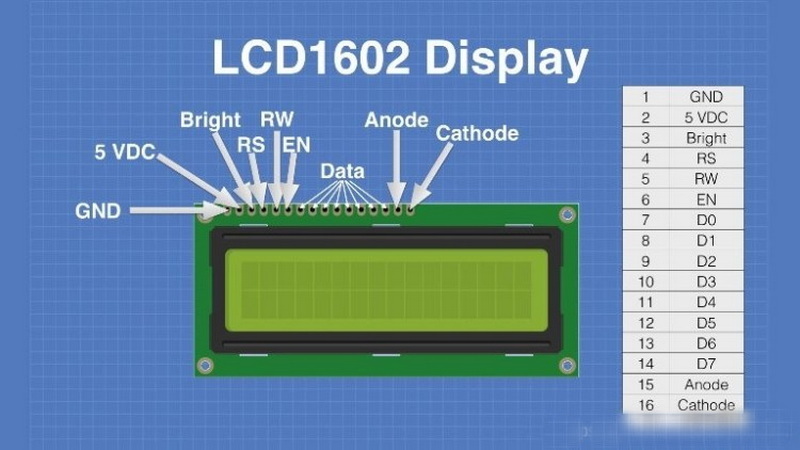

Connecting a standard LCD to an Arduino typically requires at least 6 to 10 pins, depending on the mode used (4-bit or 8-bit). In contrast, an I2C LCD only requires four connections:
- GND: Ground connection
- VCC: Power supply (typically 5V)
- SDA: Data line
- SCL: Clock line
This significant reduction in wiring complexity not only saves space but also minimizes potential connection errors.
Arduino boards have a limited number of digital input/output pins. By utilizing an I2C LCD, you conserve valuable GPIO pins for other components in your project. This is especially beneficial in projects that involve multiple sensors or modules.
The use of libraries like `LiquidCrystal_I2C` makes programming the I2C LCD straightforward. These libraries abstract the complexities of I2C communication, allowing users to focus on their project rather than the underlying communication details.
Many I2C LCD modules come with a built-in potentiometer that allows users to adjust the display contrast easily. This feature eliminates the need for external components typically required for contrast adjustment in standard LCDs.
I2C LCDs can display not only static text but also dynamic data such as sensor readings or status updates from your Arduino projects. This versatility makes them suitable for various applications including:
- Home automation systems
- Weather stations
- Robotics projects
- Educational tools
Now that we understand the advantages of using an I2C LCD module, let's go through the setup process step-by-step.
To get started, you will need:
- An Arduino board (e.g., Arduino Uno)
- An I2C LCD module (16x2 or any size)
- Jumper wires
- A breadboard (optional)
Here's how to connect your I2C LCD module to your Arduino:
| Component | Connection |
|---|---|
| GND | GND |
| VCC | 5V |
| SDA | A4 |
| SCL | A5 |
Before uploading your code, ensure you have the necessary libraries installed in your Arduino IDE:
1. Open Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for "LiquidCrystal I2C" and install it.
Once you have connected your components and installed the libraries, upload the sample code provided earlier. After uploading, you should see "Hello, World!" displayed on your I2C LCD.
The capabilities of an I2C LCD module extend beyond basic text display. Here are some advanced features you might consider implementing:
You can create custom characters using the `createChar()` function in your code. This allows you to display unique symbols or icons relevant to your project.
For longer messages that exceed the display width, you can implement scrolling text functionality by shifting characters across the display.
Using an I2C LCD module with Arduino offers numerous advantages that simplify both wiring and programming while maximizing functionality. The ability to connect multiple devices with minimal pin usage makes it ideal for complex projects requiring efficient communication between components. With easy-to-use libraries and versatile display capabilities, integrating an I2C LCD into your projects can significantly enhance user interaction and data presentation.
An I2C LCD module is a liquid crystal display that uses the Inter-Integrated Circuit protocol for communication with microcontrollers like Arduino. It simplifies wiring by requiring only two data lines.
You can find your device's I2C address by uploading a simple scanner sketch available online or using dedicated software tools that detect connected I2C devices.
Yes, you can connect multiple I2C devices using different addresses on a single bus without needing additional pins.
Common displays include various sizes of character displays (like 16x2 or 20x4) and graphical displays that support the I2C protocol.
Yes, you can create custom characters using specific functions provided in libraries like `LiquidCrystal_I2C`, allowing unique symbols or icons to be displayed.
