In the realm of display technology, LCD (Liquid Crystal Display) and LED (Light Emitting Diode) are two of the most commonly used types. Understanding their differences, advantages, and applications is essential for consumers, manufacturers, and tech enthusiasts alike. This article will delve into the intricacies of both technologies, exploring their functionalities, benefits, and limitations.
LCD stands for Liquid Crystal Display. It is a flat-panel technology that uses liquid crystals to form images. The liquid crystals do not emit light by themselves; instead, they rely on a backlight source to illuminate them. The key components of an LCD include:
- Liquid Crystals: These are substances that exhibit properties between those of liquids and solid crystals. They can be manipulated by electric fields to control light passage.
- Backlight: Traditionally, LCDs used cold cathode fluorescent lamps (CCFL) for backlighting, but modern LCDs often use LED backlights.
- Polarizers: These layers help control the light passing through the liquid crystals.
1. Backlighting: The backlight provides illumination.
2. Liquid Crystal Alignment: Electric signals adjust the alignment of liquid crystals.
3. Image Formation: Depending on their alignment, the crystals either block or allow light to pass through, forming images.
The basic structure of an LCD consists of several key layers:
- Backlight Unit (BLU): Provides the necessary illumination for the display.
- Polarizers: Two polarizing filters are placed at either end of the liquid crystal layer to control light polarization.
- Liquid Crystal Layer: The core of the display where liquid crystals manipulate light based on electric signals.
- Color Filters: Typically RGB (Red, Green, Blue) filters that create color by controlling which wavelengths pass through.
- Glass Substrates: Protect the internal components and provide structural integrity.
1. Cost-Effective: Generally more affordable than LED displays.
2. Good Resolution: Provides clear images with high resolution.
3. Less Power Consumption: Older models consume less power compared to some LED models.
LED stands for Light Emitting Diode. Unlike traditional LCDs that rely on backlighting from fluorescent tubes or LEDs, LED displays use individual diodes that emit light. This technology can be categorized into two main types:
- Edge-Lit LED: LEDs are placed around the perimeter of the screen.
- Direct-Lit LED: A full array of LEDs is placed directly behind the screen for more uniform lighting.
1. Light Emission: Each diode emits its own light when an electric current passes through it.
2. Color Mixing: By combining different colored diodes (red, green, blue), a wide range of colors can be produced.
3. Image Display: The emitted light creates vibrant images with better contrast and color accuracy.
The main components include:
- LED Modules: Arrays of LEDs that form pixels on the display.
- Driver Circuitry: Controls the brightness and color output of each pixel.
- Control System: Manages input signals and ensures proper image rendering.

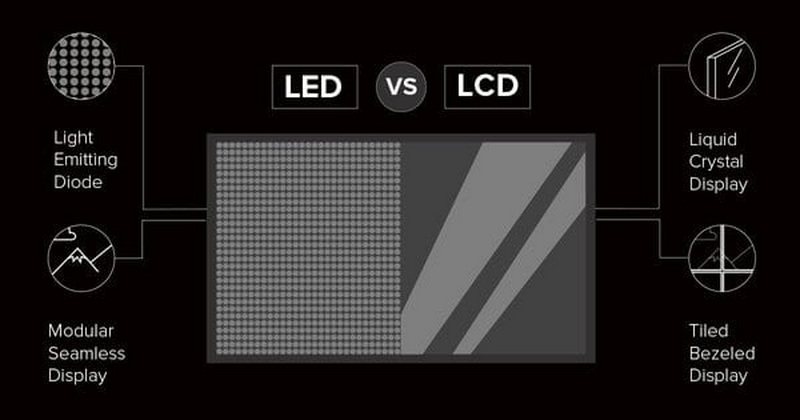

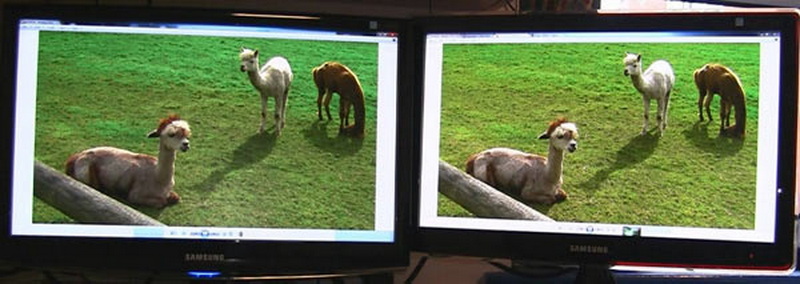

| Feature | LCD | LED |
|---|---|---|
| Light Source | Uses backlighting (CCFL or LED) | Uses individual light-emitting diodes |
| Brightness | Generally lower brightness | Higher brightness due to direct emission |
| Color Accuracy | Good but limited | Superior color accuracy |
| Energy Efficiency | Less efficient than LEDs | More energy-efficient |
| Thickness | Thicker than LED displays | Thinner and lighter |
| Cost | Generally cheaper | Higher initial cost but lower long-term costs |
The development of LCD technology has a rich history that dates back to the early 20th century.
- In 1888, Friedrich Reinitzer discovered liquid crystals while studying cholesterol extracted from carrots.
- In 1968, Bernard Lechner created a thin-film transistor (TFT) based on liquid crystals.
- The 1970s saw significant advancements with the introduction of various types of LCDs, including dynamic scattering and in-plane switching technologies.
By 2007, LCD televisions surpassed CRT TVs in sales worldwide as they became more popular due to their improved image quality and reduced size[1][13].
Recent advancements in LCD technology include:
- Mini-LED Backlighting: This innovation uses thousands of tiny LEDs for better control over brightness and contrast.
- Quantum Dot Technology: Enhances color reproduction by using tiny semiconductor particles that emit specific colors when illuminated.
These innovations have significantly improved image quality while maintaining energy efficiency[3][10].
LCD technology is widely used across various industries:
- Televisions: Most modern TVs utilize LCD technology due to its thin profile and high resolution.
- Computer Monitors: Commonly used in desktops and laptops for their clarity and energy efficiency.
- Smartphones and Tablets: Almost all mobile devices use some form of LCD technology for their displays.
- Digital Signage: Employed in advertising displays due to their bright images and low power consumption[22].
LEDs were first developed in 1927 by Oleg Losev but only became commercially viable in the 1960s with advancements in semiconductor technology[2][17].
1. In 1962, Nick Holonyak developed the first visible-spectrum red LED.
2. The 1970s saw significant improvements in efficiency and brightness.
3. The introduction of blue LEDs in the 1990s paved the way for white LEDs[14][19].
Recent developments include:
- MicroLED Technology: Offers even smaller diodes for enhanced picture quality and flexibility in display design.
- Flexible Displays: Allow for curved or bendable screens suitable for innovative applications like wearable tech[11][18].
LED technology has found applications in various fields:
- Television Backlighting: Used extensively as backlighting for LCD TVs to enhance brightness and contrast.
- Digital Billboards: Commonly employed in outdoor advertising due to their visibility even in bright sunlight.
- Automotive Lighting: Used for headlights, taillights, and interior lighting due to their energy efficiency and longevity[5].
The future holds exciting possibilities for both LCD and LED technologies:
1. Flexible Displays: Advancements are leading towards more flexible screens suitable for foldable devices.
2. High Dynamic Range (HDR): Enhancements are being made to improve contrast ratios significantly.
3. Sustainability Initiatives: Manufacturers are focusing on reducing energy consumption during production processes[4][10].
1. Ultra-Thin Designs: Future displays will be thinner while maintaining high performance levels.
2. Interactive Displays: Touch-enabled screens are becoming increasingly common across various applications[11][12].
3. Smart Integration: As IoT grows, integrating smart features into displays will enhance user interaction[11].
In summary, both LCD and LED technologies have unique strengths and weaknesses. While LCDs offer affordability and good resolution, LEDs provide superior brightness, color accuracy, and energy efficiency. The choice between these technologies largely depends on specific needs such as application type, budget constraints, and desired visual quality.
No, they are not the same. While both use liquid crystals for image formation, LEDs utilize individual light-emitting diodes for illumination.
LED displays are generally preferred for gaming due to their superior response times and contrast ratios.
No, LED displays are typically more energy-efficient compared to traditional LCDs that use CCFL backlighting.
Yes, LED displays perform better in bright environments due to their higher brightness levels.
Both technologies are considered safe for regular use; however, prolonged exposure to screens can cause eye strain regardless of type.
