Views: 222 Author: Tina Publish Time: 2025-05-31 Origin: Site
Content Menu
● Detailed Comparison Between CRT and LCD Displays
● Disadvantages of CRT Displays
● Disadvantages of LCD Displays
● Practical Applications and Usage
● Frequently Asked Questions (FAQs)
>> 1. What are the main technological differences between CRT and LCD displays?
>> 2. Why do CRTs have better color and contrast than LCDs?
>> 3. Can LCDs display multiple resolutions like CRTs?
>> 4. Are CRTs better for gaming than LCDs?
>> 5. Why are LCDs more energy efficient than CRTs?
Cathode Ray Tube (CRT) displays have been a cornerstone of visual technology for decades. These displays operate by firing electron beams onto a phosphor-coated screen, creating vivid images through direct excitation of phosphor dots. The electron gun inside the CRT shoots a focused beam of electrons across the screen, scanning line by line to illuminate red, green, and blue phosphors that combine to form full-color images. This process allows CRTs to produce deep blacks, vibrant colors, and excellent contrast.
Despite their bulky design and high power consumption, CRTs offer unparalleled color depth, contrast, and resolution flexibility. Their ability to display multiple resolutions without loss of quality and fast response times make them favored in certain professional and gaming contexts. However, their size, weight, and susceptibility to flicker and screen burn-in have led to their decline in mainstream use. Additionally, CRTs consume more electricity and generate more heat compared to modern alternatives, making them less environmentally friendly.
Liquid Crystal Displays (LCDs) represent the modern era of display technology, characterized by their slim profiles, energy efficiency, and high-resolution capabilities. Unlike CRTs, LCDs do not emit light directly. Instead, they use liquid crystals sandwiched between two glass layers to control the passage of light from a backlight. When an electric current is applied, the liquid crystals align to either block or allow light through, and color filters create the full range of colors.
LCDs provide sharp images with minimal flicker, reducing eye strain during prolonged use. Their slim and lightweight design makes them ideal for portable devices and space-saving setups. While they have limitations such as fixed native resolution and narrower viewing angles, advancements in technology continue to address these challenges. Today, LCDs dominate the market, powering everything from smartphones to large-screen televisions, offering a balance of performance and convenience.

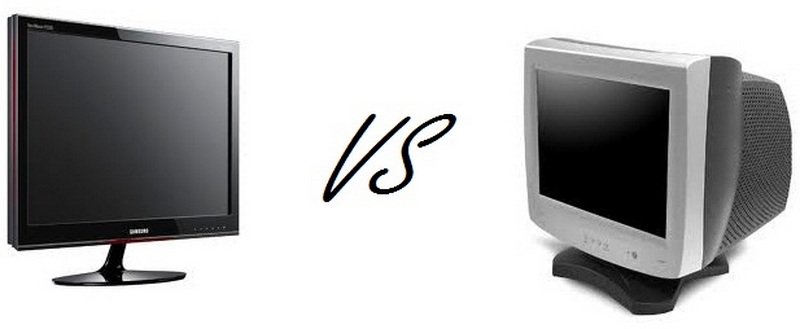

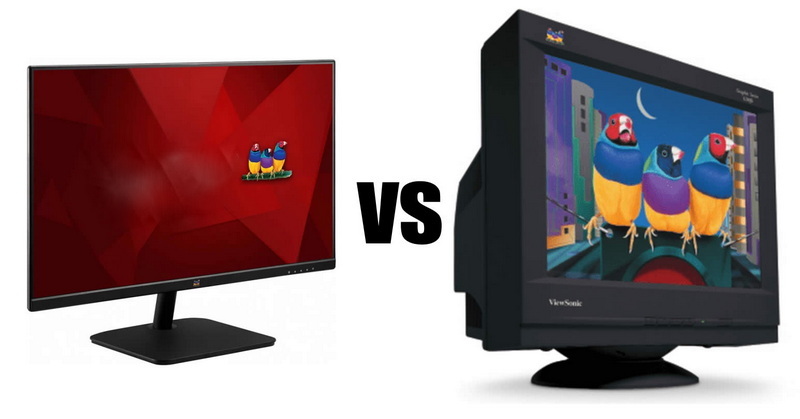

When comparing CRT and LCD displays, several key factors emerge:
- Technology: CRTs use electron beams to excite phosphor dots on a screen, while LCDs use liquid crystals to modulate light from a backlight.
- Size and Weight: CRTs are bulky and heavy due to their vacuum tube design, whereas LCDs are slim, lightweight, and flat.
- Power Consumption: CRTs consume significantly more power and generate more heat; LCDs are more energy-efficient and cooler.
- Image Quality: CRTs excel in color accuracy, contrast, and viewing angles; LCDs provide sharp images at their fixed native resolution but may suffer from color and brightness shifts at off-angles.
- Resolution Flexibility: CRTs can display multiple resolutions without degradation, while LCDs have a fixed native resolution and scaling other resolutions can reduce image quality.
- Response Time: CRTs have very fast response times with virtually no motion blur; LCDs historically had slower response times but have improved significantly.
- Durability: CRTs are rugged but bulky and contain hazardous materials; LCDs are fragile but easier to transport.
- Price and Availability: CRTs are largely obsolete and rare, often cheaper secondhand; LCDs are widely available and affordable.
The choice between the two depends largely on the intended use, with CRTs still preferred for retro gaming and professional color work, and LCDs favored for everyday computing and multimedia consumption. Understanding these distinctions is crucial for selecting the right display technology to meet specific needs.
- Superior Color Reproduction: CRTs produce deep blacks and vibrant colors due to direct phosphor excitation.
- Resolution Independence: They can display multiple resolutions without loss of image quality or scaling artifacts.
- Fast Response Times: Minimal motion blur makes them ideal for fast-moving images and gaming.
- Wide Viewing Angles: Image quality and colors remain consistent from almost any angle.
- Durability: More resistant to minor impacts compared to fragile LCD glass.
- No Native Resolution Constraints: They can adapt to different input signals without blurring.
These features make CRTs ideal for applications requiring precise color accuracy and rapid image rendering, such as graphic design, video editing, and classic gaming.

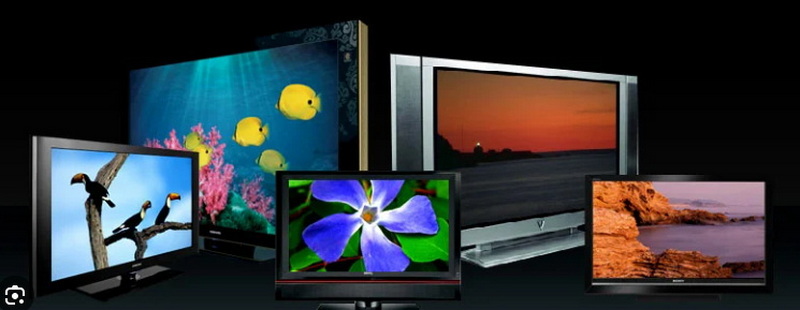

- Compact and Lightweight: Their slim profile allows for easy placement and portability.
- Energy Efficiency: LCDs consume roughly 25-50% less power than CRTs, contributing to lower electricity bills and environmental impact.
- Flicker-Free Viewing: The absence of flicker reduces eye strain during extended use.
- High Resolution Support: LCDs can support very high resolutions, including 4K and beyond, providing crisp and detailed images.
- Low Heat Emission: They produce less heat, making them safer and more comfortable to use.
- Minimal Burn-in Risk: Static images do not cause permanent damage, unlike CRT burn-in.
- Wide Range of Sizes: Available from small smartphone screens to large TVs and monitors.
These attributes contribute to their widespread adoption in modern electronic devices and make them suitable for everyday computing, multimedia consumption, and professional environments.
- Bulky and Heavy: CRTs require substantial desk space and are difficult to move.
- High Power Consumption: They use more electricity and generate more heat.
- Flicker and Eye Strain: Flickering at lower refresh rates can cause discomfort.
- Fragility and Safety Risks: Contain high voltages and fragile glass tubes, posing hazards.
- Limited Availability: Production has ceased in most regions, making repairs and replacements difficult.
- Screen Burn-in: Prolonged display of static images can cause permanent ghost images.
These drawbacks have contributed to the gradual replacement of CRTs by newer technologies.
- Fixed Native Resolution: Image quality suffers when displaying non-native resolutions due to scaling.
- Limited Viewing Angles: Colors and brightness can shift when viewed from the side.
- Slower Response Times: Can cause motion blur in fast-moving scenes, though modern LCDs have improved.
- Fragility: The glass panels can crack or break easily.
- Color Accuracy: Some LCDs may not match CRTs in color depth and contrast, which can be critical for professional use.
- Backlight Bleeding: Uneven backlighting can cause light leakage around the edges.
Ongoing improvements in LCD technology, such as IPS panels and higher refresh rates, aim to mitigate these issues.
Despite their decline, CRTs remain relevant in niche areas:
- Retro Gaming: Many enthusiasts prefer CRTs for classic games due to authentic display characteristics and zero input lag.
- Professional Graphic Design and Video Production: CRTs offer superior color accuracy and contrast needed for color-critical work.
- Budget-Conscious Users: Used CRTs can be found at low cost for basic computing needs.
LCDs dominate most modern applications:
- Everyday Computing: From office work to internet browsing, LCDs provide clear and comfortable viewing.
- Mobile Devices: Smartphones, tablets, and laptops rely on LCD technology for portability and battery efficiency.
- Television and Multimedia: High-definition content is best served on LCDs with large screen sizes.
- Professional Use: Calibrated LCD monitors support photo editing, video production, and CAD work.
- Public Displays and Kiosks: Their slim design and energy efficiency make LCDs ideal for digital signage.
In summary, CRT and LCD displays each offer distinct advantages and disadvantages shaped by their underlying technologies. CRTs provide superior color depth, contrast, and resolution flexibility, making them valuable for specific professional and gaming applications. However, their bulk, power consumption, and flicker issues have led to their decline.
LCDs, on the other hand, offer slim, energy-efficient, and flicker-free displays with high resolution and portability. While they have limitations such as fixed native resolution and narrower viewing angles, ongoing technological advancements continue to improve their performance.
Today, LCDs have become the standard due to their practicality and efficiency, but CRTs still hold a special place for certain users who require their unique qualities. A thorough understanding of these differences empowers users to choose the most suitable display technology for their requirements.
CRTs use electron beams to excite phosphor dots on a screen, while LCDs use liquid crystals to modulate light from a backlight to form images.
CRTs directly emit light from phosphors, allowing deeper blacks and richer colors, whereas LCDs rely on blocking or passing backlight, which can reduce contrast.
No, LCDs have a fixed native resolution. Displaying other resolutions requires scaling, which can degrade image quality. CRTs can display multiple resolutions without loss of sharpness.
Historically, CRTs had faster response times and no input lag, making them ideal for gaming. Modern LCDs have improved significantly but some gamers still prefer CRTs for retro or fast-paced games.
LCDs use a backlight and liquid crystals to control light, consuming less power, while CRTs require high voltage electron beams and complex circuits, leading to higher energy consumption.
