I2C is a serial communication protocol that allows multiple devices to communicate with each other over just two wires: SDA (Serial Data Line) and SCL (Serial Clock Line). This simplicity is one of the main reasons for the popularity of I2C in embedded systems.
- Two-Wire Interface: Only two wires are needed for communication, which reduces complexity.
- Multi-Master and Multi-Slave: Multiple devices can be connected on the same bus.
- Addressing: Each device on the I2C bus has a unique address, allowing for easy identification.

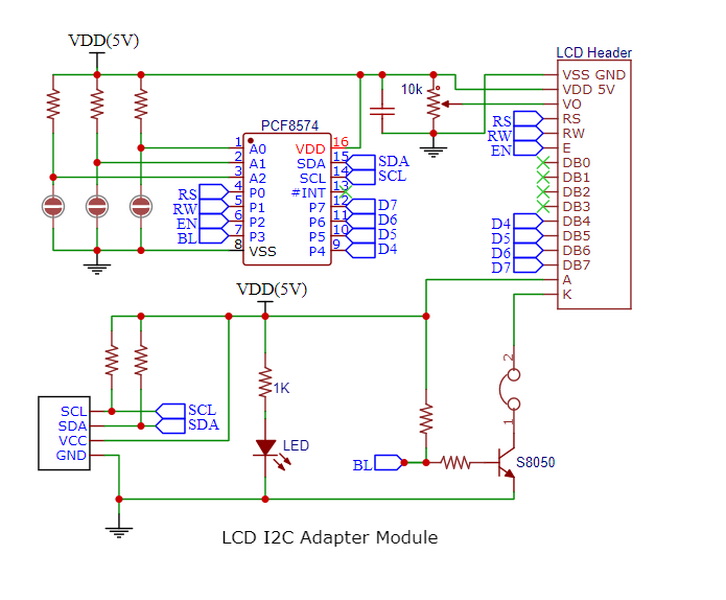

The LCD I2C converter module is essentially a small circuit board that connects to an LCD (Liquid Crystal Display) to facilitate communication with a microcontroller using the I2C protocol. The most common type of LCD used in conjunction with this module is the 16x2 character display, which can show 16 characters per line and has two lines.
- PCF8574 Chip: This is an 8-bit I/O expander that converts the I2C signals from the microcontroller into parallel signals required by the LCD.
- Potentiometer: Used for adjusting the contrast of the display.
- Backlight Control: Many modules come with a backlight feature that can be controlled via a jumper or software.
The operation of an LCD I2C converter module involves several steps:
1. Connection: The module connects to the LCD via its pins. Typically, it requires four connections:
- VCC to power
- GND to ground
- SDA to data pin on the microcontroller
- SCL to clock pin on the microcontroller
2. Initialization: Once powered, the microcontroller initializes communication with the module by sending specific commands through the SDA and SCL lines.
3. Data Transmission: The microcontroller sends data (characters or commands) to be displayed on the LCD. The PCF8574 chip translates these commands into a format that the LCD can understand.
4. Display Output: The LCD displays the characters or graphics as instructed by the microcontroller.
Using an LCD I2C converter module offers numerous benefits:
- Fewer Connections: Reduces wiring complexity from 10+ wires (for standard connections) to just four.
- Saves GPIO Pins: Only two pins are used for communication, freeing up other GPIO pins for additional components.
- Easier Setup: Simplifies coding and setup processes since many libraries are available that handle I2C communication efficiently.
- Adjustable Contrast and Backlight: Most modules include features for adjusting display brightness and contrast easily.
To set up an LCD I2C converter module with an Arduino, follow these steps:
- Arduino board (e.g., Arduino Uno)
- 16x2 or 20x4 LCD display
- LCD I2C converter module
- Jumper wires
1. Connect the Hardware:
- Connect VCC from the module to 5V on Arduino.
- Connect GND from the module to GND on Arduino.
- Connect SDA from the module to A4 on Arduino.
- Connect SCL from the module to A5 on Arduino.
Connection Diagram *(Placeholder image)*
2. Install Necessary Libraries:
- Open Arduino IDE.
- Go to Sketch > Include Library > Manage Libraries.
- Search for "LiquidCrystal_I2C" and install it.
3. Find Your I2C Address:
If your display does not work with address `0x27`, you may need to scan for its address using an address scanner sketch available online.
The applications of LCD I2C modules are vast and varied:
- Embedded Systems Projects: Ideal for displaying sensor data or system status.
- Home Automation Displays: Can show temperature readings, humidity levels, or system alerts.
- Educational Tools: Great for teaching about electronics and programming basics.
- Debugging Information Display: Useful in development environments where real-time feedback is needed without a computer.
The LCD I2C converter module is a versatile tool that simplifies interfacing between microcontrollers and displays. Its ease of use, combined with minimal wiring requirements, makes it a favorite among hobbyists and professionals alike. With just a few connections and some simple code, you can bring your projects to life with visual output.
An I2C address is a unique identifier assigned to each device on an I2C bus that allows master devices (like Arduino) to communicate with them.
Yes, multiple devices can share the same bus as long as they have different addresses.
Most modules have a potentiometer that can be adjusted with a small screwdriver to change contrast levels.
The primary library required is `LiquidCrystal_I2C`, which simplifies communication between Arduino and the LCD.
Commonly used displays include 16x2 and 20x4 character displays, but other types may also work depending on compatibility with the PCF8574 chip.
