In today's digital world, display technologies are at the heart of countless devices, from smartphones and tablets to e-readers and smartwatches. Among these technologies, the reflective LCD display stands out for its unique approach to visibility and power efficiency, especially in environments with abundant ambient light. This article explores what a reflective LCD display is, how it works, its advantages and disadvantages, its applications, and how it compares to other display technologies. Along the way, you'll find visual explanations and video demonstrations to deepen your understanding.

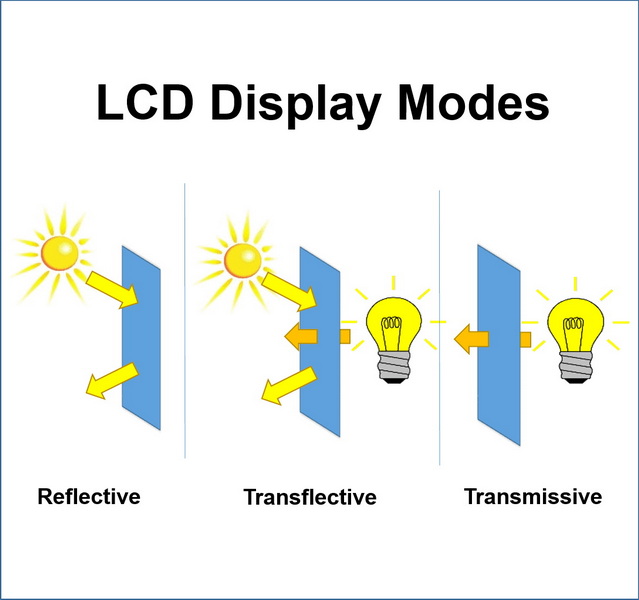

Before delving into reflective LCD displays, it's important to understand the three main types of LCD technologies:
Transmissive LCDs use a backlight behind the liquid crystal layer. The light passes through the crystals and is modulated to create images. These displays are bright and vibrant indoors but struggle with visibility in direct sunlight. The backlight consumes significant power, which can reduce battery life in portable devices.
Transflective LCDs combine both transmissive and reflective properties. They have a semi-reflective layer that allows some light from a backlight to pass through while also reflecting ambient light. This makes them versatile for both indoor and outdoor use, balancing power consumption and visibility.
Reflective LCD displays rely solely on ambient light. They do not have a backlight. Instead, a reflective layer behind the liquid crystals bounces incoming light back to the viewer, making the display visible even in bright sunlight. This results in extremely low power consumption and excellent outdoor readability.
A reflective LCD display is a type of liquid crystal display that uses ambient light, rather than a backlight, to illuminate its pixels. This technology is designed for maximum energy efficiency and optimal readability in well-lit environments, such as outdoors or under direct sunlight.
Reflective LCDs are commonly found in devices where battery life and sunlight readability are critical, such as digital watches, calculators, e-readers, and outdoor equipment. Unlike transmissive LCDs, reflective LCDs do not emit light; instead, they reflect the light that hits their surface to create visible images.
The operation of a reflective LCD display is based on the principle of light reflection, rather than light emission or transmission.
1. Ambient Light Entry: Light from the environment enters the display from the front.
2. Passage Through Liquid Crystal Layer: The ambient light passes through the front polarizer and the liquid crystal layer.
3. Reflection: Behind the liquid crystal layer is a reflective layer (often a mirror-like surface). This layer reflects the incoming light back through the crystals.
4. Image Formation: As the light passes through the liquid crystals, its polarization is modulated. This modulation determines which areas appear dark or light, forming the visible image.
This process eliminates the need for a backlight, resulting in significant power savings and excellent visibility in bright conditions.

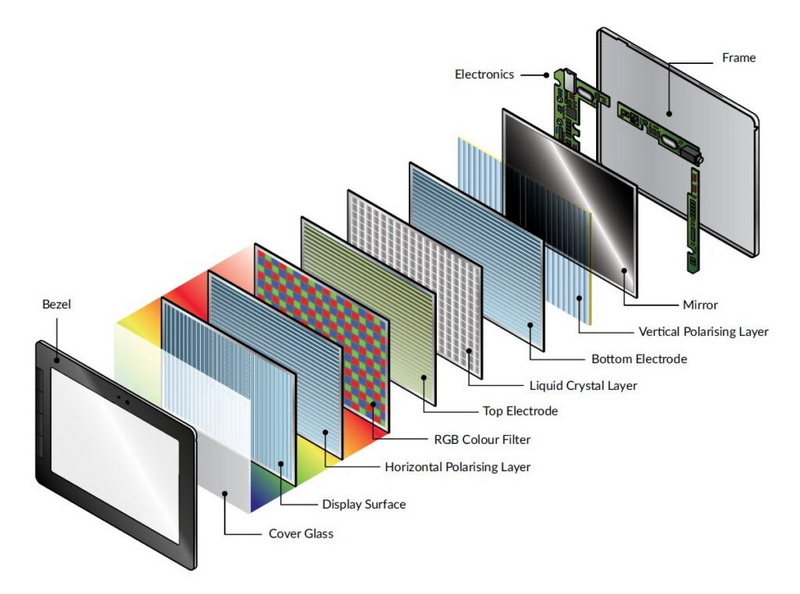

A typical reflective LCD display consists of several layers:
- Front Polarizer: Controls the polarization of incoming light.
- Glass Substrate: Supports the liquid crystal layer.
- Liquid Crystal Layer: Modulates light polarization based on applied electric fields.
- Electrodes: Control the alignment of liquid crystals.
- Reflective Layer: Usually a metal or dielectric mirror that reflects ambient light.
- Back Substrate: Provides structural support.
When ambient light enters, it passes through these layers, gets reflected, and exits back to the viewer, carrying the modulated image information.
Below is a simplified diagram of a reflective LCD display's structure:
- Front Polarizer
- Liquid Crystal Layer
- Reflective Layer (Mirror)
- Ambient Light Source
The light enters from the front, passes through the layers, reflects off the mirror, and exits back to the viewer, carrying the modulated image.
Reflective LCD displays offer several compelling benefits:
- Ultra-Low Power Consumption: No need for a power-hungry backlight, making them ideal for battery-powered devices.
- Sunlight Readability: Outstanding visibility in direct sunlight or bright environments, where other displays may wash out.
- Thin and Lightweight: The absence of a backlight allows for a slimmer, lighter design, suitable for portable devices.
- Eye Comfort: Reduced blue light emission and glare compared to backlit displays, leading to less eye strain.
- Durability: Reflective LCDs are often more rugged and less prone to damage from backlight components.
Despite their strengths, reflective LCD displays have some limitations:
- Poor Low-Light Performance: They are difficult to read in dim environments since they rely on ambient light.
- Limited Viewing Angles: The reflective layer can restrict the angle from which the display is readable.
- Lower Color Saturation and Contrast: Typically, reflective LCDs have less vivid colors and lower contrast compared to transmissive displays.
- Reduced Image Quality in Some Applications: Not suitable for all types of multimedia or high-resolution graphics.
- Dependence on Ambient Light: Without sufficient external light, the display becomes nearly unreadable.
Reflective LCD displays are used in a variety of devices where energy efficiency and outdoor readability are priorities:
- Digital Watches and Clocks: Long battery life and excellent outdoor visibility are essential.
- Calculators: Often used in devices where power efficiency is key.
- E-Readers: Devices like e-book readers benefit from reflective LCDs for paper-like readability.
- Outdoor GPS Devices: Used in handheld GPS units for hiking and navigation.
- Portable Medical Equipment: Devices requiring long battery life and reliable readability.
- Smartwatches: Many fitness and outdoor smartwatches use reflective LCD technology.
- Industrial and Military Instruments: Rugged devices used in bright environments.
E-readers are a prime example of reflective LCD display usage. Their screens mimic paper by reflecting ambient light, reducing eye strain and allowing for extended reading sessions without frequent charging. Unlike traditional backlit tablets, reflective LCD e-readers perform exceptionally well outdoors.
Feature | Reflective LCD Display | Transmissive LCD Display | Transflective LCD Display |
---|---|---|---|
Power Consumption | Very Low | High | Moderate |
Sunlight Readability | Excellent | Poor | Good |
Low-Light Readability | Poor | Excellent | Good |
Color Saturation | Moderate | High | Moderate |
Use Case Examples | Watches, e-readers | TVs, monitors | Car dashboards |
Recent advancements have brought color reflective LCD displays to the market, offering improved color reproduction and video capability while maintaining low power consumption. For example, Japan Display Inc. has developed paper-like, color reflective LCDs that can play video and offer high reflection rates and low energy use.
Innovations include:
- Color Reflective LCDs: Using advanced color filters and optical films to enhance color vibrancy.
- Video-Capable Reflective Displays: Overcoming traditional refresh rate limitations to support smooth video playback.
- Flexible Reflective LCDs: Emerging flexible display technologies for wearable devices.
- Improved Reflective Layers: Using dielectric mirrors and microstructured surfaces to boost reflectivity.
The future of reflective LCD displays looks promising, driven by the demand for energy-efficient, outdoor-readable screens. Key trends include:
- Integration with Touch and Flexible Technologies: Combining reflective LCDs with touch sensors and flexible substrates for advanced wearable devices.
- Higher Resolution and Color Quality: Continued improvements in color filters and liquid crystal materials to rival transmissive LCDs.
- Hybrid Technologies: Combining reflective and transflective elements to optimize performance across lighting conditions.
- Sustainability Focus: Reflective LCDs consume less power, contributing to greener electronics.
Manufacturers are also exploring integration with low-power wireless technologies and smart sensors to create more interactive, efficient devices.
The reflective LCD display is a remarkable technology that leverages ambient light to deliver clear, energy-efficient visuals, especially in bright environments. Its unique structure—utilizing a reflective layer instead of a backlight—makes it an excellent choice for devices where battery life and sunlight readability are paramount. While it does have some limitations in low-light and color performance, ongoing innovations are expanding its capabilities and applications. As technology advances, reflective LCD displays will continue to play a vital role in portable and outdoor electronics, offering a sustainable and user-friendly display solution.
A reflective LCD display is a type of screen that uses ambient light and a reflective layer behind the liquid crystals to make images visible, instead of relying on a backlight.
A reflective LCD display uses ambient light and a reflective layer, while a transmissive LCD display uses a backlight to illuminate the screen. Reflective displays are more energy-efficient and perform better in sunlight.
The main advantages are ultra-low power consumption, excellent sunlight readability, thin and lightweight design, and reduced eye strain.
They are commonly used in digital watches, calculators, e-readers, GPS devices, and other portable or outdoor equipment where battery life and sunlight readability are important.
Yes, recent innovations have enabled color reflective LCD displays that can show video, although color saturation and contrast may still be lower than in transmissive displays.
