The 320x240 graphic LCD module is a versatile display solution widely used in various electronic applications. These modules offer a balance between resolution, size, and functionality, making them popular choices for industrial, consumer, and hobbyist projects. In this comprehensive article, we'll explore the key features of 320x240 graphic LCD modules, their applications, and the technical aspects that make them stand out in the world of display technology.

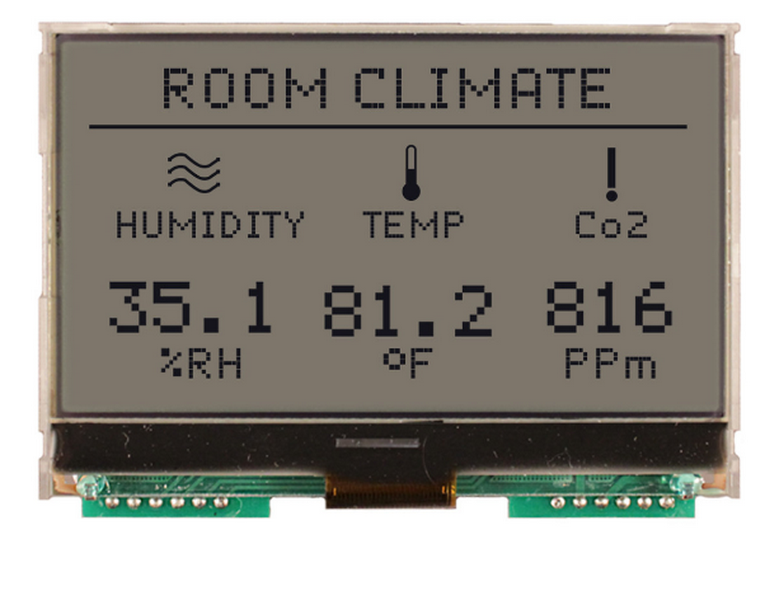

A 320x240 graphic LCD module refers to a liquid crystal display with a resolution of 320 pixels horizontally and 240 pixels vertically. This resolution is often referred to as QVGA (Quarter VGA) and provides a good balance between detail and power consumption.
The 320x240 resolution offers several advantages:
- Clarity: With 76,800 pixels, these modules can display detailed graphics and text.
- Versatility: Suitable for both simple and complex visual information.
- Efficiency: Balances detail with power consumption and processing requirements.
320x240 graphic LCD modules come in various display technologies:
- STN (Super-Twisted Nematic): Offers good contrast and viewing angles[1].
- FSTN (Film-compensated STN): Provides improved contrast and wider viewing angles compared to STN[1].
- TFT (Thin-Film Transistor): Offers superior color reproduction and response times[2].
Backlighting is crucial for visibility in different environments:
- LED Backlighting: Common in modern modules, offering energy efficiency and long life[1][4].
- CCFL (Cold Cathode Fluorescent Lamp): Used in some older models, providing uniform illumination.
- EL (Electroluminescent): Offers a thin profile and even lighting.
Many 320x240 graphic LCD modules come with built-in controllers:
- Common Controllers: S1D13700, RA8835, RA8806[1][5].
- Benefits: Simplifies interfacing with microcontrollers and reduces external component count.
These modules support various interface protocols:
- Parallel Interfaces: 8-bit or 16-bit parallel for high-speed data transfer[1][4].
- Serial Interfaces: SPI, I2C for simpler connections with fewer pins[2].
- RGB Interface: For direct connection to graphics processors[2].
Many 320x240 LCD modules offer touch screen options:
- Resistive Touch: Pressure-sensitive, works with stylus or finger[1][5].
- Capacitive Touch: Offers multi-touch capabilities and better sensitivity.
- Wide Viewing Angles: Many modules offer 6 o'clock viewing direction for optimal visibility[1][4].
- Transflective Displays: Combine reflective and transmissive properties for better outdoor visibility[1].
- Operating Voltage: Typically 3.3V or 5V[1][4].
- Low Power Consumption: Ideal for battery-powered devices.
- Built-in Voltage Generators: Some modules include negative voltage generators for LCD driving[1][5].
- Operating Temperature Range: Often -20°C to 70°C, suitable for various environments[1][4].
- Storage Temperature Range: Typically wider, e.g., -30°C to 80°C[4].
- Module Dimensions: Vary by model, e.g., 160mm x 109mm x 13mm[1].
- Active Area: Typically around 115mm x 86mm[1][4].
- Pixel Size and Pitch: Usually in the range of 0.33mm to 0.36mm[4][5].
320x240 graphic LCD modules find applications in various fields:
1. Industrial Control Panels: For displaying machine status and control interfaces.
2. Medical Devices: In patient monitors and diagnostic equipment.
3. Consumer Electronics: In home appliances, audio equipment, and small gadgets.
4. Automotive Displays: For infotainment systems and instrument clusters.
5. Point-of-Sale Terminals: For customer and operator interfaces.
6. Educational Tools: In electronic learning devices and scientific calculators.
When implementing a 320x240 graphic LCD module, consider the following:
- Choose between parallel and serial interfaces based on your microcontroller capabilities and speed requirements.
- Consider using development boards or starter kits for easier prototyping[4].
- Implement proper power sequencing as per the module's specifications.
- Use appropriate voltage regulators to ensure stable power supply.
- Utilize graphics libraries compatible with your chosen microcontroller.
- Implement efficient drawing algorithms to optimize performance.
- Pay attention to the module's dimensions and mounting requirements.
- Consider environmental factors like temperature and humidity in your enclosure design.
While 320x240 resolution remains relevant for many applications, the display technology is continuously evolving:
- Higher Resolutions: Trend towards higher pixel densities for sharper images.
- Flexible Displays: Development of bendable and foldable display technologies.
- Enhanced Energy Efficiency: Continued improvements in power consumption.
- Advanced Touch Technologies: Integration of more sophisticated touch and gesture recognition.
320x240 graphic LCD modules offer a robust and versatile display solution for a wide range of applications. Their balance of resolution, size, and functionality makes them an enduring choice in the rapidly evolving world of display technology. Whether for industrial, consumer, or hobbyist projects, these modules provide a reliable and cost-effective means of visual interface. As technology advances, we can expect to see continued improvements in these modules, enhancing their capabilities while maintaining their core strengths of reliability and ease of use.
The lifespan of a 320x240 graphic LCD module can vary depending on the technology used and operating conditions. Generally, LED-backlit LCD modules can last 50,000 to 100,000 hours of continuous operation. However, factors like temperature, humidity, and usage patterns can affect this lifespan.
While many 320x240 graphic LCD modules are monochrome, there are color versions available. These typically use TFT technology and can display thousands or even millions of colors. The color capability depends on the specific model and its intended application.
The choice of backlight depends on your application requirements:
- LED backlights are energy-efficient and long-lasting, suitable for most applications.
- CCFL backlights offer uniform illumination but are less common in newer models.
- EL backlights provide a thin profile and even lighting, ideal for space-constrained applications.
Consider factors like power consumption, brightness, and environmental conditions when making your choice.
Yes, many 320x240 graphic LCD modules are compatible with Arduino. Some modules come with specific Arduino libraries, making integration straightforward. When choosing a module for Arduino, consider the interface type (SPI, I2C, or parallel) and ensure it matches your Arduino board's capabilities.
320x240 graphic LCD modules offer several advantages:
- Lower power consumption, ideal for battery-powered devices.
- Simpler interfacing and lower processing requirements.
- Cost-effectiveness for applications that don't need higher resolutions.
- Established technology with wide availability and support.
- Sufficient resolution for many user interface and information display applications.
