● Introduction to LCD Graphic Modules
● Installing Necessary Libraries
>> 1. What is an LCD graphic module?
>> 2. How do I adjust contrast on my LCD?
>> 3. Can I use other types of graphic displays?
>> 4. What kind of images can I display?
>> 5. What are common uses for graphical LCDs?
LCD graphic modules are versatile displays that can show text, images, and even graphs. The 128x64 graphical LCD is a popular choice among hobbyists and professionals due to its balance of size, resolution, and ease of use. It typically uses the ST7920 controller, which supports both parallel and serial communication modes.
To get started with your LCD graphic module project, you will need the following components:
- Arduino UNO
- 128x64 Graphical LCD Module
- 10KΩ Potentiometer
- Breadboard
- Connecting Wires
- Power Supply (optional)

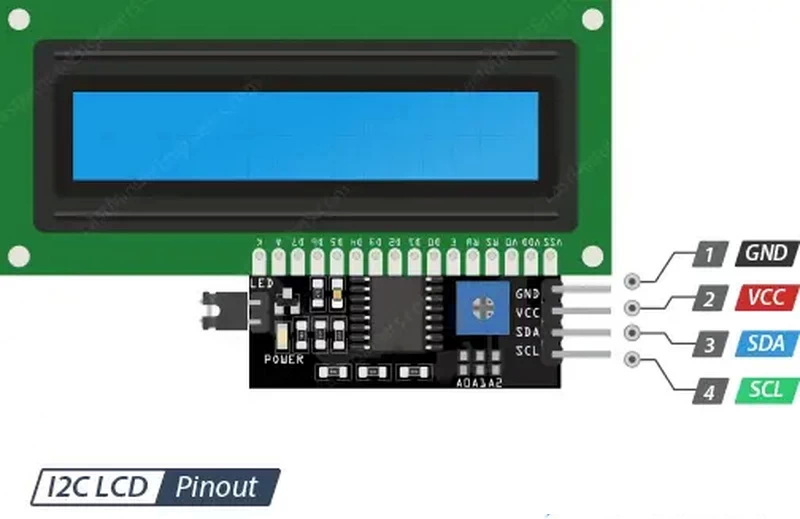

Before wiring the LCD to the Arduino, it's crucial to understand the pin configuration of the 128x64 graphical LCD. Here's a brief overview:
| Pin Number | Pin Name | Description |
|---|---|---|
| 1 | GND | Ground connection |
| 2 | VCC | Supply Voltage (5V) |
| 3 | VO | Contrast Adjust |
| 4 | RS | Register Select |
| 5 | RW | Read/Write Control |
| 6 | E | Enable Pin |
| 7-14 | D0-D7 | Data Pins |
| 15 | PSB | Interface Selection (0: Serial, 1: Parallel) |
| 16 | NC | Not Connected |
| 17 | RST | Reset Pin |
| 18 | VOUT | Voltage Doubler Output |
| 19 | BLA | Backlight LED Anode |
Follow these steps to wire your LCD graphic module to the Arduino:
1. Connect Ground: Connect the GND pin of the LCD to the GND pin on the Arduino.
2. Power Supply: Connect the VCC pin of the LCD to the 5V pin on the Arduino.
3. Contrast Adjustment: Connect a potentiometer between VCC and GND, with its wiper connected to the VO pin on the LCD. This allows you to adjust the contrast of the display.
4. Data Connections:
- Connect RS (Register Select) to Digital Pin 10 on Arduino.
- Connect RW (Read/Write) to Digital Pin 11.
- Connect E (Enable) to Digital Pin 13.
- Connect D0-D7 pins to Digital Pins (e.g., Pins 2-9).
5. Backlight Connections: Connect BLA to VCC and BLK (if available) to GND.
To control the graphical LCD effectively, you need to install a library called "U8g2". This library simplifies drawing graphics and text on your display.
1. Open your Arduino IDE.
2. Go to Tools > Manage Libraries.
3. Search for "U8g2" and install it.
1. Connect your Arduino UNO to your computer using a USB cable.
2. Select your board type and port from Tools > Board and Tools > Port.
3. Click on the upload button in the Arduino IDE.
One of the exciting features of graphical LCDs is their ability to display images. You can create custom images using software like Microsoft Paint and convert them into byte arrays using tools such as LCD Assistant.
1. Create an image in Paint and save it as BMP.
2. Open LCD Assistant and load your BMP file.
3. Save it as a C header file (.h), which contains byte arrays representing your image.
4. Include this header file in your Arduino sketch and use `drawBitmap()` function from U8g2 library.
Using an LCD graphic module opens up numerous possibilities for projects such as:
- Data logging displays for sensors.
- Custom user interfaces for devices.
- Game displays for simple games like Snake or Tetris.
- Real-time monitoring systems for various applications.
In this guide, we covered how to use a 128x64 graphical LCD module with an Arduino UNO. We discussed wiring configurations, necessary libraries, basic code examples, and practical applications of using such displays in your projects.
The ability to visually represent data makes graphical LCDs invaluable tools in electronics projects.
An LCD graphic module is a display device capable of showing graphics and text information in various formats, often used in embedded systems.
You can adjust contrast by connecting a potentiometer between VCC and GND with its wiper connected to the VO pin on the LCD.
Yes, many types of graphic displays can be used with Arduino; ensure you have compatible libraries for each type.
You can display bitmap images by converting them into byte arrays suitable for your specific library.
Common uses include displaying sensor data, creating user interfaces for devices, or even building simple games.
