Soldering is a crucial skill in electronics, especially when working with components like LCD displays. This guide will take you through the entire process of soldering an LCD display, including necessary tools, techniques, and tips for achieving a reliable connection.

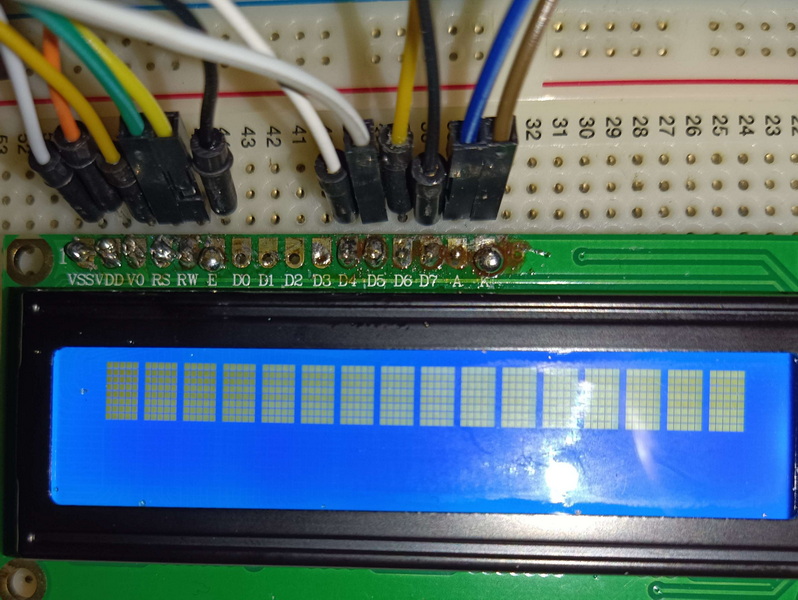

Liquid Crystal Displays (LCDs) are widely used in various electronic devices due to their efficiency and clarity. The most common type of LCD used in hobby projects is the 16x2 LCD, which consists of 16 columns and 2 rows of characters.
- Character Display: It can display up to 32 characters (16 per line).
- Backlight Options: Many models come with backlighting for better visibility.
- Interface: Typically interfaces with microcontrollers like Arduino or Raspberry Pi.
Before you start soldering, gather the following tools and materials:
- Soldering Iron: A 15-25W soldering iron is ideal for precision work.
- Solder Wire: Use rosin-core solder for better flow and adhesion.
- Flux: Helps improve the quality of the solder joint.
- Wire Cutters: For trimming excess leads after soldering.
- Tweezers: To hold small components in place.
- Safety Goggles: Protect your eyes from solder splashes.
1. Clean the Workspace: Ensure your workspace is clean and well-lit.
2. Test Fit the Components: Insert the header pins into the LCD module to ensure they fit correctly before soldering.
3. Heat the Soldering Iron: Plug in your soldering iron and allow it to reach a temperature between 200°C to 350°C.
Apply a small amount of flux to the pads on the PCB where you will be soldering. This helps prevent oxidation and allows for better solder flow.

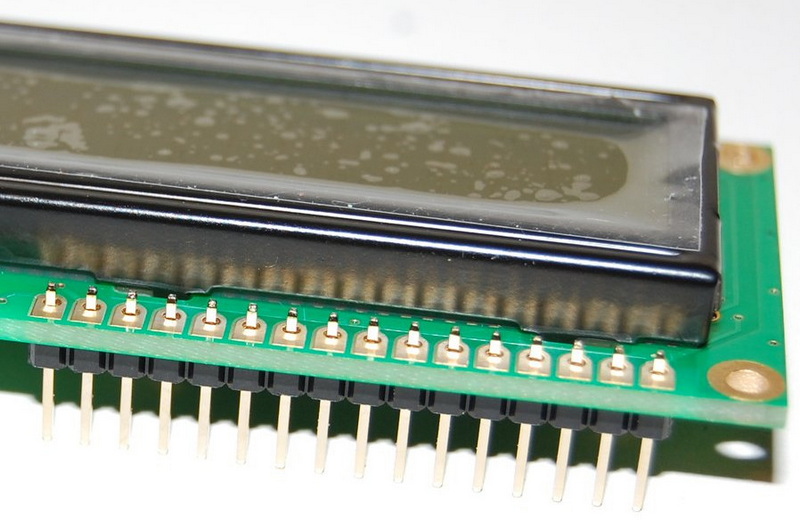

Insert the header pins into the appropriate holes on the LCD module. Ensure they are aligned correctly.

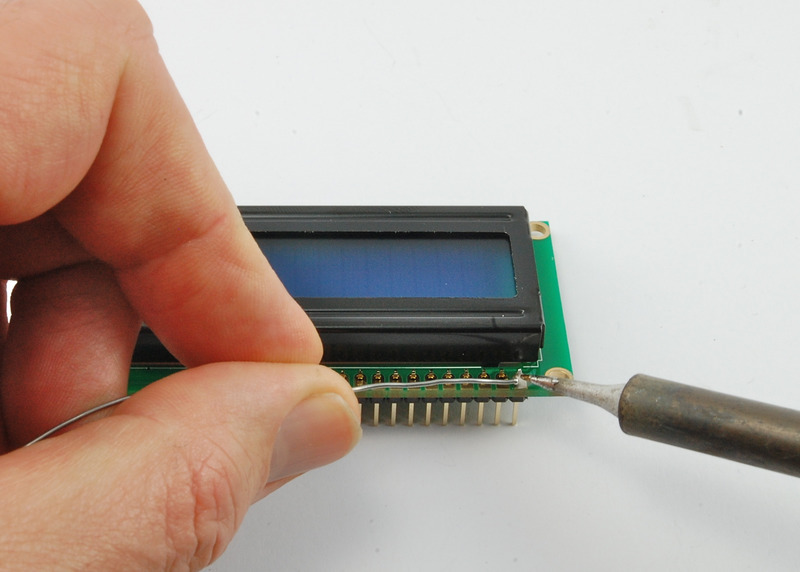

Start by soldering one pin at one end of the header. This will hold it in place while you solder the other pins.
Solder each remaining pin one at a time. Here's how:
- Hold the soldering iron against the pin and pad for about three seconds to heat them both.
- Feed solder into the joint until it flows around both the pin and pad.
- Remove the solder wire first, then take away the iron.
After all pins are soldered, visually inspect each joint for quality. A good solder joint should be shiny and smooth without any gaps or excess solder.
- Tinning: Before starting, tin your soldering iron by melting a small amount of solder on its tip. This improves heat transfer.
- Heat Application: Apply heat only as long as necessary (about three seconds) to avoid damaging components.
If you encounter issues during or after soldering:
- If a joint appears dull or has gaps, reheat it and add more solder.
- For cold joints (where solder does not flow properly), reheat and allow it to melt again.
- If there are shorts between pins, use desoldering braid to soak up excess solder.
To further enhance your skills in soldering LCD displays, consider exploring advanced techniques such as:

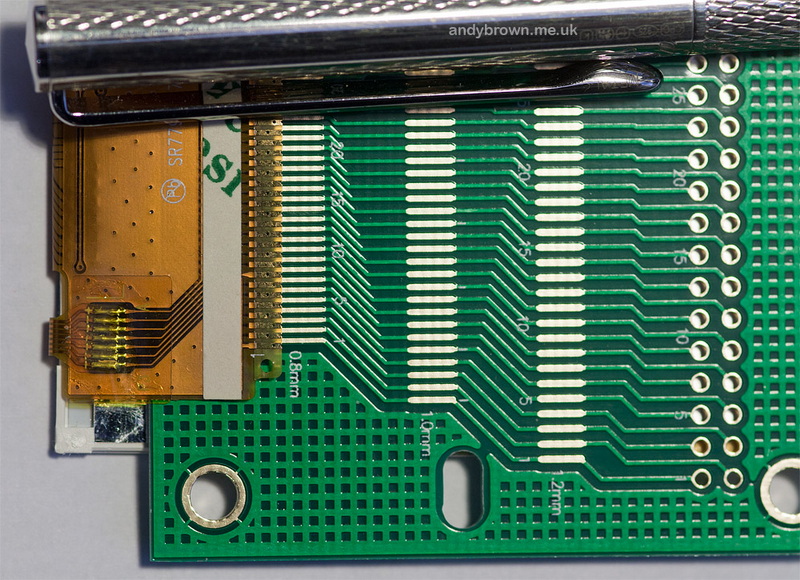

- Surface Mount Technology (SMT): This involves attaching components directly onto the surface of PCBs rather than inserting them through holes. SMT requires precision but offers advantages in terms of space-saving and performance.
- Reflow Soldering: Often used in mass production, this technique involves applying solder paste to pads on a PCB, placing components on top, and then heating them in an oven until the paste melts and forms solid connections.
When learning how to solder, it's essential to recognize common mistakes that can lead to poor connections:
- Excessive Solder: Applying too much solder can create rounded joints that may lead to short circuits or poor electrical connections.
- Cold Joints: Insufficient heating can result in cold joints that do not provide a reliable connection. Always ensure both surfaces are adequately heated before applying solder.
- Solder Bridges: These occur when excess solder connects two adjacent pads unintentionally, creating a short circuit.
Proper maintenance of your tools is crucial for effective soldering:
- Clean Your Soldering Iron Tip Regularly: Use a damp sponge or brass sponge to clean off oxidation from your iron tip before each use.
- Store Tools Properly: Keep your tools organized and stored in a dry environment to prevent rust or damage.
Soldering an LCD display may seem daunting at first, but with practice and attention to detail, anyone can master this skill. Remember to take your time, use proper techniques, and always prioritize safety while working with hot tools. As you gain experience, you may find yourself taking on more complex projects involving various types of displays and components.
Use rosin-core solder for better flow and adhesion. Lead-free options are safer but may require higher temperatures.
A good joint will be shiny and smooth without gaps or excess material. It should also firmly connect both components.
While a lower wattage iron can work, it may not provide enough heat for effective soldering, leading to poor connections.
Use desoldering braid or a pump to remove excess solder bridging between pins.
Using flux is highly recommended as it helps improve the quality of your joints by preventing oxidation and allowing for better flow of solder.
