How To Send Temperature Data To LCD Display?

Content Menu

● Introduction

● Understanding the Components

>> Microcontroller

>> Temperature Sensors

>> LCD Displays

>> Supporting Components

● Types of LCD Displays

>> 1. Gather Components

>> 2. Wiring the Circuit

>>> A. Connecting the Temperature Sensor

>>> B. Connecting the LCD Display

● Practical Applications

>> 1. LCD Not Displaying Data

>> 2. Incorrect Temperature Readings

>> 3. Flickering or Unstable Display

● Conclusion

● Frequently Asked Questions

>> 1. How do I choose between a 16x2 LCD and a TFT LCD for temperature display?

>> 2. Why is my LCD display blank or only showing black squares?

>> 3. Can I display both temperature and humidity on the same LCD?

>> 4. What is the benefit of using an I2C LCD over a standard parallel LCD?

>> 5. Why does my temperature reading fluctuate or show unrealistic values?

● Citations:

Displaying real-time temperature data on an LCD display is a foundational project in electronics, blending sensor integration, microcontroller programming, and user interface design. This guide explores every aspect of sending temperature data to an LCD display, from hardware selection and wiring to display types, practical applications, troubleshooting, and frequently asked questions. Throughout, you'll find illustrative diagrams, video references, and detailed explanations to help you master this essential skill.

Introduction

Displaying temperature data on an LCD is a classic project for beginners and enthusiasts in electronics and IoT. It bridges the gap between the physical world (temperature sensing) and digital systems (data display), making it an ideal learning platform for students, hobbyists, and professionals alike[1][4][10].

Understanding the Components

Microcontroller

- Arduino Uno: Popular for its ease of use and extensive community support[1][4][10].

- Raspberry Pi Pico: A cost-effective microcontroller with built-in temperature sensing[11].

Temperature Sensors

- LM35: Analog sensor, outputs voltage proportional to temperature[1][3][4][10].

- DHT11/DHT22: Digital sensors, provide both temperature and humidity data[8][9].

- Other Types: Thermistors, DS18B20 (digital), etc.

LCD Displays

- 16x2 Character LCD: Displays 16 characters per row, 2 rows, the most common type[1][4][10].

- TFT LCD: Colorful, can display graphics and images[3].

- I2C LCD: Uses I2C protocol, requires fewer wires, ideal for compact projects[11].

Supporting Components

- Breadboard and Jumpers: For prototyping and easy connections[1][4][10].

- Potentiometer: Adjusts LCD contrast for visibility[4][10][11].

- Resistors: For current limiting, especially with LEDs or backlights[10].

- Power Source: Typically 5V DC from the microcontroller or external supply[1][10].

Types of LCD Displays

LCD Type	Features	Pros	Cons	Use Case
16x2 Character	2 rows, 16 chars/row, monochrome	Simple, cheap	Limited graphics	Basic text display
TFT LCD	Color, graphics, images	Rich visuals	More complex wiring	Advanced, attractive interfaces
I2C LCD	16x2 but with I2C interface	Fewer wires needed	Needs I2C adapter	Space-constrained, neat wiring

Temperature sensors convert physical temperature into an electrical signal:

- Analog Sensors (e.g., LM35): Output a voltage linearly proportional to temperature. The microcontroller reads this voltage and converts it to a temperature value using analog-to-digital conversion[1][3][4][10].

- Digital Sensors (e.g., DHT11): Communicate temperature data directly in digital format, often using a single-wire protocol. These can also provide humidity readings[8][9].

1. Gather Components

- Microcontroller (e.g., Arduino Uno)

- Temperature sensor (e.g., LM35, DHT11)

- LCD display (16x2 or I2C LCD)

- Breadboard, jumper wires

- Potentiometer (for LCD contrast)

- Resistors (as needed)

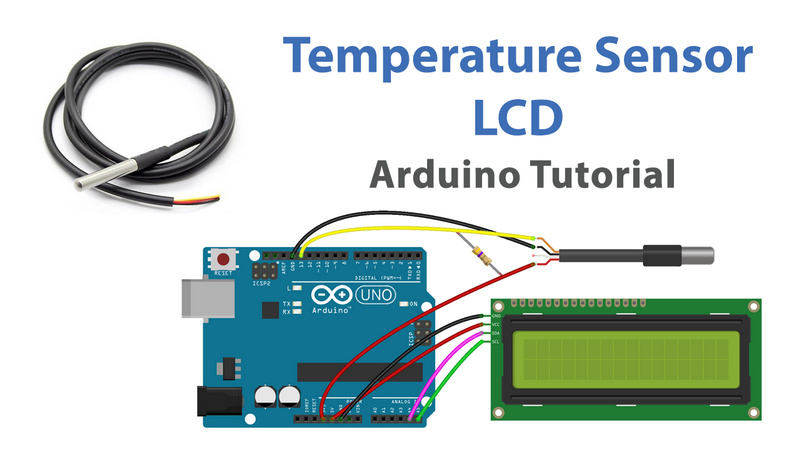

2. Wiring the Circuit

A. Connecting the Temperature Sensor

- LM35: Three pins—VCC (5V), GND, and Output (to analog input A0)[1][4][10].

- DHT11: Four pins—VCC, GND, Data (to digital input), and sometimes a pull-up resistor[8][9].

B. Connecting the LCD Display

- 16x2 LCD: Multiple pins for data and control. Common pinout:

- VSS (GND), VDD (5V), VO (contrast), RS, RW, E, D4-D7 (data), A/K (backlight)

- Potentiometer connects to VO for contrast adjustment[4][10].

- I2C LCD: SDA and SCL connect to microcontroller's I2C pins (e.g., A4/A5 on Arduino)[11].

1. Sensor Senses Temperature: Analog or digital signal generated.

2. Microcontroller Reads Data: Analog-to-digital conversion (for analog sensors) or direct digital read (for digital sensors).

3. Data Processing: Microcontroller converts raw data to human-readable temperature (Celsius/Fahrenheit).

4. Display Output: Microcontroller sends formatted temperature data to LCD for display[1][4][10][11].

Practical Applications

- Weather Stations: Monitor and display indoor/outdoor temperature[4][8].

- Smart Thermostats: Real-time temperature feedback for climate control.

- Home Automation: Integrate with IoT systems for smart home monitoring.

- Educational Kits: Teach sensor interfacing and data visualization[4].

- DIY Projects: Custom gadgets, environmental monitoring, and more.

1. LCD Not Displaying Data

- Check Wiring: Ensure all connections are secure and correct[10][11].

- Contrast Adjustment: Use the potentiometer to adjust LCD contrast[4][11].

- Power Supply: Verify stable 5V supply to LCD and sensor.

2. Incorrect Temperature Readings

- Sensor Placement: Avoid heat sources or drafts affecting readings[4].

- Analog Pin Assignment: Ensure sensor output is connected to the correct analog pin[1][4][10].

- Code Delays: For sensors like DHT11, ensure proper delay between readings to avoid errors[9].

3. Flickering or Unstable Display

- Initialization: Initialize LCD only once in setup, not in the loop[9].

- Loose Connections: Re-seat jumpers and check breadboard integrity.

Conclusion

Sending temperature data to an LCD display is a rewarding project that introduces key concepts in electronics, programming, and user interface design. By understanding the roles of each component, mastering the wiring and data flow, and learning to troubleshoot common issues, you can create reliable and informative temperature displays for a wide range of applications. Whether you're building a weather station, a smart thermostat, or an educational kit, this project lays the foundation for more advanced IoT and embedded systems work.

Frequently Asked Questions

1. How do I choose between a 16x2 LCD and a TFT LCD for temperature display?

A 16x2 LCD is ideal for simple text-based displays and is easier to wire, while a TFT LCD offers color and graphics, suitable for more advanced or visually rich interfaces[3]. Choose based on your project's complexity and aesthetic needs.

2. Why is my LCD display blank or only showing black squares?

This usually indicates a contrast issue. Adjust the potentiometer connected to the VO pin on the LCD. If the issue persists, check power connections and initialization code[4][10][11].

3. Can I display both temperature and humidity on the same LCD?

Yes, sensors like the DHT11 or DHT22 provide both temperature and humidity data, which can be displayed simultaneously on a 16x2 LCD or more advanced displays[8][7].

4. What is the benefit of using an I2C LCD over a standard parallel LCD?

I2C LCDs require only two data lines (SDA, SCL), reducing wiring complexity and freeing up microcontroller pins, especially useful in projects with limited space or many peripherals[11].

5. Why does my temperature reading fluctuate or show unrealistic values?

Possible causes include sensor placement near heat sources, electrical noise, insufficient delay between sensor readings (especially for digital sensors like DHT11), or faulty wiring[9][10].
