How To Read And Understand The I2C LCD Module Circuit Diagram?

Views: 222     Author: Tina     Publish Time: 2024-12-08      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
How To Read And Understand The I2C LCD Module Circuit Diagram?

Content Menu

Introduction

What is an I2C LCD Module?

>> Key Features of the I2C LCD Module

Understanding the Circuit Diagram

>> Pinout Configuration

Wiring the I2C LCD Module

Programming with Arduino

>> Step 1: Install Required Libraries

>> Step 2: Find Your I2C Address

Adjusting Contrast and Backlight

Troubleshooting Common Issues

Conclusion

FAQ

>> 1. What is an I2C LCD Module?

>> 2. How do I find my I2C address?

>> 3. What libraries do I need for using an I2C LCD with Arduino?

>> 4. How do I adjust contrast on my I2C LCD?

>> 5. Can multiple devices share the same SDA and SCL lines?

Introduction

The I2C LCD module is a popular component in electronics projects, particularly for those using microcontrollers like Arduino. This article will guide you through understanding the I2C LCD module circuit diagram, its components, wiring, and programming. By the end, you will have a comprehensive understanding of how to use this module effectively in your projects.

What is an I2C LCD Module?

The I2C LCD module is a liquid crystal display that communicates using the Inter-Integrated Circuit (I2C) protocol. This protocol simplifies the connection between microcontrollers and peripherals, requiring only two data lines (SDA and SCL) along with power and ground connections. This makes it an excellent choice for projects where pin availability is limited.

i2c lcd module circuit diagram_4

Key Features of the I2C LCD Module

- Display Types: Typically available in formats like 16x2 or 20x4.

- Communication Protocol: Utilizes I2C for efficient communication.

- Power Supply: Operates on 5V or 3.3V.

- Backlight: Many modules include a backlight for better visibility.

- Contrast Control: Adjustable contrast for optimal viewing.

Understanding the Circuit Diagram

To effectively use an I2C LCD module, it's essential to understand its circuit diagram. Below is a simplified representation of the connections involved:

Pinout Configuration

The I2C LCD module typically has four main pins:

- VCC: Connects to the power supply (5V).

- GND: Connects to the ground.

- SDA (Serial Data Line): Used for data transmission.

- SCL (Serial Clock Line): Used for clock signals to synchronize data transmission.

Wiring the I2C LCD Module

Connecting the I2C LCD module to an Arduino is straightforward. Here's how to wire it:

1. Connect VCC of the I2C module to the 5V pin on the Arduino.

2. Connect GND of the I2C module to the GND pin on the Arduino.

3. Connect SDA of the I2C module to the SDA pin on the Arduino (typically A4).

4. Connect SCL of the I2C module to the SCL pin on the Arduino (typically A5).

This configuration reduces wiring complexity and allows for easier integration into your projects.

Programming with Arduino

To control an I2C LCD module using Arduino, you need to install a library that facilitates communication. The most commonly used library is `LiquidCrystal_I2C`. Here's how to set it up:

Step 1: Install Required Libraries

1. Open your Arduino IDE.

2. Go to Sketch > Include Library > Manage Libraries.

3. Search for `LiquidCrystal_I2C` and install it.

Step 2: Find Your I2C Address

Before programming, you need to determine your LCD's I2C address. This can often be `0x27` or `0x3F`, but you can find it by running a simple sketch designed to scan for devices on the I2C bus.

i2c lcd module circuit diagram_2

Adjusting Contrast and Backlight

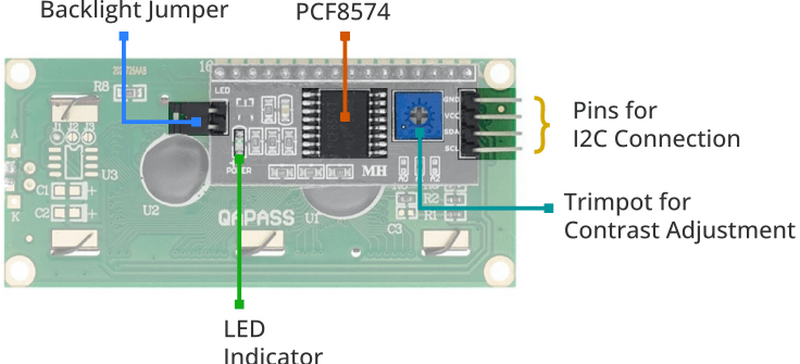

Most I2C LCD modules come with a potentiometer that allows you to adjust the display contrast. This is typically located on the back of the module and can be adjusted using a small screwdriver.

Troubleshooting Common Issues

When working with an I2C LCD module, you may encounter some common issues:

- No Display: Check all connections and ensure that power is supplied correctly.

- Incorrect Characters Displayed: Ensure that you are using the correct I2C address and that your code initializes the display properly.

- Flickering Backlight: This may indicate a poor connection or insufficient power supply.

Conclusion

Understanding how to read and interpret an I2C LCD module circuit diagram is crucial for anyone looking to incorporate this technology into their electronics projects. With its simplicity and efficiency in wiring and programming, it serves as an excellent tool for displaying information in various applications.

By following this guide, you should now be able to connect an I2C LCD module to an Arduino, program it effectively, and troubleshoot common issues that may arise during development.

i2c lcd module circuit diagram_3

FAQ

1. What is an I2C LCD Module?

The I2C LCD Module is a liquid crystal display that uses the Inter-Integrated Circuit protocol for communication with microcontrollers like Arduino.

2. How do I find my I2C address?

You can find your device's I2C address by running an I2C scanner sketch in your Arduino IDE which checks all possible addresses.

3. What libraries do I need for using an I2C LCD with Arduino?

You need to install `Wire.h` and `LiquidCrystal_I2C.h` libraries in your Arduino IDE to control the I2C LCD module.

4. How do I adjust contrast on my I2C LCD?

Most modules have a potentiometer located on their back that can be adjusted with a small screwdriver to change contrast levels.

5. Can multiple devices share the same SDA and SCL lines?

Yes, multiple devices can share these lines as long as they have different addresses configured within their communication protocols.
