How To Programme Lcd Display Pins?

Content Menu

● Understanding LCD Display Pins

>> What is a 16x2 LCD Display?

>> Pin Configuration Overview

>> Power Pins

>> Control Pins

>> Data Pins

>> Backlight Pins

● How to Connect LCD Pins to a Microcontroller

>> Wiring Basics

>> Typical Arduino Connection Example (4-bit mode)

>> Contrast Adjustment

● Programming the LCD Pins

>> Register Select (RS) Pin

>> Read/Write (RW) Pin

>> Enable (E) Pin

>> Data Pins (D0-D7)

● Step-by-Step Guide to Program LCD Pins (Conceptual)

● Common LCD Commands (Conceptual)

● Tips for Successful LCD Programming

● Conclusion

● Frequently Asked Questions (FAQs)

>> 1. What are the essential pins to connect for basic LCD operation?

>> 2. How do I adjust the contrast of the LCD?

>> 3. Can I use fewer data pins to control the LCD?

>> 4. What is the function of the RS pin?

>> 5. Why is the RW pin often connected to ground?

● Citations:

Programming LCD display pins is a fundamental skill for electronics enthusiasts and developers working with microcontrollers like Arduino, PIC, or AVR. This comprehensive guide will walk you through the essential concepts, pin configurations, wiring, and programming techniques to control a typical 16x2 LCD display. Along the way, you will find detailed explanations, diagrams, and video references to help you master LCD interfacing without diving into code snippets directly. By the end, you will understand how to connect, configure, and program LCD pins effectively for your projects.

Understanding LCD Display Pins

What is a 16x2 LCD Display?

A 16x2 LCD display is a common alphanumeric display module that can show 16 characters per line on 2 lines. It uses Liquid Crystal Display technology and is widely used in embedded systems for displaying text and simple symbols.

Pin Configuration Overview

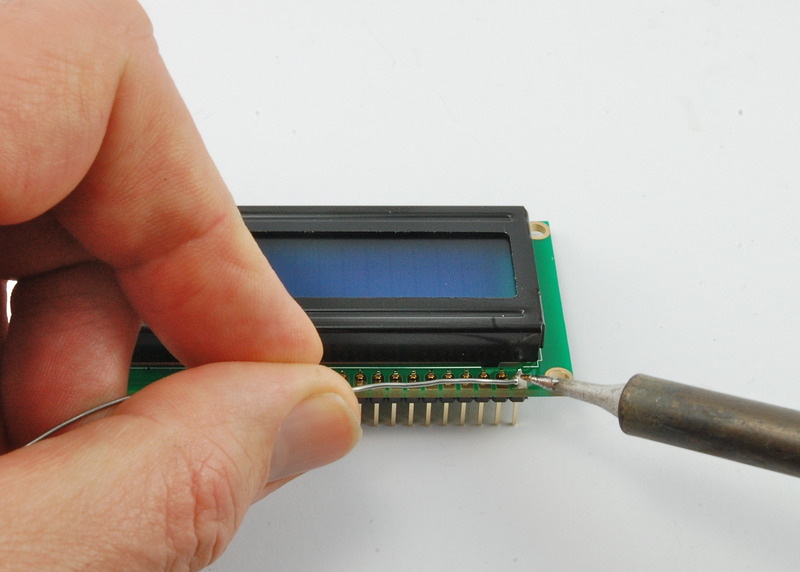

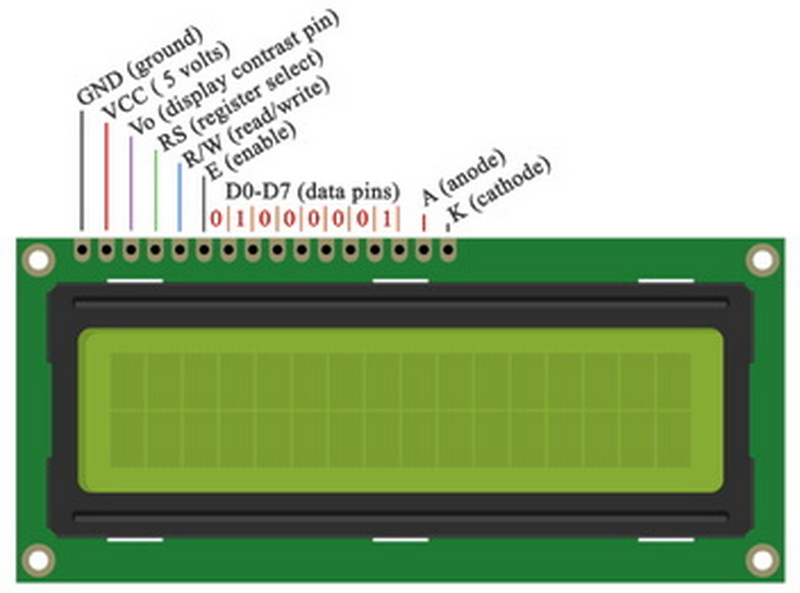

A standard 16x2 LCD module typically has 16 pins, divided into power, control, and data pins. Here is a breakdown of these pins:

Pin Number	Pin Name	Function
1	VSS	Ground (0V)
2	VCC	Power supply (+5V)
3	VEE (Vo)	Contrast adjustment (via potentiometer)
4	RS	Register Select (Command/Data mode)
5	RW	Read/Write control (Write=0, Read=1)
6	E (Enable)	Enables data read/write
7-14	D0-D7	Data pins (8-bit data bus)
15	LED+	Backlight LED positive
16	LED-	Backlight LED negative

The data pins (D0-D7) can be used in either 8-bit or 4-bit mode, depending on how many pins you want to use for data transfer.

Power Pins

- VSS (Pin 1): Connects to ground.

- VCC (Pin 2): Connects to +5V power supply.

- VEE (Pin 3): Controls the contrast of the LCD. Usually connected to the wiper of a potentiometer to adjust display visibility.

Control Pins

- RS (Pin 4): Selects between command register (RS=0) and data register (RS=1).

- RW (Pin 5): Selects read mode (RW=1) or write mode (RW=0). Often tied to ground if only writing is needed.

- E (Pin 6): Enable pin. A high-to-low pulse on this pin latches the data present on the data pins.

Data Pins

- D0-D7 (Pins 7-14): Carry the data or command bits. In 4-bit mode, only D4-D7 are used to reduce pin usage.

Backlight Pins

- LED+ (Pin 15) and LED- (Pin 16): Power the LCD backlight, usually connected to +5V and ground respectively.

How to Connect LCD Pins to a Microcontroller

Wiring Basics

To program an LCD, you first need to connect its pins correctly to your microcontroller (e.g., Arduino, PIC, AVR). The wiring depends on whether you use 4-bit or 8-bit mode.

- 4-bit mode: Uses only 4 data pins (D4-D7) plus RS, RW, and E control pins.

- 8-bit mode: Uses all 8 data pins (D0-D7) plus control pins.

Using 4-bit mode saves microcontroller pins and is sufficient for most applications.

Typical Arduino Connection Example (4-bit mode)

LCD Pin	Function	Arduino Pin
1 (VSS)	Ground	GND
2 (VCC)	+5V Power	5V
3 (VEE)	Contrast	Potentiometer middle pin
4 (RS)	Register Select	Digital Pin 12
5 (RW)	Read/Write	GND (write only)
6 (E)	Enable	Digital Pin 11
11 (D4)	Data 4	Digital Pin 5
12 (D5)	Data 5	Digital Pin 4
13 (D6)	Data 6	Digital Pin 3
14 (D7)	Data 7	Digital Pin 2
15 (LED+)	Backlight +	5V
16 (LED-)	Backlight -	GND

This setup is common and supported by many LCD libraries[1][2][10].

Contrast Adjustment

The contrast pin (VEE) is connected to a potentiometer (usually 10kΩ). Adjusting the potentiometer changes the voltage on this pin, which controls the darkness of the characters on the screen[2][4].

Programming the LCD Pins

Register Select (RS) Pin

- When RS = 0, the LCD interprets the data on the data pins as a command (e.g., clear screen, set cursor).

- When RS = 1, the data is treated as characters to display.

Read/Write (RW) Pin

- RW = 0: Write mode (sending data/commands to LCD).

- RW = 1: Read mode (reading data from LCD). Often tied to ground if reading is not needed[6].

Enable (E) Pin

The enable pin is used to latch the data into the LCD. A high-to-low pulse on this pin tells the LCD to read the data pins and execute the command or display the character[6].

Data Pins (D0-D7)

These pins carry the actual data or command bits. In 4-bit mode, data is sent in two 4-bit nibbles, first the higher nibble (D4-D7), then the lower nibble.

Step-by-Step Guide to Program LCD Pins (Conceptual)

1. Initialize the LCD:

- Set the pin modes for RS, RW, E, and data pins as outputs.

- Send initialization commands to set 4-bit or 8-bit mode, display on/off, cursor settings, etc.

2. Send Commands:

- Set RS to 0.

- Set RW to 0.

- Put the command byte on data pins.

- Pulse the E pin to latch the command.

3. Send Data (Characters):

- Set RS to 1.

- Set RW to 0.

- Put the data byte (ASCII character) on data pins.

- Pulse the E pin to latch the data.

4. Adjust Contrast:

- Use the potentiometer connected to VEE to adjust display contrast.

5. Display Text:

- Send character data sequentially to display strings.

6. Cursor Positioning:

- Send commands to set cursor position before writing data.

Common LCD Commands (Conceptual)

- Clear display

- Return home

- Entry mode set (cursor move direction)

- Display on/off control

- Cursor or display shift

- Function set (interface data length, number of display lines, font)

These commands are sent by setting RS=0 and writing the command byte to the data pins.

Tips for Successful LCD Programming

- Always connect RW to ground if you do not plan to read from the LCD to simplify wiring.

- Use a potentiometer for contrast adjustment to get clear characters.

- Use 4-bit mode to save microcontroller pins.

- Pulse the enable pin properly with sufficient delay to ensure data is latched.

- Use existing LCD libraries (e.g., LiquidCrystal for Arduino) to simplify programming.

Conclusion

Programming LCD display pins involves understanding the function of each pin, wiring them correctly to your microcontroller, and sending the right signals to control the display. The 16x2 LCD module is versatile and widely supported, making it an excellent choice for displaying text in embedded projects. By mastering the pin configuration, control signals (RS, RW, E), and data transmission methods (4-bit or 8-bit), you can effectively program the LCD to show messages, numbers, and custom characters. Visual aids and video tutorials complement this knowledge, providing practical insights into wiring and operation. With this foundation, you can confidently integrate LCD displays into your electronics projects.

Frequently Asked Questions (FAQs)

1. What are the essential pins to connect for basic LCD operation?

For basic operation, connect VSS (ground), VCC (+5V), VEE (contrast via potentiometer), RS (register select), E (enable), and data pins D4-D7 for 4-bit mode. Tie RW to ground if reading is not needed[2][6][10].

2. How do I adjust the contrast of the LCD?

Use a potentiometer connected to the VEE pin (pin 3). Adjusting the potentiometer changes the voltage on this pin, which controls the contrast of the characters on the display[2][4].

3. Can I use fewer data pins to control the LCD?

Yes, the LCD supports 4-bit mode, which uses only four data pins (D4-D7) instead of all eight (D0-D7), saving microcontroller pins[1][10].

4. What is the function of the RS pin?

The RS pin selects whether the data on the data pins is a command (RS=0) or character data to display (RS=1)[6][9].

5. Why is the RW pin often connected to ground?

If you only need to write data to the LCD and do not need to read from it, connecting RW to ground simplifies the circuit and programming[6][9].
