How To Program A Lcd Display To Scroll Words?

Content Menu

Introduction to LCD Scrolling

>> Components Required

>> Techniques for Scrolling Text

Using Standard LCD Commands

>> scrollDisplayLeft() and scrollDisplayRight()

Manual Coding Techniques

>> Scrolling a Single Line

Circuit Diagrams

Smooth Scrolling Techniques

Conclusion

Frequently Asked Questions

>> 1. What is the difference between using standard LCD commands and manual coding techniques for scrolling text?

>> 2. How do I connect an LCD display to an Arduino board?

>> 3. What is the Liquid Crystal Library, and how is it used?

>> 4. Can I scroll text on a single line of a multi-line LCD display?

>> 5. How can I achieve smooth scrolling on an LCD display?

Citations:

Introduction to LCD Scrolling

LCD (Liquid Crystal Display) scrolling is a technique used to display text that exceeds the screen's capacity by moving it across the display. This is particularly useful for small LCD screens, such as the 16x2 LCD commonly used in Arduino projects. In this article, we will explore how to program an LCD display to scroll words, including the necessary components, techniques, and examples.

how to program a lcd display to scroll words

Components Required

To start scrolling text on an LCD display, you will need the following components:

- Arduino Board: This is the microcontroller that will control the LCD display.

- LCD Display: Typically a 16x2 or 16x4 LCD, which are common sizes for small projects.

- Breadboard and Jumper Wires: For connecting the components.

- Power Supply: To power the Arduino and LCD.

Techniques for Scrolling Text

There are two primary methods to scroll text on an LCD display:

1. Using Standard LCD Commands: The Liquid Crystal Library provides functions like `scrollDisplayLeft()` and `scrollDisplayRight()` to move text across the screen.

2. Manual Coding Techniques: This involves writing custom functions to manage text movement, offering more control over the scrolling behavior.

Using Standard LCD Commands

The Liquid Crystal Library is a powerful tool for controlling LCD displays with Arduino. It includes built-in functions for scrolling text:

scrollDisplayLeft() and scrollDisplayRight()

These functions shift the entire display left or right, which can be used to create a scrolling effect. Here's how they work:

- scrollDisplayLeft(): Moves the text one character to the left.

- scrollDisplayRight(): Moves the text one character to the right.

Manual Coding Techniques

For more control over the scrolling behavior, you can write custom functions. This approach allows you to scroll specific lines or implement more complex animations.

Scrolling a Single Line

Sometimes, you might want to scroll only one line of text on a multi-line display. This requires manually managing the text display and movement.

Scroll Message On 16x2 LCD Display

Circuit Diagrams

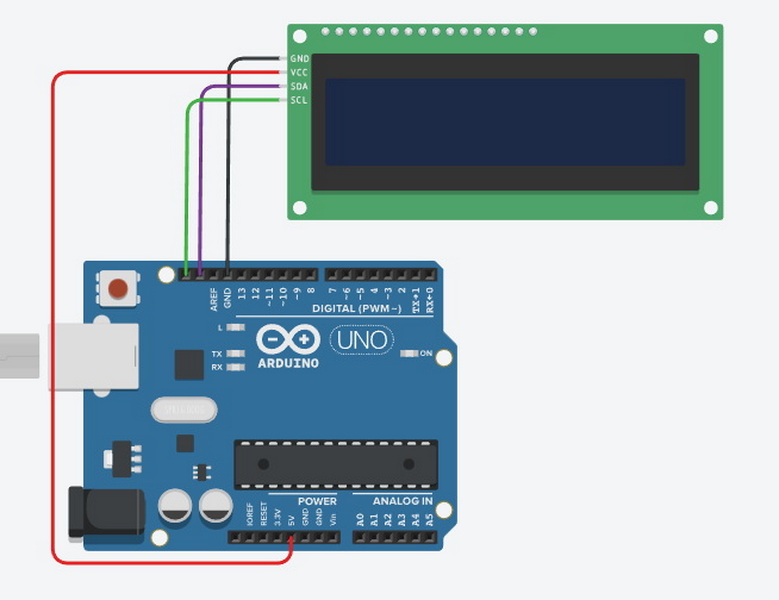

To connect your LCD display to an Arduino, you'll need to follow a specific wiring pattern. Here's a basic diagram:

- LCD RS Pin to Arduino Digital Pin 12

- LCD Enable Pin to Arduino Digital Pin 11

- LCD D4 Pin to Arduino Digital Pin 5

- LCD D5 Pin to Arduino Digital Pin 4

- LCD D6 Pin to Arduino Digital Pin 3

- LCD D7 Pin to Arduino Digital Pin 2

Smooth Scrolling Techniques

For smoother scrolling, you can use custom characters to create the illusion of pixel-level movement. This involves defining custom characters that represent parts of the text and then shifting these characters across the screen.

Conclusion

Scrolling text on an LCD display is a useful technique for enhancing user interaction in embedded systems. By using standard LCD commands or manual coding techniques, you can create dynamic displays that engage users. Whether you're working with Arduino or another microcontroller, understanding how to scroll text is essential for creating interactive projects.

Arduino LCD Marquee Effect

Frequently Asked Questions

1. What is the difference between using standard LCD commands and manual coding techniques for scrolling text?

- Standard LCD Commands: These are built-in functions like `scrollDisplayLeft()` and `scrollDisplayRight()` that shift the entire display. They are easy to use but less customizable.

- Manual Coding Techniques: These involve writing custom functions to manage text movement, offering more control over the scrolling behavior but requiring more programming effort[1][9].

2. How do I connect an LCD display to an Arduino board?

- Connect the LCD's RS pin to Arduino's digital pin 12, Enable to pin 11, D4 to pin 5, D5 to pin 4, D6 to pin 3, and D7 to pin 2. Use a 10k potentiometer for contrast adjustment[7].

3. What is the Liquid Crystal Library, and how is it used?

- The Liquid Crystal Library is a software library for Arduino that provides functions to control LCD displays compatible with the Hitachi HD44780 driver. It includes functions like `scrollDisplayLeft()` and `scrollDisplayRight()` for scrolling text[7].

4. Can I scroll text on a single line of a multi-line LCD display?

- Yes, you can scroll text on a single line by manually updating the text on that line while keeping other lines static. This requires custom coding to manage the text movement[10].

5. How can I achieve smooth scrolling on an LCD display?

- Smooth scrolling can be achieved by using custom characters to create the illusion of pixel-level movement. This involves defining custom characters that represent parts of the text and then shifting these characters across the screen[4].
