● Introduction to Moving Serial Print to LCD Display
● Displaying Serial Print on LCD
● Troubleshooting Common Issues
>> 1. How Do I Connect an I2C LCD to Arduino?
>> 2. Why Is My LCD Display Not Turning On?
>> 3. How Do I Adjust the Contrast of the LCD?
>> 4. Can I Use a Graphic LCD with Arduino?
>> 5. How Do I Display Images on a TFT LCD Without an SD Card?
In Arduino projects, displaying information on an LCD screen is a common practice for providing visual feedback. This can range from simple text messages to complex graphics. One of the most useful features is the ability to display data that is typically printed to the serial monitor directly on the LCD. This guide will walk you through the process of moving serial print to an LCD display, including the necessary hardware setup, software configuration, and troubleshooting tips.
To start, you will need the following components:
- Arduino Board: This is the brain of your project. Common models include Arduino Uno, Arduino Mega, and Arduino Nano.
- LCD Display: The most common type is the 16x2 LCD, but you can also use larger displays like 20x4 or graphic LCDs.
- Breadboard and Jumper Wires: For connecting the LCD to the Arduino.
- Potentiometer (Optional): For adjusting the contrast of the LCD.
The wiring process varies depending on whether you are using a parallel LCD or an I2C LCD module.
For a parallel LCD, you need to connect the following pins:
- VCC to Arduino's 5V
- GND to Arduino's GND
- RS (Register Select) to any digital pin on Arduino (e.g., D12)
- E (Enable) to any digital pin on Arduino (e.g., D11)
- D4-D7 to any digital pins on Arduino (e.g., D5-D8)
- Vo (Contrast) to a potentiometer (optional)

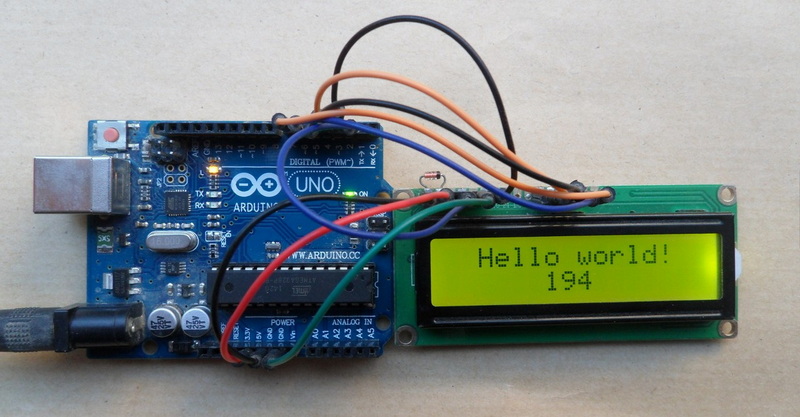

For an I2C LCD, the connections are simpler:
- VCC to Arduino's 5V
- GND to Arduino's GND
- SDA to Arduino's A4
- SCL to Arduino's A5
To display serial print on the LCD, you need to include the LiquidCrystal library for parallel LCDs or LiquidCrystal_I2C for I2C LCDs in your Arduino sketch.
1. Include the Library: Go to Sketch > Include Library > LiquidCrystal.
2. Create an LCD Object: Define the pins used for RS, E, and D4-D7.
3. Initialize the LCD: Use `lcd.begin()` in the setup function to set the number of columns and rows.
4. Print to LCD: Use `lcd.print()` to display text.
1. Include the Library: Go to Sketch > Include Library > LiquidCrystal_I2C.
2. Create an LCD Object: Define the I2C address and the number of columns and rows.
3. Initialize the LCD: Use `lcd.begin()` in the setup function.
4. Print to LCD: Use `lcd.print()` to display text.
To display serial print data on the LCD, you can read the serial input in the loop function and write it to the LCD.
Here is a simple example of how to achieve this:
1. Read Serial Data: Use `Serial.available()` to check if there is incoming data.
2. Clear the LCD: Use `lcd.clear()` to clear the screen before writing new data.
3. Write to LCD: Use `lcd.write(Serial.read())` to display each character.
- LCD Not Turning On: Check power connections and ensure VCC is connected to 5V and GND is connected to GND.
- Text Not Visible: Adjust the contrast using a potentiometer connected to the Vo pin.
- Incorrect I2C Address: Use an I2C scanner sketch to find the correct address.
Moving serial print to an LCD display is a straightforward process that enhances the user experience of your Arduino projects. By following the wiring and software setup guidelines, you can easily display serial data on an LCD screen. Whether you're using a parallel or I2C LCD, the LiquidCrystal libraries make it easy to integrate visual feedback into your projects.
To connect an I2C LCD to Arduino, connect the VCC to 5V, GND to GND, SDA to A4, and SCL to A5. Use the LiquidCrystal_I2C library and define the I2C address in your sketch[14].
Ensure that the VCC pin is connected to 5V and the GND pin is connected to GND on the Arduino. Also, check if the backlight pins (A and K) are properly connected[7].
Use a potentiometer connected between the Vo pin and GND. Adjust the potentiometer until the text becomes visible[8].
Yes, you can use a graphic LCD with Arduino. You will need to convert your image into a compatible data array and use specific libraries for graphic LCDs[12][15].
You can send image data over the serial connection from your PC to the Arduino, which then displays it on the TFT LCD. However, this method is slow and may require data compression techniques[11].
