Creating an LCD display at home can be an exciting and educational project. This guide will walk you through the steps necessary to build a simple LCD display using readily available components, particularly focusing on using an Arduino microcontroller. By the end of this tutorial, you will have a functioning LCD display that can show text and graphics.
Before diving into the construction process, it is essential to understand how LCDs work. Liquid Crystal Displays (LCDs) utilize liquid crystals that modulate light. The basic components of an LCD include:
- Backlight: Provides illumination for the display.
- Liquid Crystals: Control the light passing through them.
- Polarizers: Filter light to create images.
When an electric current passes through the liquid crystals, they align in such a way that allows varying amounts of light to pass through, creating the images we see on the screen.
To create your own LCD display, you will need the following components:
- Arduino Uno: The microcontroller that will control the LCD.

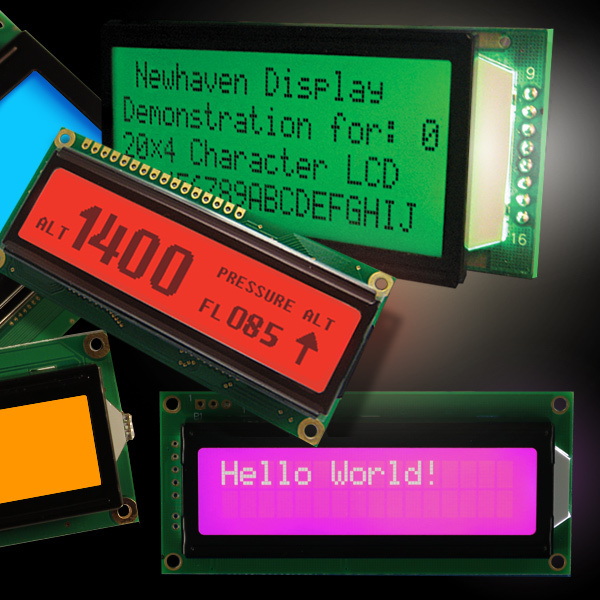

- LCD Module: A standard 16x2 character LCD or a graphic LCD (like 144x32).
- Breadboard and Jumper Wires: For making connections.
- Resistor (220 Ohm): To limit current to the backlight.
- Potentiometer (10k Ohm): For adjusting contrast.
- USB Cable: To connect the Arduino to your computer.
- Software: Arduino IDE for coding.
1. Connect the Pins: Use jumper wires to connect your LCD module to the Arduino. The typical connections for a 16x2 LCD are as follows:
| LCD Pin | Arduino Pin |
|---|---|
| VSS | GND |
| VDD | +5V |
| V0 | Middle Pin of Potentiometer |
| RS | Pin 12 |
| RW | GND |
| E | Pin 11 |
| D4 | Pin 5 |
| D5 | Pin 4 |
| D6 | Pin 3 |
| D7 | Pin 2 |
2. Add Resistor and Potentiometer: Connect a 220 Ohm resistor from the backlight pin to +5V and connect the potentiometer to adjust brightness.
1. Open Arduino IDE: If you haven't installed it yet, download and install it from the official Arduino website.
2. Write Code: Below is a simple code snippet that initializes the LCD and prints "Hello World".
3. Upload Code: Connect your Arduino to your computer using a USB cable and upload the code.
Once uploaded, your LCD should display "Hello World." If it doesn't appear, check your wiring and ensure that your potentiometer is adjusted correctly for contrast.
For those interested in displaying custom graphics on a graphic LCD, follow these additional steps:
1. Create Your Graphic:
- Use software like Microsoft Paint or GIMP to design your image.
- Save it as a monochrome bitmap (.bmp).
2. Convert Image for LCD Use:
- Use a tool like *LCD Assistant* to convert your bitmap into an array format compatible with your code.
3. Modify Your Code:
- Integrate this array into your Arduino sketch and modify it accordingly to display your custom image.
Once you're comfortable with basic text displays, consider expanding your project with more complex functionalities:
- Interactive Displays: Incorporate buttons or sensors that allow user interaction with the display.
- Data Visualization: Connect sensors (like temperature or humidity sensors) and display real-time data on your LCD.
- Graphical User Interface (GUI): For advanced users, create a simple GUI using graphic libraries compatible with Arduino.
If you're interested in more advanced projects, you might consider disassembling an old monitor or TV screen to repurpose its LCD panel. Here's how:
1. Disassemble an Old Monitor:
- Carefully open up an old monitor casing.
- Remove any anti-glare films or protective layers.
2. Mount LED Strips for Backlight:
- Install LED strips inside the casing to act as a backlight for better visibility of the display.
3. Connect Controller Boards:
- Use an appropriate controller board compatible with your LCD panel for interfacing with microcontrollers like Arduino.
4. Power Supply Setup:
- Ensure proper power supply connections are made for both the LED strips and the controller board.
This method can yield larger displays suitable for various applications but requires more advanced knowledge of electronics and soldering skills.
For visual learners, several video tutorials can help you understand each step better:
When working with LCD displays, you may encounter some common issues:
- No Display Output:
- Check all connections; ensure they are secure.
- Verify that the correct pins are connected as per your code.
- Faint Display or No Backlight:
- Adjust the potentiometer connected to V0 for contrast.
- Ensure that power connections are correct and that resistors are used where necessary.
- Text Not Displaying Correctly:
- Ensure that you have initialized the library correctly in your code.
- Double-check if any characters are being sent incorrectly due to wiring issues.
Building an LCD display at home is not only feasible but also a rewarding project that enhances your understanding of electronics and programming. By following this guide, you can create both simple text displays and more complex graphic interfaces using an Arduino. With further exploration into custom graphics and advanced projects like interactive displays or repurposing old monitors, you can expand your skills even further.
The standard 16x2 character LCD is ideal for beginners due to its simplicity and ease of use.
Yes, while this guide uses an Arduino Uno, most microcontrollers can interface with an LCD as long as they have sufficient I/O pins.
You will need the Arduino IDE for writing and uploading code to your microcontroller.
You can adjust brightness using a potentiometer connected to the V0 pin of the LCD.
Yes! By rapidly changing what is displayed on the screen in your code, you can create simple animations.
