Creating a display driver for an LCD (Liquid Crystal Display) involves understanding the fundamental principles of LCD technology and the role of drivers in controlling the display. LCDs are widely used in various applications due to their low power consumption and good visual properties. This article will delve into the process of making a display driver for an LCD, covering key concepts, types of LCDs, and the components involved in driving them.
LCDs work by controlling the orientation of liquid crystals to block or allow light to pass through a matrix of pixels. They require an alternating current (AC) to prevent damage from direct current (DC). The display driver is crucial as it transforms firmware into visual elements on the LCD.

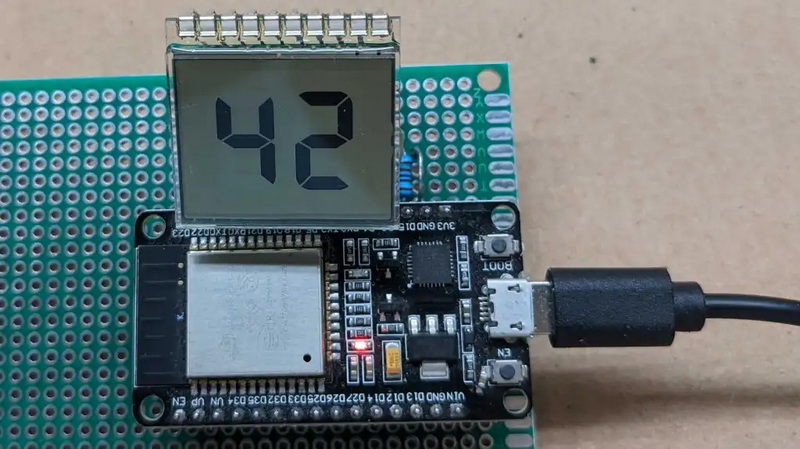

1. Segment LCDs: These can display alphanumeric characters and simple symbols. They are cost-effective but limited in their display capabilities.

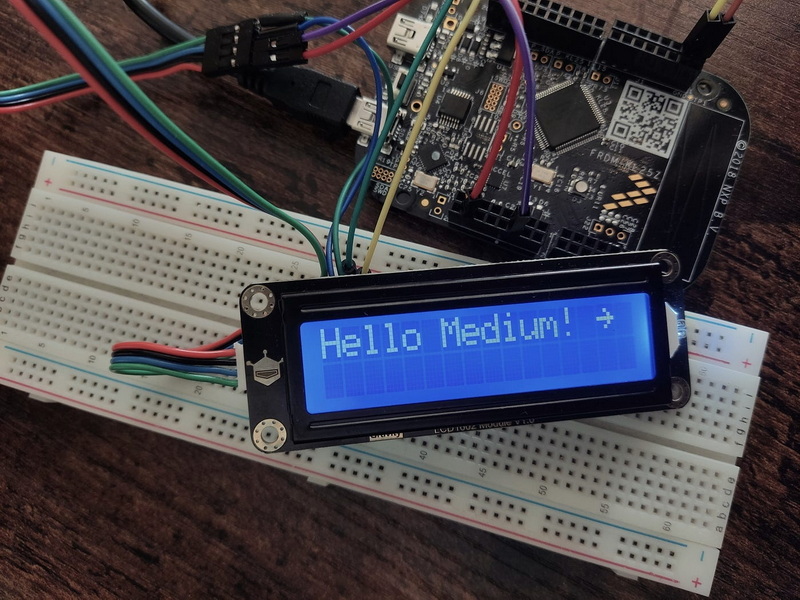

2. Dot Matrix LCDs: More versatile, these can display complex characters and graphics. They are more expensive than segment LCDs but offer greater flexibility.
3. TFT LCDs: Thin-Film Transistor LCDs are used for high-resolution displays like those in smartphones and laptops. They offer better color reproduction and faster response times compared to traditional LCDs.
An LCD driver typically includes:
- CPU: For processing commands and data.
- Memory (RAM and ROM): Stores firmware and temporary data.
- Interfaces: For input/output operations, such as SPI, I2C, or TTL interfaces[1].

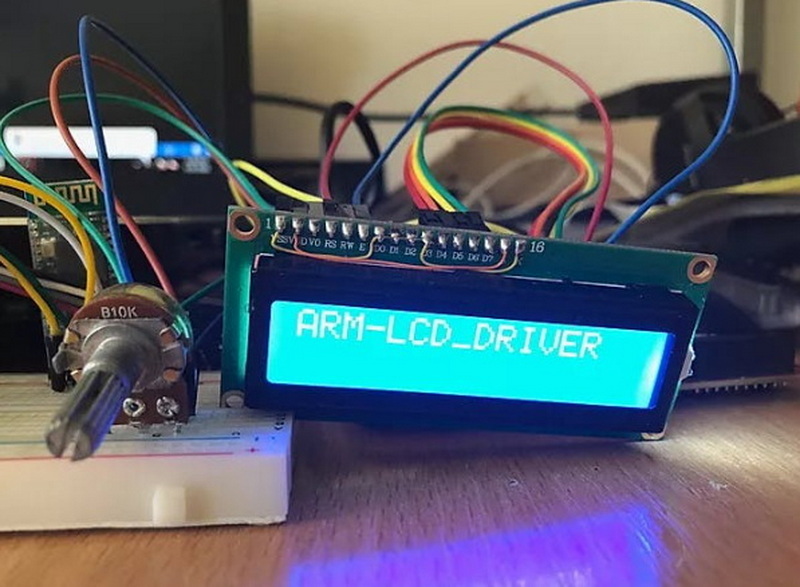

Creating a display driver involves several steps:
1. Designing the Driver Circuitry: This includes choosing the appropriate microcontroller or dedicated LCD driver IC and designing the circuit to connect the LCD segments or pixels to the driver. The number of COM and SEG pins in the LCD driver IC should be considered to optimize display quality[3].
2. Writing the Driver Software: The software must be able to interpret commands, convert ASCII values to segment patterns for segment LCDs, and update the display memory accordingly. Libraries like Arduino's LiquidCrystal library can simplify this process by providing pre-written functions for common operations[4].
3. Testing the Driver: Ensure that the driver can correctly display characters or images on the LCD. This involves verifying that the segment patterns are correctly generated and that the display updates as expected.
LCDs can be driven using either static or multiplexed techniques:
- Static Drive: Each segment is driven continuously, which is simple but requires more GPIO lines.
- Multiplex Drive: Uses time-division multiplexing to reduce GPIO requirements. This technique is more complex but allows for larger displays with fewer pins[3].
Bias circuits are crucial for generating the necessary voltage levels to drive the LCD. Common architectures include charge pumps, voltage-followers, and internal or external resistors. The choice of bias circuit affects the operating current and driving capacity of the LCD[2].
- Security: With the rise of IoT devices, ensuring the security of LCD drivers is crucial. Some drivers now include encryption and physical security measures.
- Temperature Tolerance: For applications in harsh environments, selecting drivers that can operate over a wide temperature range is important.
- Discontinuation of Drivers: When an LCD driver is discontinued, adapting firmware to new drivers or stockpiling obsolete drivers are common solutions.
Recent advancements in LCD driver IC design have focused on several key areas:
1. Increased Output Channels: To support higher resolutions and improve display quality.
2. Power Efficiency: Techniques like dynamic refresh rate adjustment and charge recycling help extend battery life in mobile devices[6].
3. Enhanced Color Depth: For more vibrant and accurate displays, especially in automotive and consumer electronics applications.
4. Faster Response Times: To reduce ghosting and improve motion smoothness in high-refresh-rate displays.
5. Integration of Additional Features: Such as touch sensing and security functions to enhance user experience and device security.
Creating a display driver for an LCD requires a deep understanding of both the hardware and software components involved. By following the steps outlined above and considering the challenges and considerations, developers can successfully design and implement LCD display drivers for various applications.
The primary function of an LCD driver is to transform firmware into visual elements such as letters, numbers, and images for display on the LCD.
The main types of LCDs are segment LCDs, dot matrix LCDs, and TFT LCDs. Segment LCDs display alphanumeric characters, dot matrix LCDs display complex characters and graphics, and TFT LCDs are used for high-resolution displays.
Using AC voltage with LCDs is important because DC voltage can permanently damage the liquid crystals. An AC waveform ensures that the net DC voltage across any pixel is zero.
LCDs are commonly used in portable devices like calculators, watches, and radios due to their low power consumption and good visual properties.
Ensuring the security of LCD drivers in IoT devices involves using drivers with built-in security features such as encryption and physical security measures.
