Interfacing a microcontroller with an LCD display is a fundamental skill in embedded systems development. LCDs provide a simple way to display information such as text, numbers, or graphics, and they are widely used in applications ranging from consumer electronics to industrial automation. This comprehensive guide explains how to interface an LCD with a microcontroller, covering hardware connections, communication protocols, initialization steps, and troubleshooting tips.

interface microcontroller with lcd display

Introduction

LCDs (Liquid Crystal Displays) are versatile components that allow microcontrollers to communicate information visually. Among the most popular types are character LCDs (e.g., 16x2 or 20x4), which display alphanumeric characters, and graphical LCDs that can render images and complex graphics. The HD44780 controller is the standard for character LCDs and supports both 4-bit and 8-bit communication modes. Microcontrollers like Arduino, PIC, AVR, STM32, and 8051 are commonly used for interfacing with these displays.

Components Required

To build an LCD interface project, you'll need the following components:

- Microcontroller (e.g., Arduino Uno, PIC16F877A, STM32)

- LCD Module (16x2 or 20x4 character LCD)

- Breadboard

- Jumper wires

- Potentiometer (for contrast adjustment)

- Resistors (e.g., 220Ω for backlight control)

- Power supply (5V or 3.3V depending on your microcontroller)

Understanding the LCD Pin Configuration

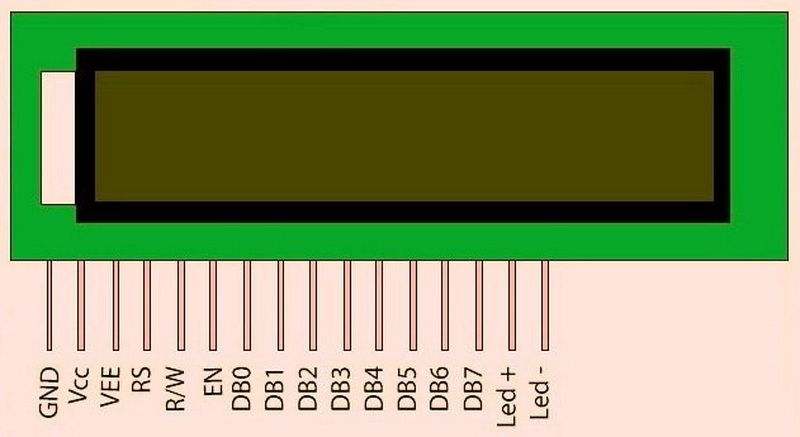

Before connecting the hardware, it's essential to understand the pinout of the LCD module. A typical 16x2 character LCD has the following pins:

Pin Name Function
VSS Ground
VDD Power supply (+5V)
Vo Contrast adjustment pin
RS Register Select (data/instruction register selection)
RW Read/Write mode
E Enable signal
D0-D7 Data pins for parallel communication
A+ / K- LED backlight pins

The datasheet of your specific LCD module will provide detailed information about its pin configuration.

interface microcontroller with lcd display

Step-by-Step Guide

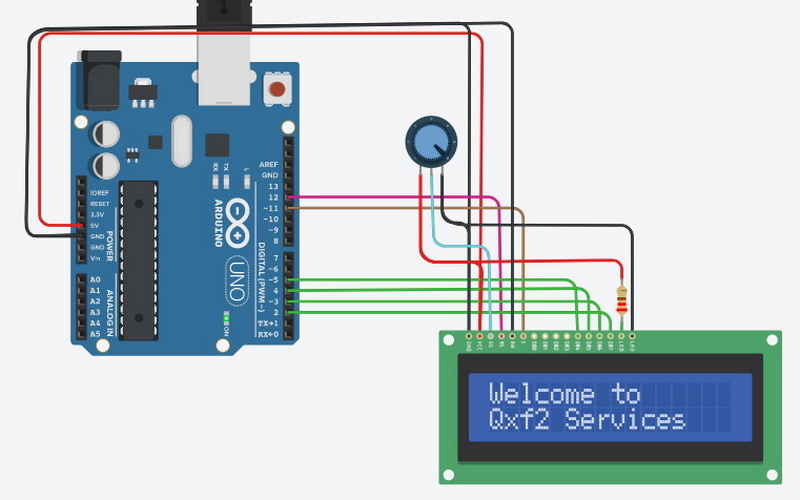

1. Hardware Connections

Connect the LCD pins to your microcontroller as follows:

1. Power Supply: Connect VSS to ground and VDD to +5V.

2. Contrast Adjustment: Connect Vo to the middle pin of a potentiometer. Adjusting this controls the contrast of the display.

3. Control Pins:

- RS: Connect to a digital I/O pin on the microcontroller.

- RW: Connect to ground for write mode.

- E: Connect to another digital I/O pin.

4. Data Pins:

- For 4-bit mode: Use D4-D7 only.

- For 8-bit mode: Use all data pins (D0-D7).

5. Backlight: Connect A+ and K- through a resistor for backlight control.

2. Communication Modes

LCDs can operate in two communication modes:

- 8-bit Mode: All eight data pins (D0-D7) are used for communication. This mode is faster but requires more GPIO pins.

- 4-bit Mode: Only four data pins (D4-D7) are used, reducing the number of GPIO pins required but slightly slowing down data transfer.

Most projects use 4-bit mode due to its efficiency in conserving microcontroller resources.

3. Initialization Sequence

Initializing the LCD is critical for proper operation. The initialization sequence involves sending specific commands to configure the display:

1. Set communication mode (4-bit or 8-bit).

2. Clear the display.

3. Set cursor position.

4. Turn on/off display and cursor.

Refer to your LCD's datasheet for detailed command sequences.

4. Sending Commands and Data

The microcontroller communicates with the LCD by sending commands and data:

- Commands: Control operations like clearing the screen or moving the cursor.

- Data: Represents characters or symbols displayed on the screen.

Control Signals:

- RS = 0: Command mode

- RS = 1: Data mode

- RW = 0: Write operation

- E: Pulse signal for enabling communication

5. Testing Your Setup

Once you've connected everything and programmed your microcontroller, test your setup by displaying simple messages like "Hello World." Debugging tools like multimeters or oscilloscopes can help verify signal integrity if issues arise.

interface microcontroller with lcd display

Advanced Topics

Using I2C or SPI Interfaces

While most basic LCD modules use parallel communication, some advanced models support I2C or SPI protocols. These interfaces reduce wiring complexity but require compatible driver ICs or external modules.

Graphical Displays

Graphical LCDs allow you to render images and complex graphics but require more memory and processing power from your microcontroller. Libraries like Adafruit GFX simplify graphical rendering.

Troubleshooting Common Issues

1. No Display Output: Check power connections and contrast settings.

2. Garbage Characters: Verify initialization sequence and timing.

3. Backlight Flickering: Ensure stable power supply and proper resistor values.

Conclusion

Interfacing an LCD with a microcontroller is a rewarding experience that enhances your embedded systems projects by providing visual feedback. By understanding hardware connections, communication protocols, initialization steps, and troubleshooting techniques, you can successfully implement this functionality in your designs.

interface microcontroller with lcd display

Frequently Asked Questions

Q1: What is the difference between character and graphical LCDs?

Character LCDs can only display predefined characters in a grid format (e.g., 16x2), while graphical LCDs allow pixel-level control for rendering images or custom fonts.

Q2: How do I adjust contrast on an LCD?

Use a potentiometer connected to Vo (pin 3). Rotate it until the text becomes clearly visible.

Q3: Can I use an ESP32 with an I2C-based LCD?

Yes, ESP32 supports I2C communication, which is ideal for interfacing with I2C-enabled LCD modules.

Q4: What causes garbage characters on an LCD?

Garbage characters often result from incorrect wiring, poor initialization sequences, or timing mismatches between commands/data sent by the microcontroller.

Q5: How do I reduce GPIO pin usage when interfacing with an LCD?

Use a serial-to-parallel converter like an I2C backpack module that reduces multiple data lines into just two wires (SDA and SCL).
