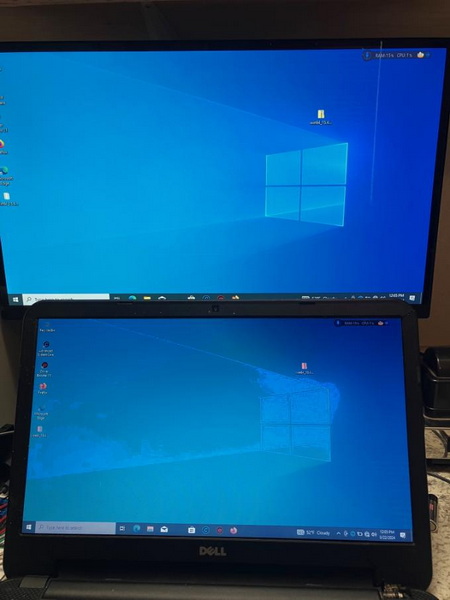

A dim LCD display can be frustrating, especially when it affects your productivity or enjoyment of media. Fortunately, there are several methods to diagnose and fix a dim LCD screen. This comprehensive guide will walk you through various troubleshooting techniques, repairs, and preventive measures to restore your display's brightness.
Before diving into the solutions, it's essential to understand what might be causing your LCD display to appear dim. Common causes include:
- Backlight Issues: The backlight is responsible for illuminating the screen. If it's malfunctioning or has failed, the display will appear dim.
- Connection Problems: Loose or damaged cables connecting the LCD to the motherboard can lead to insufficient power reaching the display.
- Ambient Light Sensor: Some devices have sensors that adjust brightness based on surrounding light. If malfunctioning, they might cause the screen to dim unexpectedly.
- Software Settings: Sometimes, simple software settings or driver issues can cause brightness problems.
To fix a dim LCD display, you may need the following tools:
- Screwdriver set
- Multimeter
- Soldering iron (if necessary)
- Contact cleaner
- Replacement capacitors or LEDs (if needed)
- A flashlight (for testing)
1. Adjust Brightness Settings: Start by checking the brightness settings on your device. Make sure they are set to maximum.
2. Check Power Supply: Ensure that your device is receiving adequate power. For laptops, connect it to a power source.
3. Inspect Ambient Light Sensor: If your device has an ambient light sensor, try disabling it in settings to see if that resolves the issue.
If initial checks do not resolve the problem, you may need to open up your device:
1. Power Off and Unplug: Ensure your device is completely powered off and unplugged.
2. Remove Screws: Use a screwdriver to remove screws from the back panel of your device.
3. Carefully Open the Device: Gently pry open the casing with a plastic tool to avoid damaging any clips.
Once you have access to the internal components:
1. Check Ribbon Cables: Look for any loose or disconnected ribbon cables connecting the LCD to the motherboard. Reseat them if necessary.
2. Inspect for Damage: Check for any visible damage on cables or connectors.
3. Clean Contacts: Use contact cleaner on connectors and ribbon cables to remove any oxidation or dirt.
1. Check Backlight Voltage: Use a multimeter to check if voltage is reaching the backlight circuit.
2. Replace Capacitors: If you find bad capacitors on the power board, replace them with new ones.

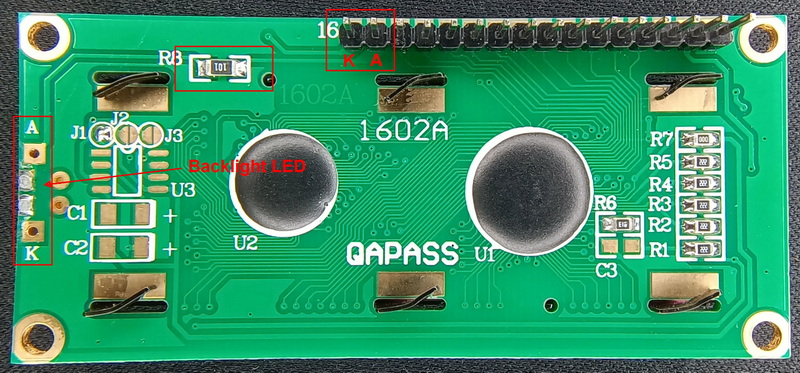

3. Inspect LED Backlight: If your LCD uses LED backlighting, check if they are functioning properly. If not, you may need to replace them.
1. Reassemble Your Device: Once all checks and repairs are complete, carefully reassemble your device by reversing the disassembly steps.
2. Power On and Test: Turn on your device and check if the display brightness has improved.
If your display remains dim after attempting these fixes, consider these additional troubleshooting steps:
- Dead Pixels: These are tiny dots on the screen that do not change color or display any image. You can try using pixel-fixing software or gently massaging the affected area with a soft cloth[2].
- Image Persistence (Burn-in): If an image or pattern gets permanently imprinted on the screen due to prolonged use of static images, try running a pixel-refreshing program or displaying a white screen for some time[2].
- Color Distortion: If colors appear inaccurate or washed out, check for loose connections between your device and the display[2].
To avoid dim display issues in the future:
- Regularly clean connections and ensure they are secure.
- Avoid exposing your device to extreme temperatures or humidity.
- Keep software updated to prevent driver-related issues.
- Be cautious about leaving static images on your screen for extended periods to prevent burn-in.
Fixing a dim LCD display can often be accomplished with some basic tools and knowledge about how these devices work. By following this guide, you can troubleshoot common issues related to brightness and take steps toward restoring your screen's functionality.
If you've checked all connections and settings but still experience a dim screen, consider replacing faulty components like capacitors or LEDs.
You can test the backlight by shining a flashlight on the screen; if you see images but they are very faint, it's likely a backlight issue.
Yes, as long as you follow proper safety precautions such as disconnecting power and handling components carefully.
Yes, outdated drivers can lead to display issues including brightness problems; always keep your drivers updated.
If you're comfortable with basic electronics repair, you can attempt it yourself; otherwise, consider seeking professional assistance for complex issues.
