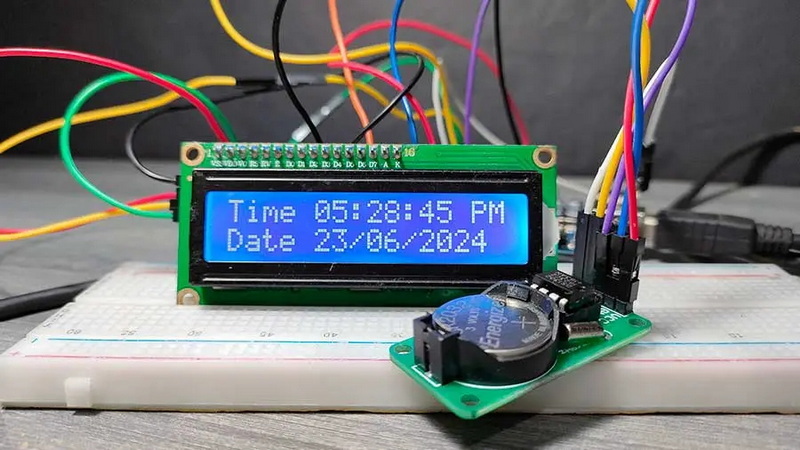

Displaying time on an LCD screen using Arduino is a fascinating project that combines electronics and programming. This guide will walk you through the process, covering the necessary components, setup, and programming concepts. We'll also explore common issues and solutions, ensuring you have a comprehensive understanding of how to create your own Arduino-based LCD clock.
Arduino is an open-source platform used for building interactive electronic projects. It consists of a microcontroller board and a software environment for writing and uploading code to the board. LCD displays are commonly used in Arduino projects to display information, such as text or numbers, making them ideal for creating digital clocks.
- Arduino Board: The brain of your project. Commonly used boards include the Arduino Uno.
- LCD Display: Available in various sizes and interfaces (e.g., I2C, SPI). For simplicity, I2C LCDs are recommended.
- Breadboard and Jumper Wires: For connecting components.
- Power Source: Typically a USB cable connected to a computer or a battery pack.
To connect an LCD display to an Arduino, follow these steps:
1. Identify LCD Pins: Most LCDs have 16 pins. For I2C LCDs, you'll primarily use four pins: VCC, GND, SDA, and SCL.
2. Connect to Arduino:
- VCC to Arduino's 5V pin.
- GND to Arduino's GND pin.
- SDA to Arduino's SDA (A4) pin.
- SCL to Arduino's SCL (A5) pin.
3. Optional: Backlight and Contrast:
- Connect the backlight's positive pin to a 5V pin and negative to GND.
- Use a potentiometer for contrast adjustment if needed.
When setting up your LCD, ensure that all connections are secure and not loose, as this can lead to erratic behavior or no display at all.
To display time, you'll need to write a program that updates the LCD screen with the current time. Here are some key concepts:
- Time Libraries: Use libraries like TimeLib or DateTime to manage time.
- LCD Libraries: LiquidCrystal or LiquidCrystal_I2C for interacting with the LCD.
- Time Updating: Use `millis()` or a real-time clock (RTC) module for accurate timekeeping.
Time libraries are crucial for handling time-related tasks. They allow you to set, update, and retrieve the current time. For projects requiring precise timing, these libraries are indispensable.
LCD libraries simplify the process of interacting with the LCD display. They provide functions for clearing the screen, setting the cursor position, and printing text or numbers.
To display ticking seconds, use a loop that updates the time every second. This can be achieved by checking the current second and updating the display when it changes.
Without an RTC module, the Arduino's internal clock will drift over time. Consider using an RTC for precise timekeeping. RTC modules like the DS3231 are highly accurate and maintain time even when the Arduino is powered off.
In addition to time, you can display the date by accessing the day, month, and year using time libraries. This adds an extra layer of functionality to your clock.
An RTC module provides accurate timekeeping by keeping track of time even when the Arduino is powered off. This is ideal for projects requiring precise timing. RTC modules can also be used to wake up the Arduino at specific times, which is useful for energy-efficient designs.
You can customize the LCD display by changing fonts, colors (if supported), or adding additional information like temperature or humidity. This makes your project more engaging and informative.
Integrating sensors can enhance your project by displaying environmental data alongside the time. For example, you can use a DHT11 sensor to display temperature and humidity.
- LCD Not Displaying: Check connections and ensure the LCD is properly initialized in your code.
- Time Not Updating: Verify that your time library is correctly configured and that you're updating the display regularly.
- RTC Not Working: Ensure the RTC module is correctly connected and configured in your code.
Once you have a basic clock working, you can expand it by adding more features:
- Alarms: Use the RTC to trigger alarms at specific times.
- Temperature and Humidity Display: Add sensors to display environmental data.
- Remote Control: Use a wireless module to control the clock remotely.
Implementing alarms involves setting specific times when the Arduino should perform an action, such as sounding a buzzer or sending a notification. This can be achieved using the RTC module to trigger interrupts at set times.
Adding environmental sensors like the DHT11 for temperature and humidity or the BMP180 for pressure can make your project more versatile. These sensors provide real-time data that can be displayed on the LCD.
Using a wireless module like Bluetooth or Wi-Fi allows you to control your clock remotely. You can send commands to set the time, trigger alarms, or adjust settings without physically interacting with the Arduino.
Creating an Arduino-based LCD clock is a rewarding project that introduces you to both electronics and programming. By following the steps outlined above and experimenting with different libraries and components, you can build a fully functional digital clock that displays both time and date. This project serves as a foundation for more complex Arduino projects, allowing you to explore advanced features and expand your skills in electronics and coding.
- Arduino board, LCD display, breadboard, jumper wires, and a power source.
- Use a real-time clock (RTC) module for precise timekeeping.
- Yes, you can change fonts, add colors (if supported), or display additional information.
- Check connections and ensure the LCD is properly initialized in your code.
- Use a loop to update the display every second based on the current time.
