Displaying strings on an LCD (Liquid Crystal Display) is a fundamental task in electronics and programming, particularly when using platforms like Arduino. This article will guide you through the process of interfacing an LCD with Arduino and displaying strings on it. We will cover the basics of LCDs, how they work, and provide detailed steps on setting up and programming your Arduino to display strings.

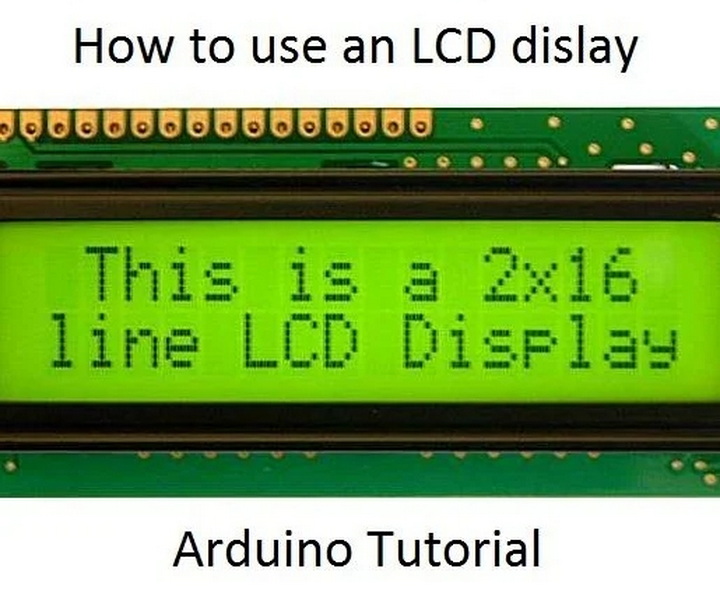

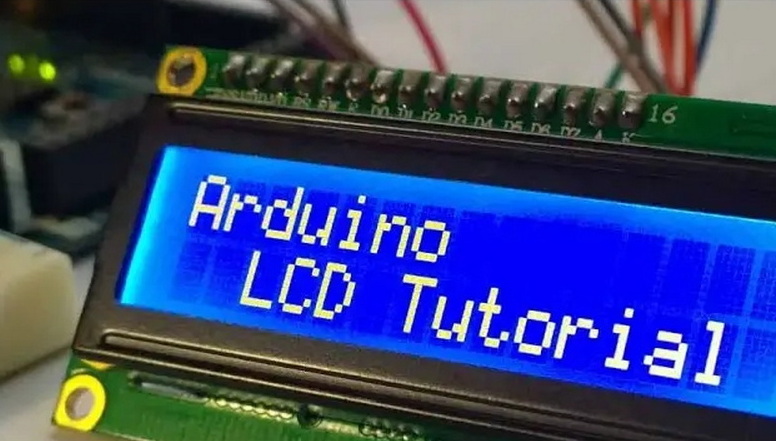

LCDs are widely used in electronic devices due to their low power consumption and ability to display text and images. The LCD 16x2 is a common type used in many projects, capable of displaying two lines of text with 16 characters each. This compact size makes it ideal for small projects where space is limited.
- RS (Register Select): This pin selects whether the LCD is in instruction mode (RS=0) or data mode (RS=1).
- RW (Read/Write): This pin determines whether the LCD is in read mode (RW=1) or write mode (RW=0). For most applications, this pin is grounded to ensure write mode.
- E (Enable): This pin must be set high to enable data transfer.
- D0-D7: These pins are used for data transfer. In 4-bit mode, only D4-D7 are used.
- A and K: These pins control the backlight. Connecting them to a power source and ground, respectively, turns on the backlight.
To interface an LCD with Arduino, you need to connect the LCD pins to the Arduino pins as follows:
| Arduino Pin | LCD Pin |
|---|---|
| Ground | VSS |
| +5V | VCC |
| 10K POT | VEE |
| Digital Pin | RS |
| Ground | RW |
| Digital Pin | E |
| Digital Pin | D4 |
| Digital Pin | D5 |
| Digital Pin | D6 |
| Digital Pin | D7 |
A typical circuit diagram will show the LCD connected to the Arduino with the RS, E, and data pins connected to digital pins on the Arduino. The RW pin is grounded to ensure write mode. The contrast is adjusted using a potentiometer connected to VEE.
To display a string on the LCD, you use the `print()` function provided by the LiquidCrystal library in Arduino.
1. Include the LiquidCrystal Library: Start by including the necessary library in your Arduino sketch.
2. Define the LCD Pins: Define which Arduino pins are connected to the LCD's RS, E, and data pins.
3. Initialize the LCD: Use the `begin()` function to set the dimensions of the LCD.
4. Set the Cursor: Use `setCursor()` to specify where the text should start.
5. Print the String: Use `print()` to display the string.

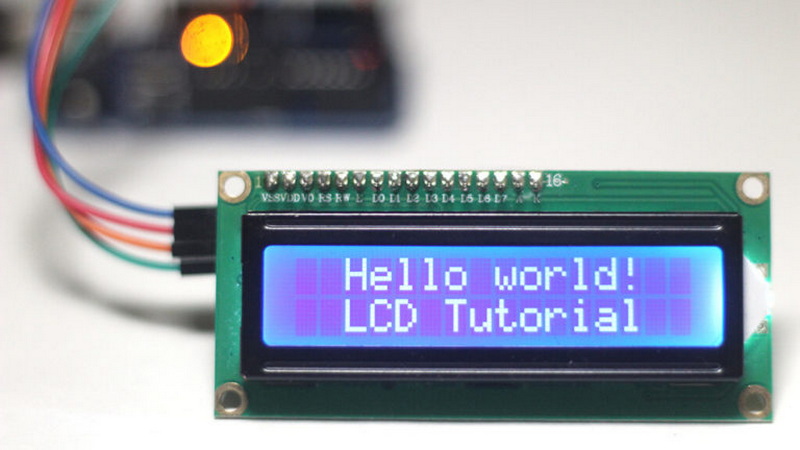

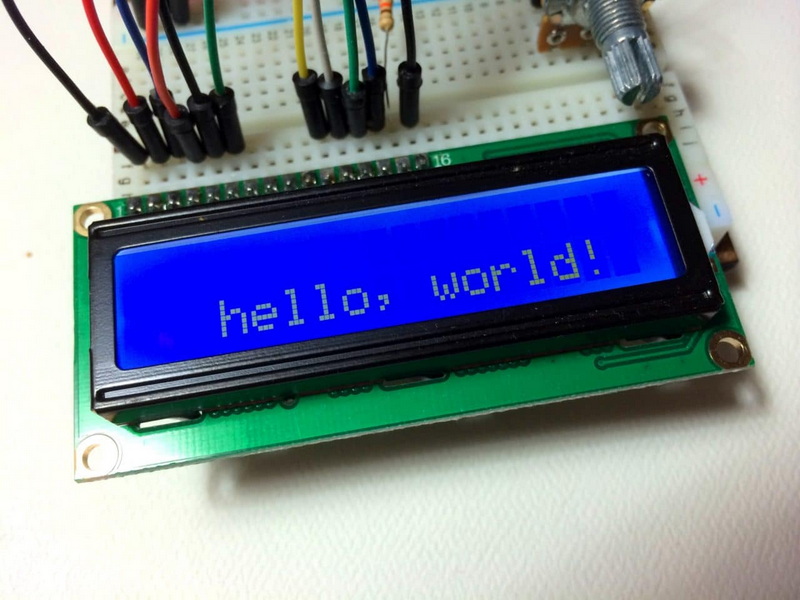

Imagine you want to display "Hello World" on the LCD. You would use the following steps:
- Set the cursor to the top left corner.
- Print "Hello".
- Move the cursor to the bottom left corner.
- Print "World".
- No Display: Check the contrast by adjusting the potentiometer connected to VEE. Ensure that the backlight is turned on.
- Incorrect Characters: Ensure the RS and RW pins are correctly set. Also, verify that the data pins are properly connected.
You can create custom characters using the `createChar()` function. This involves defining an array of bytes that represent the character's appearance on the LCD. Custom characters are useful for creating icons or symbols not available in the standard character set.
To scroll text, you can use a loop to move the cursor and print the text at different positions. This is particularly useful for displaying long messages that do not fit on the screen at once.
LCDs can operate in either 4-bit or 8-bit mode. In 4-bit mode, only four data pins are used, requiring two cycles to send a byte. In 8-bit mode, all eight data pins are used, allowing a byte to be sent in one cycle. However, 4-bit mode is more common due to its simplicity and reduced pin usage.
When troubleshooting issues with your LCD, ensure that all connections are secure and that the power supply is adequate. Also, check the contrast setting and backlight status.
LCDs are used in a wide range of applications, from simple displays for temperature and humidity sensors to complex interfaces for robots and other interactive devices. Their versatility and low power consumption make them ideal for many projects.
As technology advances, LCDs continue to evolve with improvements in resolution, color capabilities, and energy efficiency. Future developments may include more flexible displays and enhanced touch capabilities.
You adjust the contrast by varying the resistance on the potentiometer connected to the VEE pin. Turning the potentiometer clockwise typically increases the contrast.
Check if the RW pin is grounded and if the RS pin is correctly set for data mode. Also, ensure the contrast is properly adjusted and the backlight is turned on.
Yes, you can create custom characters using the `createChar()` function in the LiquidCrystal library. This allows you to create unique symbols or icons.
You can scroll text by moving the cursor and printing the text at different positions using a loop. This is useful for displaying long messages.
In 4-bit mode, only four data pins are used, requiring two cycles to send a byte. In 8-bit mode, all eight data pins are used, allowing a byte to be sent in one cycle.
Displaying strings on an LCD using Arduino is straightforward once you understand the basics of how LCDs work and how to interface them with Arduino. By following the steps outlined in this article, you can easily set up your own LCD projects. Whether you're creating a simple display or a complex interface, LCDs offer a versatile and efficient way to communicate with users.
