Displaying strings on a 16x2 LCD is a fundamental task in many electronic projects, especially when using microcontrollers like Arduino. This article will guide you through the process of setting up and displaying text on a 16x2 LCD, including the necessary hardware connections, understanding the LCD's pinout, and utilizing the LiquidCrystal library in Arduino.
A 16x2 LCD is a type of liquid crystal display that can show 16 characters in each of its two rows, providing a total of 32 characters of information. It is commonly used to display alphanumeric information in various electronic devices, such as digital clocks, calculators, and microcontroller-based projects. The compact size and low power consumption make it an ideal choice for many applications.
The 16x2 LCD typically has 16 pins if it includes a backlight. These pins are organized into two rows of eight pins each and are used for power supply, data communication, and control signals. The key pins include:
- VCC (Pin 1) and GND (Pin 2) for power supply.
- VEE (Pin 3) for contrast adjustment.
- RS (Pin 4) for selecting between command and data registers.
- R/W (Pin 5) for choosing read or write mode.
- E (Pin 6) for enabling data execution.
- D0-D7 (Pins 7-14) for data transmission.
- A (Pin 15) and K (Pin 16) for backlight control.
Understanding these pins is crucial for connecting the LCD to your microcontroller and ensuring proper functionality.
To display a string on a 16x2 LCD using Arduino, follow these steps:

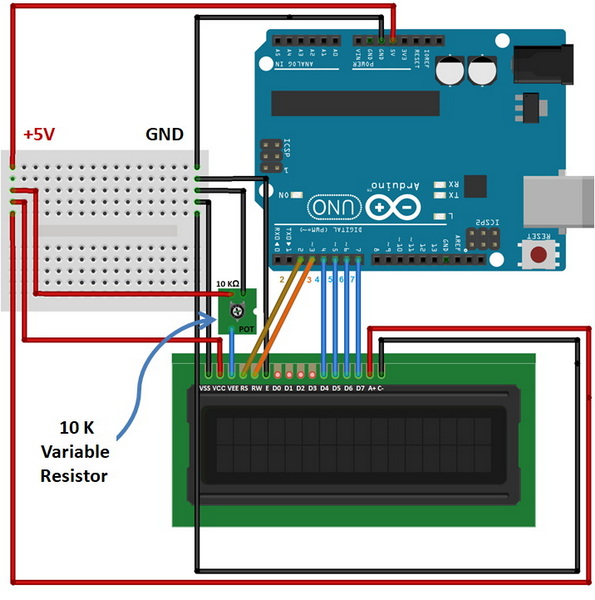

1. Hardware Connections:
- Connect VCC to Arduino's 5V and GND to Arduino's GND.
- Connect VEE to a variable resistor (potentiometer) for contrast adjustment.
- Connect RS to any digital pin (e.g., D12).
- Connect R/W to GND for write mode.
- Connect E to any digital pin (e.g., D11).
- Connect D4-D7 to digital pins (e.g., D5-D8).
- If using backlight, connect A to 5V through a resistor and K to GND.
2. Software Setup:
- Use the LiquidCrystal library in Arduino to simplify the process.
- Define the LCD object with the pin connections.
- Initialize the LCD in the setup function using `lcd.begin(16, 2)`.
- Use `lcd.setCursor()` to set the cursor position and `lcd.print()` to display strings.
- RS (Register Select): When RS is low, the LCD receives commands. When RS is high, it receives data.
- R/W (Read/Write): Set to low for write mode, which is typically used.
- E (Enable): Pulled high to execute commands or data.
These control pins are essential for controlling the flow of data and commands to the LCD.
You can create and display custom characters using the `createChar()` function provided by the LiquidCrystal library. This allows you to store up to eight custom characters in the CGRAM. Custom characters are useful for displaying icons or symbols that are not part of the standard character set.
- Contrast Adjustment: Use a potentiometer to adjust the contrast for better visibility. If the characters are too faint or too dark, adjust the potentiometer until they are clearly visible.
- Backlight Issues: Ensure the backlight pins are correctly connected. If the backlight does not turn on, check the connections and ensure that the resistor is properly connected to limit current.
- Incorrect Display: Check the pin connections and ensure that the LCD is properly initialized in the Arduino code.
You can create a scrolling effect by using the `lcd.setCursor()` function to move the cursor along the rows and columns of the LCD. This is useful for displaying longer messages that do not fit on the screen at once.
You can display numerical values using the `lcd.print()` function. This is useful for displaying sensor readings or other numerical data.
If you need to display more information than a single 16x2 LCD can handle, you can use multiple LCDs. Each LCD will require its own set of connections to the Arduino, but you can control them independently using different instances of the LiquidCrystal library.
16x2 LCDs are versatile and can be used in a variety of projects:
- Weather Stations: Display temperature, humidity, and other environmental data.
- Home Automation: Show status messages or control commands for smart home devices.
- Robotics: Use LCDs to display sensor data or navigation information.
Displaying strings on a 16x2 LCD with Arduino is straightforward once you understand the hardware and software requirements. The LiquidCrystal library simplifies the process, allowing you to focus on your project's functionality. Whether you're building a simple project or a complex system, the 16x2 LCD is a reliable choice for displaying alphanumeric information.
You can adjust the contrast by connecting a variable resistor (potentiometer) to the VEE pin and adjusting it until the characters are clearly visible.
Yes, you can create and display custom characters using the `createChar()` function in the LiquidCrystal library.
The RS pin selects whether the LCD receives commands or data. When RS is low, it receives commands; when RS is high, it receives data.
Connect the backlight anode to 5V through a resistor and the cathode to GND.
Use the LiquidCrystal library, which simplifies controlling the LCD by providing functions for initialization, printing text, and more.
