Displaying content on an LCD screen using Arduino is a fundamental skill for many projects, from simple text displays to complex interactive interfaces. This article will guide you through the process of setting up and programming an LCD display with Arduino, including how to display text and other content.
To start, you need an Arduino board, an LCD display (commonly a 16x2 or 20x4 display), a breadboard, and some jumper wires. The LCD display typically has a parallel interface with pins for power supply, contrast adjustment, register select, read/write mode, enable, data pins (D0-D7), and backlight control.
- Power Supply Pins (Vss/Vcc): These pins power the LCD.
- Contrast Pin (Vo): Adjusts the display contrast.
- Register Select (RS) Pin: Determines whether you are writing to the command or data register.
- Read/Write (R/W) Pin: Selects between read and write modes.
- Enable Pin: Enables writing to the registers.
- Data Pins (D0-D7): Used for data transfer.
- Backlight Pins (Bklt+ and Bklt-): Control the LED backlight.
You can connect the LCD in either 4-bit or 8-bit mode. For most text displays, 4-bit mode is sufficient, requiring seven Arduino pins.

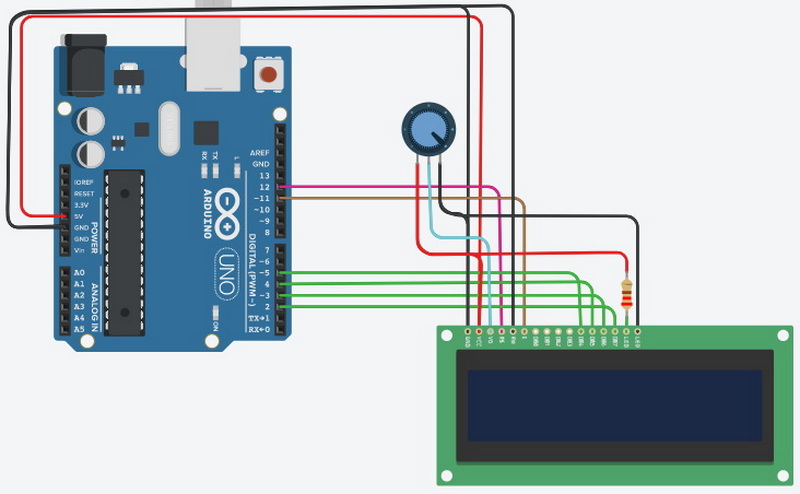

4-Bit Mode Connection:
- RS to any digital pin (e.g., pin 12)
- Enable to any digital pin (e.g., pin 11)
- D4 to any digital pin (e.g., pin 5)
- D5 to any digital pin (e.g., pin 4)
- D6 to any digital pin (e.g., pin 3)
- D7 to any digital pin (e.g., pin 2)
- Vss to GND
- Vcc to 5V
- Vo to a potentiometer for contrast adjustment
- Backlight pins to 5V and GND (if applicable)
For a visual representation, refer to circuit diagrams available online that show how these components are connected on a breadboard. Understanding the circuit layout is crucial for ensuring that your setup works correctly.
To program the LCD, you'll use the LiquidCrystal library in the Arduino IDE.
1. Open the Arduino IDE.
2. Go to Sketch > Include Library > Manage Libraries.
3. Search for "LiquidCrystal" and install it.
1. Create a new sketch.
2. Define the LCD pins and initialize the LCD object.
3. In the `setup()` function, use `lcd.begin()` to set the display dimensions.
4. Use `lcd.print()` to display text.

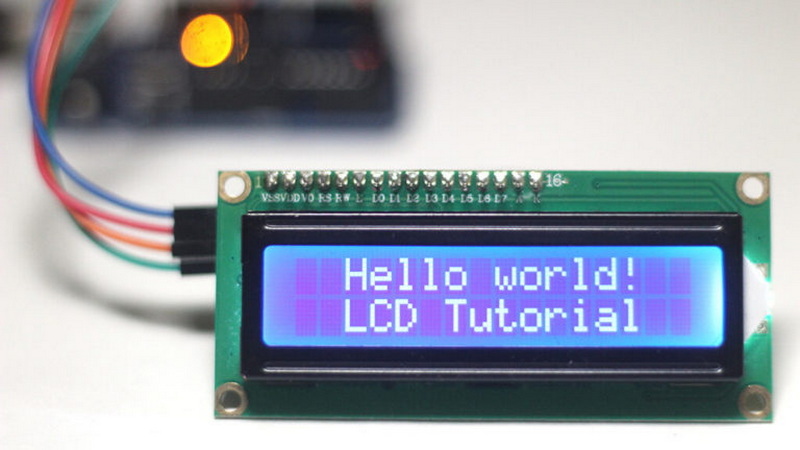

Imagine you want to display "Hello, World!" on the LCD:
- Initialize the LCD object with the pin connections.
- In `setup()`, call `lcd.begin(16, 2)` for a 16x2 display.
- Use `lcd.print("Hello, World!")` to display the message.
- setCursor(column, row): Sets the cursor position for text output.
- clear(): Clears the display.
- blink() and noBlink(): Controls the blinking cursor.
- cursor() and noCursor(): Displays or hides the underscore cursor.
For text longer than the display width, use `scrollDisplayLeft()` or `scrollDisplayRight()` to create a scrolling effect. This is particularly useful for displaying messages that are too long to fit on the screen at once.
While text is the most common content, you can also display numbers and symbols using the `print()` function.
You can display numbers in decimal, binary, hexadecimal, or octal formats using the `print()` function with the appropriate base specifier. This is useful for displaying sensor readings or other numerical data.
You can create custom characters by defining their pixel patterns and storing them in the LCD's memory. This allows you to display icons or symbols that are not part of the standard character set.
To create a custom character, you define a byte array representing the character's pixel pattern. Each byte corresponds to a row of pixels on the LCD. After defining the pattern, you use the `createChar()` function to store it in the LCD's memory and assign it a character code.
Combining the LCD with other components like buttons, sensors, or LEDs can enhance your project's functionality.
You can use buttons to navigate through menus or input data. Connect buttons to digital pins and use the `digitalRead()` function to detect button presses.
Sensors can provide real-time data to display on the LCD. For example, you can display temperature readings from a thermistor or humidity levels from a hygrometer.
LEDs can be used to provide visual feedback or indicators. For instance, you can turn an LED on when a certain condition is met, such as a temperature threshold being exceeded.
If your LCD doesn't display anything, check the following:
- Ensure all connections are secure.
- Adjust the contrast using the potentiometer.
- Verify that the backlight is on (if applicable).
- Check the code for any syntax errors.
As you become more comfortable with basic LCD operations, you can move on to more complex projects.
You can create a menu system by using buttons to navigate through different screens or options. This is useful for projects that require user input or selection.
Using sensors, you can display real-time data such as temperature, humidity, or pressure. This is particularly useful for environmental monitoring projects.
By integrating buttons or other input devices, you can create interactive displays that respond to user input. This can be used in projects like quizzes, games, or interactive kiosks.
Displaying content on an LCD with Arduino is straightforward once you understand the basics of setting up the hardware and using the LiquidCrystal library. With practice, you can create more complex displays and interfaces for your projects. Whether you're building a simple text display or a sophisticated interactive system, the LCD is a versatile tool that can enhance your Arduino projects.
Connect the LCD's RS, Enable, D4-D7 pins to any digital pins on the Arduino. Ensure Vss is connected to GND and Vcc to 5V. Adjust the contrast with a potentiometer.
Use the LiquidCrystal library, which can be installed through the Arduino IDE's Library Manager.
Use the `scrollDisplayLeft()` or `scrollDisplayRight()` functions to create a scrolling effect for text longer than the display width.
Yes, you can create custom characters by defining their pixel patterns and storing them in the LCD's memory.
Check connections, contrast adjustment, backlight status, and ensure there are no syntax errors in your code.
