Displaying numbers on an LCD using the HCS12 microcontroller involves several steps, including setting up the LCD, initializing it, and sending the appropriate commands to display the desired numbers. The HCS12 is a versatile microcontroller used in various embedded systems projects, and interfacing it with an LCD is a common requirement for many applications.
The most commonly used LCDs for such projects are based on the Hitachi HD44780 controller. This controller allows for easy communication with microcontrollers by sending instructions and data through a parallel interface. The LCD can be configured in different modes, such as 8-bit or 4-bit, depending on the available pins and complexity of the setup.

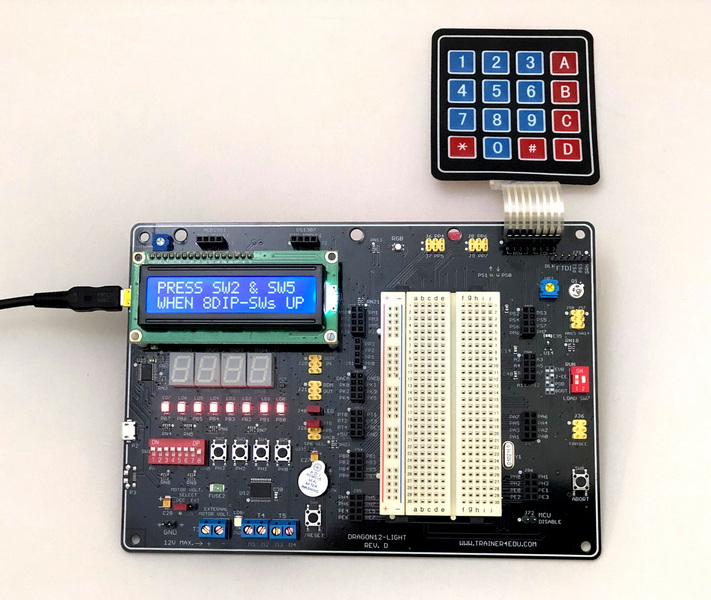

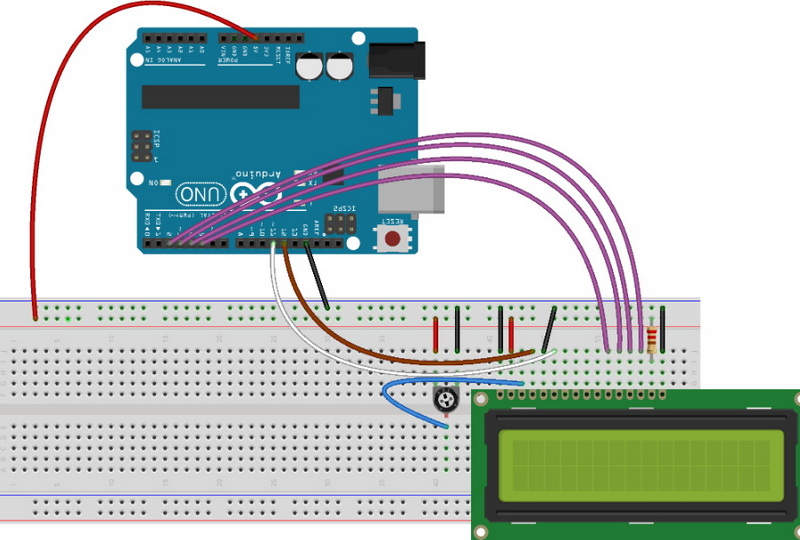

To set up the LCD, you need to connect it to the microcontroller. The Dragon12 board, which uses the HCS12 microcontroller, typically connects the LCD to Port K. The LCD has several pins:
- VSS and VCC: Power supply pins.
- VEE: Contrast adjustment pin.
- RS: Register select pin (0 for instructions, 1 for data).
- R/W: Read/write pin (0 for write, 1 for read).
- E: Enable pin (must receive a falling edge to latch data).
- DB0-DB7: Data bus lines.
Initializing the LCD involves sending a series of commands to set it up in the desired mode. For a typical 2x16 LCD, you would send commands to set it to 4-bit mode, specify the number of lines and font size, and configure the display settings such as turning the display on or off.
To display numbers, you need to convert them into ASCII characters and send these characters to the LCD. For example, to display the number "5", you would send the ASCII code for "5", which is 53 in decimal.
1. Connect the LCD: Ensure all pins are correctly connected to the microcontroller.
2. Initialize the LCD: Send the necessary commands to set up the LCD in 4-bit mode and configure display settings.
3. Send Data: Convert numbers to ASCII and send them to the LCD.
The LCD can operate in either 8-bit or 4-bit mode. The 8-bit mode uses all eight data lines, while the 4-bit mode uses only four, requiring two steps to send each byte. The choice between these modes depends on the availability of pins on the microcontroller and the complexity of the setup. For most projects, the 4-bit mode is preferred due to its efficiency in using fewer pins.
LCDs have limited space, so you must manage how much data is displayed and how it is formatted. This includes deciding on the layout of the text and ensuring that critical information is visible without cluttering the display. Effective use of multiple lines and cursor positioning can enhance the user experience.
Adjusting the contrast (using the VEE pin) is crucial for optimal visibility. The contrast should be adjusted so that characters are clear and easy to read. This is typically done using a potentiometer connected to the VEE pin, allowing for dynamic adjustment based on environmental conditions.
Ensure all connections between the LCD and microcontroller are secure and correct. Loose connections can lead to erratic behavior or failure to display data.
Verify that the initialization and data commands are sent correctly. Use a debugger or serial output to monitor the commands being sent and ensure they match the expected sequence.
Check that the power supply is stable and within the required range. An unstable power supply can cause the LCD to malfunction or display incorrect data.
Some LCDs allow you to define custom characters, which can be useful for logos or special symbols. This involves creating a binary pattern for the character and storing it in the LCD's memory. Custom characters can enhance the visual appeal of the display and provide additional functionality.
Using multiple lines can enhance the user interface by displaying more information. This is particularly useful in applications where multiple parameters need to be monitored simultaneously. Effective use of line breaks and cursor positioning can make the display more intuitive.
In many applications, the data displayed on the LCD needs to be updated dynamically. This can be achieved by continuously sending updated data to the LCD. However, it's important to manage the update rate to avoid flickering or other visual artifacts.
LCDs are commonly used in real-time monitoring systems to display parameters such as temperature, pressure, or speed. The ability to dynamically update the display allows for real-time feedback, which is crucial in control systems.
LCDs are also used in user interfaces for embedded systems, providing a simple and intuitive way to interact with the system. By displaying menus, options, and feedback, LCDs can enhance the user experience and make complex systems more accessible.
For students learning about microcontrollers, interfacing an LCD is a fundamental project that teaches essential skills in hardware integration and programming.
Displaying numbers on an LCD with the HCS12 microcontroller is a fundamental skill for embedded systems development. By understanding how to set up and initialize the LCD, convert numbers to ASCII, and troubleshoot common issues, you can effectively use LCDs in your projects. Whether it's for real-time monitoring, user interfaces, or educational purposes, mastering LCD interfacing opens up a wide range of possibilities in embedded systems design.
The Hitachi HD44780 is the most commonly used LCD controller due to its ease of use and widespread availability.
You adjust the contrast by changing the voltage applied to the VEE pin. This is typically done using a potentiometer.
In 8-bit mode, all eight data lines are used to send data in one step, while in 4-bit mode, only four lines are used, requiring two steps to send each byte.
Custom characters can be defined by sending specific commands to the LCD controller. This involves creating a binary pattern for the character and storing it in the LCD's memory.
Common issues include incorrect connections, insufficient power supply, or incorrect initialization commands. Check each step carefully and ensure that the enable pin receives a falling edge after sending data.
