The LCD 16x2 display is a widely used alphanumeric display module in various electronic projects, especially those involving microcontrollers like Arduino. It provides a simple and effective way to display text or custom characters, making it ideal for applications such as status displays, user interfaces, and more. This article will delve into the basics of using an LCD 16x2 display, including its specifications, how to connect it to a microcontroller, and common applications.

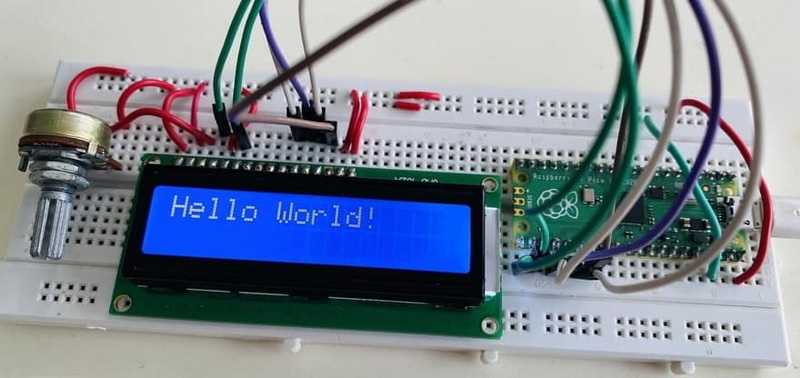

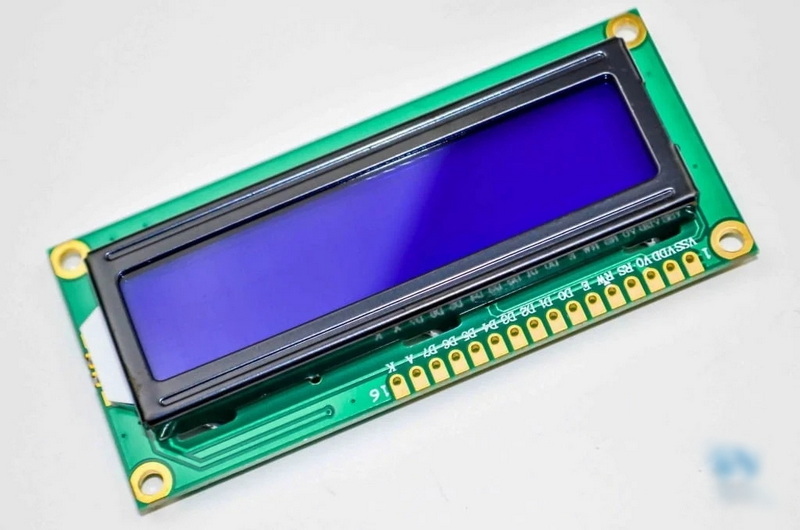

The LCD 16x2 display module typically consists of 16 characters per line, with two lines available for text display. Each character is formed by a 5x8 pixel matrix, allowing for clear and readable text. The display operates at a voltage range of 4.7V to 5.3V and consumes a minimal current of about 1mA without the backlight. The backlight, usually an LED, can be powered separately to enhance visibility in low-light conditions.
- Display Format: 16 characters x 2 lines
- Character Matrix: 5x8 dots
- Operating Voltage: 4.7V to 5.3V
- Backlight: LED
- Interface: 4-bit or 8-bit mode

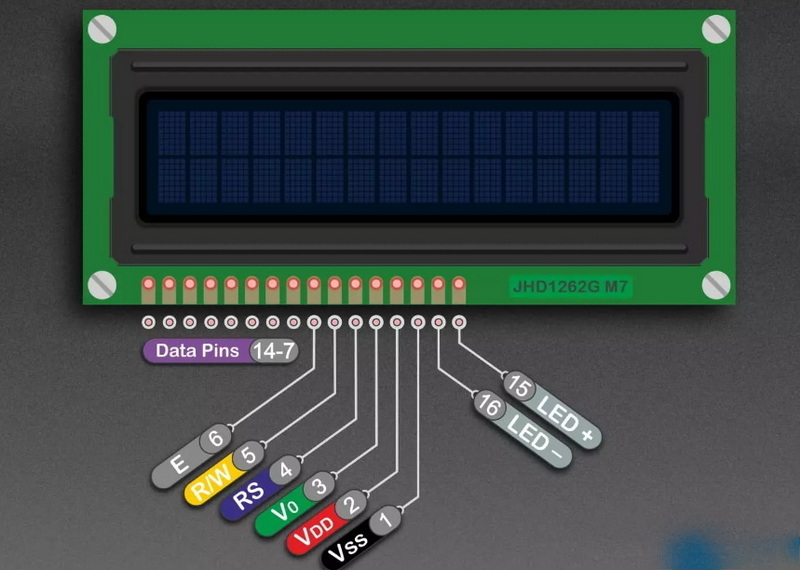

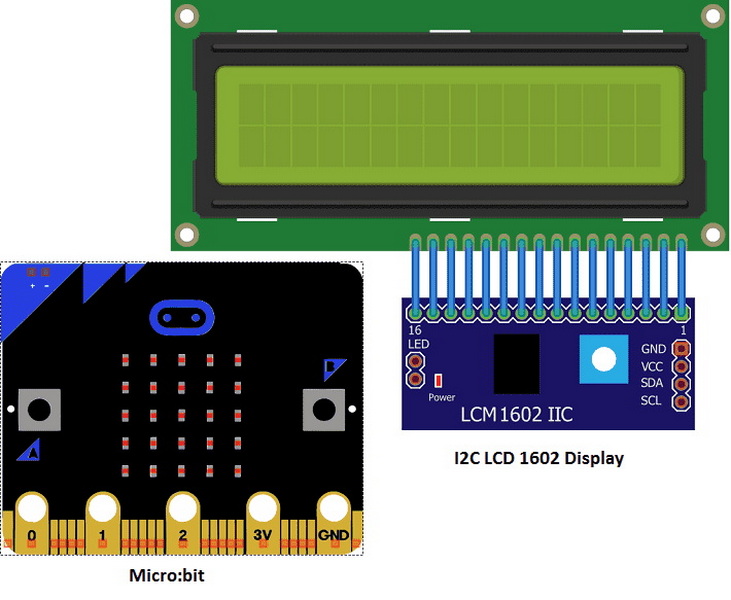

To use an LCD 16x2 with Arduino, you need to connect the display's pins to the Arduino board. The LCD has 16 pins, which include:
- VSS (Pin 1): Ground
- VDD (Pin 2): +5V
- VEE (Pin 3): Contrast adjustment (usually connected to a potentiometer)
- RS (Pin 4): Register select (commands or data)
- R/W (Pin 5): Read/write mode (usually grounded for write mode)
- E (Pin 6): Enable signal
- D0-D7 (Pins 7-14): Data pins
- A and K (Pins 15 and 16): Backlight LED connections
For a basic setup, you can connect the RS, R/W, and E pins to digital pins on the Arduino, and the data pins (D4-D7) for a 4-bit mode connection. The R/W pin is often grounded to keep the LCD in write mode.
To visualize the connections, here is a simplified description:
- Connect the VDD pin to the Arduino's +5V output.
- Connect the VSS pin to the Arduino's GND.
- Connect the VEE pin to a potentiometer for contrast adjustment.
- Connect the RS pin to a digital pin on the Arduino (e.g., Pin 12).
- Connect the R/W pin to GND.
- Connect the E pin to another digital pin on the Arduino (e.g., Pin 11).
- Connect the D4-D7 pins to digital pins on the Arduino (e.g., Pins 5-8).
- Connect the backlight pins (A and K) to a power source if using.
The LCD 16x2 is versatile and can be used in various projects, such as:
- Status Displays: Showing system status, temperature readings, or sensor data.
- User Interfaces: Creating simple menus or input prompts.
- Robotics: Displaying robot status or commands.
A simple weather station that displays temperature and humidity readings using an LCD 16x2 connected to an Arduino. This setup can be expanded to include additional sensors for more comprehensive environmental monitoring.
One of the interesting features of the LCD 16x2 is its ability to display custom characters. You can create symbols or patterns by defining the pixel arrangement for each character. This is useful for displaying icons or logos.
To create a custom character, you define the pixel pattern using binary data. For example, to create a simple heart symbol, you would specify which pixels to turn on in the 5x8 matrix. This process involves converting your desired pattern into a binary format that the LCD can interpret.
Beyond basic text display, the LCD 16x2 can be integrated into more complex systems. For instance, it can be used in home automation projects to display status messages or in educational projects to teach programming concepts.
In a home automation system, an LCD 16x2 can display the status of lights, thermostats, or security systems. Users can interact with the system using buttons or other input devices connected to the microcontroller.
In educational settings, the LCD 16x2 is a great tool for teaching programming and electronics. Students can learn how to interface with the display, create custom characters, and develop interactive projects.
When working with LCD 16x2 displays, you might encounter issues such as:
- No Display: Check connections and ensure the backlight is powered if used.
- Incorrect Characters: Verify the data being sent matches the ASCII table.
- Contrast Issues: Adjust the potentiometer connected to the VEE pin to improve visibility.
- Incorrect Pin Connections: Double-check that all pins are connected correctly according to the datasheet.
- Insufficient Power: Ensure the display is receiving the correct voltage and that the backlight is powered if necessary.
To expand the capabilities of your LCD 16x2 projects, consider integrating additional components:
- Keypads: Allow users to input data or navigate menus.
- Sensors: Add environmental sensing capabilities for temperature, humidity, or light.
- Wireless Modules: Enable remote communication or control.
Connecting a keypad to your Arduino allows users to interact with the LCD display more dynamically. You can create menus, input fields, or even simple games.
Adding sensors can enhance the functionality of your project. For example, a temperature sensor can provide real-time readings displayed on the LCD.
Using wireless modules like Bluetooth or Wi-Fi can enable remote monitoring or control of your project. This is particularly useful for IoT applications.
The LCD 16x2 display is a powerful tool for adding a user interface to electronic projects. Its ease of use, combined with the flexibility of custom characters and simple connection to microcontrollers like Arduino, makes it a staple in many DIY and professional applications.
The typical operating voltage for an LCD 16x2 display ranges from 4.7V to 5.3V.
Contrast is adjusted using a potentiometer connected to the VEE pin. Turning the potentiometer changes the contrast level.
Yes, you can use an LCD 16x2 without a backlight, but it may be harder to read in low-light conditions.
The RS pin is used to select whether you are sending commands or data to the display. Setting RS to low sends commands, while setting it to high sends data.
Custom characters are created by defining the pixel pattern for each character using binary data. This allows you to display symbols or patterns not available in the standard character set.
