Displaying float values on a 16x2 LCD using Arduino is a common requirement in many embedded systems projects. This process involves understanding both the hardware setup and the software techniques necessary to convert and display floating-point numbers effectively. In this article, we will explore the steps and considerations for achieving this task.
To begin, you need the following components:
- Arduino Board: This is the microcontroller that will send commands to the LCD. Common choices include the Arduino Uno or Arduino Nano.
- 16x2 LCD Module: This is the display device capable of showing up to 16 characters across two lines.
- Potentiometer: Used for adjusting the contrast of the LCD to ensure clear visibility.
- Jumper Wires and Breadboard: For connecting the components.

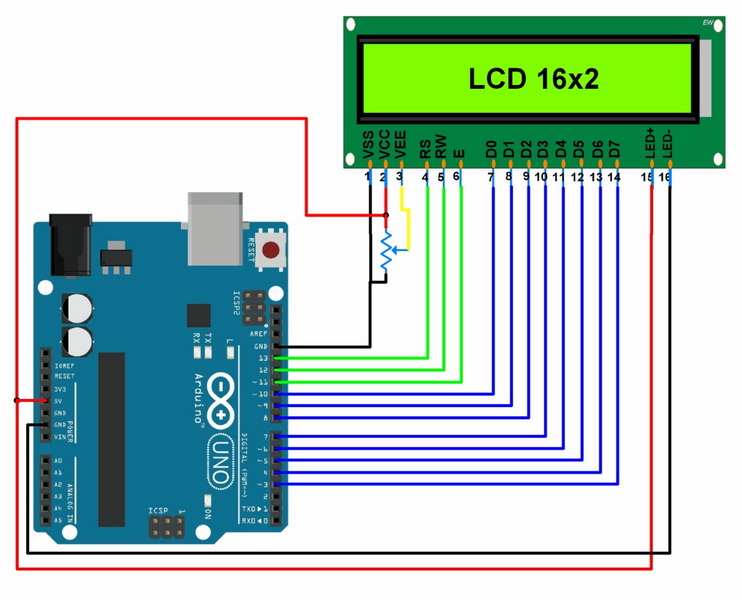

Proper wiring is crucial for the functionality of your LCD. Incorrect connections can lead to issues such as no display output or garbled characters. Always double-check your connections against a wiring diagram before powering up your circuit.
To display float values, you will need to use libraries like LiquidCrystal for direct connections or LiquidCrystal_I2C if your LCD uses the I2C protocol.
1. Include the Library: Start by including the LiquidCrystal library in your Arduino sketch.
2. Initialize the LCD: Initialize the LCD object with the pin connections.
3. Display Float Values: Use the `lcd.print()` function to display values. However, since `lcd.print()` does not natively support float values, you will need to convert them to strings first.
The `dtostrf()` function is commonly used to convert float values into string format that can be printed on the LCD. This function allows you to specify the number of decimal places.
If you want to display a float value with a specific number of decimal places, you can adjust the precision parameter in the `dtostrf()` function. For example, to display a value with one decimal place, you would use a specific configuration that limits the output to one decimal place.
To right-align numbers on your display, you can calculate the length of your number as a string and add spaces before printing it based on its length. This ensures that numbers are consistently aligned, which can be aesthetically pleasing and easier to read.
The conversion function correctly handles negative values as long as they are within the range of the float data type. This means you do not need to implement additional logic to handle negative numbers unless they exceed the float range.
Displaying float values on LCDs is useful in a variety of applications, including:
- Sensors and Monitoring Systems: For displaying temperature, pressure, or other sensor readings.
- Scientific Instruments: Such as voltmeters or multimeters.
- Embedded Systems: In projects requiring numerical data display.
1. Weather Station: Displaying temperature and humidity readings.
2. Robotics: Displaying sensor data like distance or speed.
3. Industrial Automation: Displaying process parameters like pressure or flow rate.
- No Display Output: Check wiring and ensure the LCD is properly powered.
- Garbled Characters: Verify that the LCD is correctly initialized and that the baud rate matches the expected value.
- Incorrect Decimal Places: Ensure the precision parameter is set correctly.
1. Use a Breadboard: For easier prototyping and debugging.
2. Test Components Individually: Before integrating them into your project.
3. Document Your Work: Keep track of your wiring and code changes.
Displaying float values on a 16x2 LCD with Arduino involves understanding both hardware connections and software techniques. By using libraries like LiquidCrystal and functions like `dtostrf()`, you can effectively display numerical data in your projects.
Yes, you can use libraries like LiquidCrystal_I2C if your LCD uses the I2C protocol.
Use a potentiometer connected to the VO pin of the LCD and adjust it until characters are clearly visible.
Yes, the conversion function handles negative values correctly.
Increase the precision parameter in the conversion function.
Yes, by calculating the length of your number as a string and adding spaces before printing it.
Use the conversion function and adjust the precision parameter to specify the number of decimal places.
Check the wiring and ensure the LCD is properly powered. Also, verify that the LCD is correctly initialized in your code.
Calculate the length of your number as a string and add spaces before printing it based on its length.
Yes, depending on your LCD's interface, you can use libraries like LiquidCrystal_I2C for I2C connections.
The conversion function correctly handles negative values as long as they are within the range of the float data type.
