Are you looking to add a visual interface to your Arduino Mega project? Connecting an LCD display to your Arduino Mega can open up a world of possibilities for displaying information, creating user interfaces, and enhancing your projects. In this comprehensive guide, we'll walk you through the process of connecting an LCD display to an Arduino Mega, covering everything from the basics to advanced techniques.
Before we dive into the connection process, let's briefly discuss LCD displays and their importance in Arduino projects.
LCD (Liquid Crystal Display) screens are versatile output devices that can display text, numbers, and even simple graphics. They are widely used in Arduino projects due to their low power consumption, affordability, and ease of use. The most common type of LCD used with Arduino is the 16x2 character LCD, which can display 16 characters across 2 lines.
While the 16x2 LCD is popular, there are various other types of LCD displays compatible with Arduino Mega:
1. 20x4 LCD: Offers more screen real estate with 20 characters across 4 lines.

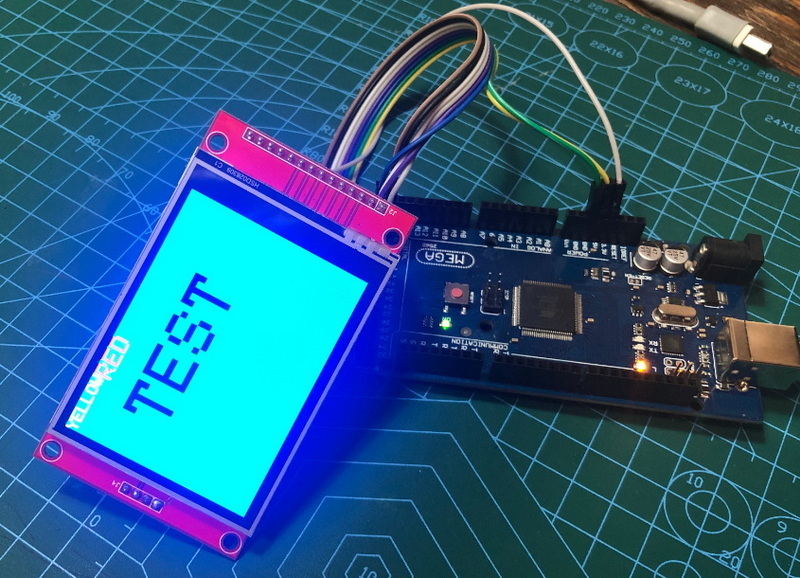

2. Graphical LCD: Allows for more complex visuals and custom graphics.
3. OLED displays: Provide higher contrast and wider viewing angles.
Each type has its advantages, and the choice depends on your project requirements.
To connect an LCD display to your Arduino Mega, you'll need the following components:
- Arduino Mega 2560 board
- 16x2 LCD display (compatible with HD44780 controller)
- Jumper wires
- Breadboard (optional, but recommended for prototyping)
- 10k potentiometer (for adjusting contrast)
- 220-ohm resistor (for LED backlight, if needed)

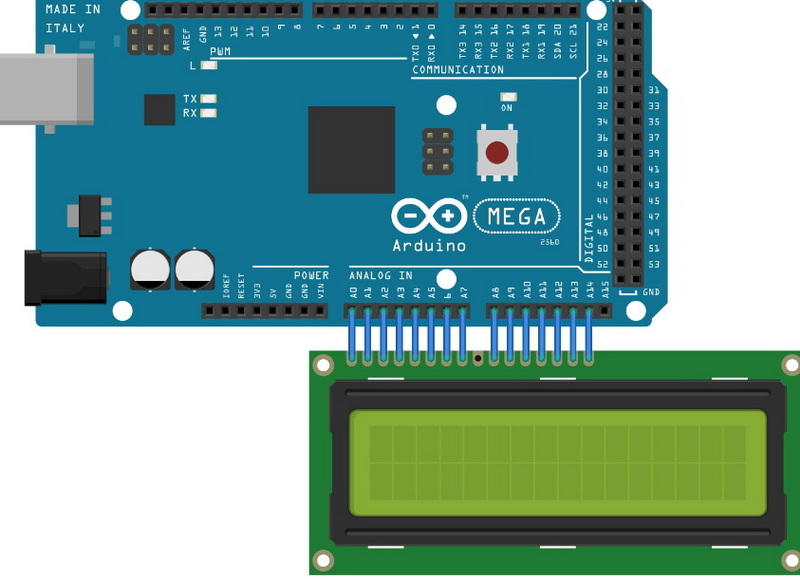

Now, let's go through the step-by-step process of connecting your LCD display to the Arduino Mega.
First, familiarize yourself with the pins on your LCD display. A typical 16x2 LCD has 16 pins:
1. VSS (Ground)
2. VDD (+5V power)
3. V0 (Contrast adjustment)
4. RS (Register Select)
5. R/W (Read/Write)
6. E (Enable)
7-14. D0-D7 (Data pins)
15. A (Backlight Anode)
16. K (Backlight Cathode)
- Connect the VSS pin (1) to the Arduino Mega's GND.
- Connect the VDD pin (2) to the Arduino Mega's 5V.
- Connect the V0 pin (3) to the middle pin of your 10k potentiometer.
- Connect one outer pin of the potentiometer to 5V and the other to GND.
- Connect the RS pin (4) to Arduino Mega's digital pin 12.
- Connect the R/W pin (5) to Arduino Mega's GND.
- Connect the E pin (6) to Arduino Mega's digital pin 11.
We'll use the LCD in 4-bit mode to save Arduino pins:
- Connect D4 (11) to Arduino Mega's digital pin 5.
- Connect D5 (12) to Arduino Mega's digital pin 4.
- Connect D6 (13) to Arduino Mega's digital pin 3.
- Connect D7 (14) to Arduino Mega's digital pin 2.
If your LCD has a backlight:
- Connect the A pin (15) to Arduino Mega's 5V through a 220-ohm resistor.
- Connect the K pin (16) to Arduino Mega's GND.
Now that we have our hardware set up, let's discuss programming the Arduino Mega to control the LCD display.
The LiquidCrystal library is a powerful tool for controlling LCD displays with Arduino. It provides a set of functions that simplify the process of sending commands and data to the LCD. Some key functions include:
- begin(): Initializes the LCD with the number of columns and rows
- print(): Displays text on the LCD
- setCursor(): Positions the cursor on the LCD
- clear(): Clears the LCD screen
- home(): Moves the cursor to the home position (0,0)
Once you've set up your LCD and included the LiquidCrystal library, you can perform various operations:
1. Displaying text: Use the print() function to show text on the LCD.
2. Positioning the cursor: Use setCursor() to move the cursor to a specific location.
3. Clearing the display: Use clear() to erase all content from the screen.
4. Creating custom characters: Define and display custom characters using createChar().
As you become more comfortable with basic LCD operations, you can explore more advanced techniques:
1. Scrolling text: Implement text scrolling for longer messages that don't fit on the screen.
2. Animations: Create simple animations by rapidly updating custom characters.
3. Menu systems: Design interactive menu systems for user input and navigation.
4. Data logging: Display real-time data from sensors connected to your Arduino Mega.
To get the best performance from your LCD display, consider the following tips:
1. Use 4-bit mode: This saves pins on your Arduino Mega and is sufficient for most applications.
2. Implement efficient updates: Only update parts of the screen that have changed to reduce flickering.
3. Use custom characters wisely: Custom characters can enhance your display but use memory, so use them judiciously.
4. Consider using interrupts: For time-sensitive applications, use interrupts to update the LCD without blocking other code execution.
Once you've mastered the basics of connecting and controlling an LCD display, you can expand your project in various ways:
Incorporate buttons or a keypad to create an interactive interface. This allows users to navigate menus, input data, or control your project's functions.
Connect sensors to your Arduino Mega and display their readings on the LCD. This is useful for projects like weather stations, environmental monitors, or fitness trackers.
Use the LCD to display data that your Arduino Mega is logging to an SD card or sending to a computer via serial communication.
Design simple games that use the LCD as a display and buttons for controls. This can be a fun way to learn about game programming and user interface design.
When working with LCD displays and Arduino Mega, you might encounter some common issues. Here are some troubleshooting tips:
- Check all connections, ensuring they're secure and correct.
- Adjust the contrast using the potentiometer.
- Verify that the LCD is receiving proper power (5V and GND).
- Double-check your code for initialization errors.
- Ensure you're using the correct LCD library for your display type.
- Verify that all data pins are connected correctly.
- Check for infinite loops or blocking code in your sketch.
- Ensure that you're not overwhelming the Arduino with rapid updates.
- Consider using interrupts for time-sensitive operations.
- Verify that your power supply can handle the current draw of the LCD and backlight.
- Use capacitors to smooth out power fluctuations if necessary.
- Reduce the frequency of screen updates in your code.
As technology advances, we're seeing new developments in LCD and display technology that could impact future Arduino projects:
1. Higher resolution displays: Increasing pixel density allows for more detailed graphics and text.
2. Color LCD modules: More affordable color LCDs are becoming available for microcontroller projects.
3. Flexible displays: Bendable and rollable displays could enable new form factors for projects.
4. E-paper displays: Low-power, high-contrast displays that retain images without power are becoming more accessible.
Keep an eye on these trends as they may offer new possibilities for your Arduino Mega projects in the future.
Connecting an LCD display to your Arduino Mega opens up a world of possibilities for your projects. From simple text displays to interactive user interfaces, the LCD can significantly enhance your Arduino creations. With the knowledge gained from this guide, you're now equipped to incorporate LCD displays into your Arduino Mega projects confidently.
Remember to experiment, explore the LiquidCrystal library documentation, and don't hesitate to push the boundaries of what you can achieve with your LCD display and Arduino Mega combination. As you gain experience, you'll find that LCD displays can be powerful tools for visualizing data, creating interfaces, and bringing your Arduino projects to life.
Whether you're building a home automation system, a custom scientific instrument, or an interactive art installation, the combination of an Arduino Mega and an LCD display provides a robust platform for turning your ideas into reality. So go ahead, connect that LCD, start coding, and watch your projects come to life on screen!
1. 4-bit mode uses fewer Arduino pins but requires two write operations per byte.
2. 8-bit mode is faster but uses more Arduino pins.
3. 4-bit mode is generally preferred for most projects to save I/O pins.
1. Yes, you can use larger displays like 20x4 LCDs.
2. The wiring remains similar, but you may need to adjust the code.
3. Ensure your power supply can handle the increased current draw of larger displays.
1. Use 4-bit mode instead of 8-bit mode.

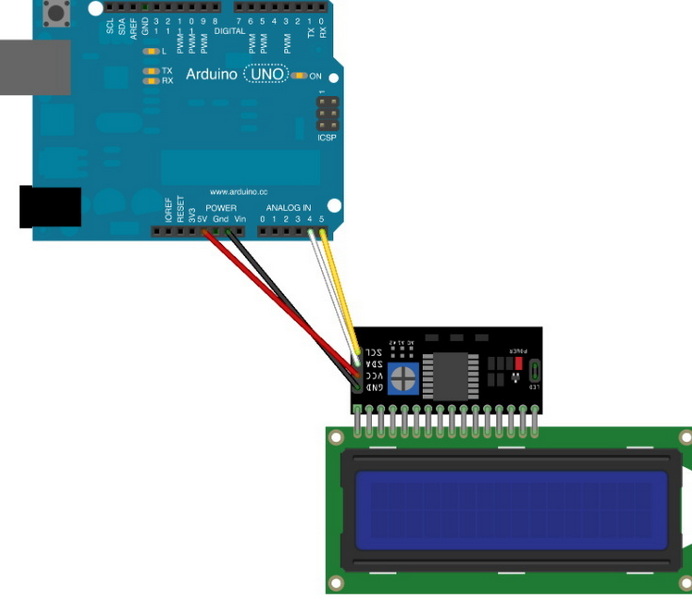

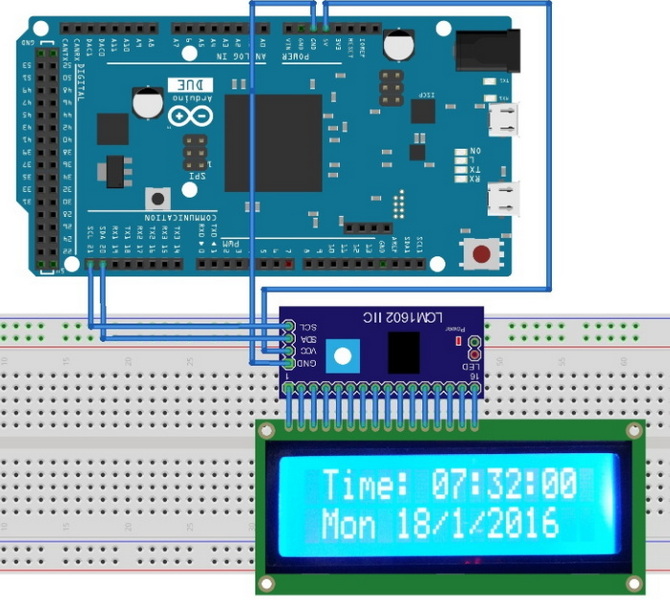

2. Utilize an I2C LCD adapter to reduce connections to just two pins (SDA and SCL).
3. Consider using a shift register to control the LCD with fewer pins.
1. Character LCDs are primarily designed for text and simple symbols.
2. You can create custom characters for basic graphics.
3. For more advanced graphics, consider using a graphical LCD instead.
1. Turn off the backlight when not needed.
2. Put the LCD in sleep mode during periods of inactivity.
3. Use a lower contrast setting to reduce power consumption.
